Fig. 285: Measuring Resistance Between No. 15 Terminal Of SRS Unit Connector B (28P) And
No. 2 Terminal Of Front Passenger's Seat Wire Harness 3P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the resistance as specified?

YES - Faulty SRS unit; replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO - Open in the front passenger's seat wire harness or right side wire harness; replace the faulty
harness.

DTC 62-2X ("X" CAN BE 0 THRU 9 OR A THRU F): SHORT IN FRONT PASSENGER'S SEAT
BELT BUCKLE SWITCH

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), then buckle and unbuckle the front passenger's seat belt several

times.

3. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 62-2x indicated?

YES - Go to step 4.

NO - Intermittent failure, the system is OK at this time. Go to TROUBLESHOOTING
INTERMITTENT FAILURES . If another DTC is indicated, troubleshoot the DTC.

4. Turn the ignition switch OFF.

5. Disconnect the front passenger's seat belt buckle switch 3P connector (A) from the front passenger's

seat wire harness.

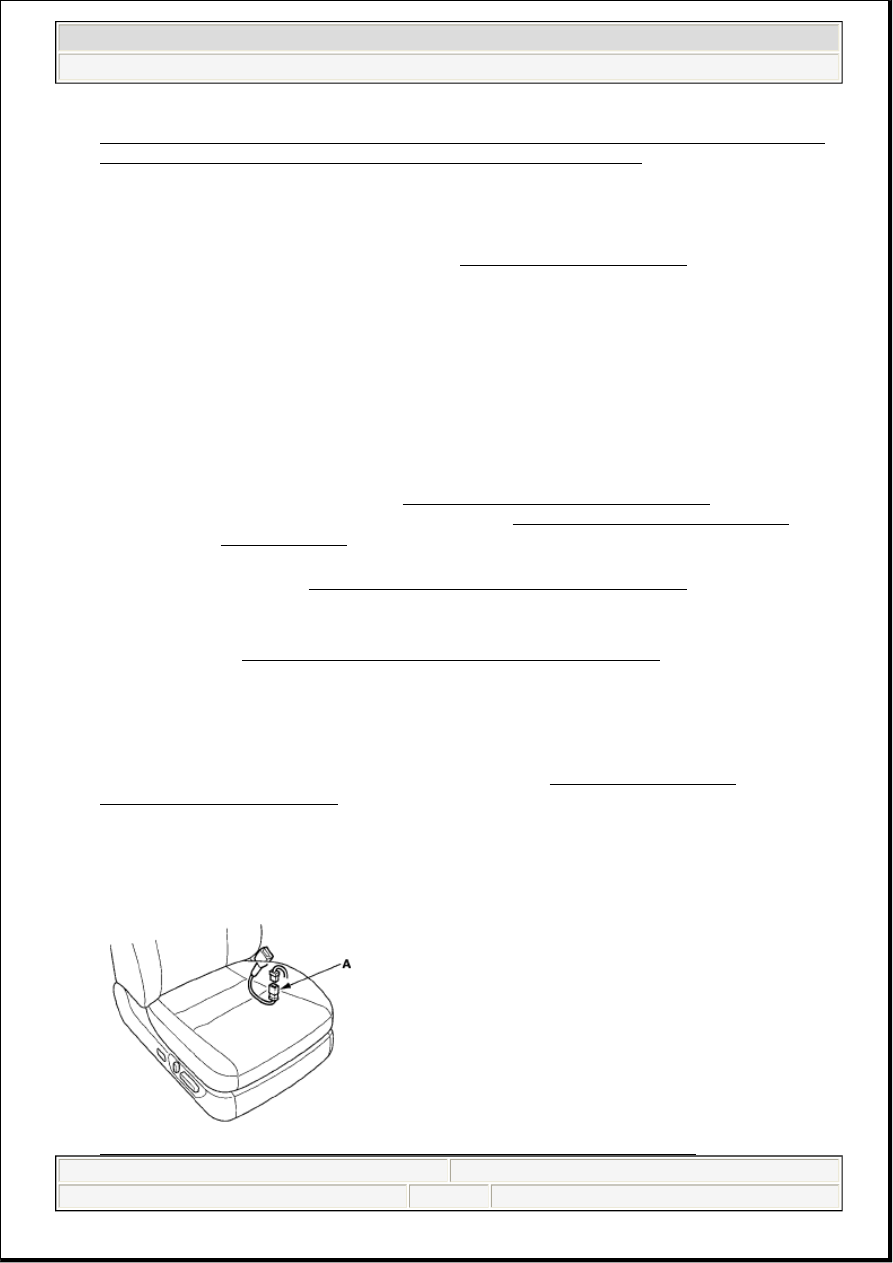

Fig. 286: Identifying Front Passenger's Seat Belt Buckle Switch 3P Connector

NOTE:



If DTC 61-21 is also set, troubleshoot and repair DTC 61-21 before
proceeding.



Before doing this troubleshooting procedure, review SRS Precautions
and Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:57 PM

Page 208  © 2005 Mitchell Repair Information Company, LLC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Buckle the front passenger's seat belt.



Measure the resistance between the No. 1 and No. 3 terminals of the front passenger's seat belt
buckle switch 3P connector. There should be 0-1 ohms.



Measure the resistance between the No. 2 and No. 3 terminals of the same connector. There
should be an open circuit or at least 1 Mohms.

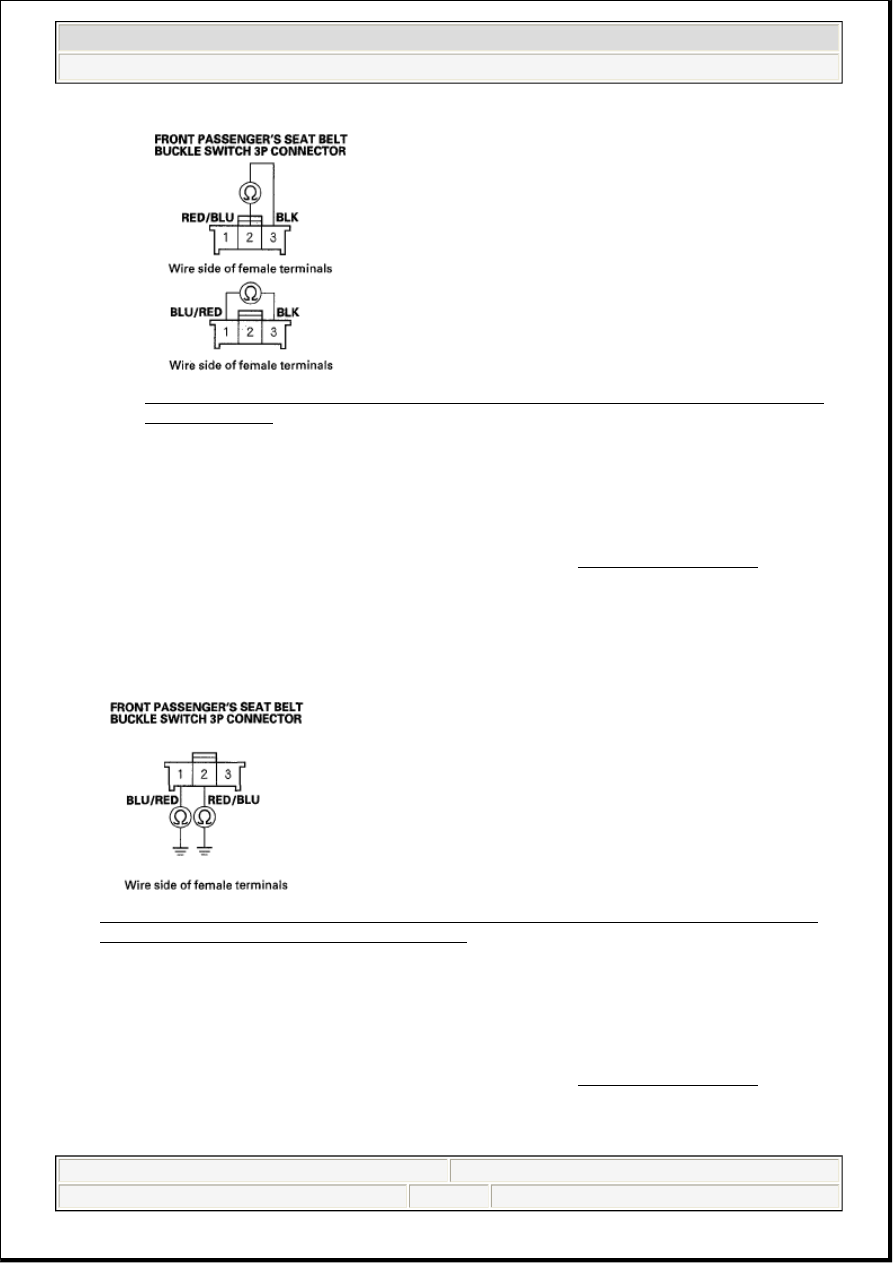

Fig. 287: Measuring Resistance Between No. 1 and No. 3 [No. 2 And No. 3] Terminals Of
Same Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Are the resistances as specified?

YES - Go to step 7.

NO - Replace the front passenger's seat belt buckle assembly (see SEAT BELT BUCKLE ), then
clear the DTC.

7. Unbuckle the front passenger's seat belt.



Measure the resistance between the No. 2 and No. 3 terminals of the front passenger's seat belt
buckle switch 3P connector. There should be 0-1 ohms.



Measure the resistance between the No. 1 and No. 3 terminals of the same connector. There
should be an open circuit or at least 1 M ohms.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:57 PM

Page 209  © 2005 Mitchell Repair Information Company, LLC.

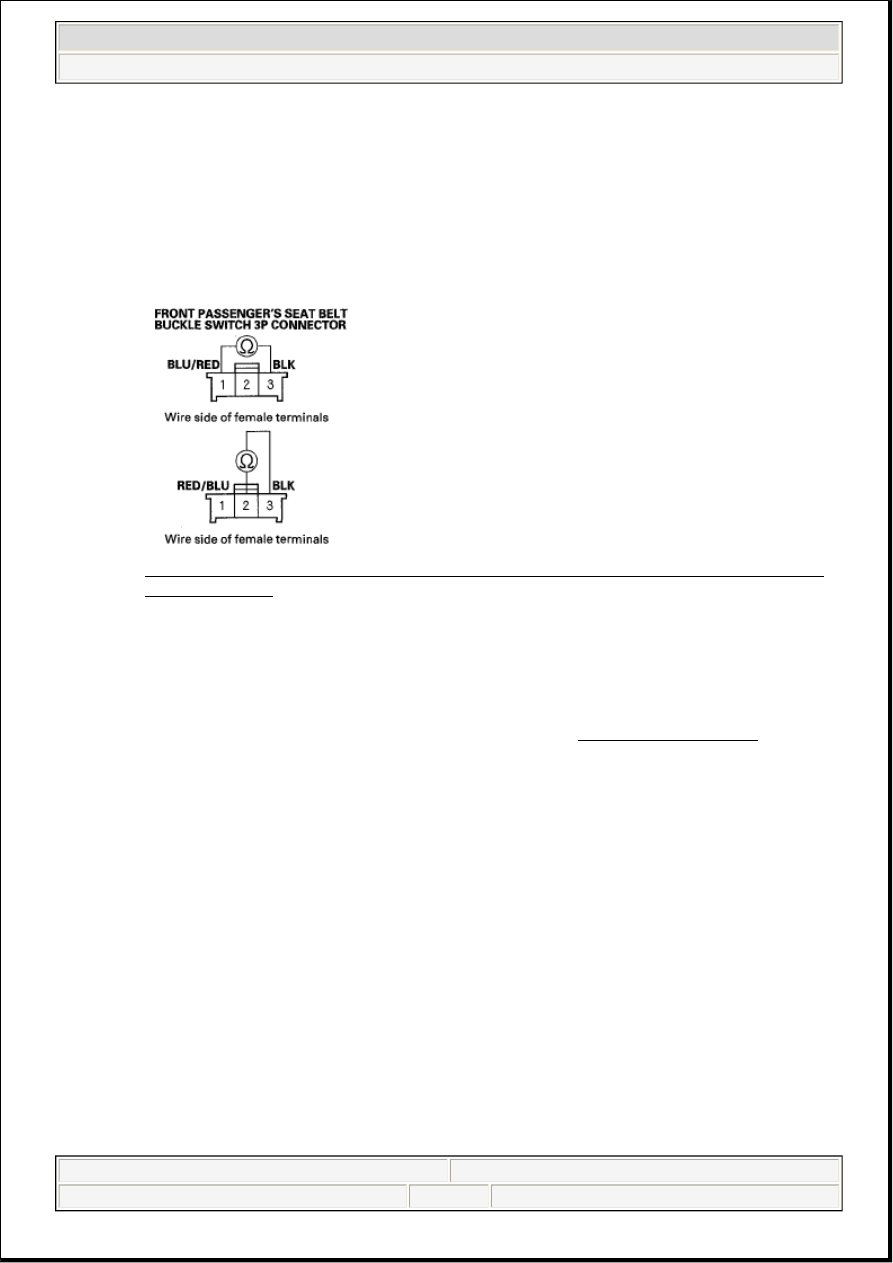

Fig. 288: Measuring Resistance Between No. 2 and No. 3 [No. 1 And No. 3] Terminals Of
Same Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Are the resistances as specified?

YES - Go to step 8.

NO - Replace the front passenger's seat belt buckle assembly (see SEAT BELT BUCKLE ), then
clear the DTC.

8. Measure the resistance between the No.1 terminal of the front passenger's seat belt buckle switch 3P

connector and body ground, and between the No. 2 terminal and body ground. There should be an
open circuit or at least 1Mohms.

Fig. 289: Measuring Resistance Between No.1 [No.2] Terminal Of Front Passenger's Seat Belt
Buckle Switch 3P Connector And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the resistance as specified?

YES - Go to step 9.

NO - Replace the front passenger's seat belt buckle assembly (see SEAT BELT BUCKLE ).

9. Disconnect the negative cable from the battery, then wait for 3 minutes.

10. Disconnect both seat belt tensioner 4P connectors from the left side wire harness and right side wire



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:57 PM

Page 210  © 2005 Mitchell Repair Information Company, LLC.

harness (see step 6 ).

11. Disconnect SRS unit connector B (28P) from the SRS unit (see step 7 ).

12. Measure the resistance between the No. 2 terminal of the front passenger's seat wire harness 3P

connector and body ground. There should be an open circuit or at least 1 M ohms.

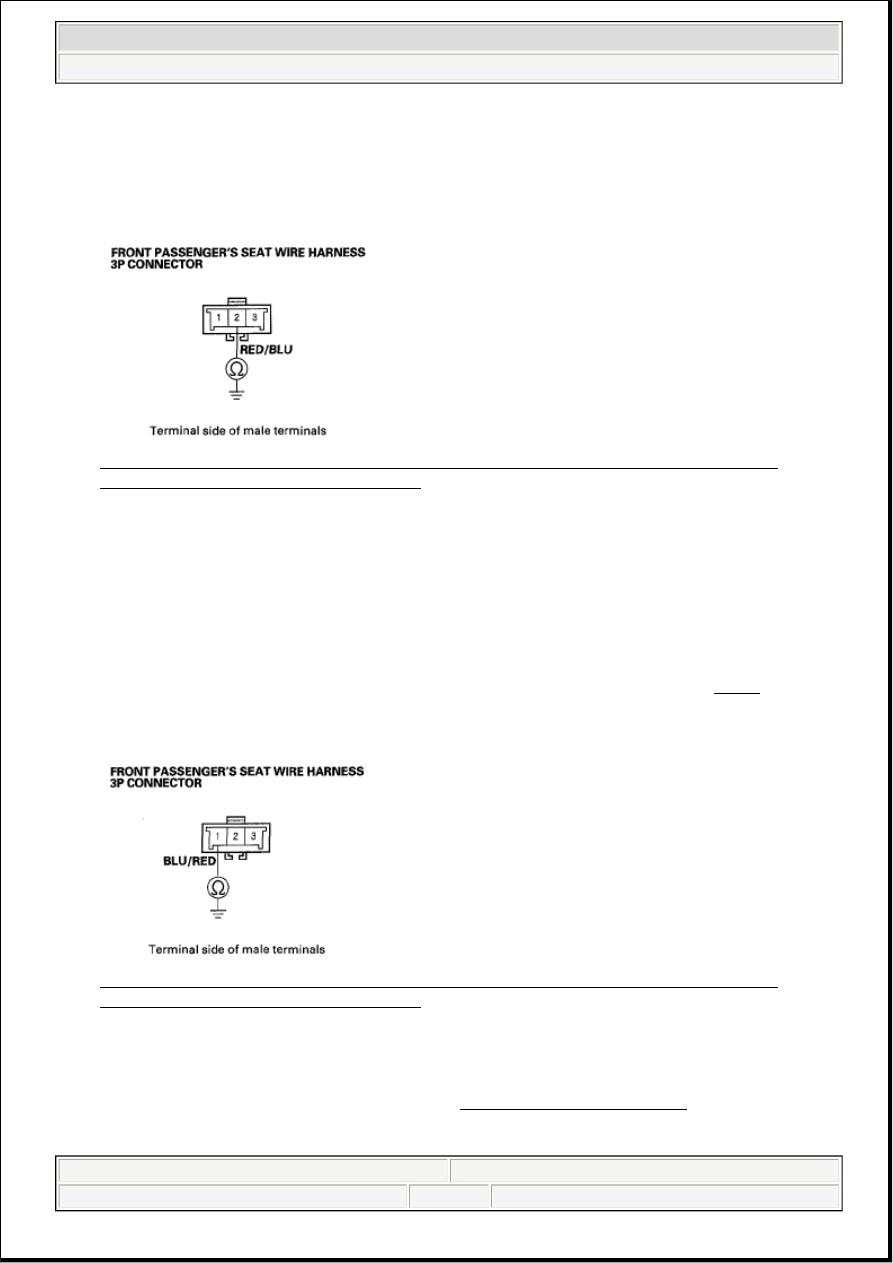

Fig. 290: Measuring Resistance Between No. 2 Terminal Of Front Passenger's Seat Wire
