9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

10. Disconnect the dashboard wire harness B 4P connector (A) from the cable reel.

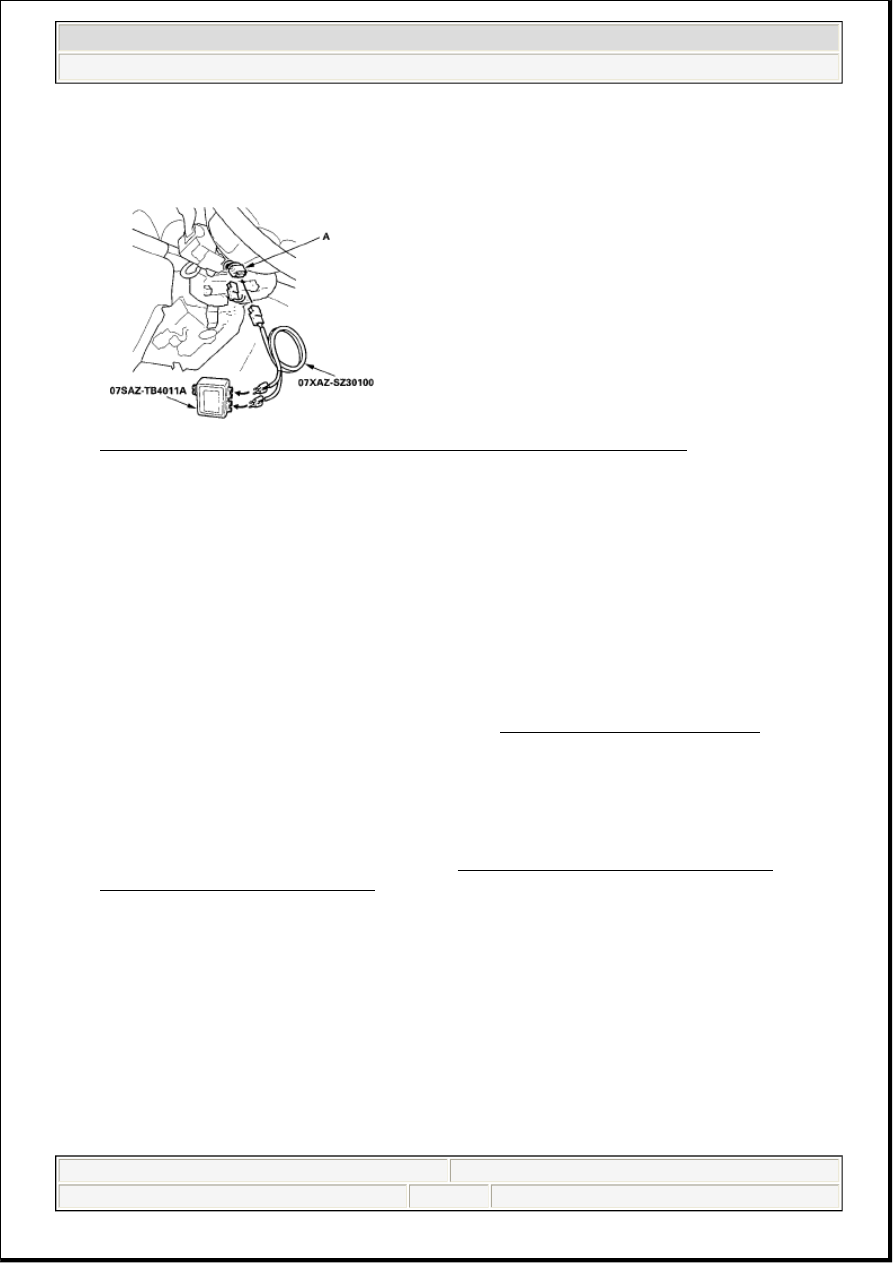

Fig. 71: Identifying Dashboard Wire Harness B 4P Connector Of Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Connect the SRS inflator simulator (2 ohms connectors) and simulator lead F to dashboard wire

harness B.

12. Reconnect the negative cable to the battery.

13. Clear the DTC memory.

14. Read the DTC.

Is DTC 11-3x or 11-6x indicated?

YES - Go to step 15.

NO - Short in the cable reel; replace the cable reel (see CABLE REEL REPLACEMENT ).

15. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

16. Disconnect SRS unit connector A (28P) from the SRS unit (see step 7 ).

17. Disconnect the SRS inflator simulator from the SRS simulator lead.

18. Connect a SRS short canceller (070AZ-SAA0100) to No. 7 and No. 8 terminals and No. 1 and No. 2

terminals of the SRS unit connector A (28P) (see OPENING THE SRS UNIT SHORTING
CONNECTORS FOR DIAGNOSIS ).

19. Measure the resistance between the terminals of both SRS simulator leads. There should be an open

circuit or at least 1 Mohms.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 64

© 2005 Mitchell Repair Information Company, LLC.

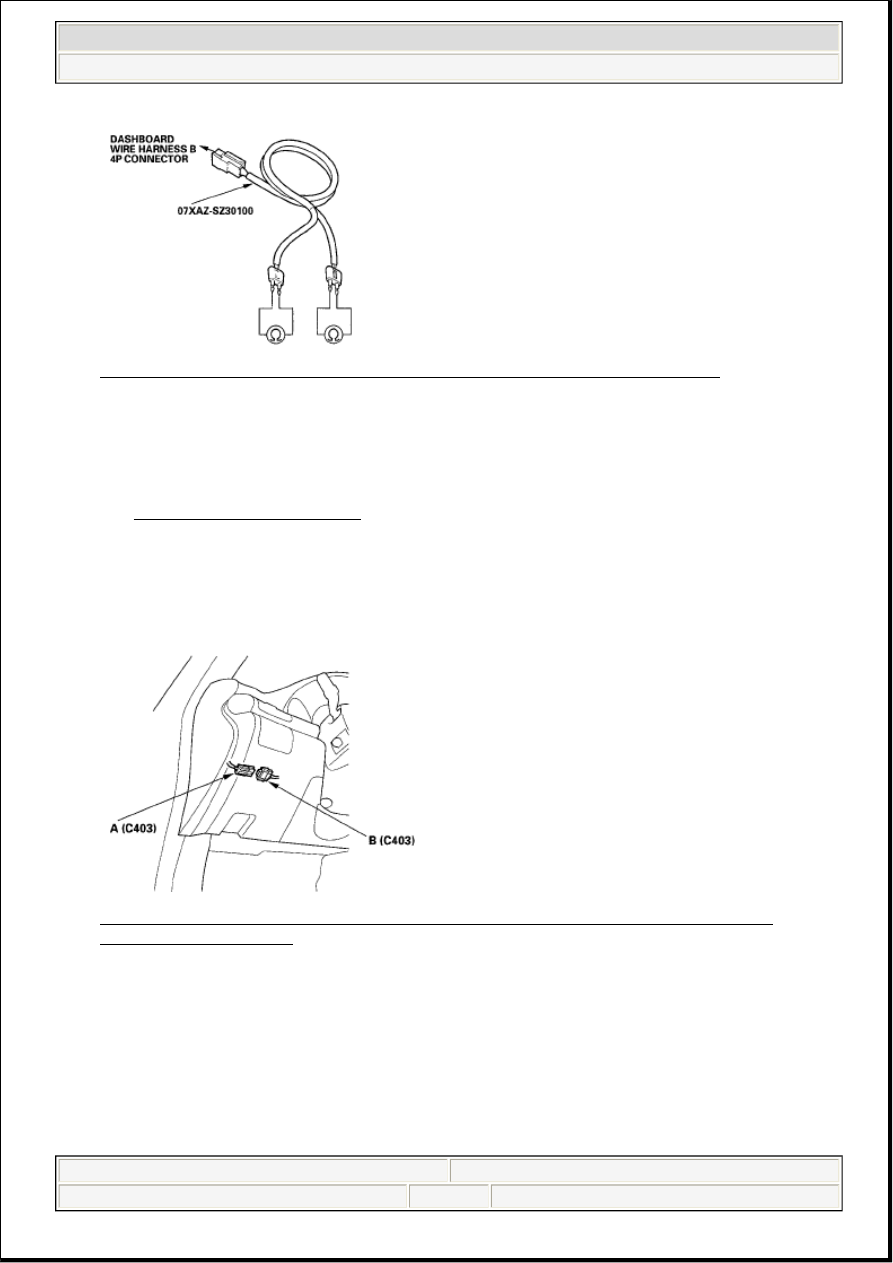

Fig. 72: Measuring Resistance Between Terminals Of Both SRS Simulator Leads
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the resistance as specified?

YES - Faulty SRS unit or poor connection at SRS unit connector A (28P) and the SRS unit. Check the
connection between the connector and the SRS unit. If the connection is OK, replace the SRS unit
(see SRS UNIT REPLACEMENT ).

NO - Go to step 20.

20. Disconnect dashboard wire harness A 4P connector C403 from dashboard wire harness B connector

C403.

Fig. 73: Identifying Dashboard Wire Harness 4P Connector C403 And Dashboard Wire
Harness Connector C403
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. Measure the resistance between the No. 1 and No. 2 terminals of dashboard wire harness A 4P

connector C403, and between the No. 3 and No. 4 terminals. There should be an open circuit or at
least 1M ohms.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 65

© 2005 Mitchell Repair Information Company, LLC.

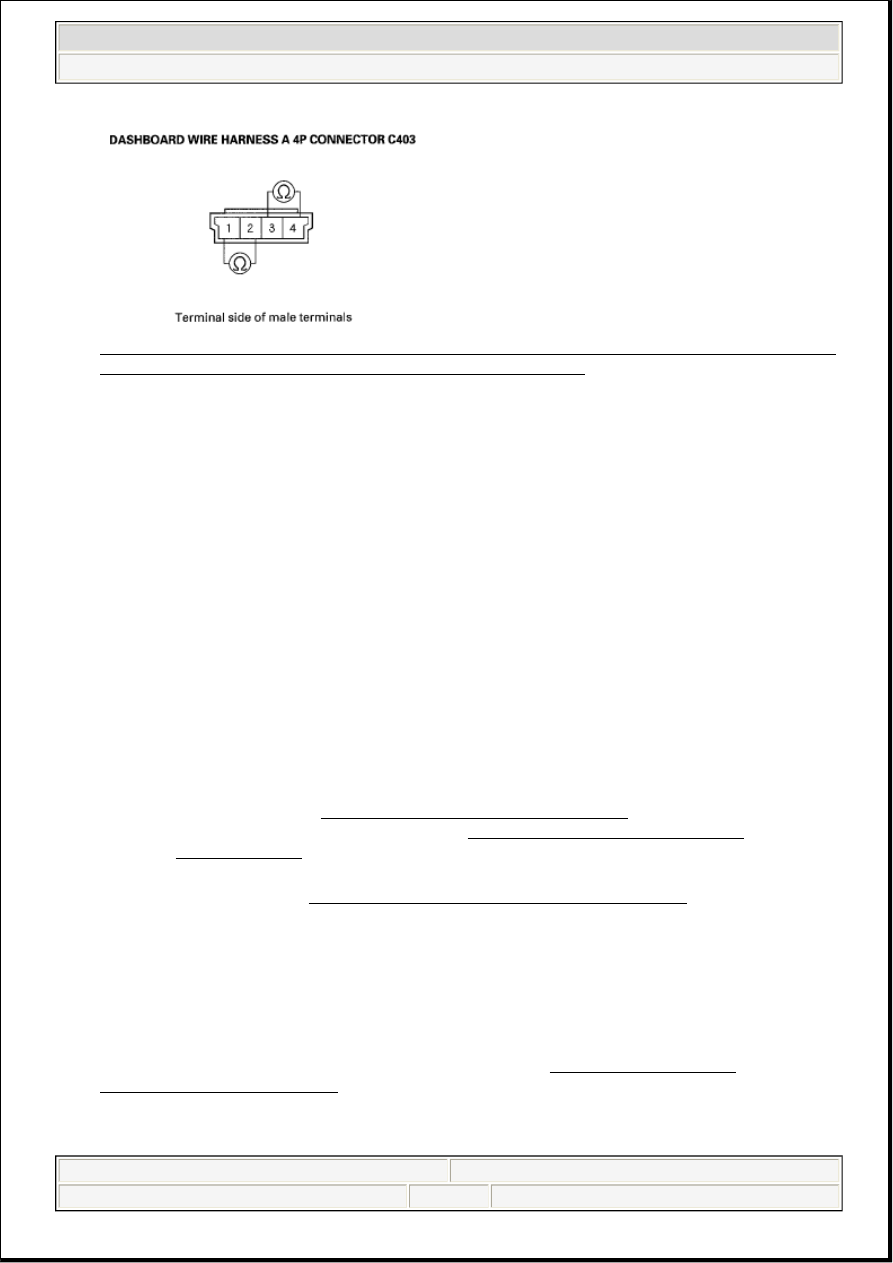

Fig. 74: Measuring Resistance Between No. 1 And No. 2 Terminals Of Dashboard Wire Harness
A 4P Connector C403 And Between No. 3 And No. 4 Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the resistance as specified?

YES - Short in dashboard wire harness B; replace dashboard wire harness B.

NO - Short in dashboard wire harness A; replace dashboard wire harness A.

DTC 11-3X ("X" CAN BE 0 THRU 9 OR A THRU F): SHORT TO ANOTHER WIRE OR
DECREASED RESISTANCE IN DRIVER'S AIRBAG FIRST INFLATOR ('06-08 MODELS); DTC
11-6X ("X" CAN BE 0 THRU 9 OR A THRU F): SHORT TO ANOTHER WIRE OR DECREASED
RESISTANCE IN DRIVER'S AIRBAG SECOND INFLATOR ('06-08 MODELS)

Special Tools Required



SRS inflator simulator 07SAZ-TB4011A



SRS simulator lead F 07XAZ-SZ30100



SRS short canceller 070AZ-SAA0100

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and

then goes off.

Does the SRS indicator stay on, and is DTC 11-3x or 11-6x indicated?

YES - Go to step 3.

NO - Intermittent failure, the system is OK at this time. Go to TROUBLESHOOTING
INTERMITTENT FAILURES . If another DTC is indicated, troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 66

© 2005 Mitchell Repair Information Company, LLC.

4. Disconnect the driver's airbag 4P connector (A) from the cable reel.

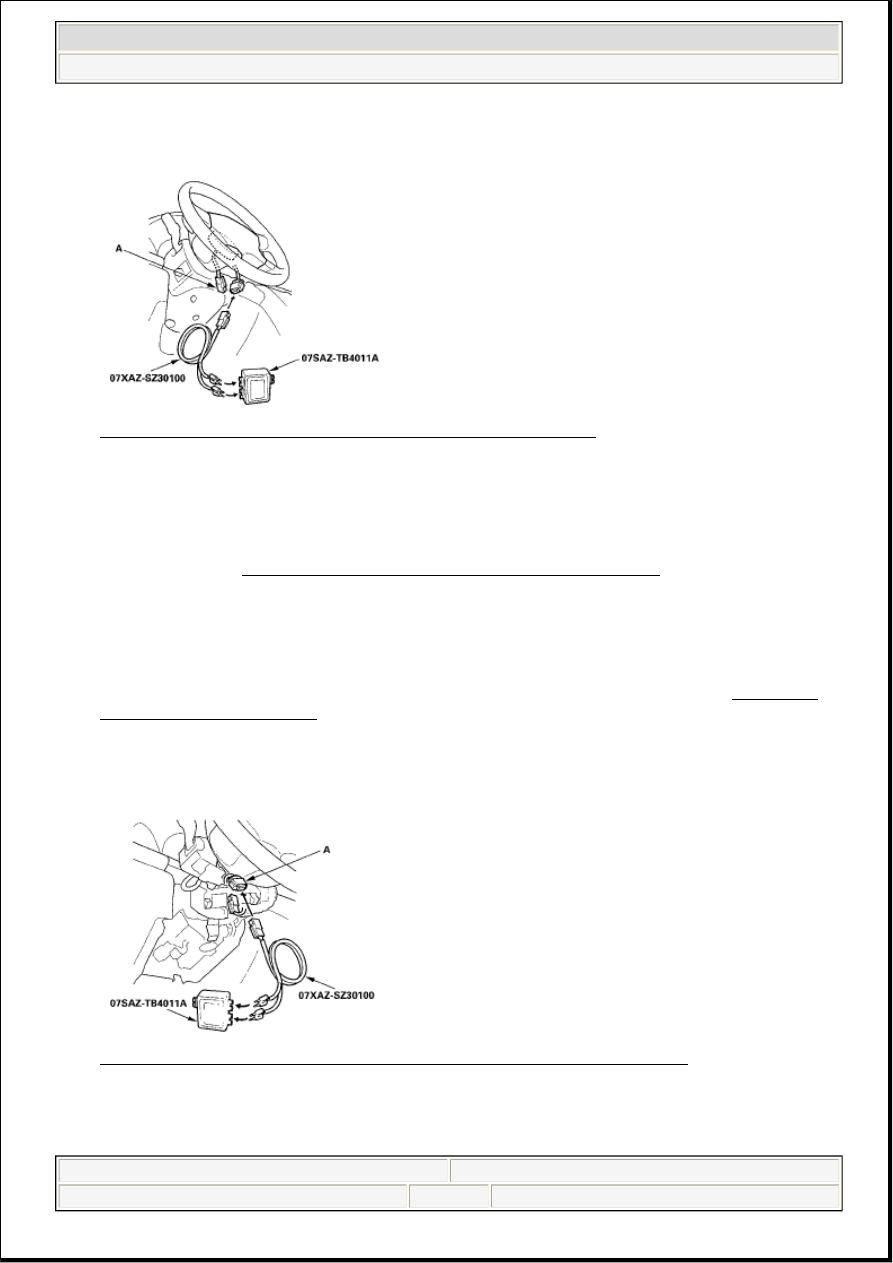

Fig. 75: Identifying Driver's Airbag 4P Connector Of Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Connect the SRS inflator simulator (2 ohms connectors) and simulator lead F to the cable reel.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 11-3x or 11-6x indicated?

YES - Go to step 9.

NO - Short in the driver's airbag first or second inflator; replace the driver's airbag (see DRIVER'S
AIRBAG REPLACEMENT ).

9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

10. Disconnect dashboard wire harness A 4P connector (A) from the cable reel.

Fig. 76: Identifying Dashboard Wire Harness A 4P Connector Of Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Connect the SRS inflator simulator (2 ohms connectors) and simulator lead F to dashboard wire

harness A.
