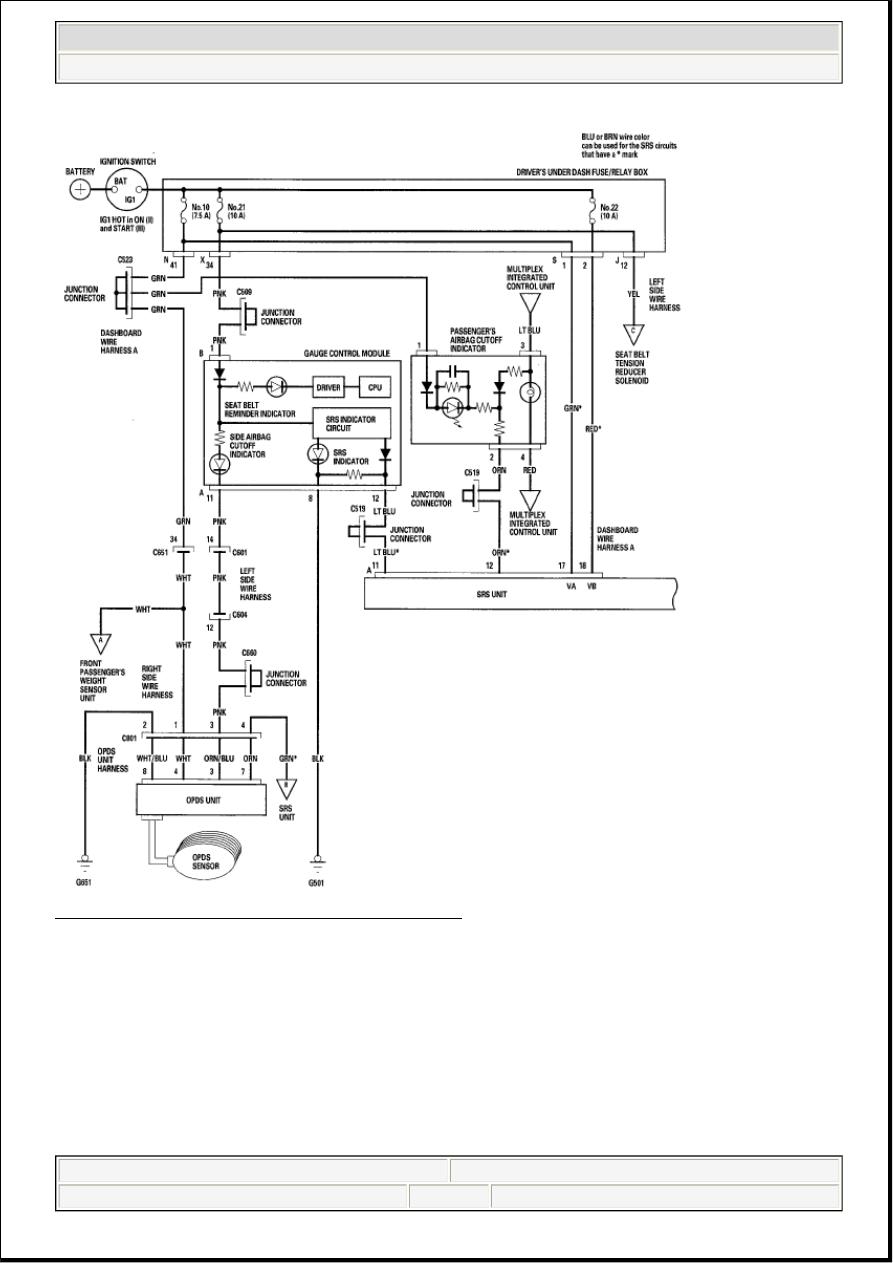

Fig. 57: SRS Circuit Diagram - '05 Model (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2006-08 models



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 52

© 2005 Mitchell Repair Information Company, LLC.

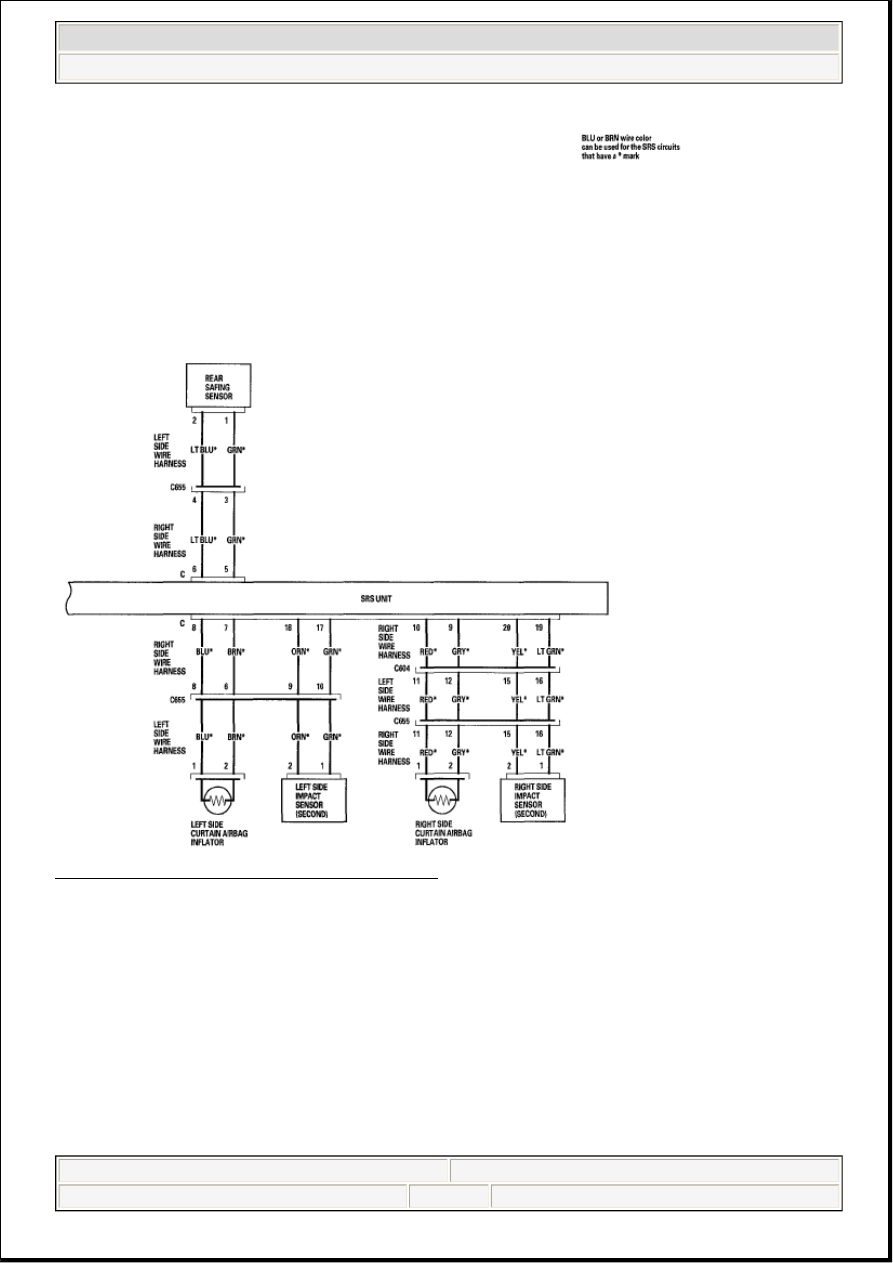

Fig. 58: SRS Circuit Diagram - '06-08 Model (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 53

© 2005 Mitchell Repair Information Company, LLC.

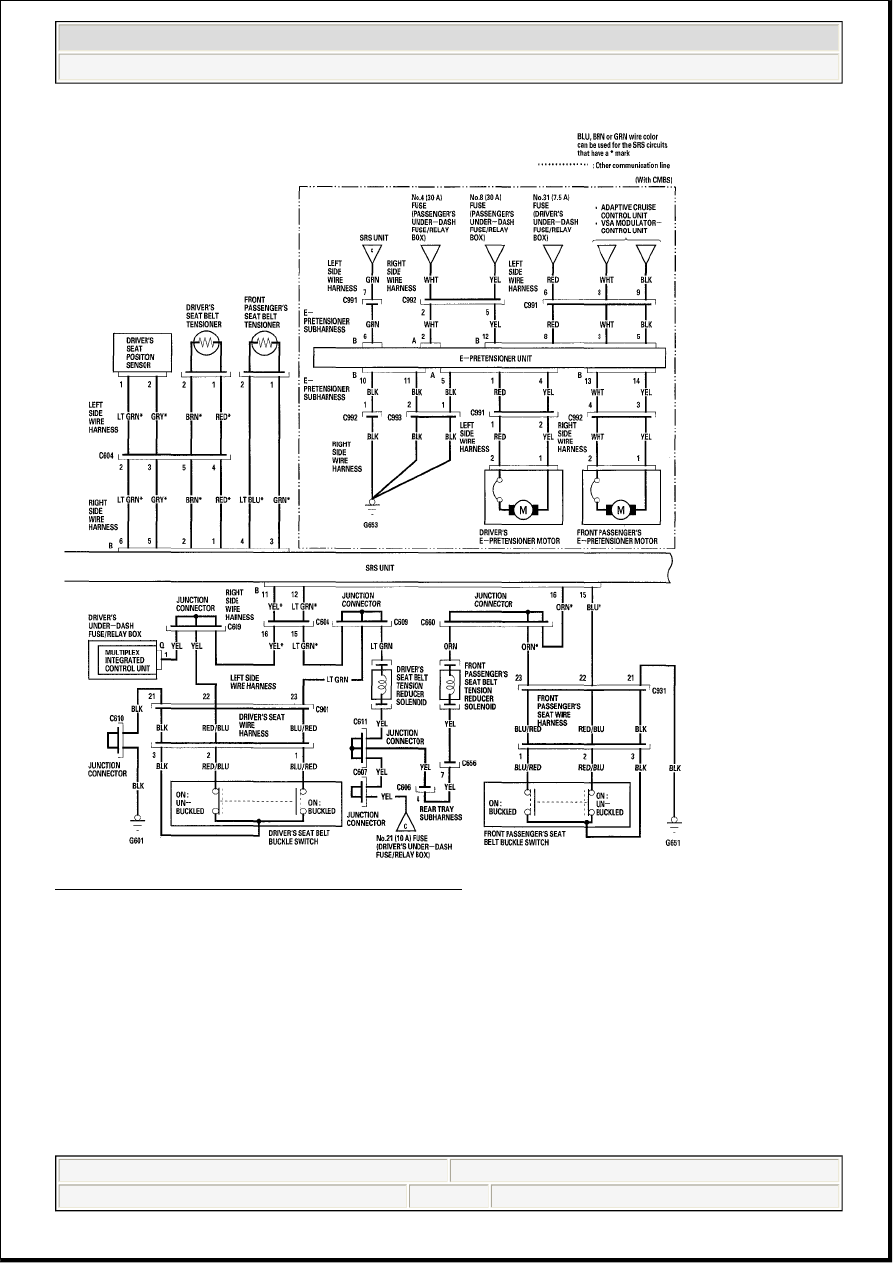

Fig. 59: SRS Circuit Diagram - '06-08 Model (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 54

© 2005 Mitchell Repair Information Company, LLC.

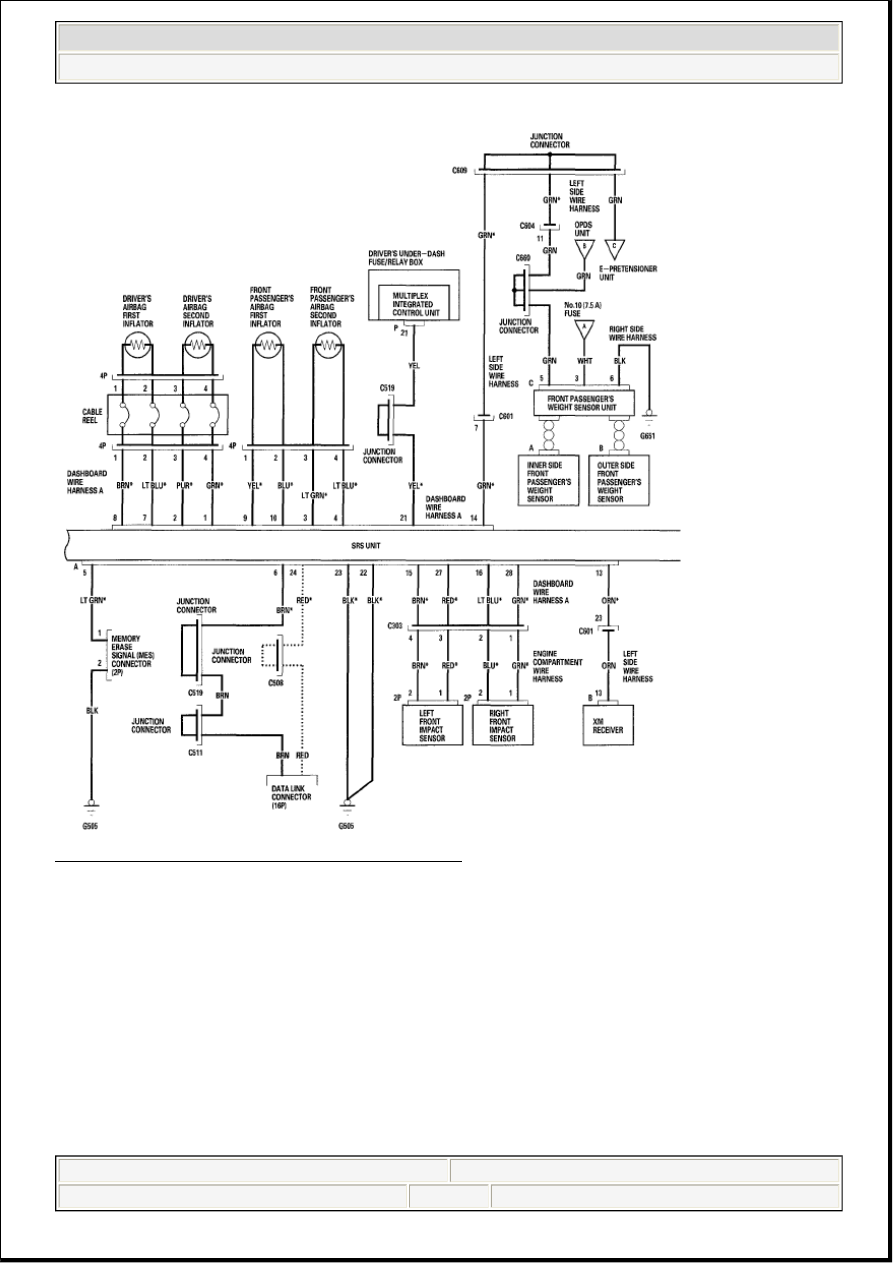

Fig. 60: SRS Circuit Diagram - '06-08 Model (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 55

© 2005 Mitchell Repair Information Company, LLC.
