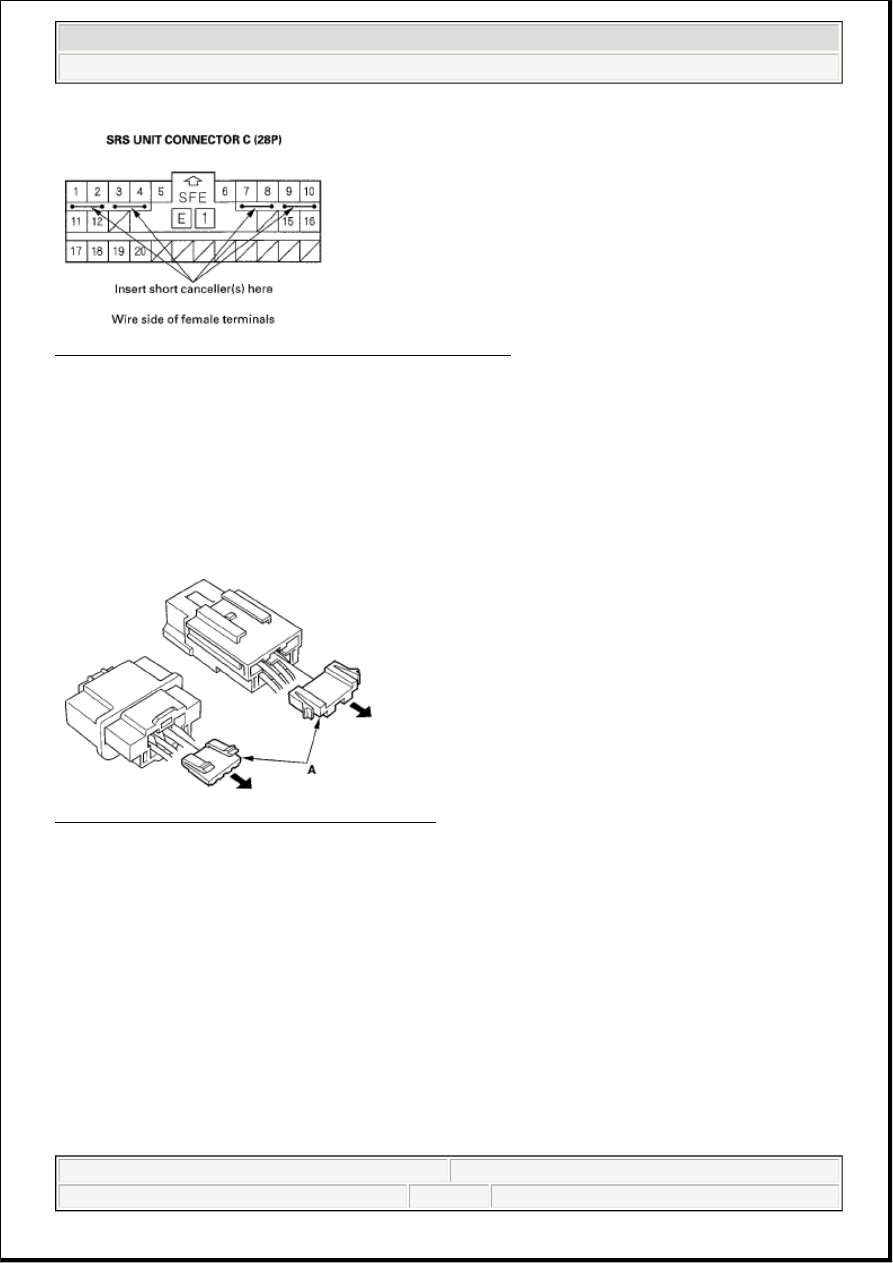

Fig. 22: Identifying SRS Unit Connector C (28P) Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

BACKPROBING SPRING-LOADED LOCK CONNECTORS

When checking voltage or resistance on this type of connector the first time, you must remove the retainer
(A) to insert the tester probe from the wire side.

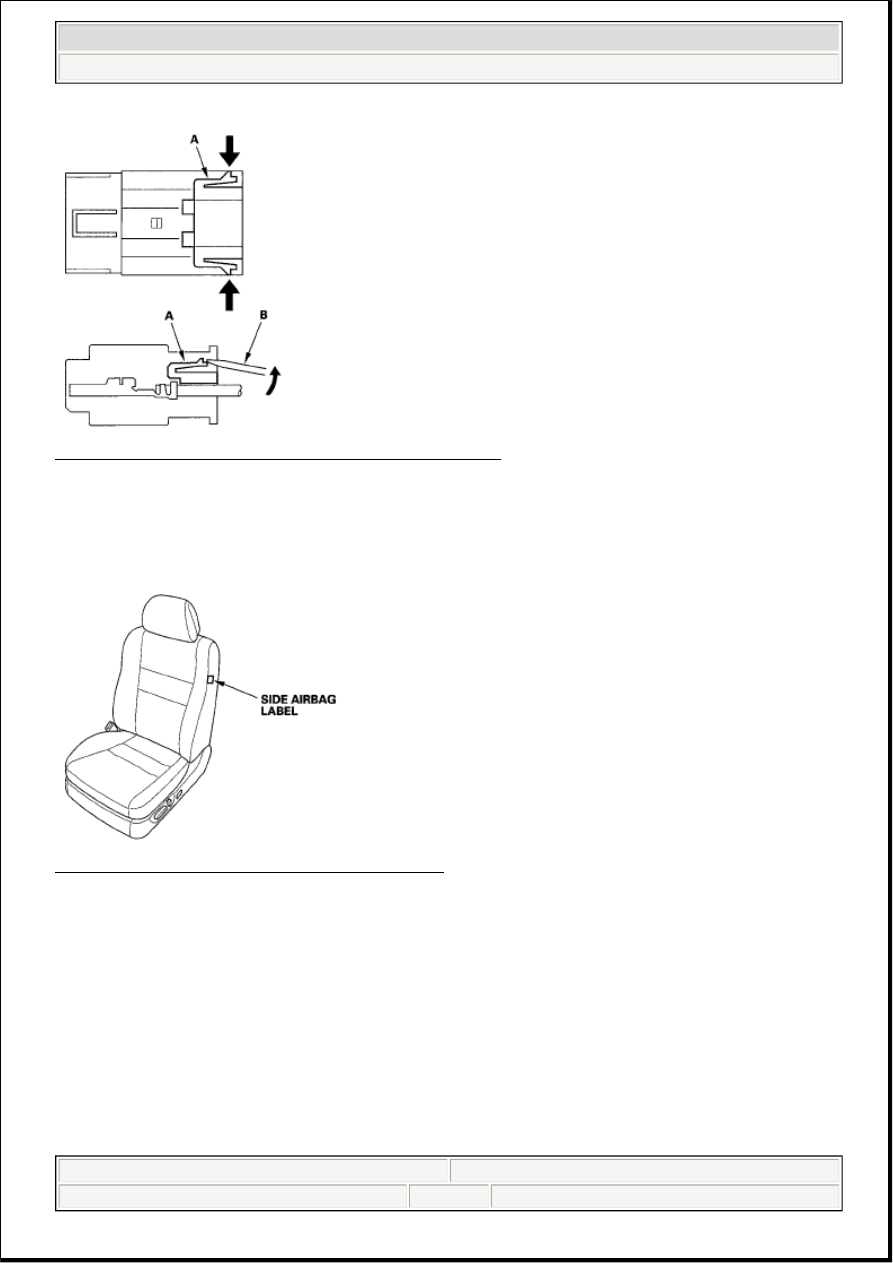

Fig. 23: Identifying Connector Terminal Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

To remove the retainer (A), insert a flat-tip screwdriver (B) between the connector body and the retainer,
then carefully pry out the retainer. Take care not to break the connector.

NOTE:

It is not necessary to reinstall the removed retainer; the terminals will stay
locked in the connector housing.



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

Fig. 24: Removing Retainer Using A Flat-Tip Screwdriver
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SEATS WITH SIDE AIRBAGS

Seats with side airbags have a "SIDE AIRBAG" label on the seat-back.

Fig. 25: Identifying Location Of Side Airbag Label
Courtesy of AMERICAN HONDA MOTOR CO., INC.



When cleaning, use a damp cloth to clean the seat. Do not soak the seat with liquid. Do not spray
steam on the seat.



Do not repair a torn or frayed seat-back cover; replace it.



After a collision where the side airbag was deployed, replace the seat-back cover and side airbag with
new parts. If the seat-back cushion is split, it must be replaced. If the seat-back frame is deformed, it
must be replaced.



Never put aftermarket accessories on the seat (covers, pads, seat heaters, lights, etc.).

DISCONNECTING SYSTEM CONNECTORS

Turn the ignition switch OFF, disconnect the negative cable from the battery, then wait for 3 minutes before



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

starting the following procedures.



Before disconnecting the cable reel 4P connector (1), disconnect the driver's airbag 4P connector (2).



Before disconnecting SRS unit connector B from the SRS unit, disconnect both seat belt tensioner 4P
connectors (3, 4).

'05 model

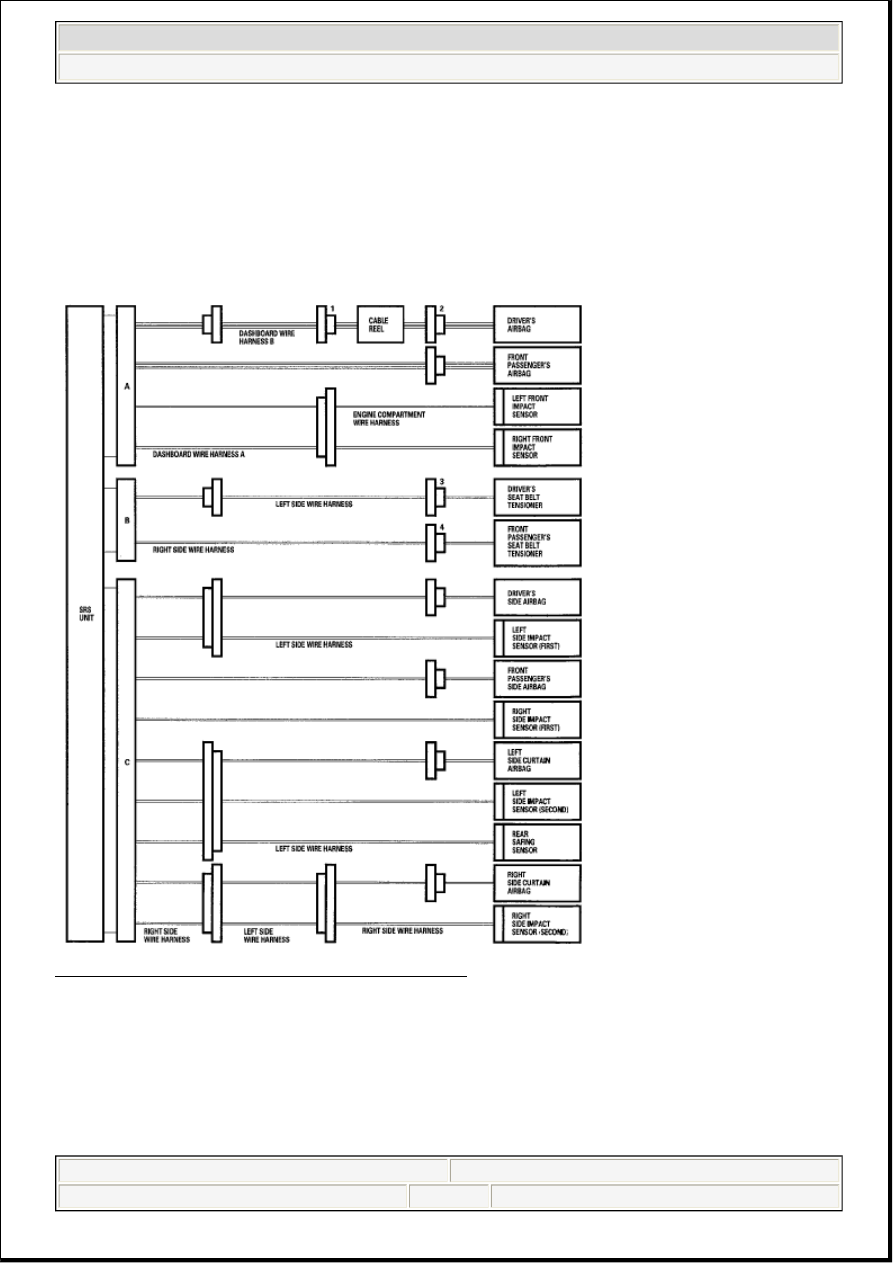

Fig. 26: SRS System Connectors Diagram - '05 Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.

'06-08 models



2007 Acura RL

2005-08 RESTRAINTS SRS (Supplemental Restraint System) - RL



me



Friday, June 05, 2009 2:21:55 PM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

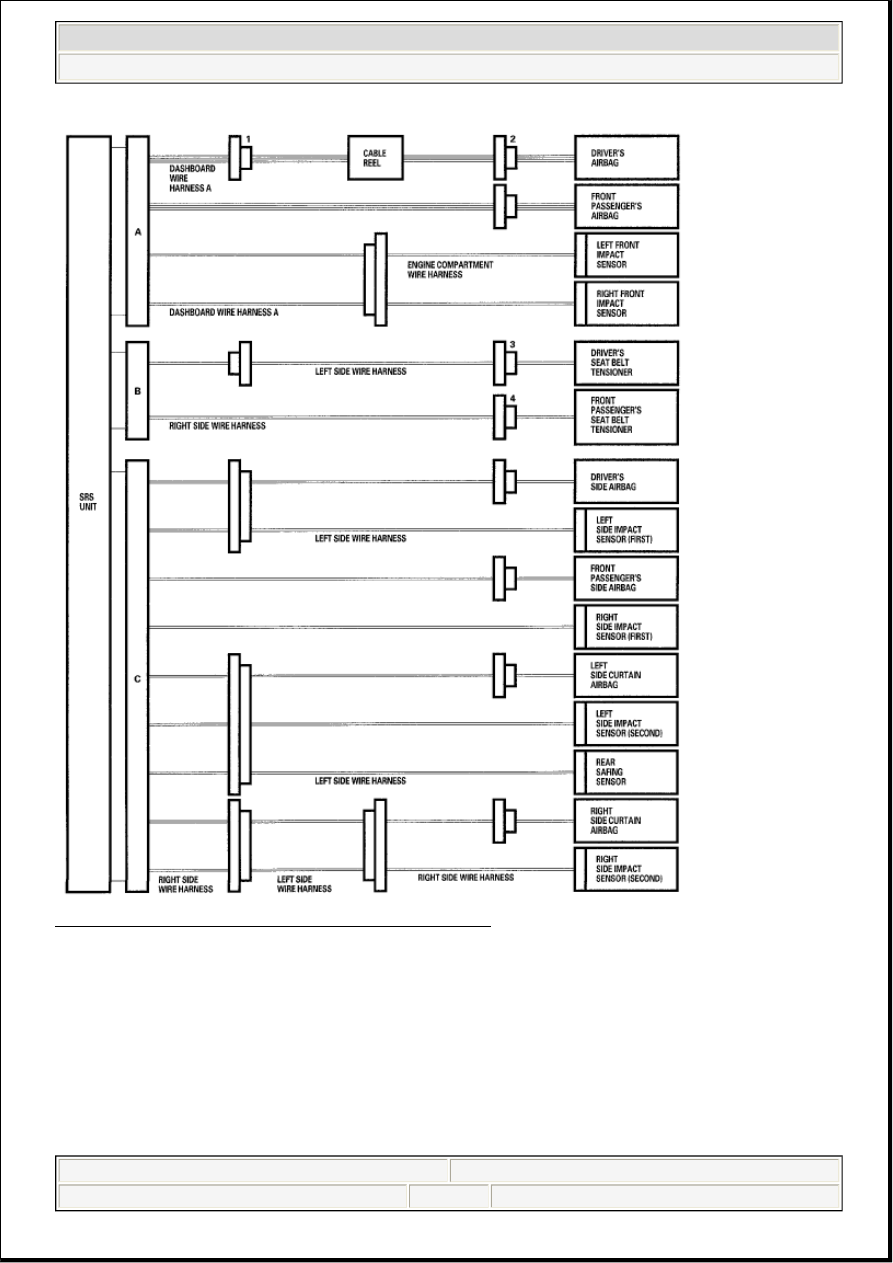

Fig. 27: SRS System Connectors Diagram - '06-08 Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.

1. Disconnect the negative cable from the battery, then wait for 3 minutes before starting work.

Driver's Airbag

2. Remove the access panel (A) from the steering wheel, then disconnect the driver's airbag 4P

connector (B) from the cable reel.
