Contents
Audio output
Left front CH
Right front CH
Right rear CH
Left rear CH
Subwoofer CH
USB Adapter

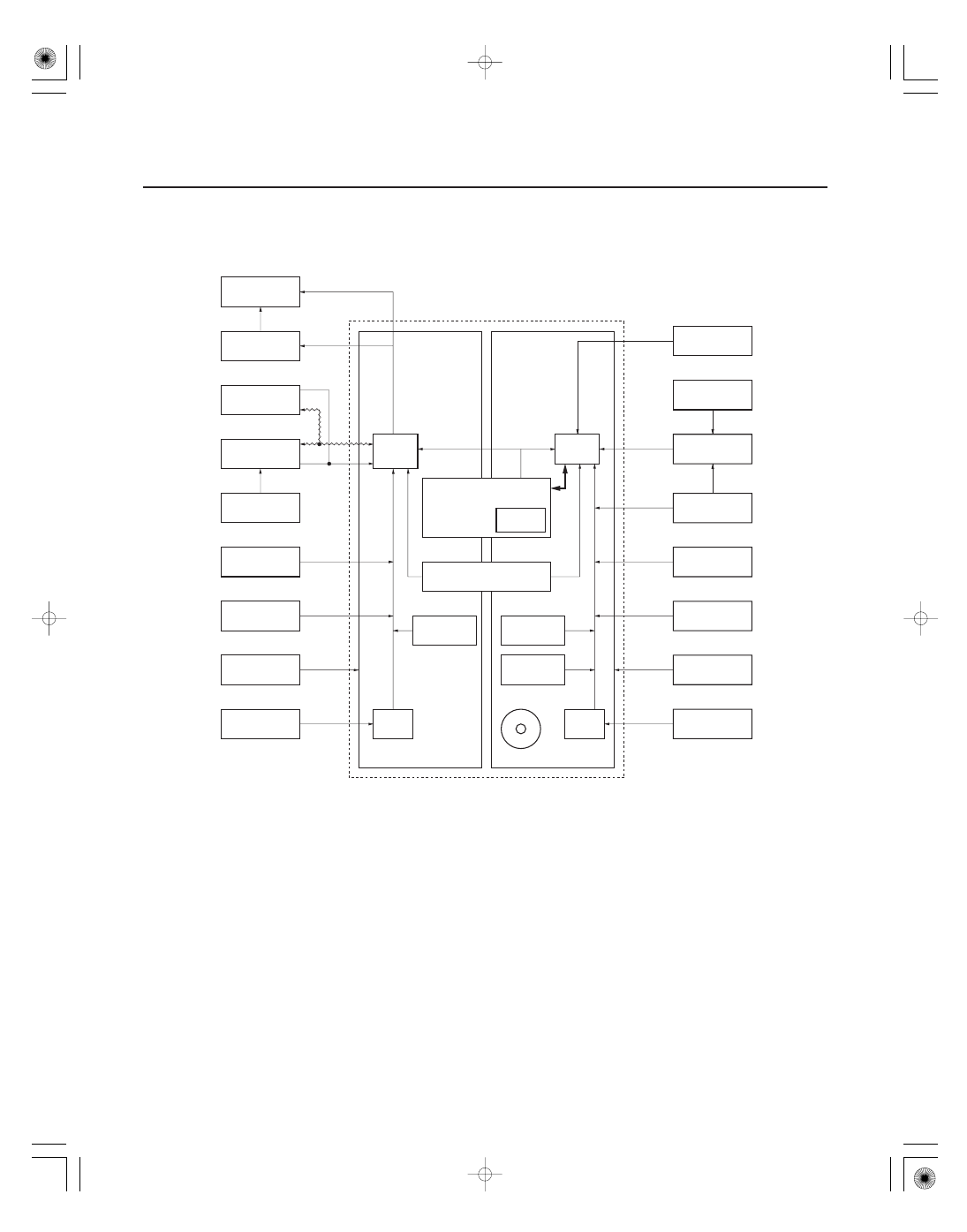

GA-Net Bus Configuration
23-165
Navigation unit
or audio unit
Accessory
(CD changer etc.)
XM Receiver
USB Adapter
(With navigation)
The navigation system allows voice control of the audio, XM, PC card, and CD player. Voice control commands are
communicated on the GA-Net (audio unit). When using the navigation TALK/BACK button, the audio is muted on all
speakers and you get navigation sound on the front channels. When using the navigation or route guidance (RG), the
front speakers give the navigation sound and the rear speakers continue to play. For more information, see the
navigation section. The outline of the interruption function is shown in this table.

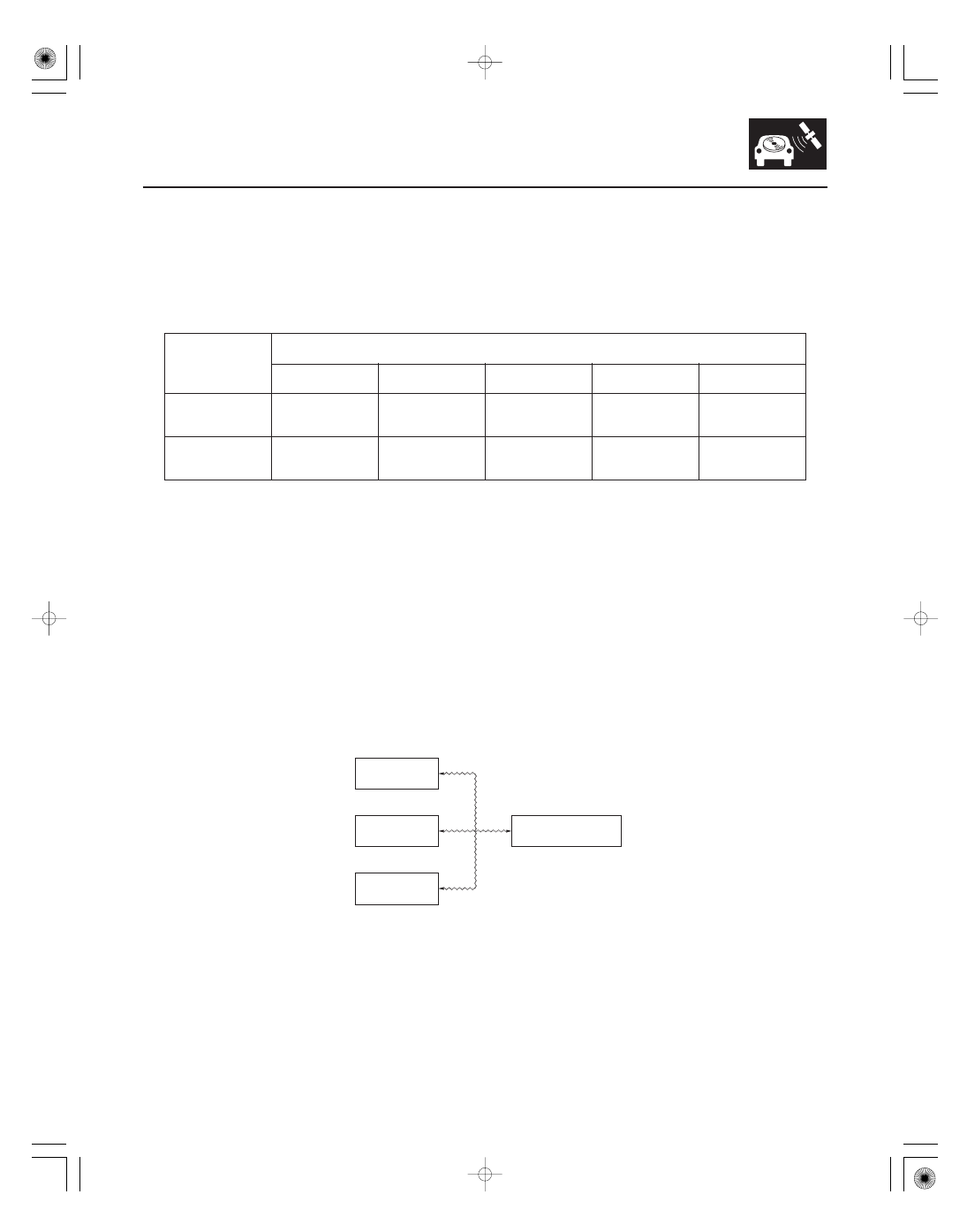

Navigation TALK
/BACK Buttons
Navigation voice
output
Navigation voice
output
Muted
Muted
Muted
Route guidance
Navigation voice
output
Navigation voice
output
Audio
Audio
Audio
The audio unit can play digital music from portable audio players, USB drive, etc. When the device is plugged into the
USB adapter. The audio unit uses the GA-NET to allow you to control the device from the audio unit when searching
and playing the files. Not all players and player functions work with the USB adapter. Please see the owner’s manual
for more information.
The GA-Net bus passes audio and navigation commands throughout the navigation and audio components.
These commands include navigation touch screen and hard button signals, audio/XM selections by voice, and XM
station and music title names. Because the entire bus is daisy chained between components (see diagram), any open
or short in the GA-Net bus harness will cause any or all of these functions to become inoperative. Naturally the
addition of any audio accessory must maintain the continuity of the GA-Net bus by installing the Y cable included with
the accessory kit.
