Security Alarm System

22-114

Keyless/Power Door Locks/Security System

System Description

The security alarm system is armed automatically after the doors, hood, and trunk are closed and locked. For the
system to arm, the ignition switch must be to LOCK (0), the key must be removed from the ignition switch, and the
MICU must receive signals that the doors, hood, and trunk are closed and locked. The alarm can be disarmed at any
time by unlocking the driver’s door with the key or pressing the UNLOCK button on the transmitter.

When everything is closed and locked, the only inputs that are grounded, and have 0 V, are the driver’s door lock knob
switch (LOCK position), and the audio unit or navigation unit (if equipped). In other words, all of the other switches are
open, and have about 10 to 12 V, including the key cylinder switches. The security indicator in the gauge control
module (speedo) begins to flash immediately after the vehicle is completely closed and locked, and 15 seconds later,
the security system arms. If the security indicator does not flash, the system is not arming. A beep sounds and parking
lights flash to confirm the security alarm system is armed if the LOCK button is pressed a second time within
5 seconds.

If one of the switches is misadjusted or shorted internally, or there is a short in the circuit, the security system will not
arm. As long as the control unit continues to receive a ground signal (0 V), it senses that the vehicle is not closed and
locked, and the system will not arm. A switch that is slightly misadjusted can cause the alarm to sound for no apparent
reason. In this case, a significant change in outside air temperature, the vibration of a passing truck, or someone
bumping into the vehicle could cause the alarm to sound. There is no glass breakage or motion detector feature.

If anything is opened or improperly unlocked after the system is armed, the control unit receives a ground signal from
that switch, and the 10 to 12 V reference drops to 0 V. If the audio unit or navigation unit (if equipped) is disconnected,
the input loses its ground, and the input voltage goes to 10 to 12 V. The system sounds the alarm when any of these
occur:

• A door or the trunk is forced open.
• A door is unlocked without using the key or the transmitter.
• The hood is opened.
• The audio unit or navigation unit (if equipped) is disconnected.
• The transmitter PANIC button is pressed.

When the system sounds the alarm, the horn sounds and the exterior lights flash for 2 minutes. The alarm can be
stopped at any time by unlocking the driver’s door with the key or by pressing any button on the transmitter.

08/08/21 14:25:08 61SNR030_220_0116

Panic Mode

Keyless Entry System

22-115

The panic mode sounds the alarm in order to attract attention. When the PANIC button on the transmitter is pressed
and held for 2 seconds, the horn sounds and the exterior lights flash for about 20 seconds.

The panic mode can be cancelled at anytime by pressing any button on the transmitter or by turning the ignition
switch to ON (II). The panic mode will not function if the ignition switch is to ON (II).

The keyless entry system is integrated with the multiplex integrated control system. The multiplex integrated control
unit (MICU) receives LOCK, UNLOCK and PANIC signals from the immobilizer-keyless control unit (keyless receiver).

The keyless entry system allows you to lock and unlock the vehicle with the transmitter.

When the switch for the ceiling light is in the center (DOOR) position, it will come on when the UNLOCK button is
pressed. If a door is not opened, the light will go off in about 30 seconds, and the doors will relock. If the doors are
locked with the transmitter within 30 seconds, the light will go off immediately.

08/08/21 14:25:09 61SNR030_220_0117

*90

SNR9A00J46643400000EAAT00

22-116

Keyless/Power Door Locks/Security System

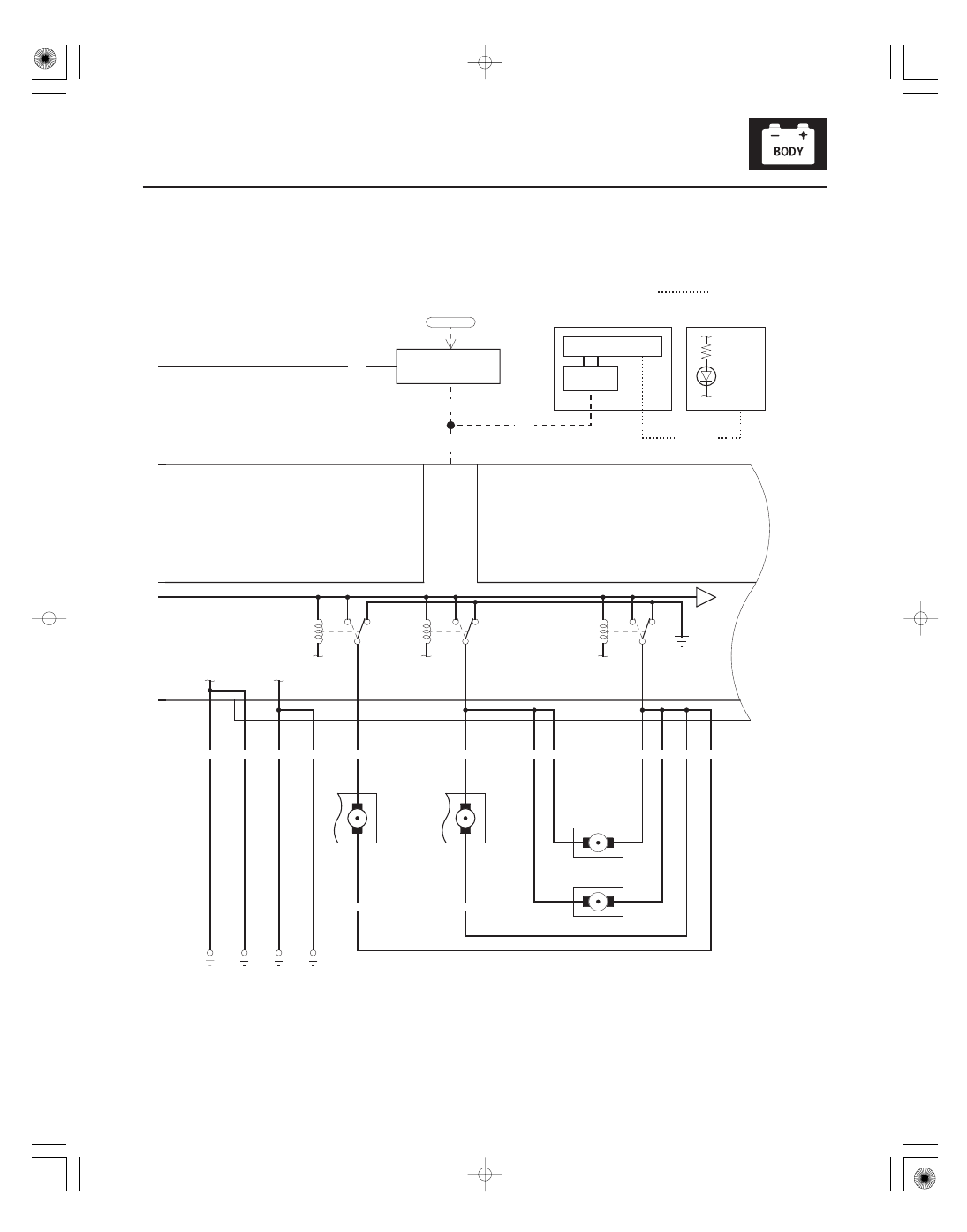

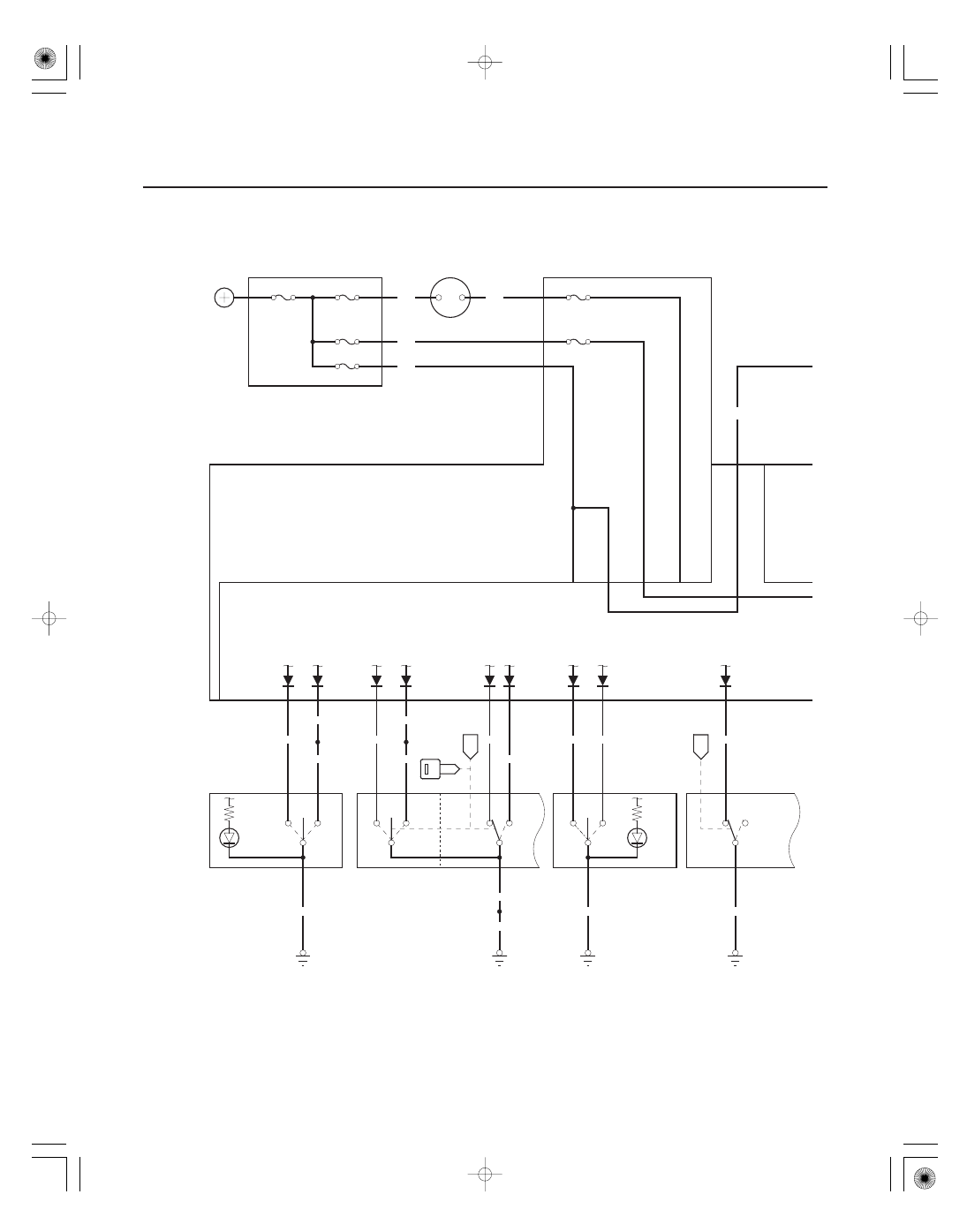

Circuit Diagram

Q1

G2

G21

D2

ORN

GRN

BRN

G503

G501

G504

G504

IG1 HOT in ON (II) and START (III)

8

T22

LT BLU

BLK

10

LOCK

LOCK

YEL

T30

1

6

PUR

T29

BLK

2

11

BLK

T27

GRY

19

17

T28

BLU

LOCK

LOCK

KEY

MICU

No. 25 (20 A)

ORN

IG1

5

BLK

No. 23 (10 A)

T24

LT GRN

6

UNDER-DASH FUSE/RELAY BOX

WHT

T23

7

LOCK

PNK

T32

9

8

BRN

T31

No. 10 (7.5 A)

BLU

IGNITION SWITCH

IG1

BAT

BLU

WHT

No. 4 (P/W) (40 A)

BATTERY

No. 1 (BAT) (100 A)

No. 2 (IG) (50 A)

UNDER-HOOD FUSE/RELAY BOX

UN-
LOCK

UN-
LOCK

UN-
LOCK

DRIVER’S
DOOR LOCK
SWITCH

DRIVER’S
DOOR KEY
CYLINDER
SWITCH

DRIVER’S
DOOR LOCK
KNOB SWITCH

DOOR
LOCK
KNOB

DOOR
LOCK
KNOB

FRONT
PASSENGER’S
DOOR LOCK
KNOB SWITCH

FRONT
PASSENGER’S
DOOR LOCK
SWITCH

UN-
LOCK

UN-
LOCK

LIGHT
(LED)

LIGHT
(LED)

H1

K2

D4

B BACK UP

WHT

08/08/21 14:25:09 61SNR030_220_0118

*90

22-117

UART

UART

MAIN CIRCUIT

PNK

PNK

20*1

21

LT GRN*1

T34

E6

G501

BLK

SG

BLK

G602

PG

F20

E33

G601

BLK

BLK

G401

YEL

BLU

BLU

BLU

B-CAN

M10

E21

E31

BLU

E1

E14

YEL

4

3

1

2

N7

YEL

M8

4

BLU

3

N13

1

BLU

2

YEL

A

MICU

1

Q6

4

PNK

WHT

IMMOBILIZER-KEYLESS
CONTROL UNIT

DRIVER’S
DOOR LOCK
ACTUATOR

FRONT
PASSENGER’S
DOOR LOCK
ACTUATOR

LEFT REAR DOOR
LOCK ACTUATOR

RIGHT REAR DOOR
LOCK ACTUATOR

SECURITY
INDICATOR
(LED)

B-CAN
TRANSCEIVER

GAUGE CONTROL
MODULE (TACH)

GAUGE CONTROL
MODULE (SPEEDO)

: CAN line

2*2

7*1
1*2

GRY*2

*1: Except TYPE S model
*2: TYPE S model

: Other communication line

UNDER-DASH FUSE/RELAY BOX

UNLOCK
(DR)

UNLOCK

LOCK

TRANSMITTER

08/08/21 14:25:10 61SNR030_220_0119
