Acura CSX. Manual - part 510





System Menu

Data List

Data List Indication

22-91

Security

Ignition Key Cylinder Switch

OFF/ON

Driver’s Door Switch

OFF/ON

Front Passenger’s Door Switch

OFF/ON

Driver’s Rear Door Switch

OFF/ON

Passenger’s Rear Door Switch

OFF/ON

Trunk Lid/Tailgate Switch

OFF/ON

Front Passenger’s Door Lock Sw. (LOCK)

OFF/ON

Front Passenger’s Door Lock Sw. (UNLOCK)

OFF/ON

Front Passenger’s Door Lock Knob Sw. (UNLOCK)

OFF/ON

Driver’s Rear Door Lock Knob Switch (UNLOCK)

OFF/ON

Passenger’s Rear Door Lock Knob Sw. (UNLOCK)

OFF/ON

Trunk Key Cylinder (UNLOCK)

OFF/ON

Radio Switch

OFF/ON

Hazard Switch

OFF/ON

Hood Switch

OFF/ON

Driver’s Door Key Cylinder Switch (LOCK)

OFF/ON

Driver’s Door Key Cylinder Switch (UNLOCK)

OFF/ON

Driver’s Door Look Switch (LOCK)

OFF/ON

Driver’s Door Look Switch (UNLOCK)

OFF/ON

Driver’s Door Look Knob Switch (LOCK)

OFF/ON

Driver’s Door Look Knob Switch (UNLOCK)

OFF/ON

Door LOCK Command

OFF/ON

Door UNLOCK Command

OFF/ON

Driver’s Door UNLOCK Command

OFF/ON

Security Hazard Signal Command

OFF/ON

Headlight Command

OFF/ON

Headlight High Beam Command

OFF/ON

Parking Light Command

OFF/ON

08/08/21 14:24:58 61SNR030_220_0093

―――

Function Test:

System Menu

Data List Indication

Data List and Operation Time

22-92

Multiplex Integrated Control System

Door Locks

LOCK all doors

Outputs LOCK signal 1 time (0.6 sec) to all doors

UNLOCK driver’s side door

Outputs UNLOCK signal 1 time (0.6 sec) to driver’s
door

UNLOCK all doors

Outputs UNLOCK signal 1 time (0.6 sec) to all doors

Lighting

Interior Light Command

Illuminates for 30 seconds.

LEFT Turn Signal Command

Blinks for 5 seconds.

RIGHT Turn Signal Command

Blinks for 5 seconds.

Hazard flasher

Blinks turn signal (left and right) for 15 seconds.

Headlight Command

Operates headlight (low) for 15 seconds.

Headlight HIGH Beam Command

Operates headlight (high) for 15 seconds.

Fog Light

Operates fog light relay for 15 seconds.

Parking Light Command

Operates small lights for 15 seconds.

Keyless

Trunk Lid/Tailgate Release Command

Unlock trunk

Security

Horn Command

Operates horn for 1 second.

Wipers

Windshield Wiper Motor LOW Command

Operates windshield wiper motor for 5 seconds (low
speed).

Windshield Wiper Motor HIGH Command

Operates windshield wiper motor for 5 seconds (high
speed).

Windshield Washer Command

Operates windshield washer motor for 5 seconds.

Gauges

Self Diagnostic Test

08/08/21 14:24:58 61SNR030_220_0094

01

SNR9A00J00050600000FAAT20

YES

NO

YES

NO

22-93

Troubleshooting - B-CAN System Diagnosis Test Mode A

A

Check the ECM/PCM for DTCs and troubleshoot ECM/
PCM (see page 11-3) or F-CAN loss of communication
errors first, then do this diagnosis if the symptom is
related to the B-CAN system.

NOTE:

• If the HDS is not available, do the Test Mode 1 and

Test Mode 2 (see page 22-97).

• Always cycle the ignition switch within 3 seconds

when prompted in the DTC troubleshooting
procedures.

1. Compare the symptom with this list of B-CAN

related systems:

• Gauge control module
• Exterior lights
• Turn signals
• Entry light control
• Interior lights
• Door-open and trunk-open indicators
• Horns (security and panic)
• Chimes (key-in, seat belt, lights-on, and parking

brake)

• Power window/moonroof timer
• Wiper/washer
• Security
• Keyless entry
• Power door locks
• Key interlock
• Dash light brightness control

Go to step 2.

Go to the system troubleshooting for the

system with the symptom.

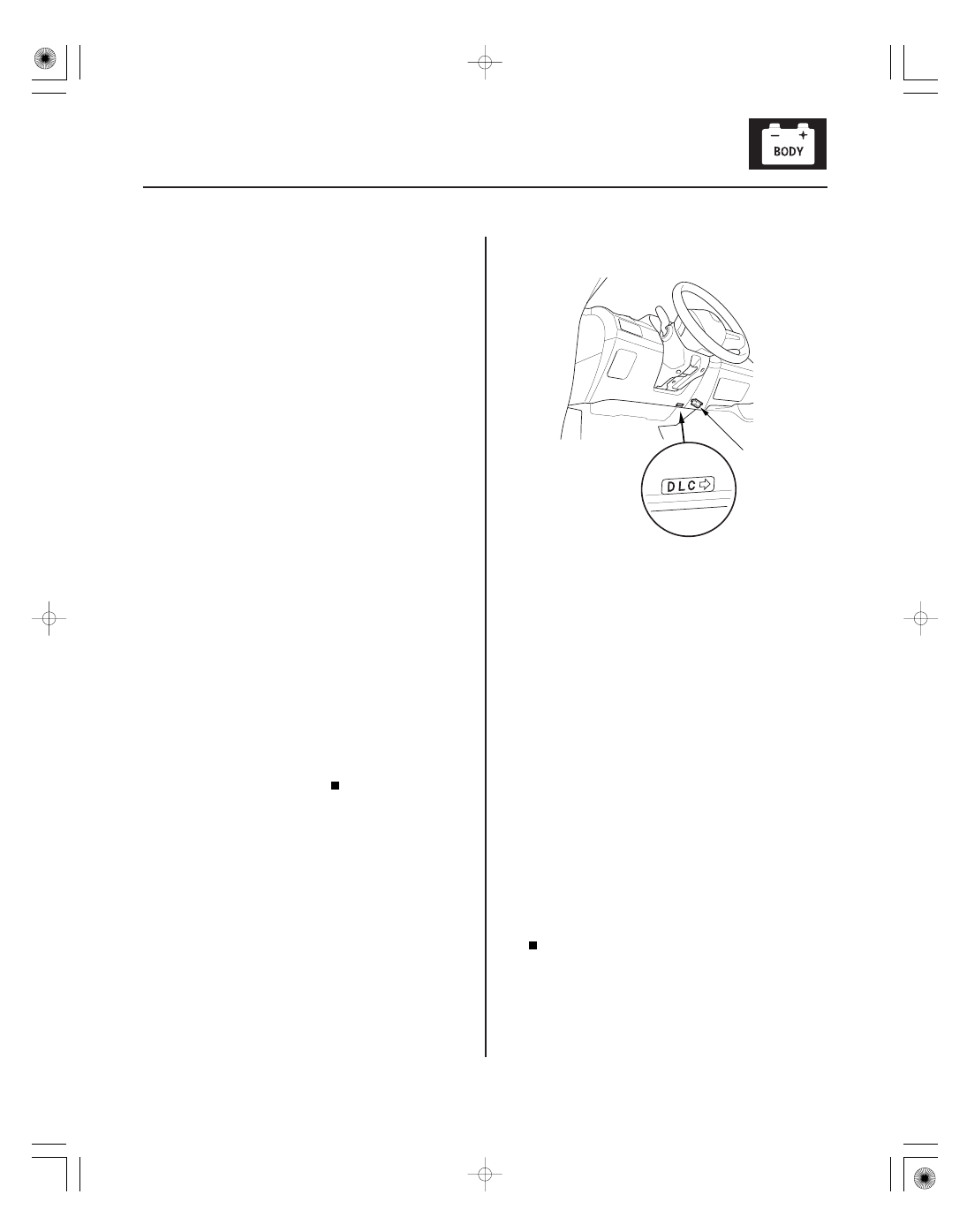

2. Connect the HDS to the data link connector (A),

then turn the ignition switch to ON (II).

3. From the BODY ELECTRICAL menu, select UNIT

INFORMATION, and then select CONNECTED UNIT
listed to see if the following control units are
communicating with the HDS.

• MICU
• Gauge control module
• Immobilizer-keyless control unit
• Climate control unit
• HandsFreeLink control unit

NOTE:

• If one or more of the units are not

communicating with the HDS, DETECT will be
displayed.

• If the unit is not communicating or the vehicle is

not equipped, ‘‘Not Available’’ will be displayed.

Go to step 4.

If any of the control units are not

communicating, go to B-CAN System Diagnosis
Test Mode B (see page 22-94). If all units are not
communicating or only the MICU is communicating,
go to DTC B1000 troubleshooting (see page 22-102).

Is the symptom r elated to the B-CAN system?

Ar e all contr ol units communicating with the HDS?

08/08/21 14:24:59 61SNR030_220_0095

SNR9A00J00050600000FAAT21

YES

NO

YES

NO

Unit not communicating

22-94

22-94

Multiplex Integrated Control System

Troubleshooting - B-CAN System
Diagnosis Test Mode B

4. Select the system that has the problem from the

BODY ELECTRICAL menu, then select DTCs.

Go to step 5.

If the problem is related to one of the

following items, go to B-CAN System Diagnosis
Test Mode C (see page 22-95) if the system does
not stop or turn off. Go to Test Mode D (see page
22-96) if the system does not run or turn on.

• Exterior lights
• Turn signals
• Entry light control
• Interior lights
• Horn (security and panic)
• Wiper/washer

If the problem is related to one of the following
items, go to the troubleshooting for that individual
system.

• Gauge control module
• Door-open and trunk-open indicators
• Chimes (key-in, seat belt, lights-on, and parking

brake)

• Security
• Keyless entry
• Key interlock
• Dash light brightness control
• Audio system
• Navigation (if equipped)
• HandsFreeLink (if equipped)

5. Record all DTCs, and sort them by DTC type.

6. Troubleshoot the DTC(s) in this order:

• Battery voltage DTCs.
• Internal error DTCs.
• Loss of communication DTCs. Begin

troubleshooting with the lowest number first
(Example: if DTC B1008 and B1011 are retrieved,
begin by troubleshooting B1008).

• Signal error DTCs.

Do this diagnosis if any of the control units are not
communicating (Not Available is displayed in the HDS)
as found by the B-CAN System Diagnosis Test Mode A
(see page 22-93).

1. Using the HDS, select the system that has the

symptom from the BODY ELECTRICAL menu.

2. Select DTCs, and then check for loss of

communication DTCs.

Go to step 3.

Replace the MICU.

3. Do the input test for the unit not communicating

with the HDS.

MICU (see page 22-109)
Gauge control module (see page 22-271)
Immobilizer-keyless control unit (see page
22-330)
Climate control unit (see page 21-24)
HandsFreeLink control unit (see page 23-388)

Ar e any DT Cs indicated?

Ar e any loss of communication DT Cs indicated?

08/08/21 14:24:59 61SNR030_220_0096
