Driver’s Door

22-11

Door

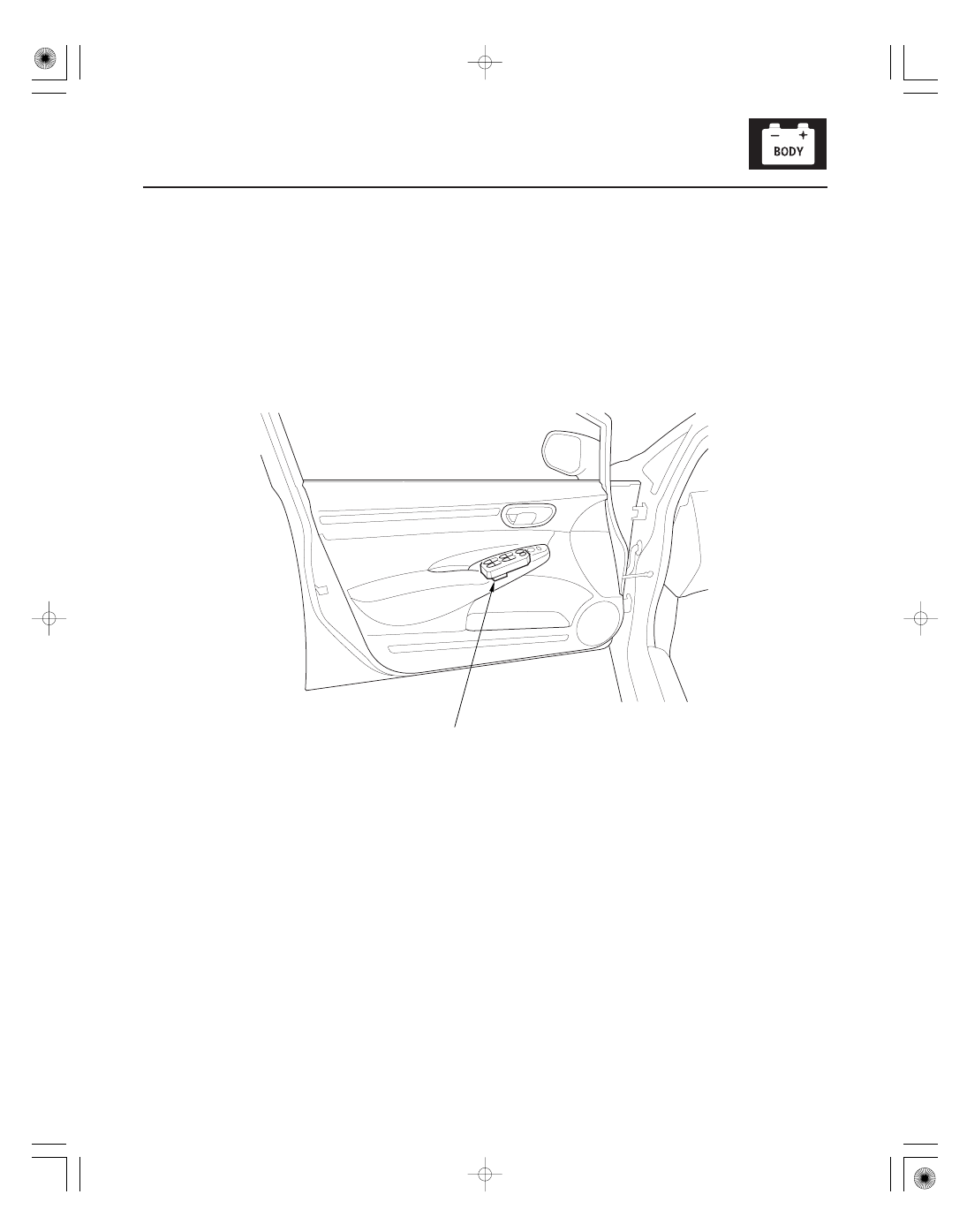

POWER WINDOW MASTER SWITCH
(Has built-in control unit)

08/08/21 14:22:06 61SNR030_220_0013

０４

０５

ＳＮＲ９Ａ００Ｊ５４２００００００００ＤＥＡＴ００

Driver’s Seat

Front Passenger’s Seat

22-12

Relay and Control Unit Locations

Seat

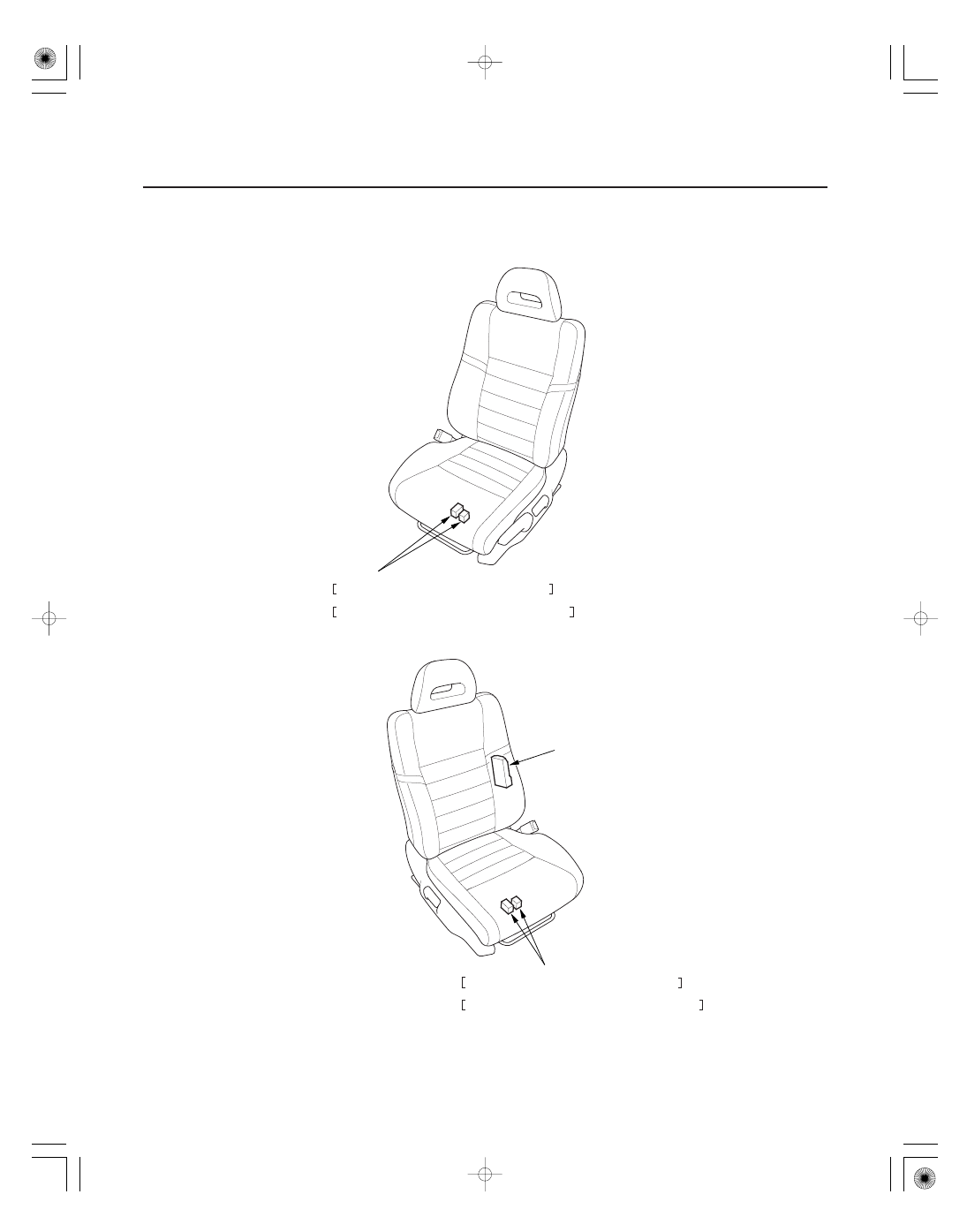

DRIVER’S SEAT HEATER RELAY (HIGH)

DRIVER’S SEAT HEATER RELAY (LOW)

FRONT PASSENGER’S SEAT HEATER RELAY (HIGH)

FRONT PASSENGER’S SEAT HEATER RELAY (LOW)

OPDS UNIT

Wire colors: RED, ORN, GRN/RED, and BLK

Wire colors: BRN, RED, BLK, BLK, and BLU/YEL

Wire colors: RED, ORN, GRN/RED, and BLK

Wire colors: BRN, RED, BLK, BLK, and BLU/YEL

08/08/21 14:22:07 61SNR030_220_0014

−

＋

ＳＮＲ９Ａ００Ｊ５４２００００００００ＤＦＡＴ００

Harness

Location

Engine Compartment

Dashboard

Others (Floor, Door,

Trunk, and Roof)

Notes

22-13

Connectors and Harnesses

Connector Index

Identification numbers have been assigned to in-line connectors, junction connectors, and terminals. The number is preceded by the letter ‘‘C’’
for connectors, ‘‘G’’ for ground terminals, or ‘‘T’’ for non-ground terminals.

A/C wire harness

C205, C504

(see page 22-56)

Battery ground cable

(

), G1

(see page 22-14)

Console subharness

C551, C601, C603

(see page 22-57)

Dashboard wire harness
(View of driver’s side)

C201, C202, C203, C501,
C502, C751, C752, C801
G501, G503

(see page 22-28)

Dashboard wire harness
(View of middle section)

C503, C506, C551
G504, G506

(see page 22-30)

Dashboard wire harness
(View of passenger’s side)

C504, C761, C762
G502, G505

(see page 22-32)

Driver’s door subharness

C754

(see page 22-46)

Driver’s door wire harness

C751, C752

C753, C754

(see page 22-46)

Driver’s seat position sensor harness
(With seat heater)

C602

(see page 22-52)

Driver’s seat position sensor harness
(Without seat heater)

C602

(see page 22-53)

Driver’s seat wire harness

C602, C604

(see page 22-52)

Engine compartment wire harness
(Left branch)

C101, C102, C103
G301

C201 through C205, C209
G401

(see page 22-22)

Engine compartment wire harness
(Right branch)

C206, C207
G201, G202

G402, G403

(see page 22-26)

Engine ground cable A

T1, G2

(see page 22-14)

Engine ground cable B

T2, G3

(see page 22-14)

Engine wire harness (A/T)

C101, C103, C105, C106,
C107
G101

(see page 22-16)

Engine wire harness (M/T)

C101, C105, C106
G101

(see page 22-18)

Floor wire harness (Left branch)

C204, C209, C501, C502,
C506, C601, C603

C602, C604, C701,
C702, C771
G601, G603

(see page 22-34)

Floor wire harness (Right branch)

C781, C782, C783
G602

(see page 22-38)

Front passenger’s door subharness

C763

(see page 22-48)

Front passenger’s door wire harness

C761, C762

C763

(see page 22-48)

Front passenger’s seat wire harness
(With seat heater)

C782, C783

(see page 22-54)

Left rear door wire harness

C771

(see page 22-50)

ODS unit harness (With seat heater)

C782

(see page 22-54)

ODS unit harness (Without seat
heater)

C782

(see page 22-55)

Rear window defogger ground wire

G801

(see page 22-42)

Rear wire harness (Left branch)

C701, C702, C703
G701

(see page 22-40)

Rear wire harness (Right branch)

(see page 22-42)

Right rear door wire harness

C781

(see page 22-51)

Roof wire harness (With moonroof)

C801

(see page 22-44)

Roof wire harness (Without moonroof)

C801

(see page 22-45)

Shift solenoid wire harness (A/T)

C107

(see page 22-16)

Starter subharness

(

)

C102, C106
T3, T4
T101, T102

(see page 22-20)

Trunk lid spoiler subharness (TYPE S
model)

C703

(see page 22-40)

USB harness

C671

(see page 22-34)

USB subharness

C671

(see page 22-57)

08/08/21 14:22:07 61SNR030_220_0015

―――
―――

０１

ＳＮＲ９Ａ００Ｊ５４２２６５６２１００ＤＣＡＴ００

Under-hood Fuse/Relay Box

Socket

Ref

Terminal

Connects to

Notes

22-58

Fuse/Relay Boxes

Connector to Fuse/Relay Box Index

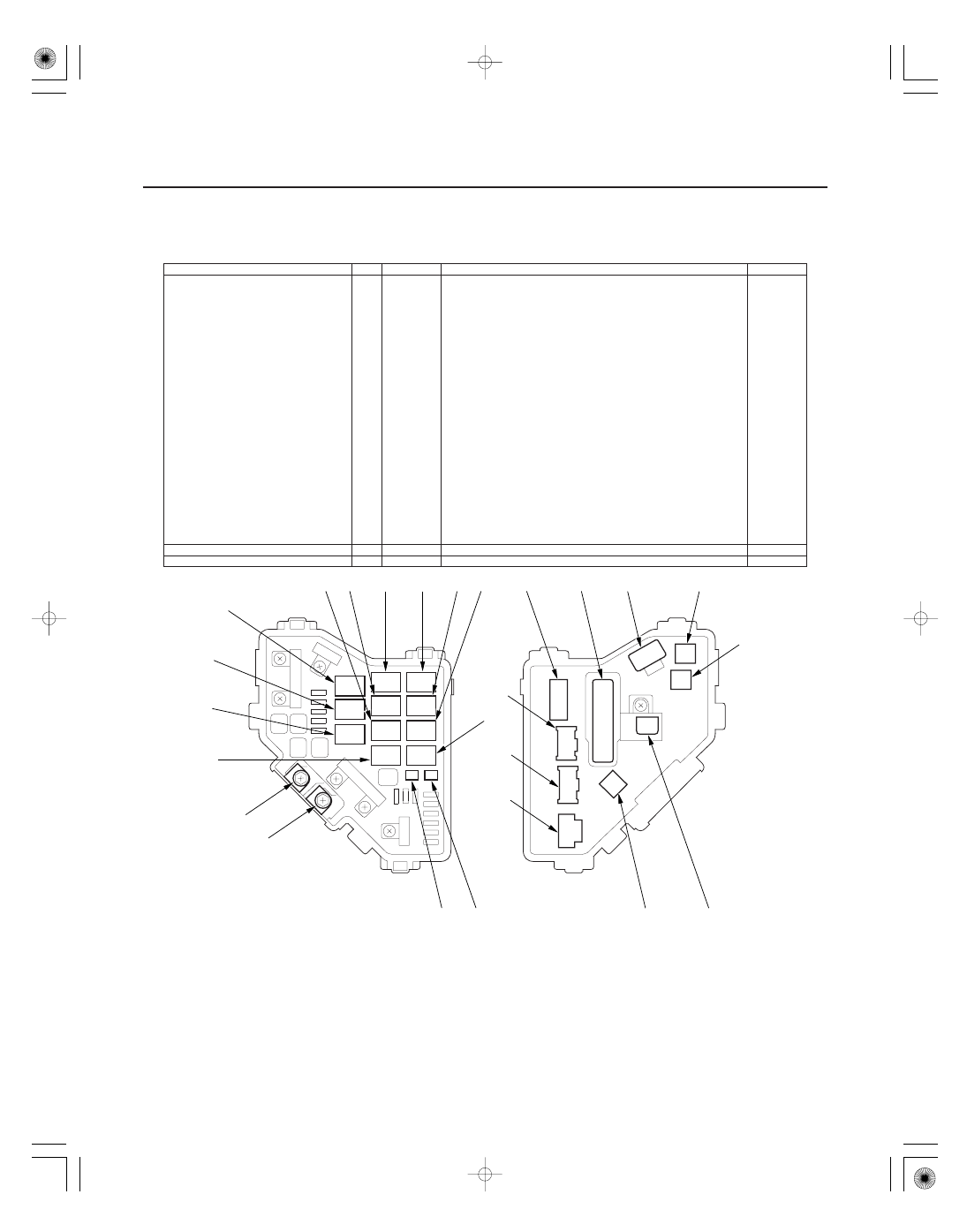

(View of front side)

(View of back side)

A (ELD)
