A/C Compressor Thermal Protector
Replacement

A/C Compressor Relief Valve
Replacement

7.4 N·m
(0.8 kgf·m, 5.5 lbf·ft)

A
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

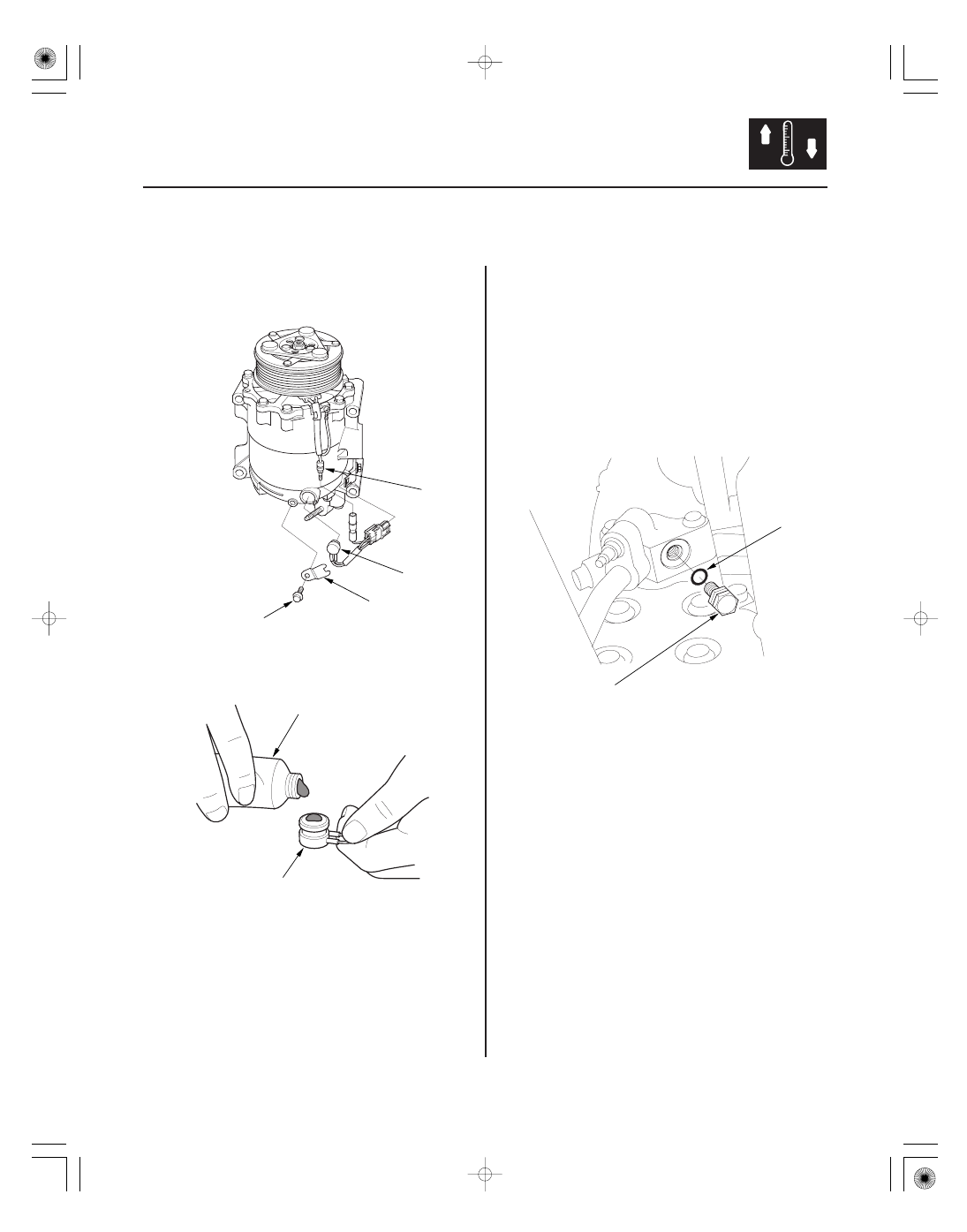

1. Remove the bolt and the holder (A). Disconnect the

field coil connector (B), then remove the thermal
protector (C).

2. Replace the thermal protector (A) with a new one,

and apply silicone sealant (B) to the bottom of the
thermal protector.

3. Install the thermal protector in the reverse order of

removal.

NOTE: If the A/C compressor relief valve released
refrigerant to the atmosphere, determine and correct
the cause of the excessive system pressure, then
replace the relief valve.

1. Recover the refrigerant with a recovery/recycling/

charging station (see page 21-90).

2. Remove the relief valve (A), and the O-ring (B). Plug

the opening to keep foreign matter from entering
the system and the A/C compressor oil from
running out.

3. Clean the mating surfaces.

4. Replace the O-ring with a new one at the relief

valve, and apply a thin coat of refrigerant oil before
installing it.

5. Remove the plug, and install and tighten the relief

valve.

6. Charge the system (see page 21-92).

08/08/21 14:43:48 61SNR030_210_0088

０１

０２

０３

０４

ＳＮＲ９Ａ００Ｇ１０１１０２０００００ＫＢＡＴ８０

21-88

Climate Control

A/C Condenser Replacement

6 x 1.0 mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)

1. Recover the refrigerant with a recovery/recycling/

charging station (see page 21-90).

2. Remove the front grille:

• ’06-08 models (see page 20-160)
• ’09 model (see page 20-161)

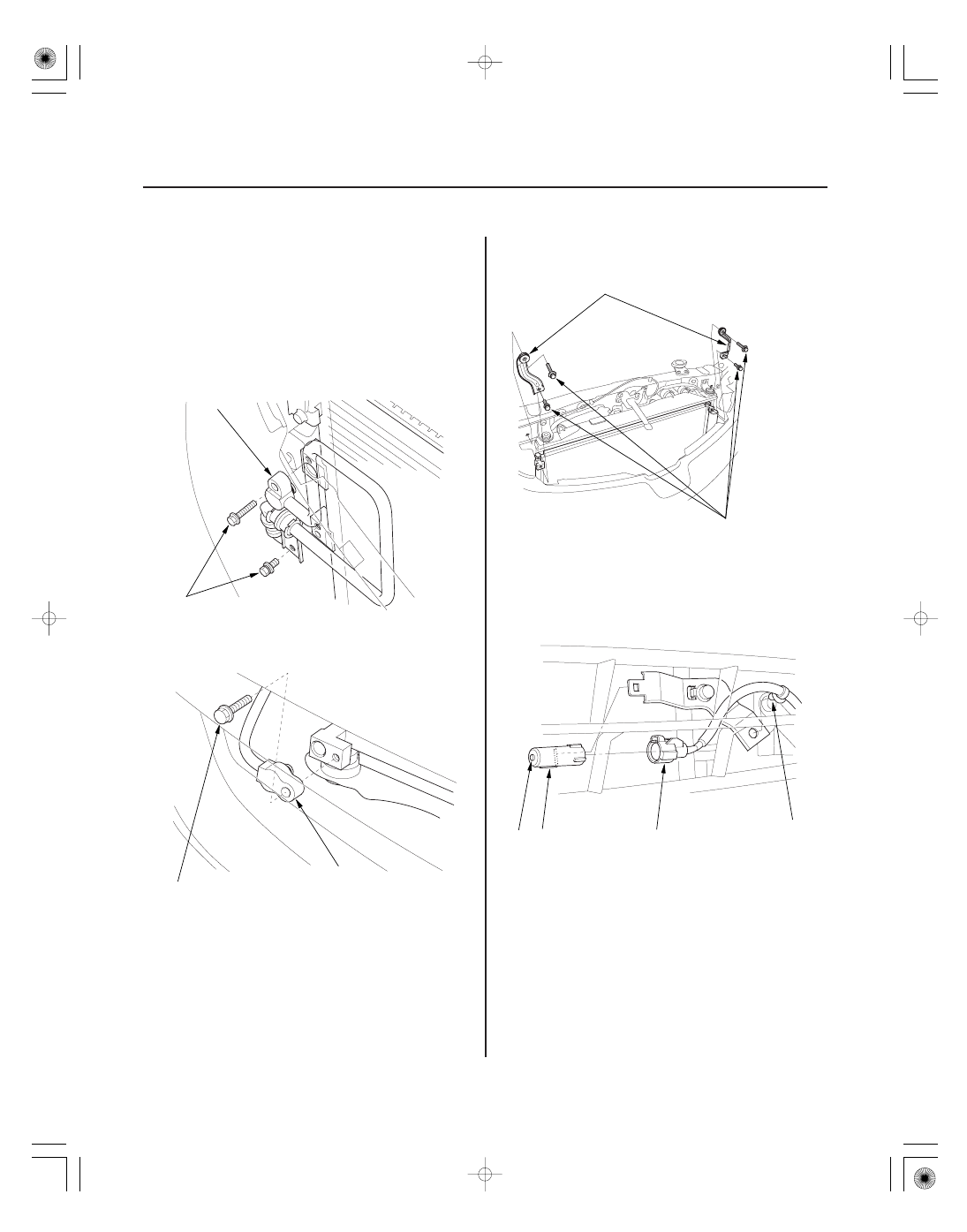

3. Remove the bolts, then disconnect the discharge

hose (A) from the A/C condenser.

4. Remove the bolt, then disconnect the receiver line

(A) from the A/C condenser.

5. Remove the bolts and the A/C condenser upper

mount brackets (A).

6. Lift the tab (A) to release the lock, then remove the

outside air temperature sensor (B) from the bracket.
Disconnect the 2P connector (C), then remove the
clip (D).

7. Remove the hood latch (see page 20-181).

08/08/21 14:43:49 61SNR030_210_0089

０５

０１

ＳＮＲ９Ａ００Ｇ１０１０００５０５５２ＫＢＡＴ２５

21-89

Receiver/Dryer Desiccant
Replacement

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)

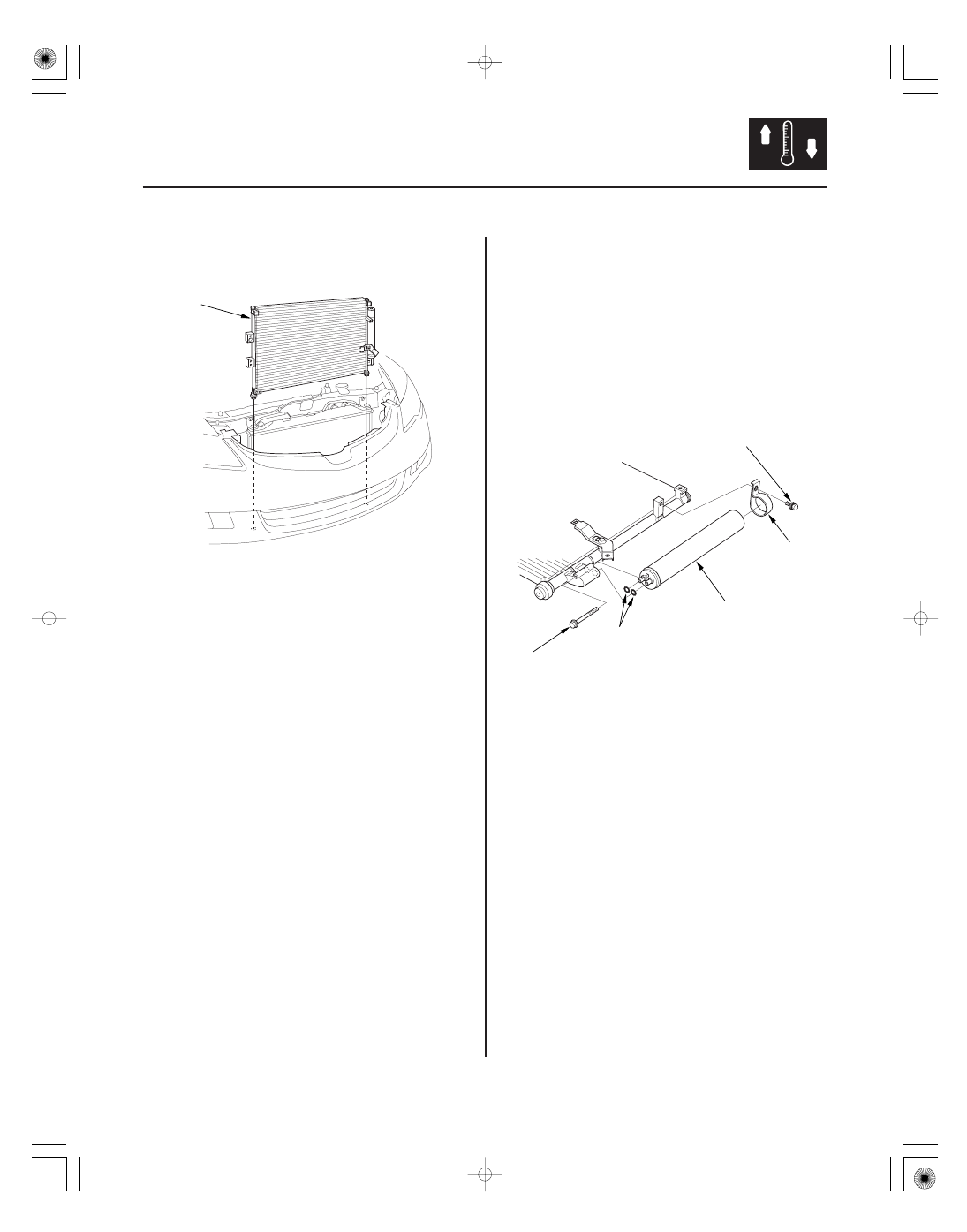

8. Remove the A/C condenser (A) by lifting it up. Be
