Removal

18-76

TPMS

Tire Pressure Sensor Replacement

A

C

B

90 °

OUTSIDE

A

B

C

A

B

C

1. Raise the vehicle, and support it with safety stands

in the proper locations (see page 1-11).

2. Remove the wheel with the faulty sensor.

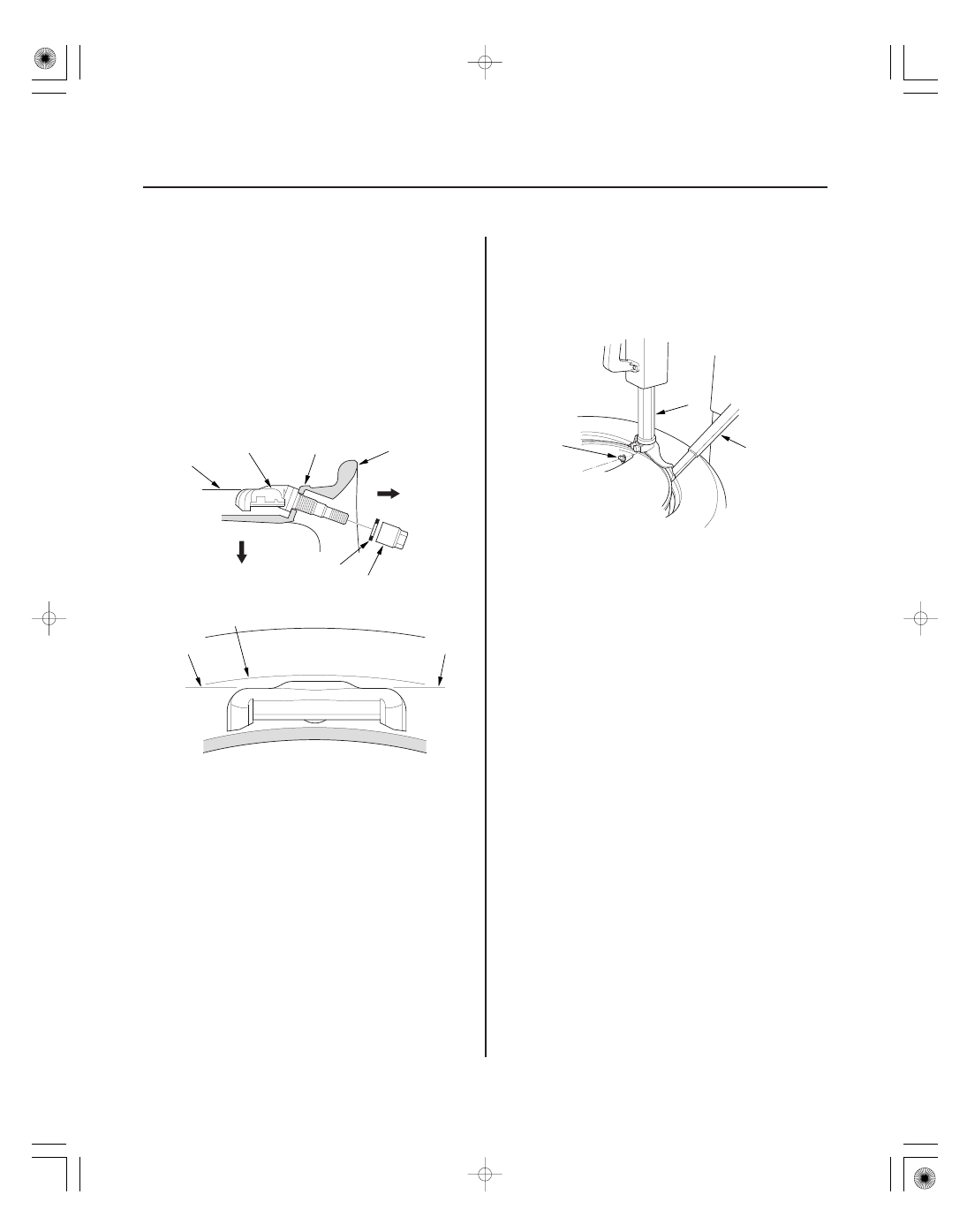

3. Remove the tire valve stem cap and the valve stem

core, to deflate the tire.

4. Remove any balance weights, and then break the

bead loose from the wheel with a commercially
available tire changer (A).

Note these items to avoid damaging the tire
pressure sensor:

• Do the outside of the wheel first.
• Position the wheel as shown so the valve

stem (B) is 90 degrees from the bead
breaker (C) as shown.

• Do not position the bead breaker of the tire

changer too close to the rim.

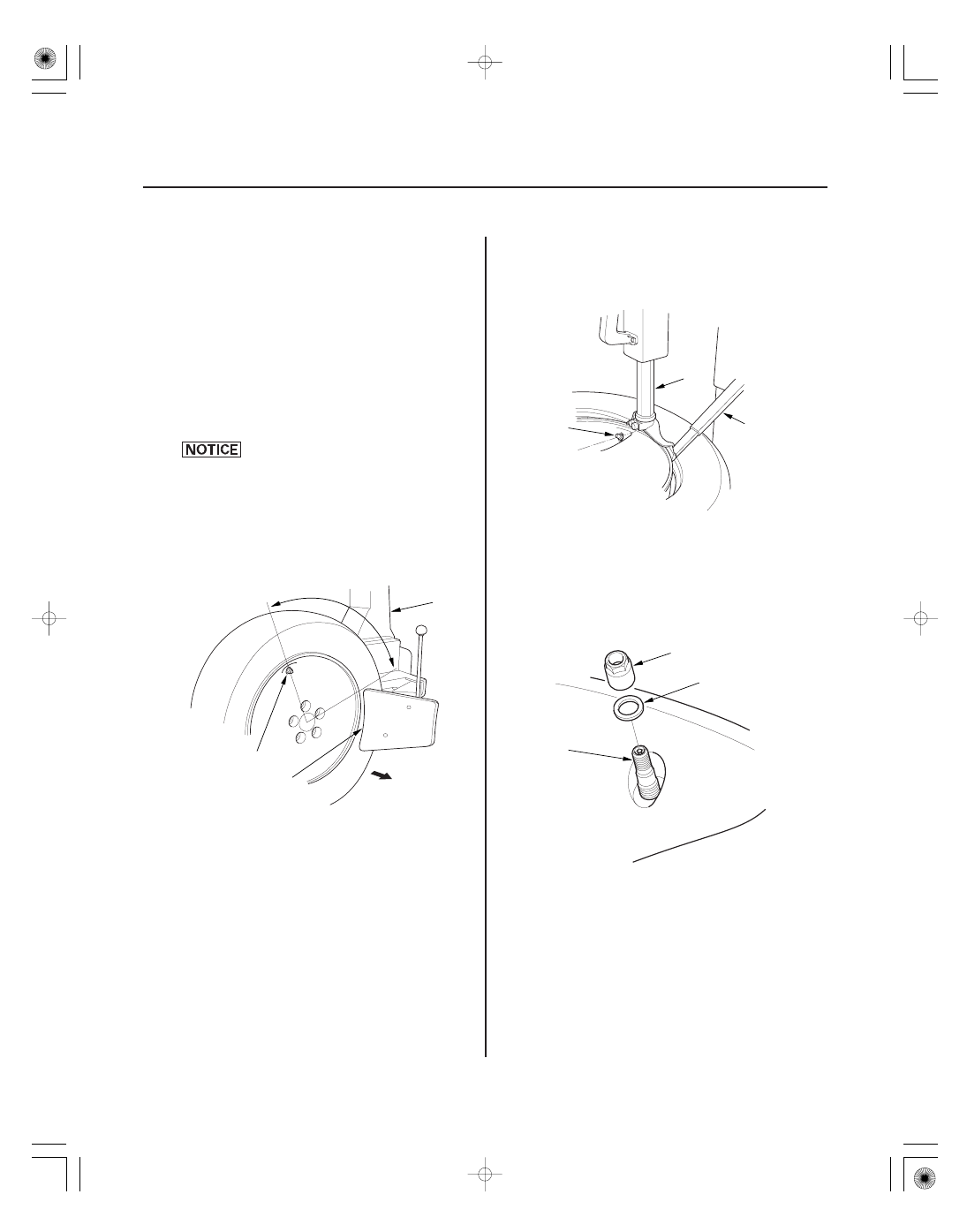

5. Position the wheel so the tire machine (A) and tire

iron (B) are next to the valve stem (C), and will
move away from it when the machine starts. Then
remove the tire from the wheel.

6. Remove the valve stem nut (A) and the washer (B),

then remove the tire pressure sensor with the valve
stem (C) from the wheel.

NOTE: Check the nut and the washer, If they have
deterioration or damage, replace then with new
ones during reassembly.

08/08/21 14:59:02 61SNR030_180_0076

04

05

Installation

18-77

B

A

A

A

A

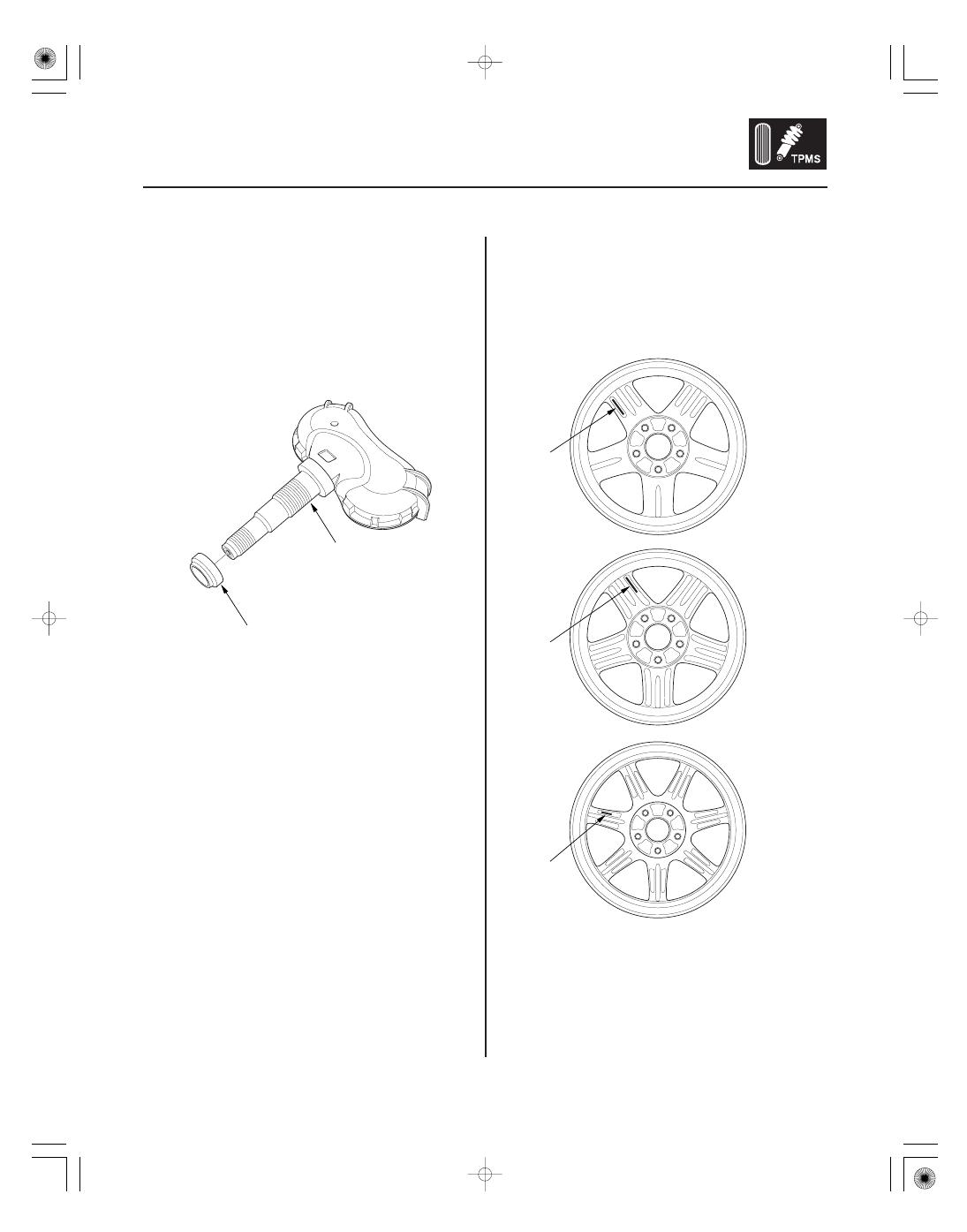

7. Remove and discard the valve stem grommet (A)

from the tire pressure sensor (B).

NOTE:

• The valve stem grommet might stay in the wheel;

make sure you remove it.

• Always use a new valve stem grommet

whenever the tire pressure sensor has been
removed from the wheel or when replacing the
tire.

NOTE:

• Use only wheels that have a ‘‘TPMS’’ stamp (A) on

them.

• The vehicle may be equipped with one of the three

types of wheels.

Replace.

08/08/21 14:59:02 61SNR030_180_0077

06

08

18-78

TPMS

A

B

C

D
4 N·m
(0.4 kgf·m, 3 lbf·ft)

F

E

OUT SIDE

WHEEL CENTER

F

E

E

A

B

C

1. Before installing the tire pressure sensor, clean the

mating surfaces on the sensor and the wheel.

2. Install the tire pressure sensor (A) and the washer

(B) to the wheel (C), and tighten the valve stem nut
(D) finger tight. Make sure the pressure sensor is
resting on the wheel.

NOTE: Install the tire pressure sensor so that
sensor housing surface (E) should not exceed
protrusion (F) of wheel to prevent the sensor
housing from being caught on the bead of the tire
when assembling the tire.

3. Tighten the valve stem nut to the specified torque

while holding the tire pressure sensor.

NOTE:

• Do not use air or electric impact tools to tighten a

valve stem nut.

• Do not twist the tire pressure sensor to adjust its

position with the wheel, as this will damage or
deform the valve stem grommet.

4. Lube the tire bead sparingly with a paste-type tire

mounting lubricant, and position the wheel so the
tire machine (A) and tire iron (B) are next to the
valve stem (C) and will move away from it when
the machine starts. Then install the tire onto the
wheel.

5. With a dry air source, inflate the tire to 300 kPa

(3.1 kgf/cm , 44 psi) to seat the tire bead to the rim,
then adjust the tire pressure (see page 18-5), then
install the valve stem cap.

NOTE: Make sure the tire bead is seated on both
sides of the rim uniformly.

6. Check and adjust the wheel balance, then install the

wheels on the vehicle.

7. Remove the jack stands, and lower the vehicle.

Torque the wheel nuts to specification.

8. Connect the HDS, and memorize the tire pressure

sensor IDs using the TPMS sensor initializer tool
(see page 18-52).
