Acura CSX. Manual - part 117

０１

＊０１

０３

＊０２

−

YES

11-142

PGM-FI System

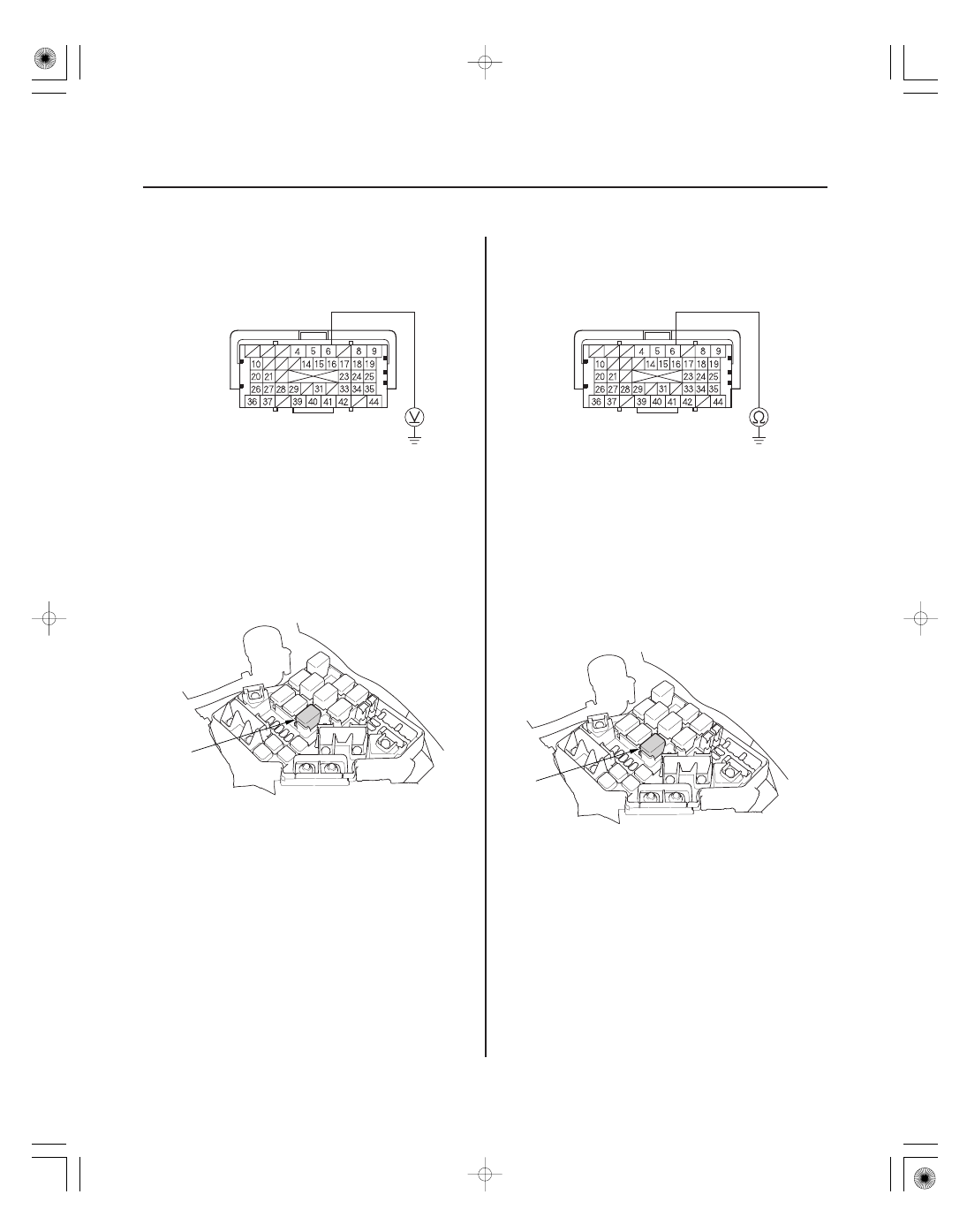

ECM/PCM CONNECTOR A (44P)

MRLY (GRN)

ECM/PCM CONNECTOR A (44P)

MRLY (GRN)

10. Measure the voltage between ECM/PCM connector

terminal A6 and body ground.

Go to step 13.

Go to step 11.

11. Remove PGM-FI main relay 1 (C) from the under-

hood fuse/relay box.

12. Check for continuity between ECM/PCM connector

terminal A6 and body ground.

Repair short in the wire between the ECM/

PCM (A6) and PGM-FI main relay 1, then go to step
16.

Go to step 15.

13. Remove PGM-FI main relay 1 (C) from the under-

hood fuse/relay box.

Terminal side of female terminals

Is ther e batter y voltage?

Is ther e continuity?

08/08/21 14:18:58 61SNR030_110_0142

０５

−

YES

11-143

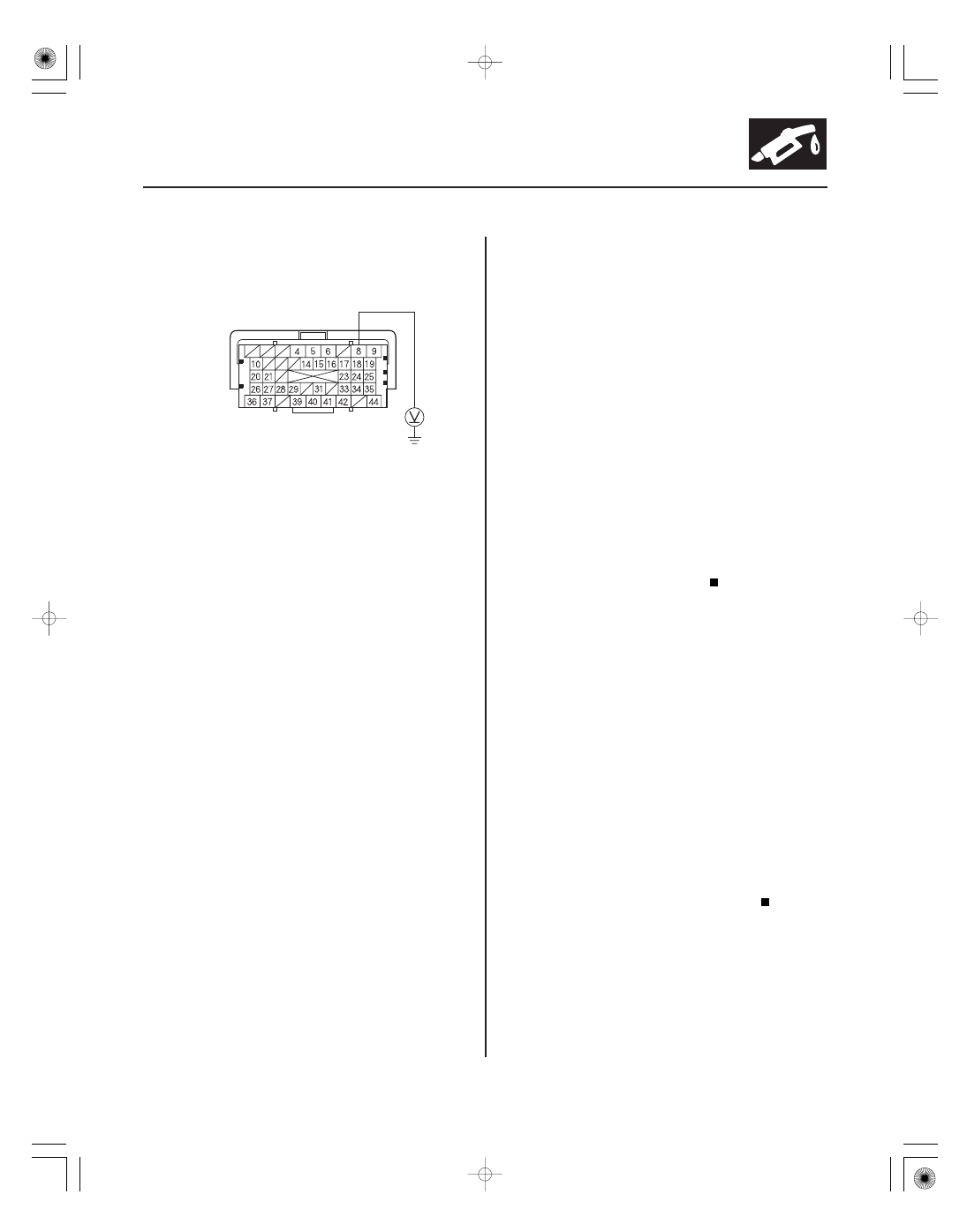

ECM/PCM CONNECTOR A (44P)

IGP (ORN)

14. Measure the voltage between ECM/PCM connector

terminal A8 and body ground.

Repair short to power in the wire between

the ECM/PCM (A8) and PGM-FI main relay 1, then
go to step 16.

Go to step 15.

15. Test PGM-FI main relay 1 (see page 22-70).

Go to step 23.

Replace PGM-FI main relay 1, then go to step

16.

16. Reconnect all connectors.

17. Turn the ignition switch to ON (II).

18. Reset the ECM/PCM with the HDS.

19. Do the ECM/PCM idle learn procedure (see page

11-310).

20. Turn the ignition switch to LOCK (0).

21. Wait 10 seconds.

22. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at PGM-FI main relay 1 and the ECM/PCM,
then go to step 1.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

23. Reconnect all connectors.

24. Update the ECM/PCM if it does not have the latest

software (see page 11-227), or substitute a known-
good ECM/PCM (see page 11-7).

25. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at PGM-FI main relay 1 and the ECM/PCM.
If the ECM/PCM was updated, substitute a known-
good ECM/PCM (see page 11-7), then recheck. If the
ECM/PCM was substituted, go to step 1.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-228). If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting.

Terminal side of female terminals

Is ther e batter y voltage?

Is PGM-F I main r elay 1 OK ?

Is DT C P0563 indicated?

08/08/21 14:18:58 61SNR030_110_0143

ＳＮＲ９ＡＡ７Ｋ７２１０００９０６０２ＦＡＡＴ００

ＳＮＲ９ＡＡＪＫ７２１０００９０６０３ＦＡＡＴ００

−

DTC P0602:

DTC P0603:

DTC P062F:

YES

11-144

PGM-FI System

ECM/PCM Programming Error

ECM/PCM Internal Control

Module Keep Alive Memory (KAM) Error
(’06-08 models)

ECM/PCM Internal Control

Module Keep Alive Memory (KAM) Error
(’09 model)

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• This DTC is indicated when a ECM/PCM update is not

completed.

• Do not turn the ignition switch to LOCK (0) or ACC (I)

while updating the ECM/PCM. If you do, the ECM/
PCM can be damaged.

1. Do the ECM/PCM update procedure (see page

11-227).

2. Check for Temporary DTCs or DTCs with the HDS.

Replace the original ECM/PCM (see page

11-228).

The update is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• Information marked with an asterisk ( ) applies to

the ’06-08 models.

• Information marked with a double asterisk (

)

applies to the ’09 model.

1. Turn the ignition switch to ON (II).

2. Clear the DTC with the HDS.

3. Check for Temporary DTCs or DTCs with the HDS.

Go to step 4.

Intermittent failure, the system is OK at this

time.

4. Update the ECM/PCM if it does not have the latest

software (see page 11-227), or substitute a known-
good ECM/PCM (see page 11-7).

5. Check for Temporary DTCs or DTCs with the HDS.

If the ECM/PCM was updated, substitute a

known-good ECM/PCM (see page 11-7), then
recheck. If the ECM/PCM was substituted, go to
step 1.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-228). If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting.

Is DT C P0602 indicated?

Is DT C P0603 ( P062F )

indicated?

Is DT C P0603 ( P062F )

indicated?

08/08/21 14:18:58 61SNR030_110_0144

ＳＮＲ９ＡＡ７Ｋ７２１０００９０６０６ＦＡＡＴ００

ＳＮＲ９ＡＡ１Ｋ７７１０００９０６０ＡＦＡＡＴ００

−

DTC P0606:

DTC P060A:

YES

11-145

ECM/PCM Processor Malfunction

PCM (A/T system) Internal

Control Module Malfunction

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch to ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch to LOCK (0).

4. Turn the ignition switch to ON (II).

5. Wait 40 seconds.

6. Check for Temporary DTCs or DTCs with the HDS.

Go to step 7.

Intermittent failure, the system is OK at this

time.

7. Update the ECM/PCM if it does not have the latest

software (see page 11-227), or substitute a known-
good ECM/PCM (see page 11-7).

8. Turn the ignition switch to LOCK (0).

9. Turn the ignition switch to ON (II).

10. Wait 40 seconds.

11. Check for Temporary DTCs or DTCs with the HDS.

If the ECM/PCM was updated, substitute a

known-good ECM/PCM (see page 11-7), then go to
step 8. If the ECM/PCM was substituted, go to step
1.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-228). If
any other Temporary DTCs or DTCs are indicated,
go to the indicated DTC’s troubleshooting.

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch to ON (II).

2. Clear the DTC with the HDS.

3. Check for Temporary DTCs or DTCs with the HDS.

Go to step 4.

Intermittent failure, the system is OK at this

time.

4. Update the PCM if it does not have the latest

software (see page 11-227), or substitute a known-
good PCM (see page 11-7).

5. Check for Temporary DTCs or DTCs with the HDS.

If the PCM was updated, substitute a known-

good PCM (see page 11-7), then recheck. If the PCM
was substituted, go to step 1.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-228). If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Is DT C P0606 indicated?

Is DT C P060A indicated?

08/08/21 14:18:58 61SNR030_110_0145
