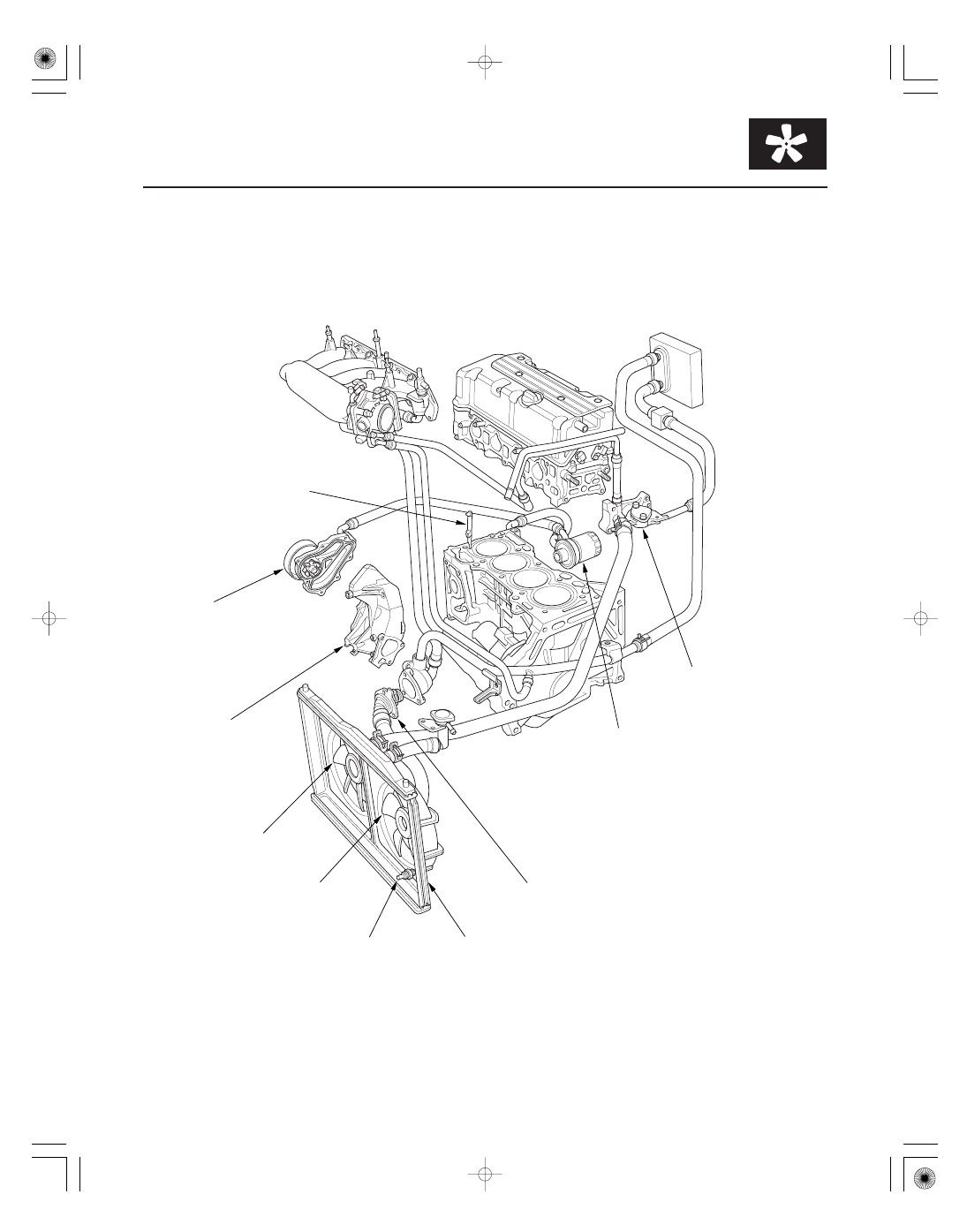

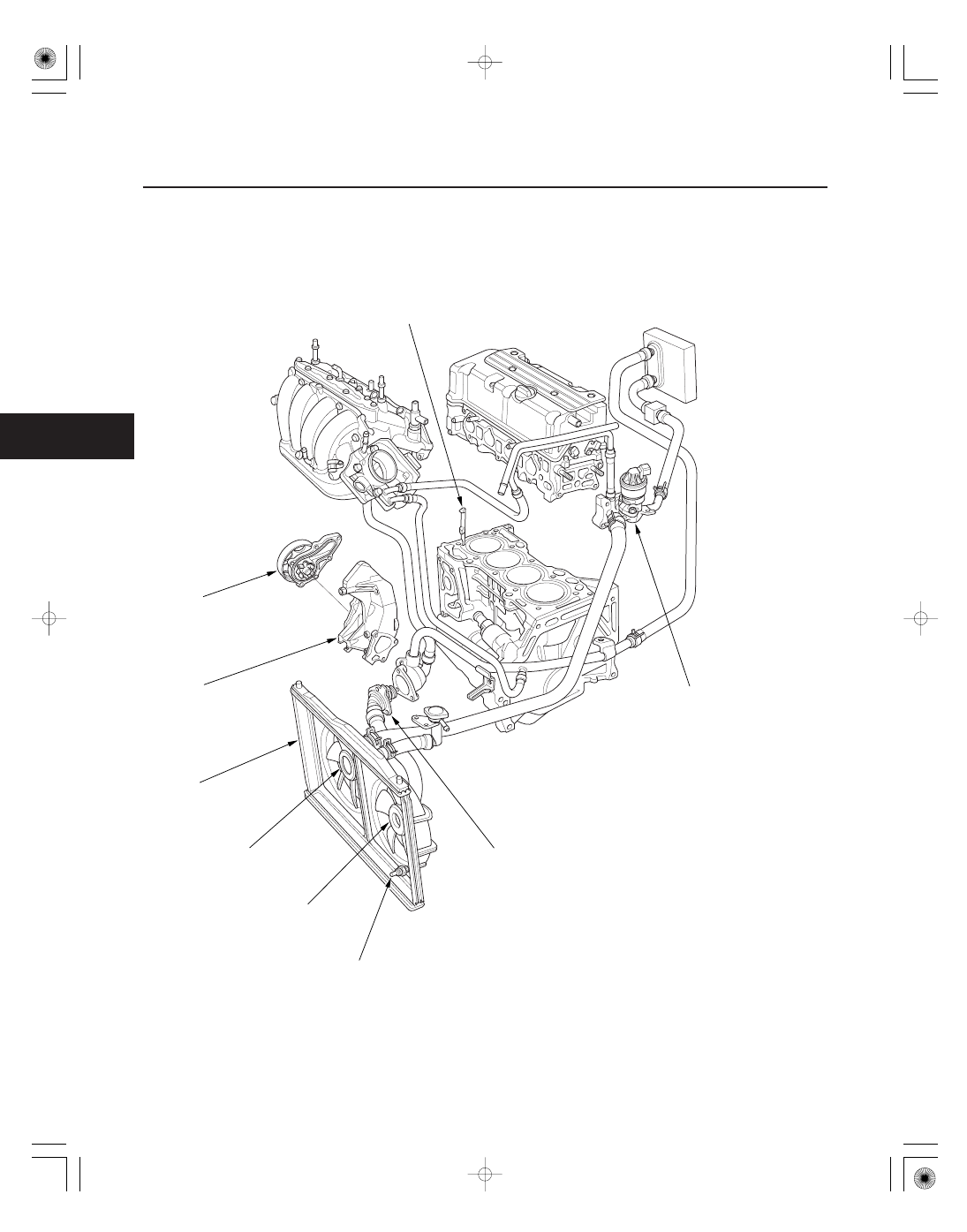

K20Z3 engine
9-14
Intake Manifold and Exhaust System
8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)
6 x 1.0 mm
10 N·m
(1.0 kgf·m, 7.2 lbf·ft)
8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)

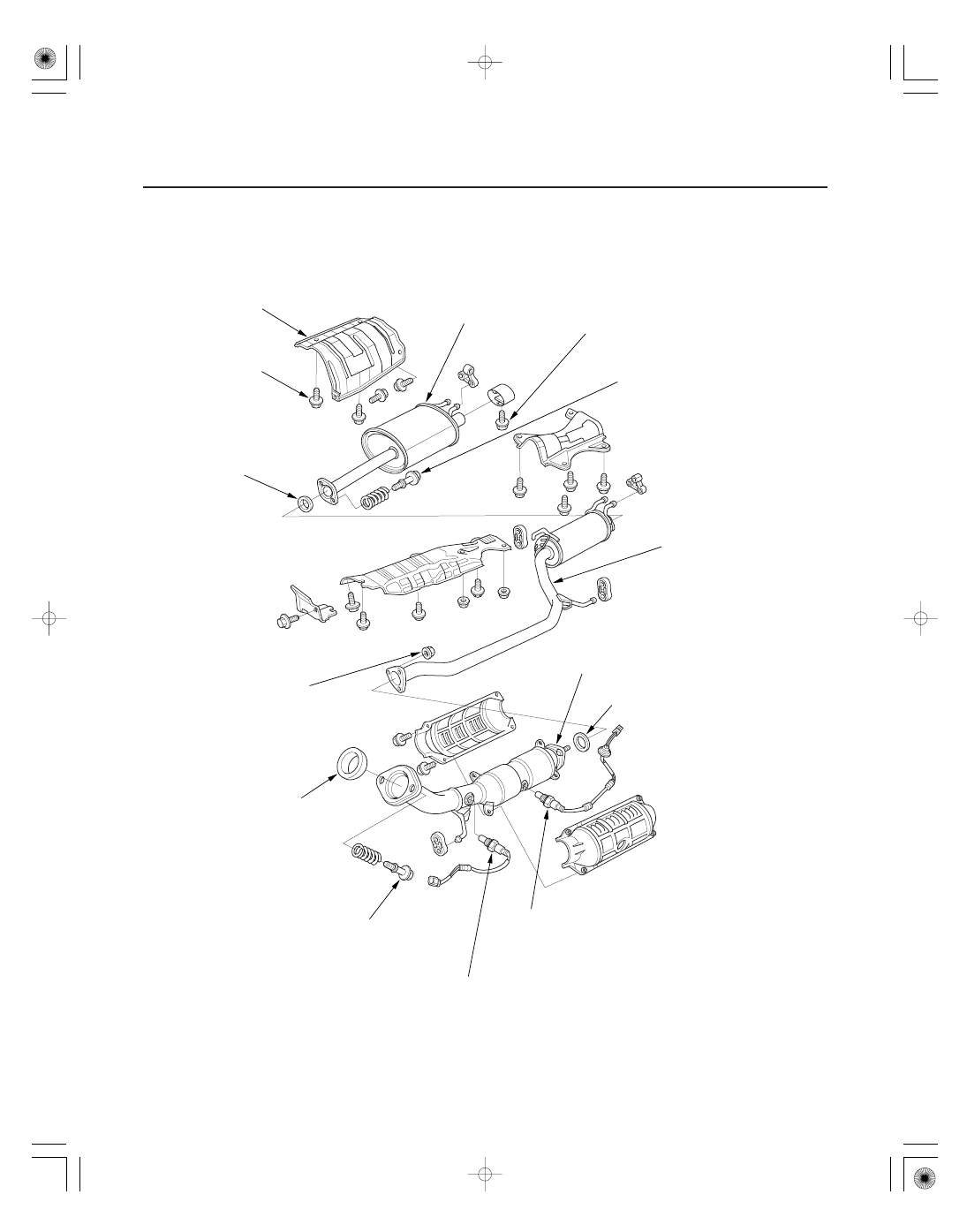

HEAT SHIELD
GASKET
MUFFLER
EXHAUST PIPE B
SELF-LOCKING NUTS
10 x 1.25 mm
33 N·m
(3.4 kgf·m, 25 lbf·ft)
GASKET
THREE WAY CATALYTIC CONVERTER
(TWC) ASSEMBLY
SECONDARY HEATED
OXYGEN SENSOR
(SECONDARY HO2S)
44 N·m (4.5 kgf·m, 33 lbf·ft)
AIR FUEL RATIO (A/F) SENSOR
44 N·m (4.5 kgf·m, 33 lbf·ft)
GASKET
6 x 1.0 mm
10 N·m
(1.0 kgf·m, 7.2 lbf·ft)
NOTE: Use new gaskets and self-locking nuts when reassembling.
Tighten the bolts in steps,
alternating side-to-side.
Tighten the bolts in steps,
alternating side-to-side.
Replace.
Replace.
Replace.
Replace.
