8-22
Engine Lubrication
A
8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)
8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)
A
10 x 1.25 mm
44 N·m
(4.5 kgf·m, 33 lbf·ft)
10 x 1.25 mm
44 N·m
(4.5 kgf·m, 33 lbf·ft)
B
C
D
B
A
6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

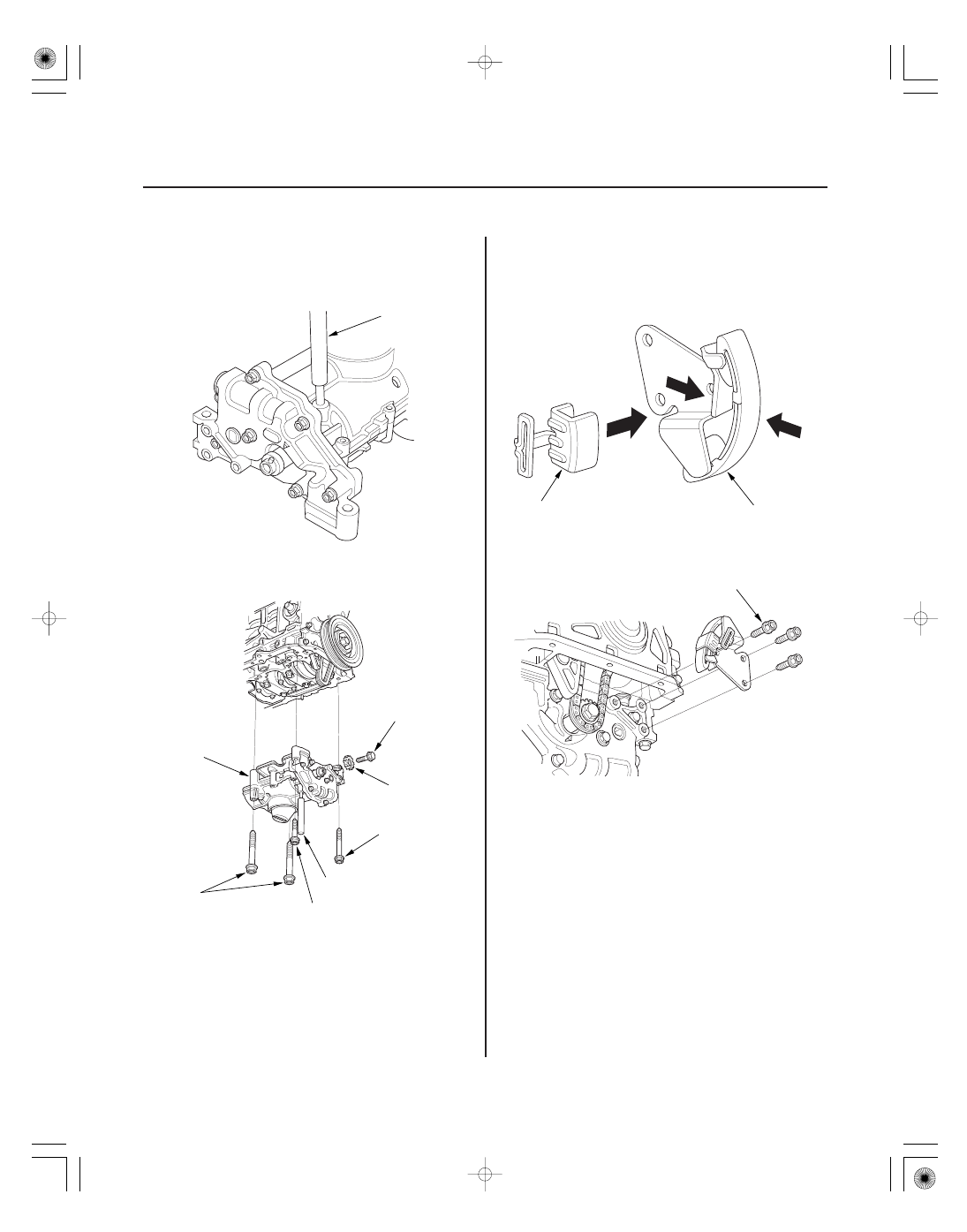

3. To hold the rear balancer shaft, insert a 6 mm long
pin punch (Snap-on PPC108LA or equivalent) (A)
into the maintenance hole in the lower balancer
shaft holder and through the rear balancer shaft.
4. Apply new engine oil to the threads of the oil pump
sprocket mounting bolt (A).
5. Loosely install the oil pump (B), then install the oil
pump sprocket (C).
6. Tighten the oil pump mounting bolts and the oil
pump sprocket mounting bolt.
7. Remove the 6 mm long pin punch (D).

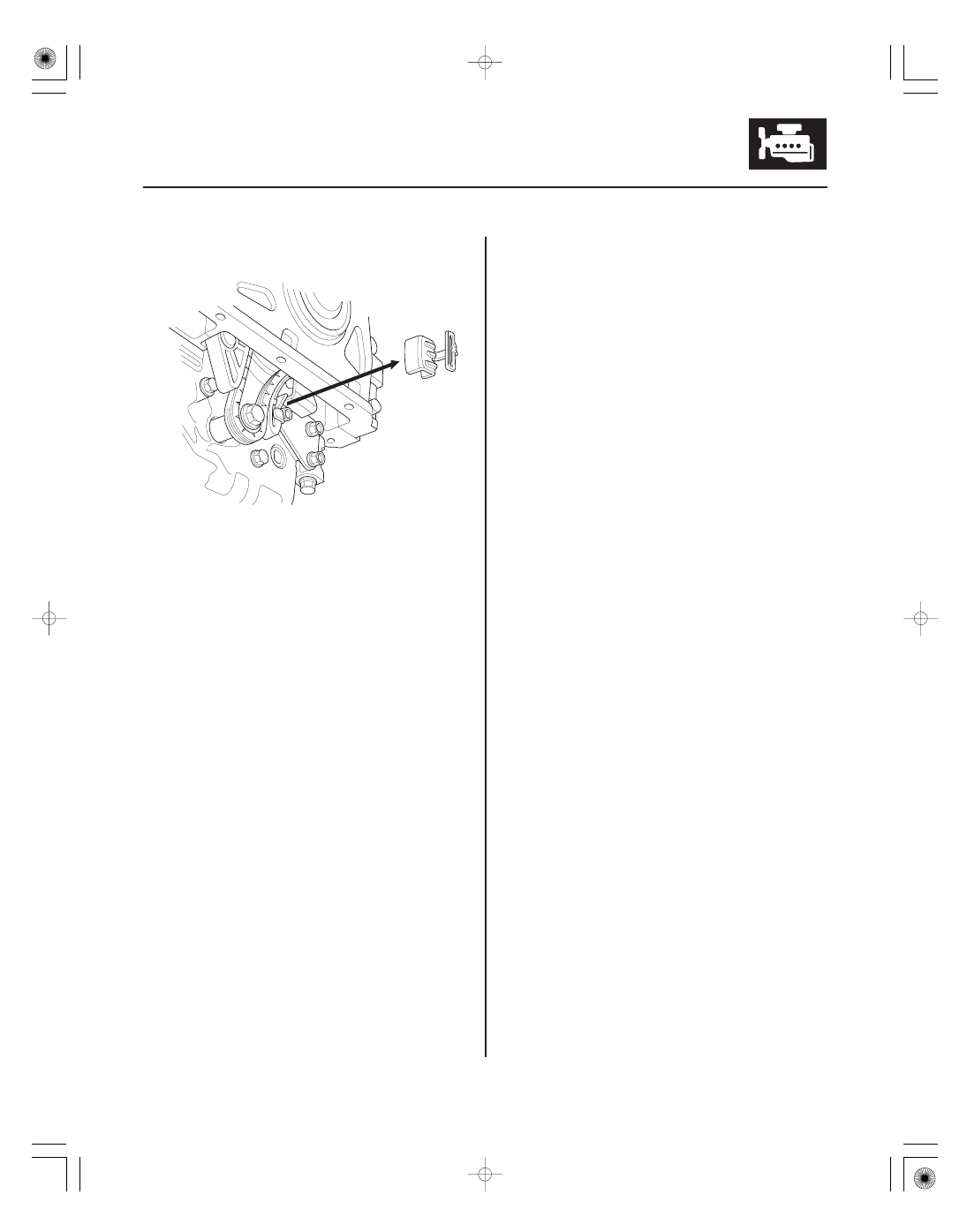

8. Squeeze the new oil pump chain tensioner (A), then
install the set clip (B) on it as shown.
NOTE: The set clip is supplied with the oil pump
chain tensioner.
9. Install the new oil pump chain tensioner.
