Acura CSX. Manual - part 42

０１

０２

０１

０３

ＳＮＲ９Ａ００Ａ１４６７４３０００００ＫＣＡＴ１０

Special Tools Required

6-21

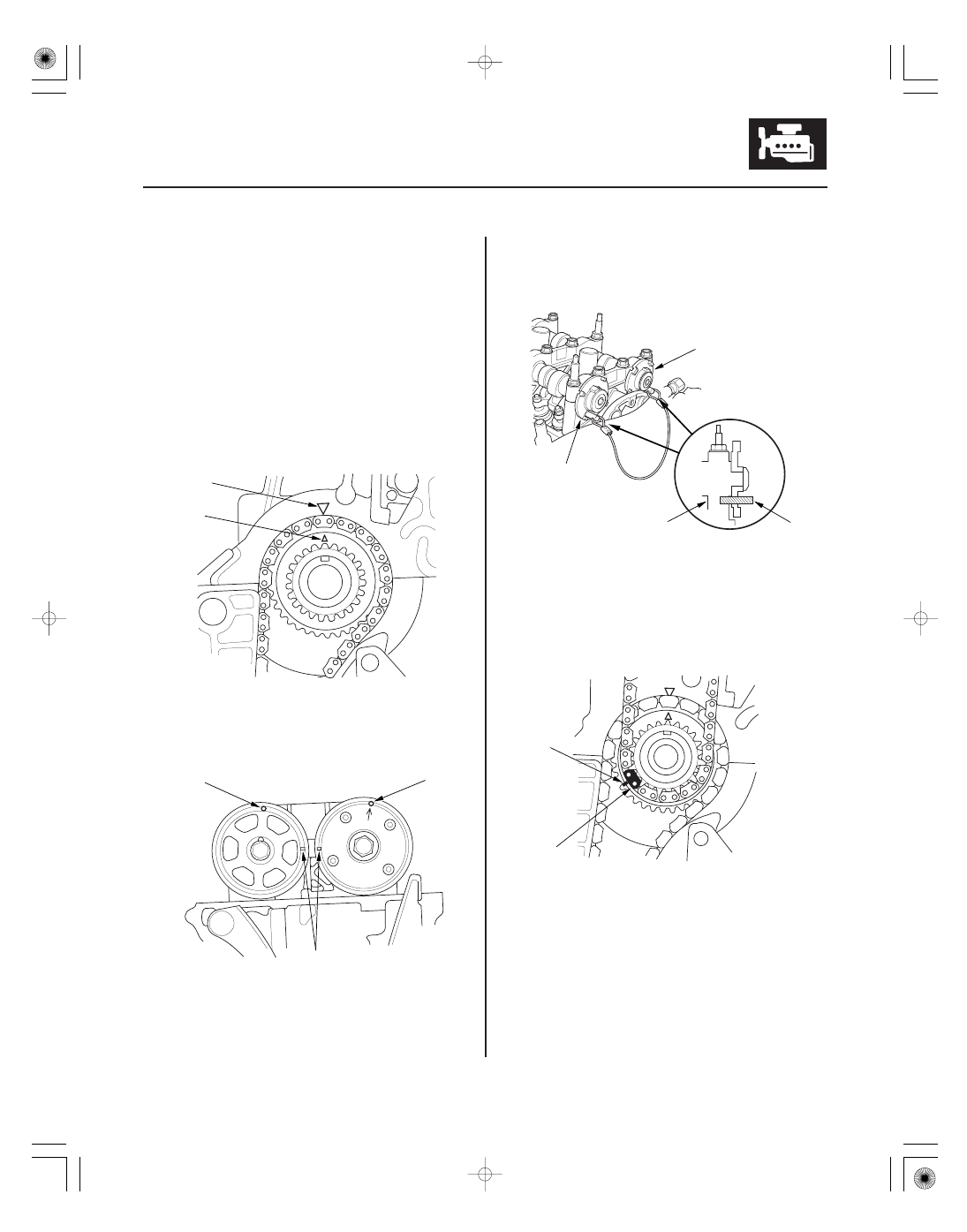

Cam Chain Installation

Camshaft lock pin set 07AAB-RWCA120

NOTE:

• Keep the cam chain away from magnetic fields.
• Before doing this procedure, check that the variable

valve timing control (VTC) actuator is locked by
turning the VTC actuator counterclockwise. If not
locked, turn the VTC actuator clockwise until it stops,
then recheck it. If it is still not locked, replace the VTC
actuator.

1. Set the crankshaft to top dead center (TDC). Align

the TDC mark (A) on the crankshaft sprocket with
the pointer (B) on the engine block.

2. Set the camshafts to TDC. The punch mark (A) on

the VTC actuator and the punch mark (B) on the
exhaust camshaft sprocket should be at the top.
Align the TDC marks (C) on the VTC actuator and
the exhaust camshaft sprocket.

3. To hold the intake camshaft, insert a camshaft lock

pin (07AAB-RWCA120) (A) into the maintenance
hole in camshaft position (CMP) pulse plate A (B)
and through No. 5 rocker shaft holder (C).

4. To hold the exhaust camshaft, insert a camshaft

lock pin (A) into the maintenance hole in CMP pulse
plate B (D) and through No. 5 rocker shaft holder
(C).

5. Install the cam chain on the crankshaft sprocket

with the colored link plate (A) aligned with the mark
(B) on the crankshaft sprocket.

０４

０５

＊０１

０７

6-22

Cylinder Head

6 x 1.0 mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft)

8 x 1.25 mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

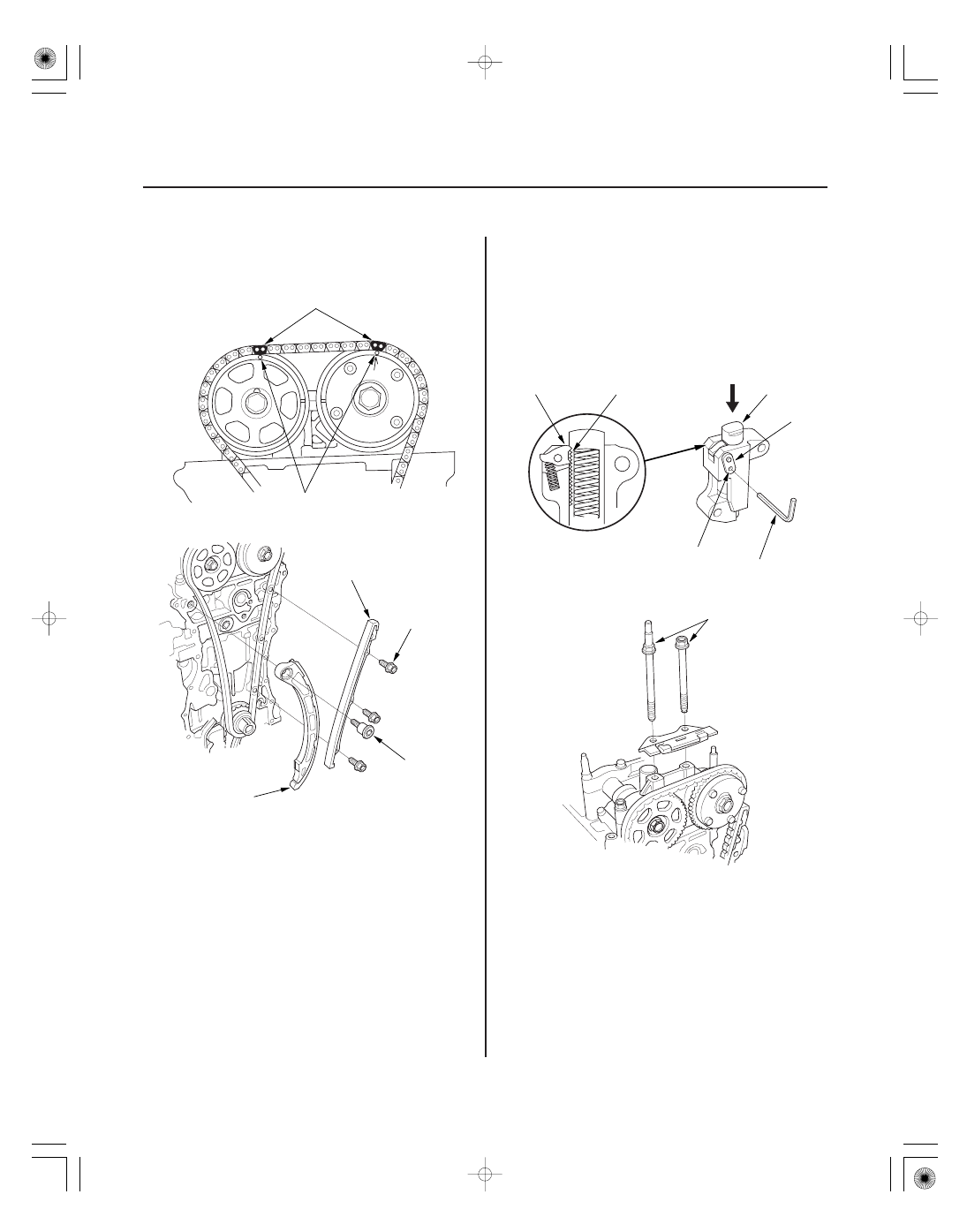

6. Install the cam chain on the VTC actuator and the

exhaust camshaft sprocket with the punch marks
(A) aligned with the two colored link plates (B).

7. Install cam chain guide A and the tensioner arm (B).

8. Compress the auto-tensioner when replacing the

cam chain. Remove the pin from the auto-tensioner.
Turn the plate (A) counterclockwise, to release the
lock, then press the rod (B), and set the first cam (C)
to the first edge of the rack (D). Insert the 1.2 mm
(0.05 in.) diameter pin (E) into the holes (F).

NOTE: If the chain tensioner is not set up as
described, the tensioner will be damaged.

9. Install cam chain guide B.

０６

０８

０２

＊０４

6-23

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

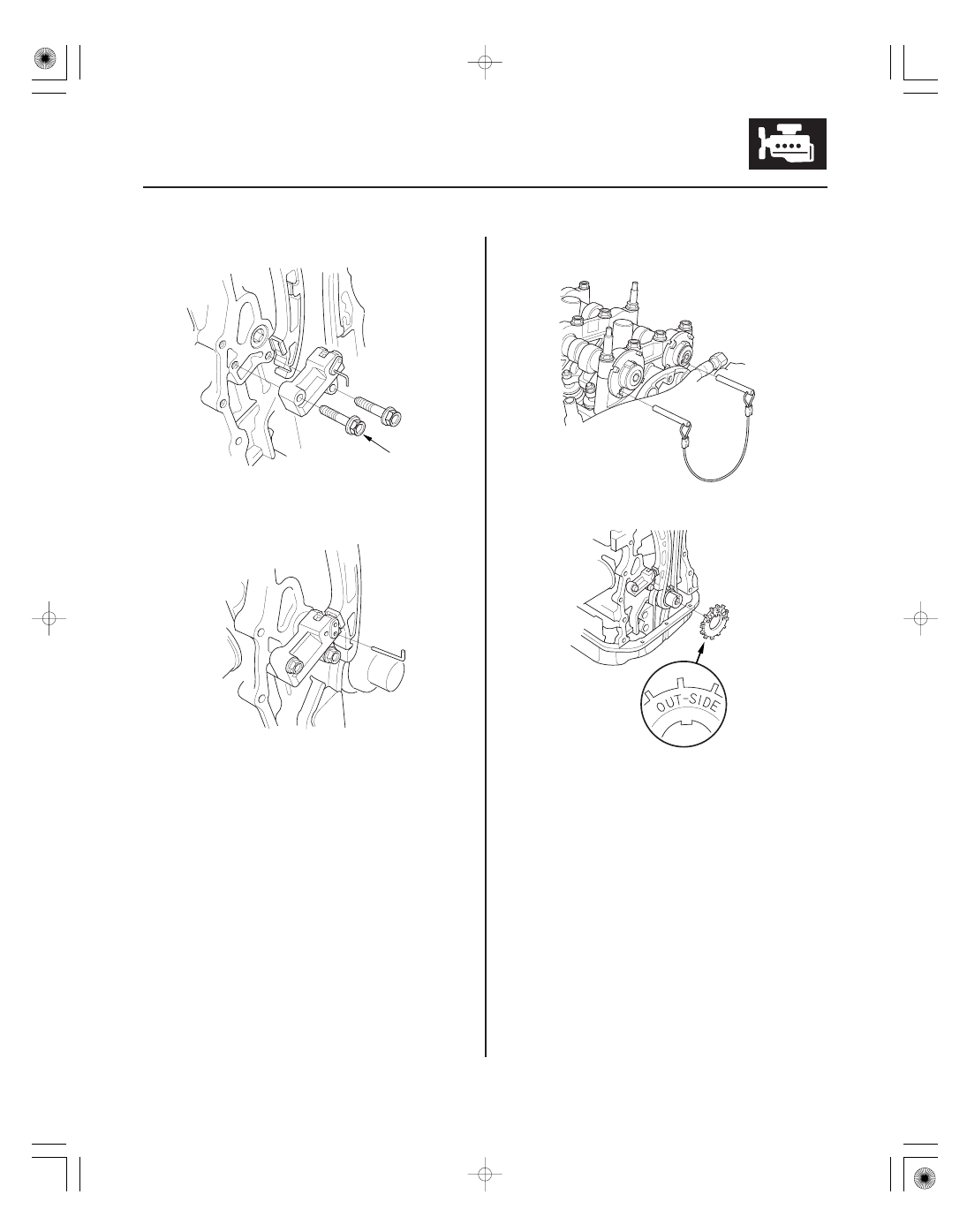

10. Install the auto-tensioner.

11. Remove the pin or lock pin (P/N 14511-PNA-003)

from the auto-tensioner.

12. Remove the camshaft lock pin set (07AAB-

RWCA120).

13. Install the crankshaft position (CKP) pulse plate.

14. Check the chain case oil seal for damage. If the oil

seal is damaged, replace the chain case oil seal
(see page 6-31).

15. Remove all of the old liquid gasket from the chain

case mating surfaces, bolts, and bolt holes.

０３

０４

１１

１２

6-24

Cylinder Head

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

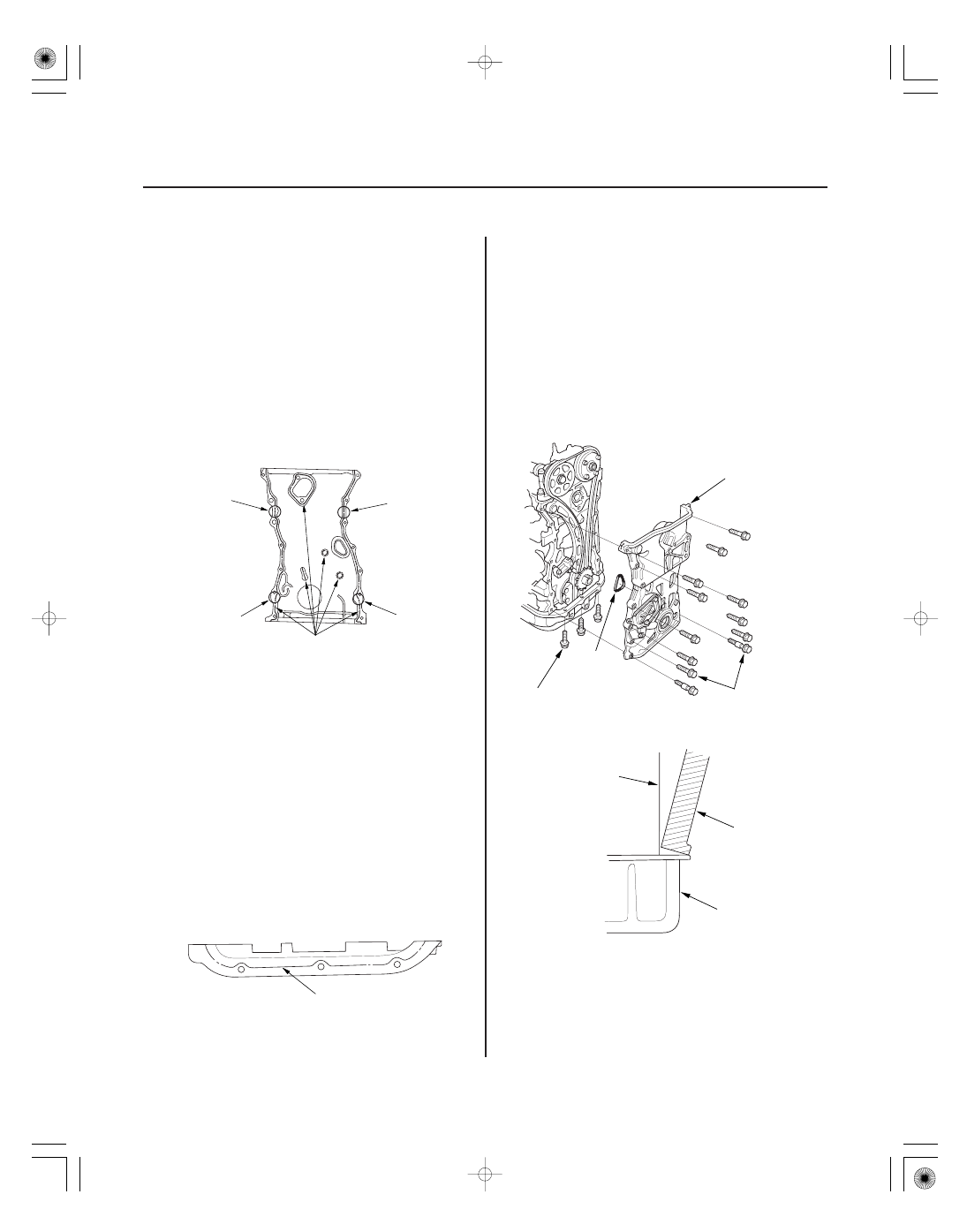

16. Clean, and dry the chain case mating surfaces.

17. Apply liquid gasket, P/N 08717-0004, 08718-0001,

08718-0003, or 08718-0009, evenly to the engine
block mating surface of the chain case, and to the
inside edge of the threaded bolt holes. Install the
component within 5 minutes of applying the liquid
gasket.

NOTE:

• If you apply liquid gasket P/N 08718-0012, the

component must be installed within 4 minutes.

• If too much time has passed after applying the

liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.

18. Apply liquid gasket to the engine block upper

surface contact areas (A) on the chain case and
lower block upper surface contact areas (B) on the
chain case.

19. Apply liquid gasket, P/N 08717-0004, 08718-0001,

08718-0003, or 08718-0009, evenly to the oil pan
mating surface of the chain case, and to the inside
edge of the threaded bolt holes. Install the
component within 5 minutes of applying the liquid
gasket.

NOTE:

• If you apply liquid gasket P/N 08718-0012, the

component must be install within 4 minutes.

• If too much time has passed after applying the

liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.

20. Install the new O-ring (A) on the chain case. Set the

edge of the chain case (B) to the edge of the oil pan
(C), then install the chain case on the engine block
(D). Wipe off the excess liquid gasket on the oil pan
and chain case mating surface.

NOTE:

• When installing the chain case, do not slide the

bottom surface onto the oil pan mounting surface.

• Wait at least 30 minutes before filling the engine

with oil.

• Do not run the engine for at least 3 hours after

installing the chain case.

Apply liquid gasket
along the broken line.
