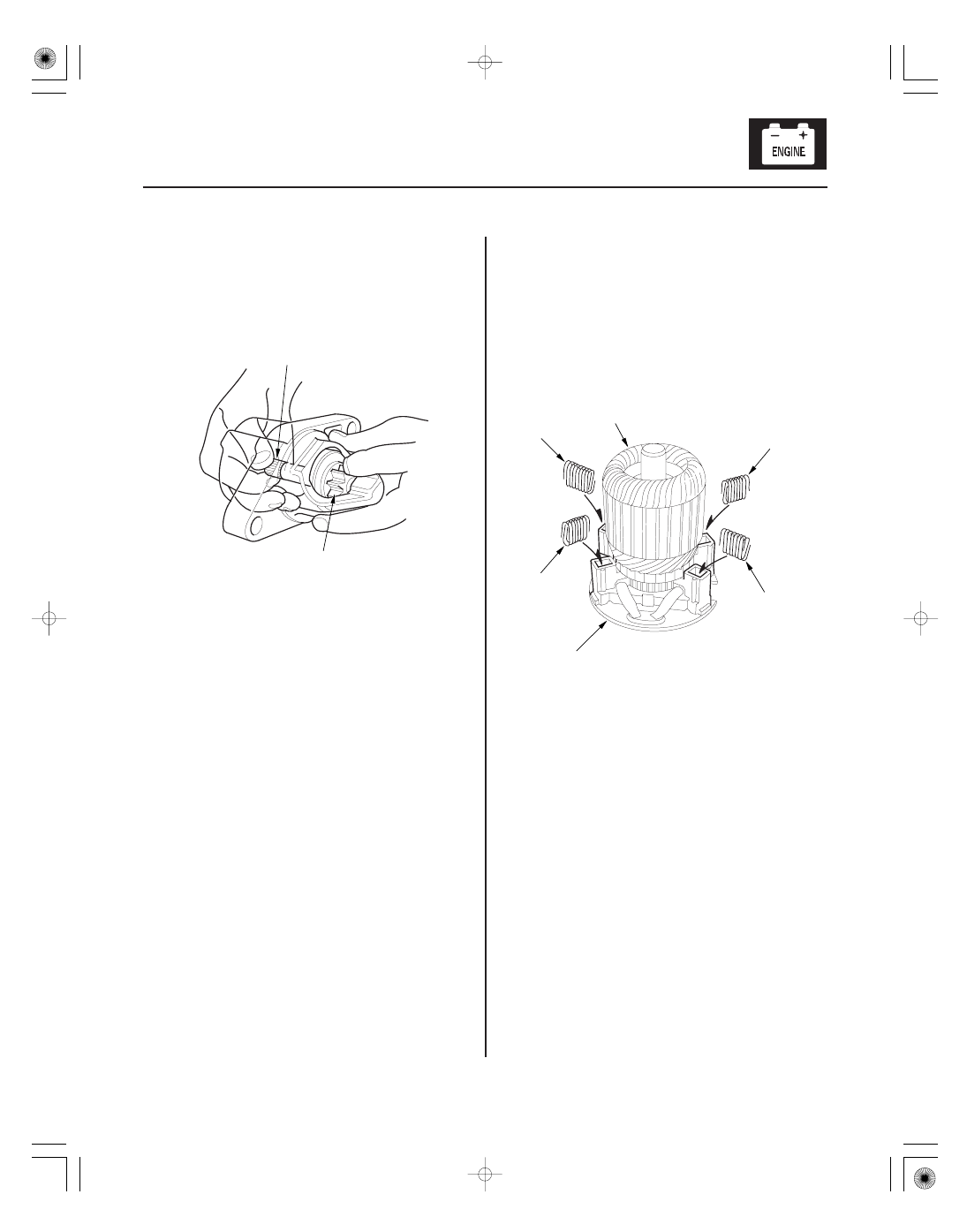

# # 13 14 Overrunning Clutch Inspection Starter Reassembly 4-17 B A A B C D E F 14. While holding the drive gear (A), turn the gear shaft (B) counterclockwise. Check that the drive 15. While holding the drive gear, turn the gear shaft clockwise. The gear shaft should turn freely. If the 16. If the drive gear is worn or damaged, replace the overrunning clutch assembly; the gear is not 17. Install the brush into the brush holder, and set the armature (A) in the brush holder (B). NOTE: To seat the new brushes, slip a strip of 500 or 600 sandpaper, with the grit side up, between the commutator and each brush, and smoothly turn 18. While squeezing a spring (C), insert it in the hole on the brush holder, and push it until it bottoms. 19. Install the armature and the brush holder assembly into the housing. NOTE: Make sure the armature stays in the holder. |
