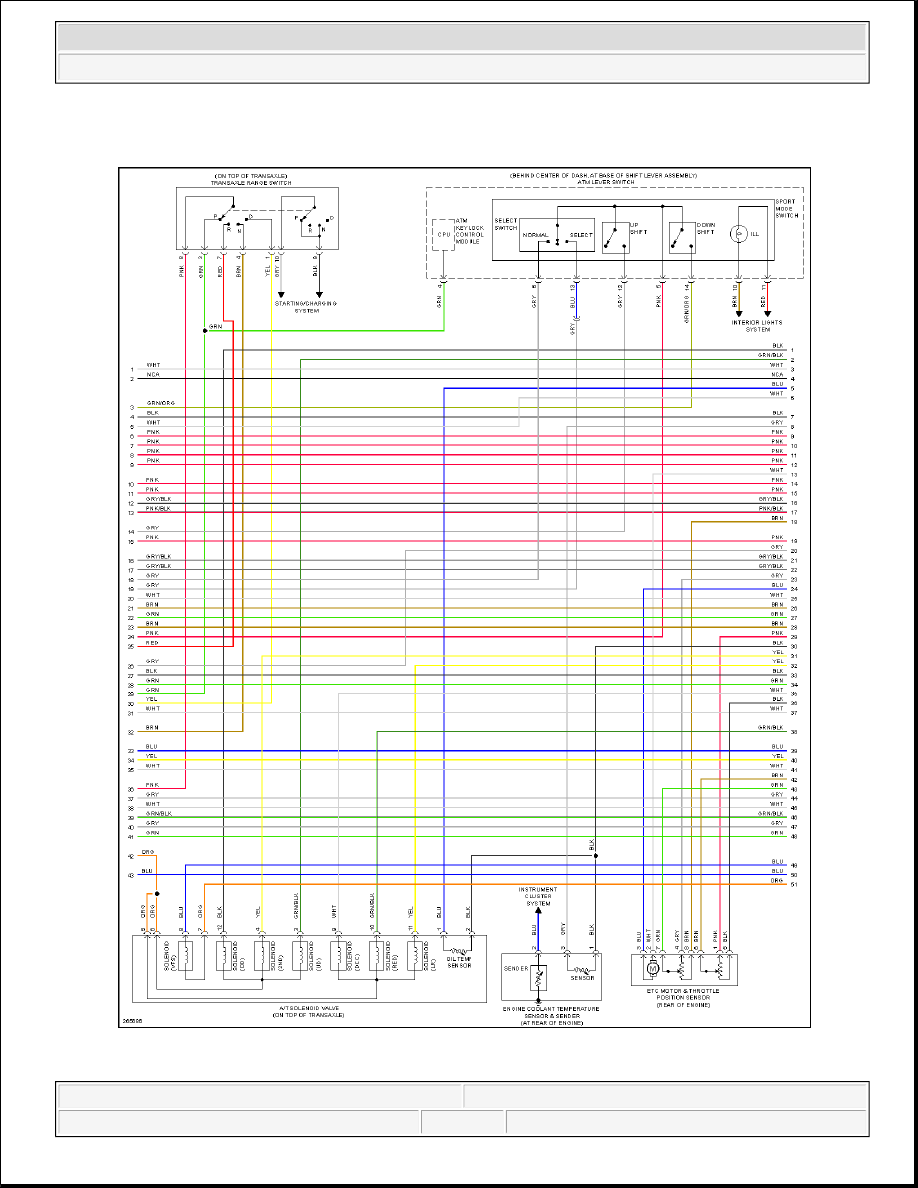

Fig. 21: 3.8L, Engine Performance Circuit (3 of 5)



2008 Kia Sedona

2008 SYSTEM WIRING DIAGRAMS Kia - Sedona



Microsoft



Saturday, May 22, 2010 3:56:42 PM

Page 43

© 2006 Mitchell Repair Information Company, LLC.



2008 Kia Sedona

2008 SYSTEM WIRING DIAGRAMS Kia - Sedona



Microsoft



Saturday, May 22, 2010 3:56:42 PM

Page 44

© 2006 Mitchell Repair Information Company, LLC.

Fig. 22: 3.8L, Engine Performance Circuit (4 of 5)
