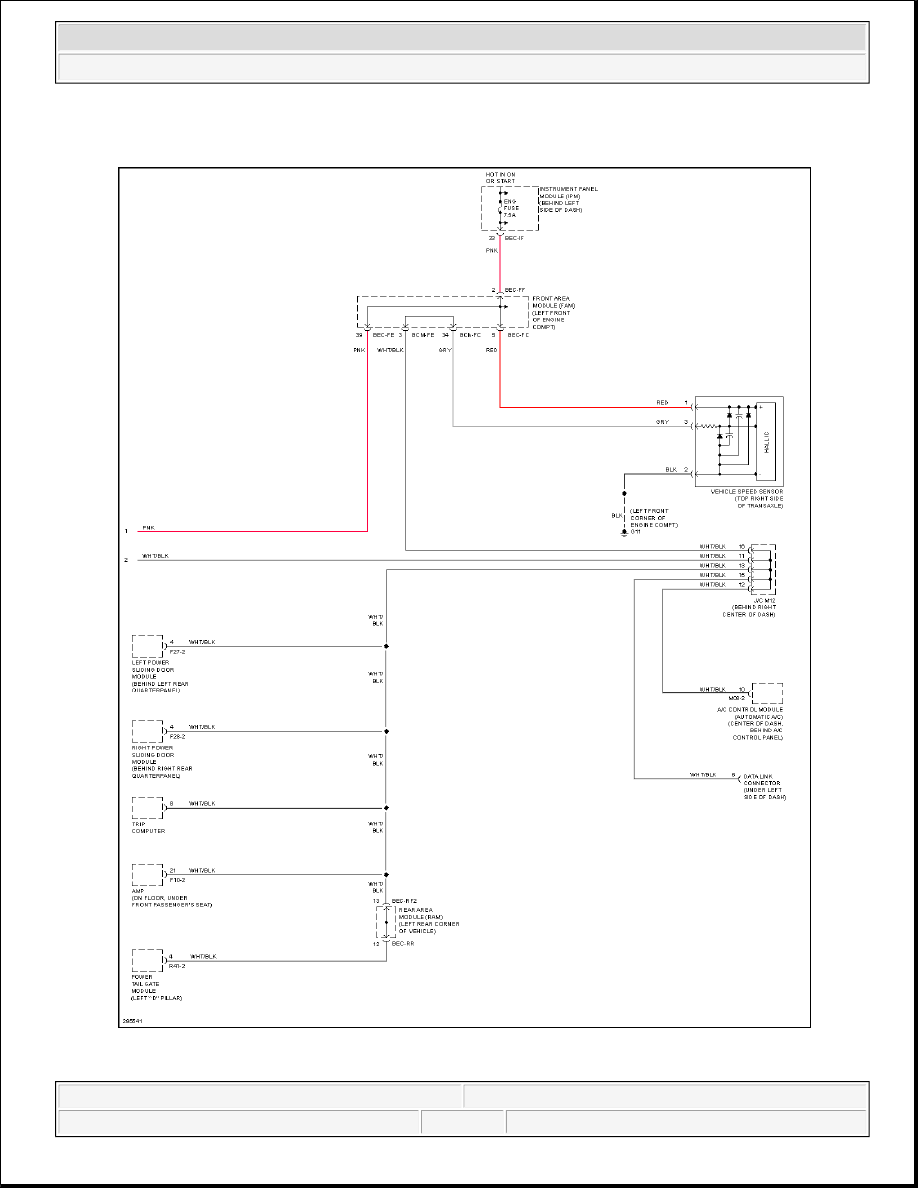

Fig. 15: Cruise Control Circuit (1 of 2)



2008 Kia Sedona

2008 SYSTEM WIRING DIAGRAMS Kia - Sedona



Microsoft



Saturday, May 22, 2010 3:56:42 PM

Page 31

© 2006 Mitchell Repair Information Company, LLC.



2008 Kia Sedona

2008 SYSTEM WIRING DIAGRAMS Kia - Sedona



Microsoft



Saturday, May 22, 2010 3:56:42 PM

Page 32

© 2006 Mitchell Repair Information Company, LLC.

Fig. 16: Cruise Control Circuit (2 of 2)

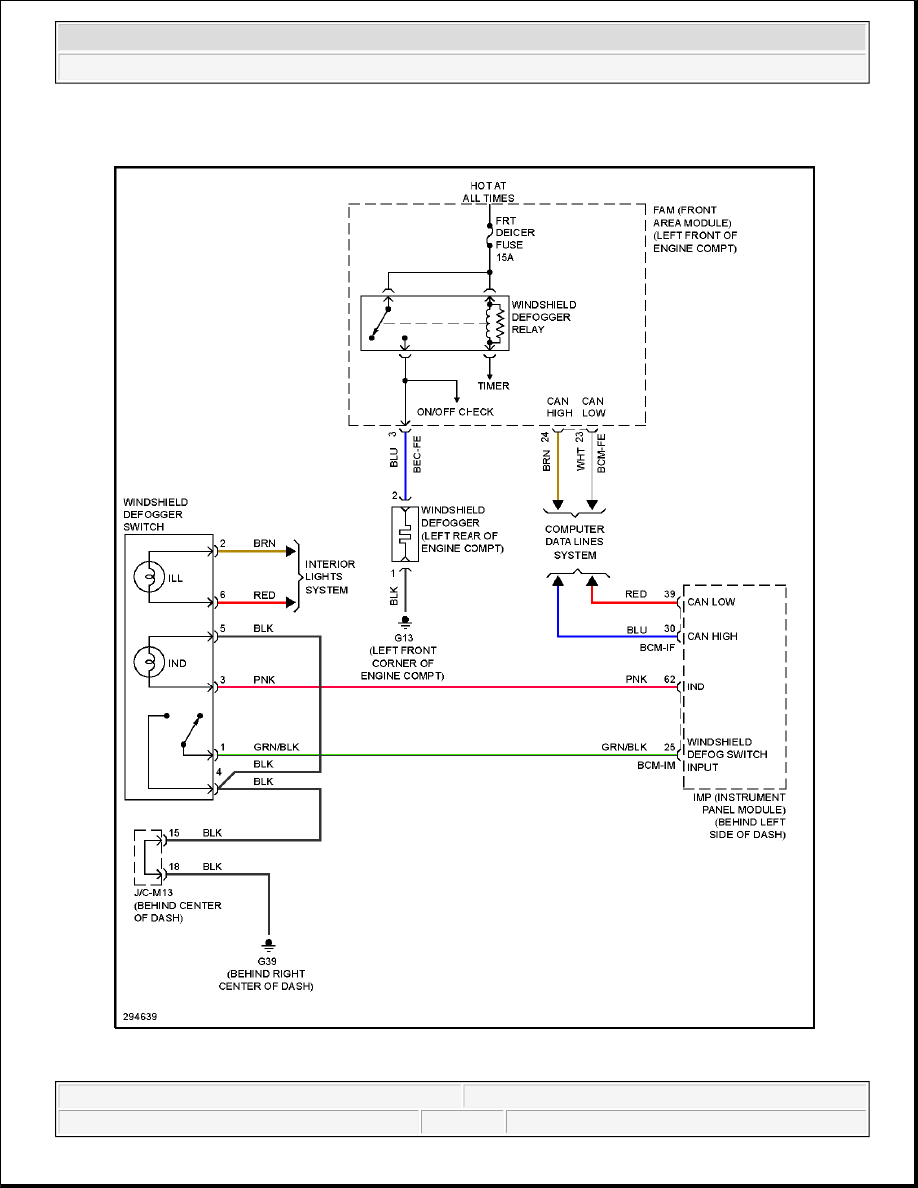

DEFOGGERS
