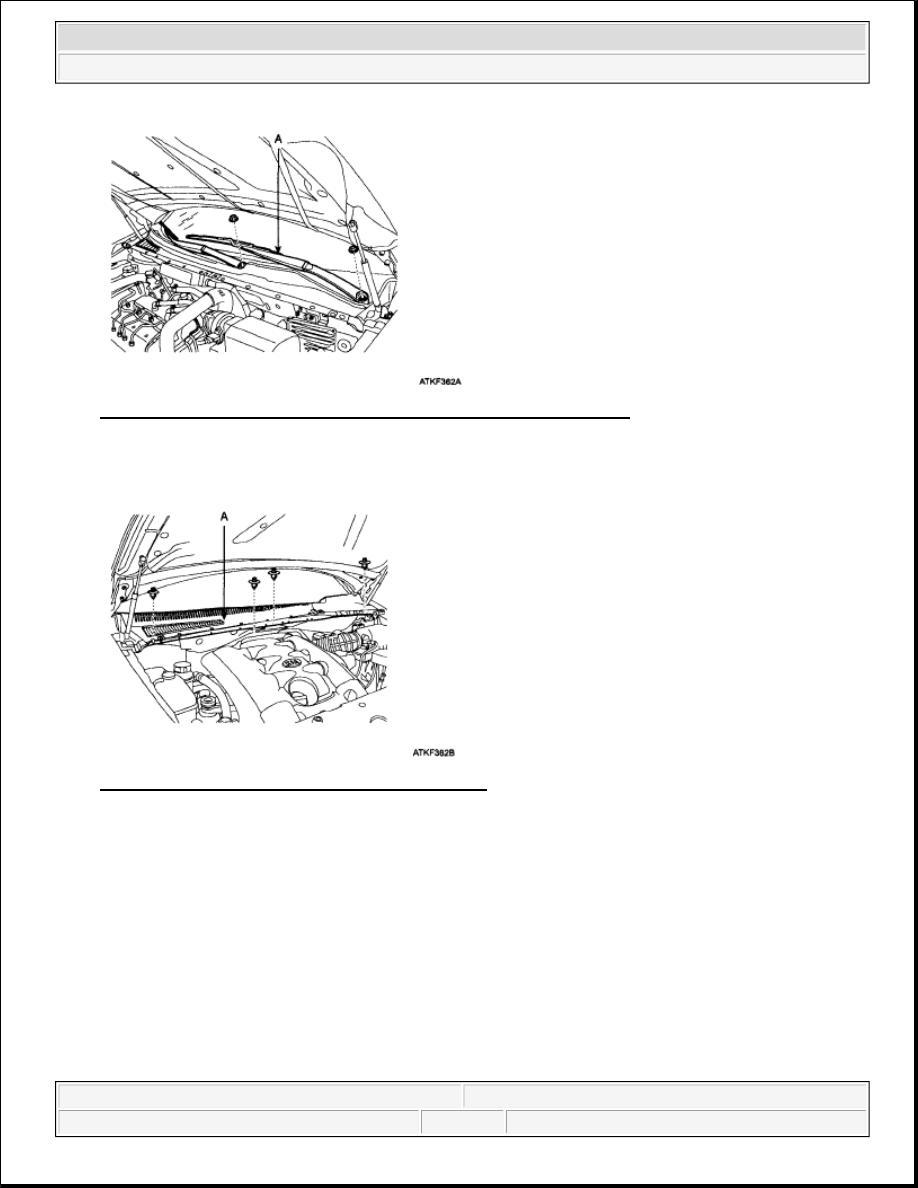

Fig. 8: Identifying Windshield Wiper Arm, Blade And Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the weather strip and the cowl top cover (A) after removing 4 fasteners.

Fig. 9: Identifying Cowl Top Cover And Fasteners
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the windshield wiper motor and linkage assembly after removing 4 bolts. Disconnect the wiper

motor connector (A) and windshield deicer connector (B) from the wiper motor & linkage assembly.

Torque: 7-11 N.m (0.7-1.1, kgf.m, 5.0-7.9 lbs. ft)



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Wiper/Washer - Sedona



Microsoft



Monday, May 24, 2010 4:10:03 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

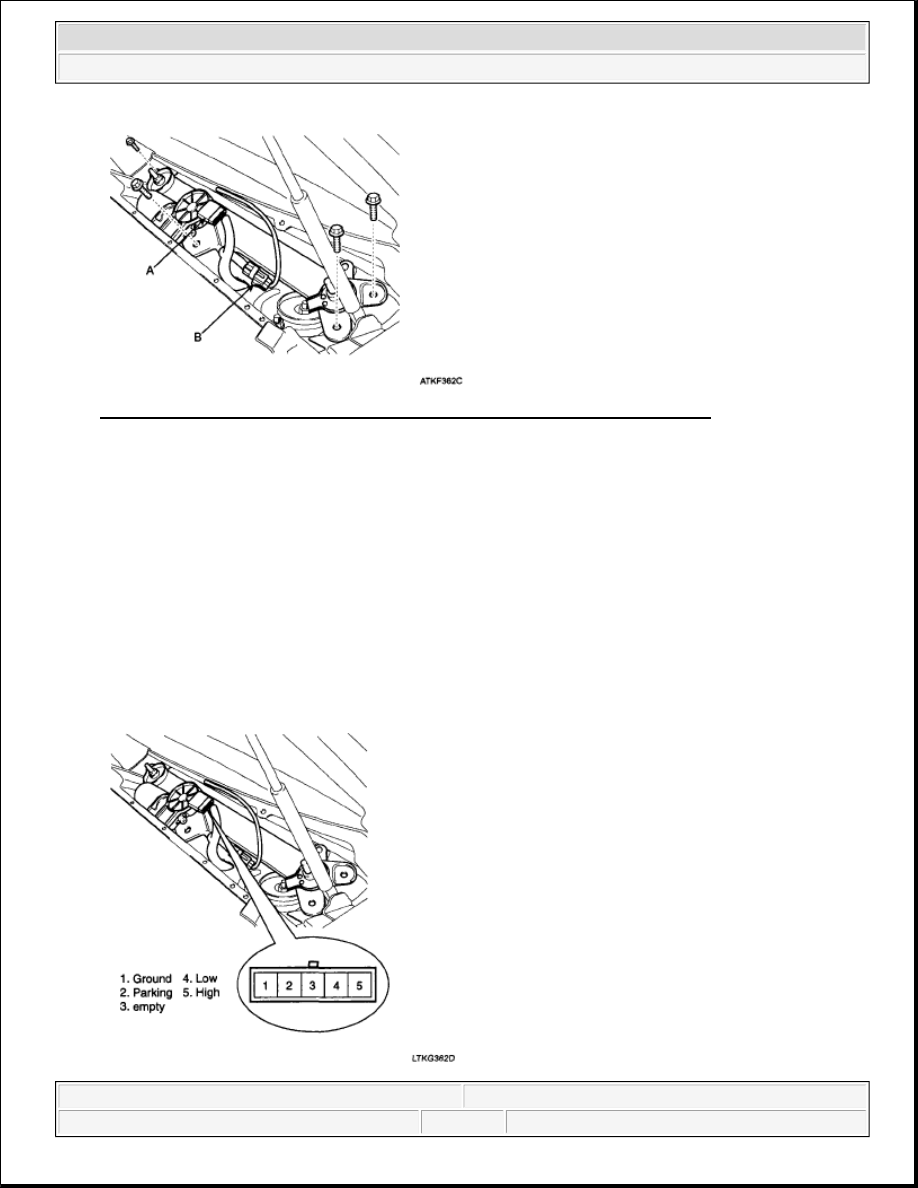

Fig. 10: Identifying Wiper Motor Connector And Windshield Deicer Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

INSPECTION

SPEED OPERATION CHECK

1. Remove the connector from the wiper motor.

2. Attach the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 1.

3. Check that the motor operates at low speed.

4. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 1.

5. Check that the motor operates at high speed.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Wiper/Washer - Sedona



Microsoft



Monday, May 24, 2010 4:10:03 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

Fig. 11: Identifying Wiper Motor Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

1. Install the wiper arm and blade to the specified position.

WIPER ARM AND BLADE SPECIFICATION

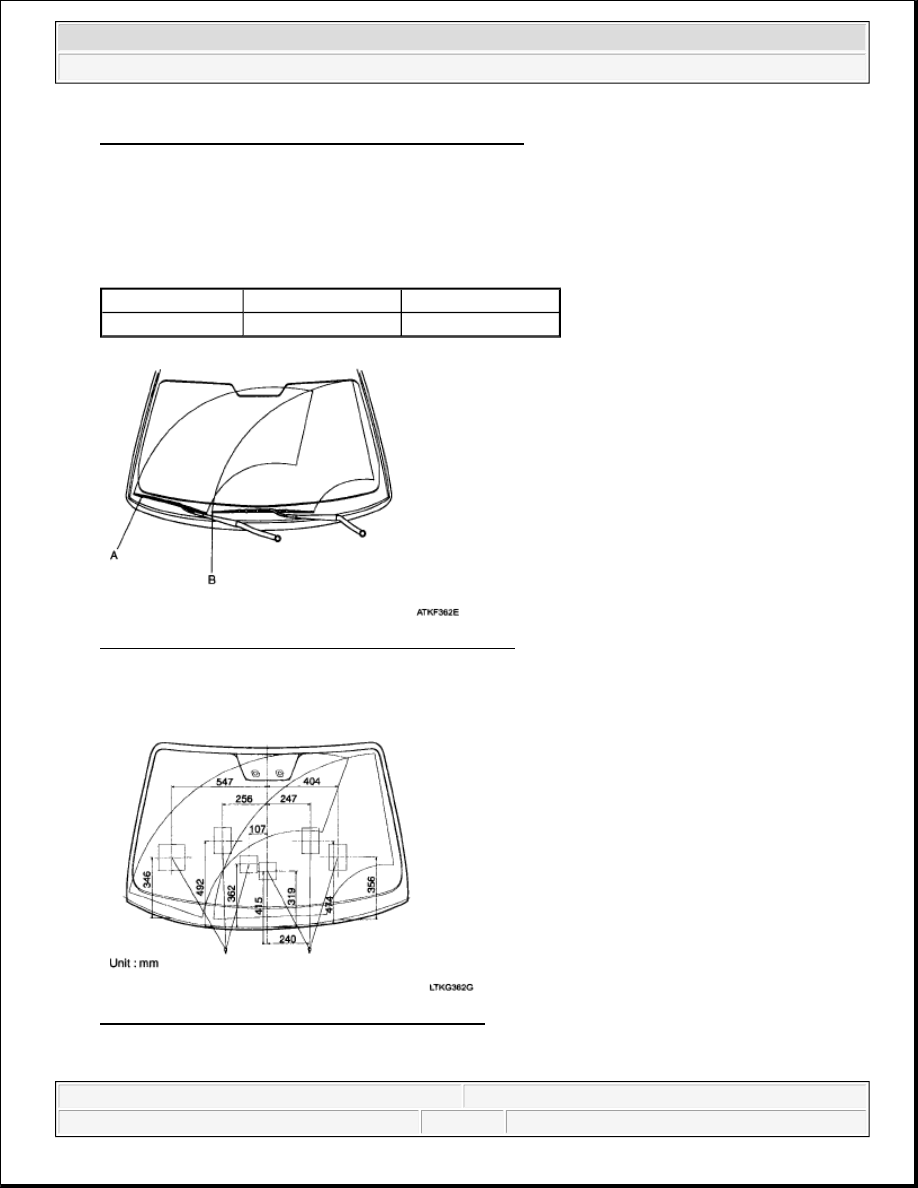

Fig. 12: Identifying Wiper Arm And Blade Dimension
Courtesy of KIA MOTORS AMERICA, INC.

2. Set the washer nozzle on the specified spray position.

Fig. 13: Identifying Washer Nozzle Spray Position
Courtesy of KIA MOTORS AMERICA, INC.

Specified position

A

B

Distance [in (mm)] 1.57+0.19/0 (40+5/0) 1.57+0.19/0 (40+5/0)



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Wiper/Washer - Sedona



Microsoft



Monday, May 24, 2010 4:10:03 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

FRONT WASHER MOTOR

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the front bumper cover. Refer to FRONT BUMPER .

3. Remove the washer hose, the washer motor connector (A) and washer level sensor connector (C).

4. Remove the washer reservoir after removing 2 bolts and 1 step bolt.

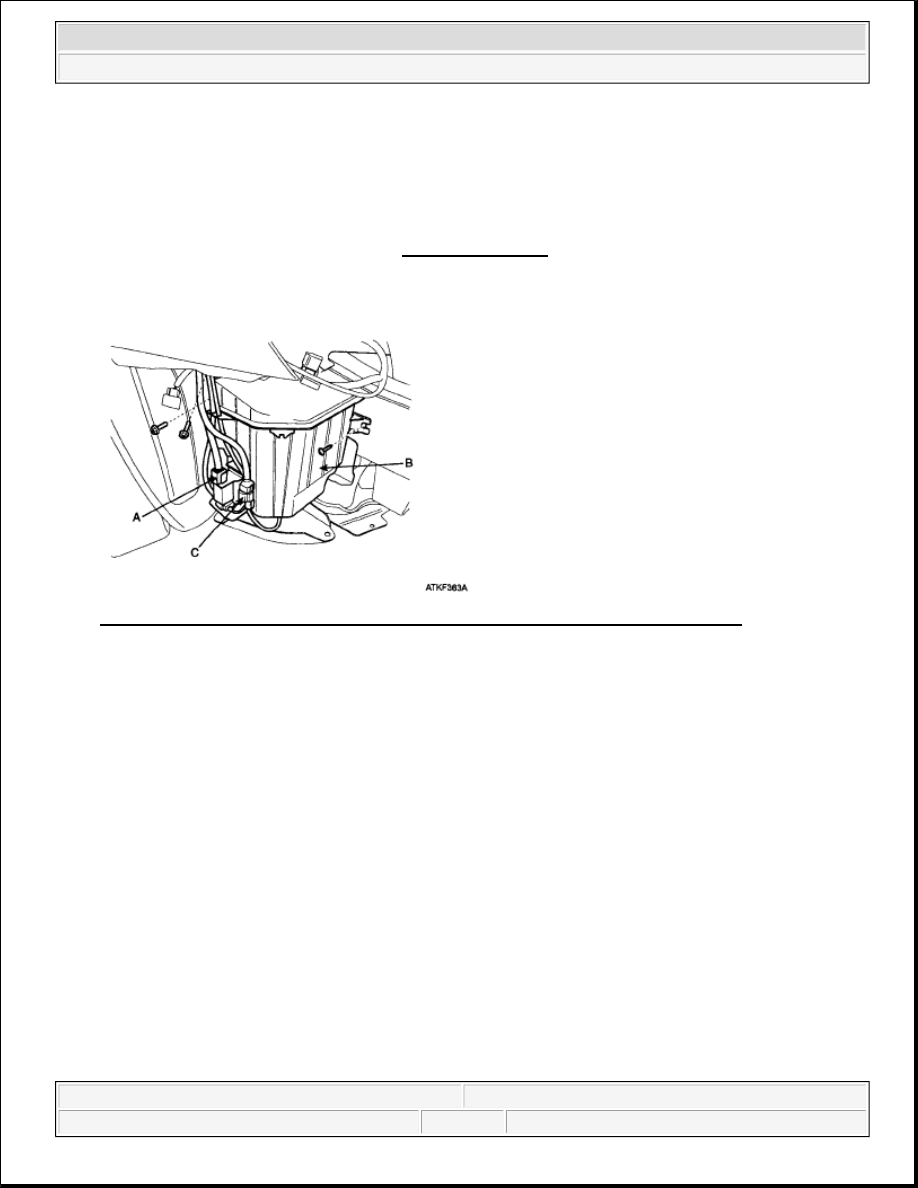

Fig. 14: Identifying Washer Motor Connector And Washer Level Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse of removal.

INSPECTION

1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

2. Connect positive (+) battery cables to terminal 2 and negative (-) battery cables to terminal 1 respectively.

3. Check that the motor operates normally and the washer motor runs and water sprays from the front

nozzles. If they are abnormal, replace the washer motor.
