B1409

Side Impact Sensor [Front-Driver] Communication Error

B1410

Side Impact Sensor [Front-Passenger] Communication Error

B1412

Side Impact Sensor [Rear-Driver] Communication Error

B1413

Side Impact Sensor [Rear-Passenger] Communication Error

B1418

Side Impact Sensor [Rear-Driver] Defect

B1419

Side Impact Sensor [Rear-Passenger] Defect

B1473

Curtain Airbag [Front-Driver] Resistance Too High

B1474

Curtain Airbag [Front-Driver] Resistance Too Low

B1475

Curtain Airbag [Front-Driver] Circuit Short to Ground

B1476

Curtain Airbag [Front-Driver] Circuit Short to Battery

B1477

Curtain Airbag [Front-Passenger] Resistance Too High

B1478

Curtain Airbag [Front-Passenger] Resistance Too Low

B1479

Curtain Airbag [Front-Passenger] Circuit Short to Ground

B1480

Curtain Airbag [Front-Passenger] Circuit Short to Battery

B1481

(2nd Stage) Driver Airbag Resistance Too High

B1482

(2nd Stage) Driver Airbag Resistance Too Low

B1483

(2nd Stage) Driver Airbag Circuit Short to Ground

B1484

(2nd Stage) Driver Airbag Circuit Short to Battery

B1485

(2nd Stage) Passenger Airbag Resistance Too High

B1486

(2nd Stage) Passenger Airbag Resistance Too Low

B1487

(2nd Stage) Passenger Airbag Circuit Short to Ground

B1488

(2nd Stage) Passenger Airbag Circuit Short to Battery

B1511

Seat Belt Buckle Switch [Driver] Open or Short to Battery

B1512

Seat Belt Buckle Switch [Driver] Short or Short to Ground

B1513

Seat Belt Buckle Switch [Passenger] Open or Short to Battery

B1514

Seat Belt Buckle Switch [Passenger] Short or Short to Ground

B1515

Seat Belt Buckle Switch [Driver] Defect

B1516

Seat Belt Buckle Switch [Passenger] Defect

B1517

Seat Belt Buckle Switch [Driver] Instability

B1518

Seat Belt Buckle Switch [Passenger] Instability

B1620

Supplemental Restraint System Control Module Internal Fault (Replace SRSCM)

B1650

Crash Recorded in 1st stage only - Frontal (Replace SRSCM)

B1651

Crash Recorded - Driver Side (Replace SRSCM)

B1652

Crash Recorded - Passenger Side (Replace SRSCM)

B1655

Crash Recorded - Passenger Side with PAB inhibited (Replace SRSCM)

B1657

Crash Recorded - Belt Pretensioner Only

B1658

Belt Pretensioner 6 times Deployment (Replace SRSCM)

B1670

Crash recorded in Full Stage - Frontal (Replace SRSCM)

B1722

Curtain Airbag [Rear-Driver] Resistance Too High

B1723

Curtain Airbag [Rear-Driver] Resistance Too Low

B1724

Curtain Airbag [Rear-Driver] Circuit Short to Ground



2008 Kia Sedona

2008 DTC INDEX Sedona



Microsoft



Saturday, May 22, 2010 3:47:47 PM

Page 13

© 2006 Mitchell Repair Information Company, LLC.

TIRE PRESSURE MONITORING SYSTEM DTCS (A00281781)

TIRE PRESSURE MONITORING SYSTEM DIAGNOSTIC TROUBLE CODES DTC (LIST)

Curtain Airbag [Rear-Driver] Circuit Short to Battery

B1726

Curtain Airbag [Rear-Passenger] Resistance Too High

B1727

Curtain Airbag [Rear-Passenger] Resistance Too Low

B1728

Curtain Airbag [Rear-Passenger] Circuit Short to Ground

B1729

Curtain Airbag [Rear-Passenger] Circuit Short to Battery

B2500

SRS Warning Lamp Fault

B2502

Passenger Airbag Telltale Lamp Fault

DTC

Description

C1121

FL Sensor Batt. Low

C1122

FR Sensor Batt. Low

C1123

RL Sensor Batt. Low

C1124

RR Sensor Batt. Low

C1126

Vehicle/Receiver Batt. Low

C1127

Vehicle/Receiver Batt. High

C1312

FL Sensor RF channel Fail

C1313

FR Sensor RF channel Fail

C1314

RL Sensor RF channel Fail

C1315

RR Sensor RF channel Fail

C1317

FL Sensor Wrong Type Install

C1318

FR Sensor Wrong Type Install

C1319

RL Sensor Wrong Type Install

C1320

RR Sensor Wrong Type Install

C1322

FL Sensor over Temp

C1323

FR Sensor over Temp

C1324

RL Sensor over Temp

C1325

RR Sensor over Temp

C1332

FL Sensor Hardware Fail

C1333

FR Sensor Hardware Fail

C1334

RL Sensor Hardware Fail

C1335

RR Sensor Hardware Fail

C1337

FL LF Pulse Fail Detect

C1338

FR LF Pulse Fail Detect

C1339

RL LF Pulse Fail Detect

C1340

RR LF Pulse Fail Detect

C1341

FL LF Channel Fail

C1342

FR LF Channel Fail

C1343

RL LF Channel Fail



2008 Kia Sedona

2008 DTC INDEX Sedona



Microsoft



Saturday, May 22, 2010 3:47:47 PM

Page 14

© 2006 Mitchell Repair Information Company, LLC.

C1344

RR LF Channel Fail

C1351

FL LFI Open/Short

C1352

FR LFI Open/Short

C1353

RL LFI Open/Short

C1354

RR LFI Open/Short

C1355

Multi Sensor ID'S Received

C1660

Receiver RF Circuit Fail

C1661

Receiver EEPROM Fail

C1668

Receiver Watchdog Reset

C2510

Tread Lamp Circuit Fail

C2511

TPMS Lamp Circuit Fail

C2512

Front Left Lamp Circuit Fail

C2513

Front Right Lamp Circuit Fail

C2514

Rear Left Lamp Circuit Fail

C2515

Rear Right Lamp Circuit Fail



2008 Kia Sedona

2008 DTC INDEX Sedona



Microsoft



Saturday, May 22, 2010 3:47:47 PM

Page 15

© 2006 Mitchell Repair Information Company, LLC.

2008 ACCESSORIES & BODY, CAB

Rear Wiper/Washer - Sedona

REAR WIPER MOTOR

REMOVAL

1. Remove the tail gate trim. Refer to TAILGATE .

2. Detach the wiper cap (A), and then remove the rear wiper arm after removing the mounting nut (B).

Tightening torque Nut (B):

10-13 N.m (1.0-1.3 kgf.m, 7.2-9.4 lbf. ft.)

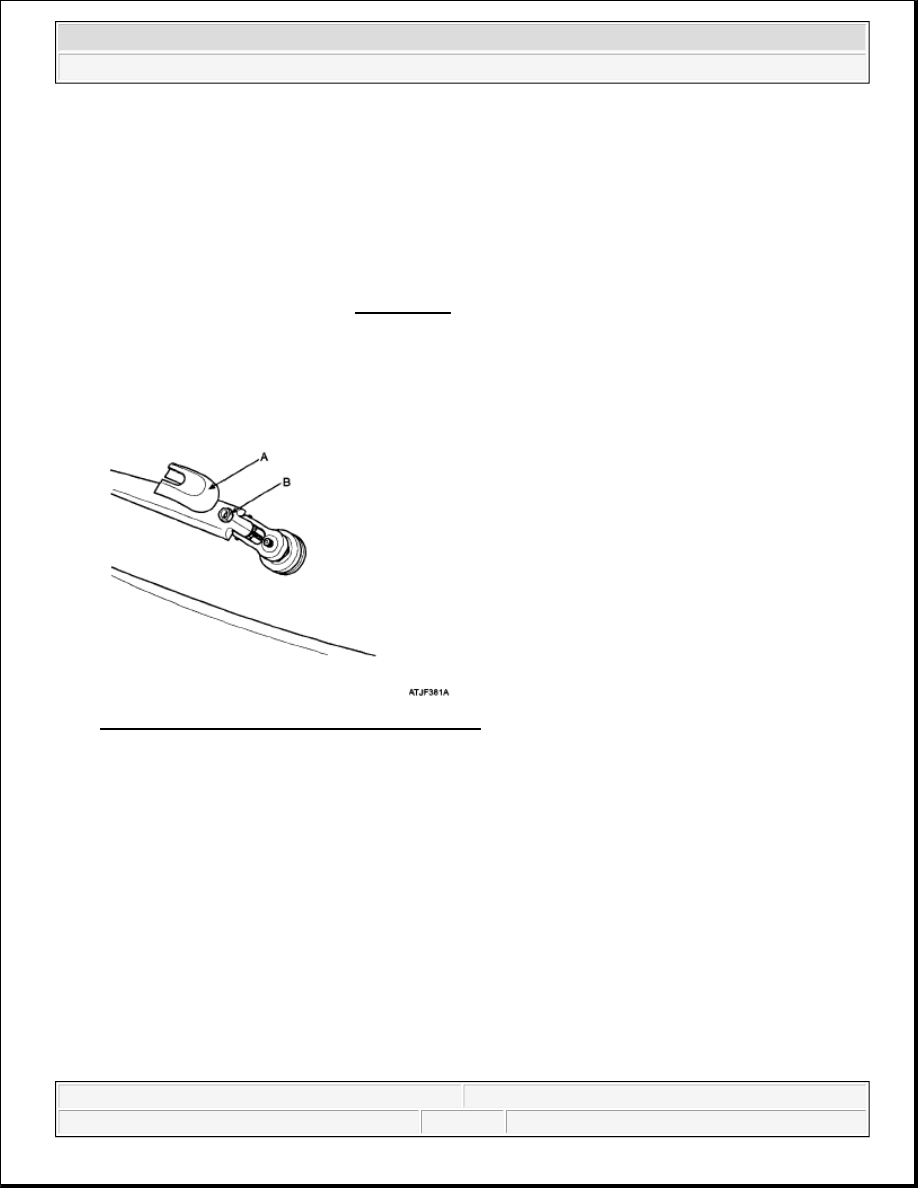

Fig. 1: Identifying Wiper Cap And Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.

3. Detach the wiper motor cover, and then remove the rear wiper cap and pad (B) after removing the

mounting nut (A).

NOTE:

During installation of the rear wiper cap and pad, ensure the arrow on the
cap assembly is pointed upward.
