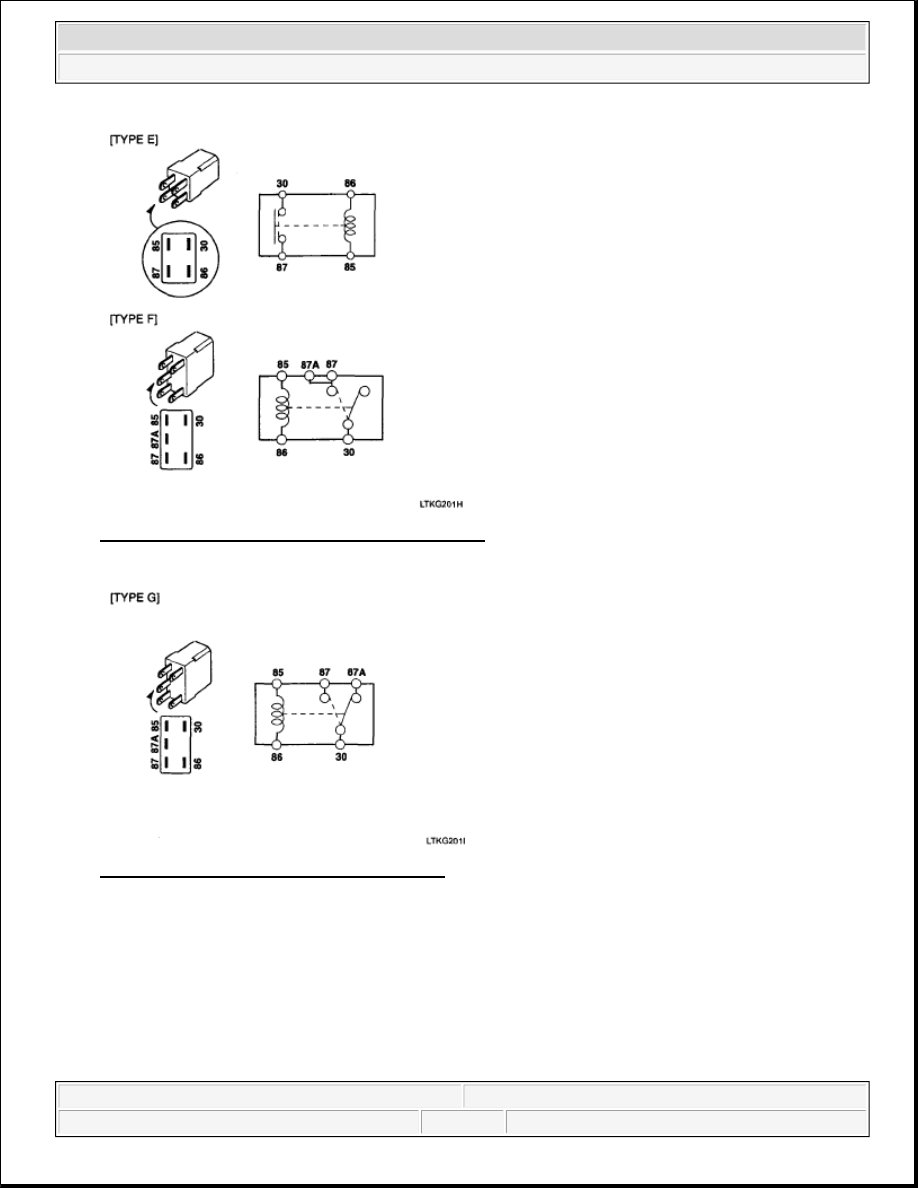

Fig. 8: Identifying Relay Terminals (Types E & F)
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 9: Identifying Relay Terminals (Type G)
Courtesy of KIA MOTORS AMERICA, INC.

3. If system of some relay is not operate accurately, replace with a new one and check the system.

REPLACEMENT

FAM (FRONT AREA MODULE)

1. Disconnect the negative (-) battery terminal.

2. Remove the FAM cover of engine room.



2008 Kia Sedona

2008 ELECTRICAL Fuses & Relays - Sedona



Microsoft



Saturday, May 22, 2010 4:05:37 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

3. Remove the FAM connectors (2 each) (A) and battery terminal nut (1 each) (B).

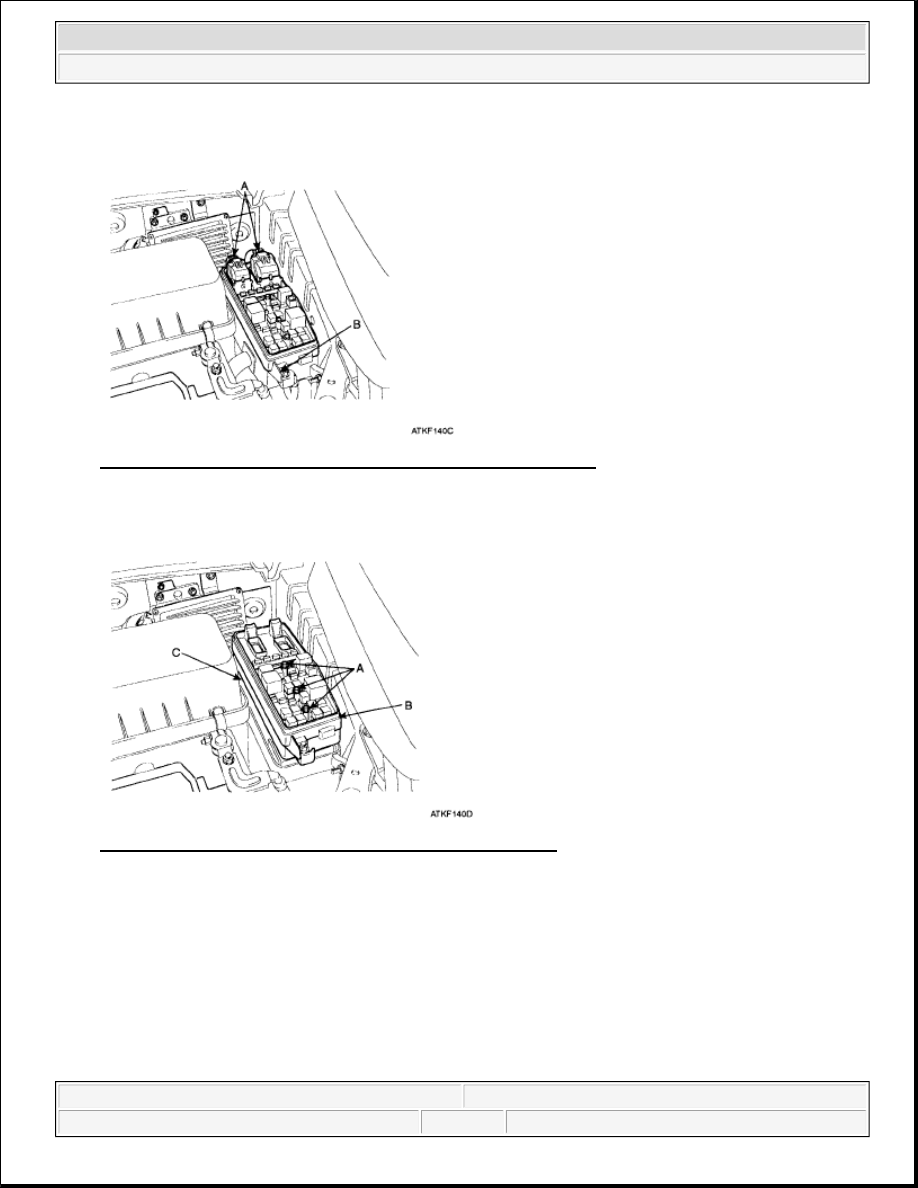

Fig. 10: Identifying FAM Connectors And Battery Terminal Nut
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove FAM mounting bolts (3 each) (A) and remove the FAM (B) from splash shield (C).

Fig. 11: Identifying IPM Mounting Bolts And Splash Shield
Courtesy of KIA MOTORS AMERICA, INC.

5. Disconnect the connector from splash shield.

6. Installation is the reverse of removal.

RELAY BOX (PASSENGER COMPARTMENT)

COMPONENTS

IPM (INSTRUMENT PANEL MODULE)



2008 Kia Sedona

2008 ELECTRICAL Fuses & Relays - Sedona



Microsoft



Saturday, May 22, 2010 4:05:37 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

Fig. 12: Identifying IPM (Instrument Panel Module) Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 ELECTRICAL Fuses & Relays - Sedona



Microsoft



Saturday, May 22, 2010 4:05:37 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

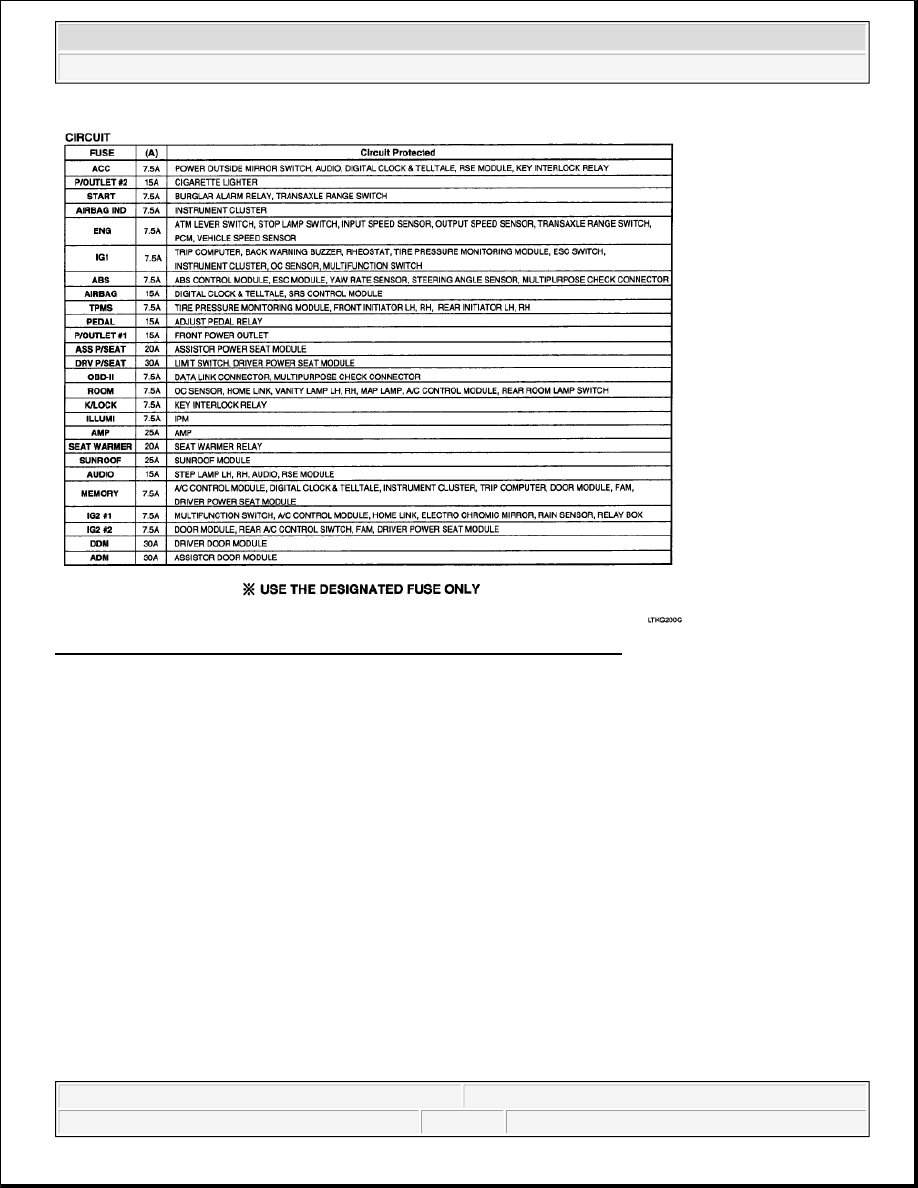

Fig. 13: Identifying IPM (Instrument Panel Module) Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

RAM (REAR AREA MODULE)



2008 Kia Sedona

2008 ELECTRICAL Fuses & Relays - Sedona



Microsoft



Saturday, May 22, 2010 4:05:37 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.
