Kia Sedona (2008 year). Manual - part 377

2. Install oil filter body cover (B) and new gasket on the oil filter body.

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

Fig. 242: Locating Oil Filter Body Cover
Courtesy of KIA MOTORS AMERICA, INC.

3. Connect water vent hose (A)

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

4. Install water temperature control assembly. Refer to WATER TEMPERATURE CONTROL

ASSEMBLY.

5. Connect water hoses on the ETC.

6. Connect oil pressure switch connector.

7. Install intake manifold and surge tank. Refer to INTAKE MANIFOLD.

8. Fill with engine coolant.

9. Start engine and check for leaks.

10. Recheck engine coolant level.

INTAKE AND EXHAUST SYSTEM

COMPONENT



Always use a new O-ring

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:38 PM

Page 166

Fig. 243: Identifying Intake And Exhaust System Components And Torque Specifications (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:38 PM

Page 167

Fig. 244: Identifying Intake And Exhaust System Components And Torque Specifications (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:39 PM

Page 168

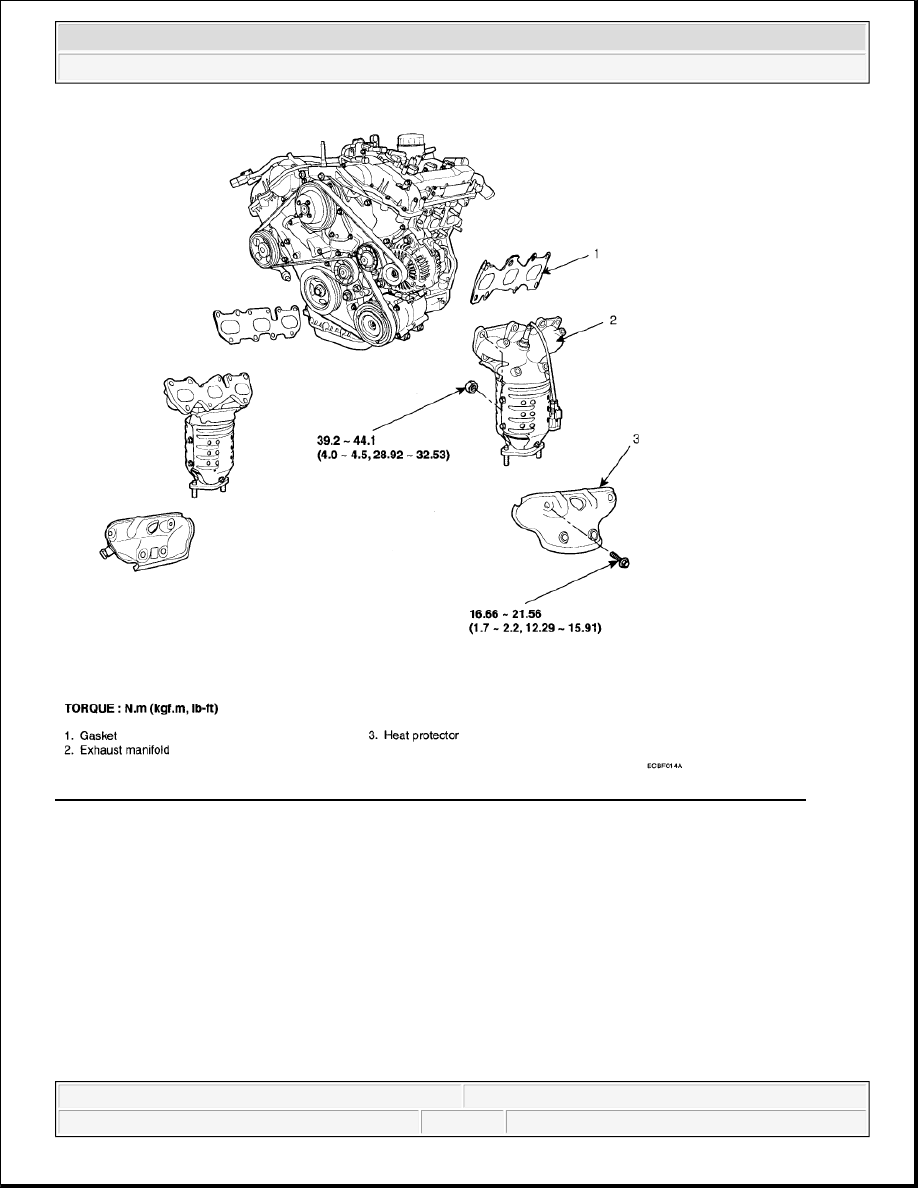

Fig. 245: Identifying Intake And Exhaust System Components And Torque Specifications (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

INTAKE MANIFOLD

CAUTION:



Use fender covers to avoid damaging painted surfaces.



To avoid damage, unplug the wiring connectors carefully while
holding the connector portion.

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:39 PM

Page 169
