Fig. 16: Identifying Micro 570 Analyzer Display - DIODE/RIPPLE
Courtesy of KIA MOTORS AMERICA, INC.

7. The MICRO 570 will prompt you to turn on accessary loads. It will then test at idle and prompt you to rev

the engine. The analyzer will determine if the charging system can provide enough current for the
demands of the vehicle's electrical system.

Fig. 17: Identifying Micro 570 Analyzer Display - TURN LOADS ON
Courtesy of KIA MOTORS AMERICA, INC.

8. After the test, the MICRO 570 will display the idle voltage, load voltage and the state results.

NOTE:

When asked to turn on the accessory loads, turn on the blower to high
(heater), the high beam headlights, and rear defogger. DO NOT use
cyclical loads such as air conditioning or windshield wipers.



2008 Kia Sedona

2008 ELECTRICAL Engine Electrical System - General - Sedona



Microsoft



Saturday, May 22, 2010 4:02:35 PM

Page 13

© 2006 Mitchell Repair Information Company, LLC.

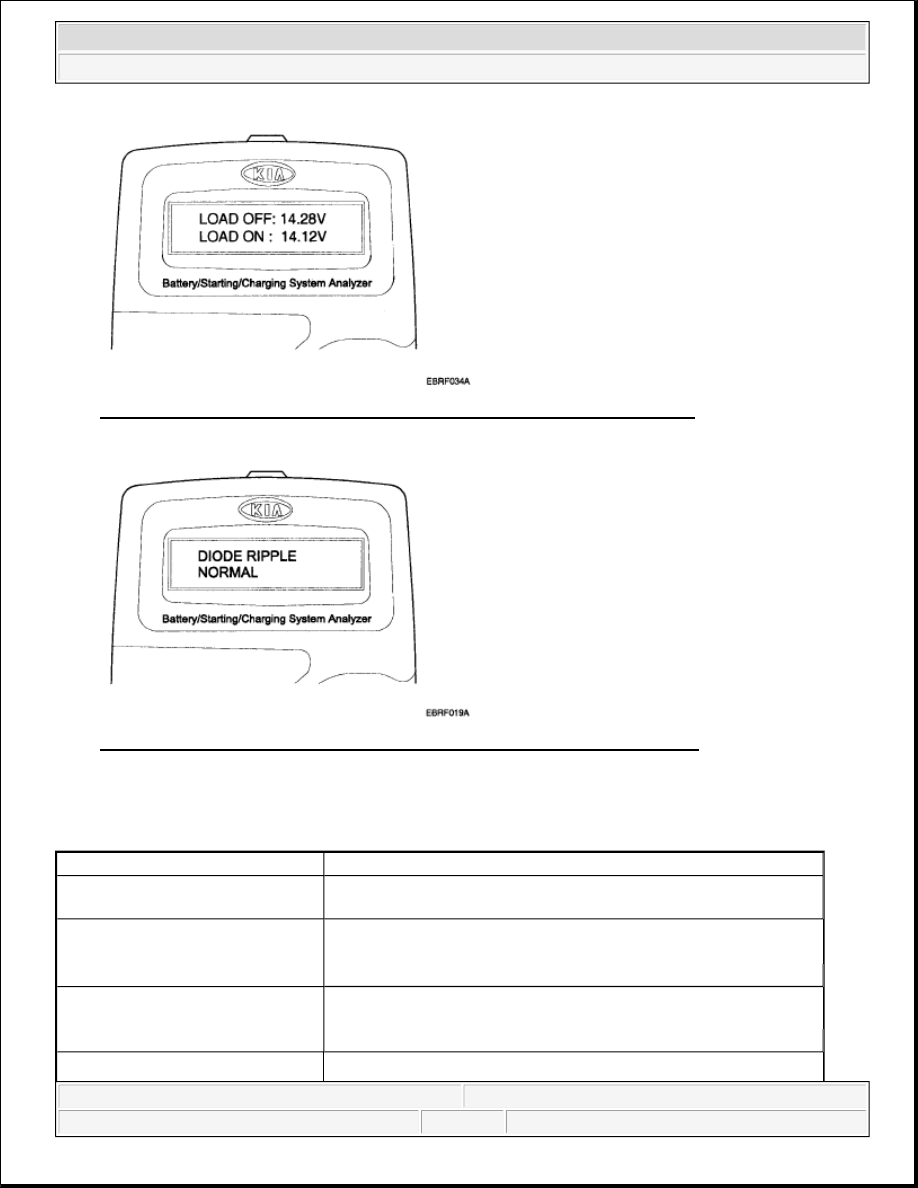

Fig. 18: Micro 570 Display Analyzer Display - IDLE AND LOAD VOLTAGE
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 19: Identifying Micro 570 Analyzer Display - DIODE RIPPLE NORMAL
Courtesy of KIA MOTORS AMERICA, INC.

CHARGING SYSTEM TEST RESULTS

CHARGING SYSTEM TEST RESULTS

RESULT ON PRINTER

REMEDY

Charging system normal/Diode

ripple normal

Charging system is normal

No charging voltage

Generator does not supply charging current to battery
=> Check belts, connection between generator and battery
Replace belts or cable or generator as necessary

Low charging voltage

Generator does not supply charging current to battery and electrical
load to system fully
=> Check belts and generator and replace as necessary

The voltage from generator to battery is higher than normal limit



2008 Kia Sedona

2008 ELECTRICAL Engine Electrical System - General - Sedona



Microsoft



Saturday, May 22, 2010 4:02:35 PM

Page 14

© 2006 Mitchell Repair Information Company, LLC.

High charging voltage

during voltage regulating.
=> Check connection and ground and replace regulator as necessary
=> Check electrolyte level in the battery

Excess ripple detected

One or more diodes in the generator is not functioning properly
=> Check generator mounting and belts and replace as necessary



2008 Kia Sedona

2008 ELECTRICAL Engine Electrical System - General - Sedona



Microsoft



Saturday, May 22, 2010 4:02:35 PM

Page 15

© 2006 Mitchell Repair Information Company, LLC.

2008 ENGINE

Mechanical - Sedona

GENERAL

SPECIFICATION

GENERAL SPECIFICATION

Description

Specifications

Limit

General
Type

V-type, DOHC



Number of cylinders

6



Bore

96 mm (3.7795 in.)



Stroke

87.0 mm (3.4252 in.)



Total displacement

3.778 cc (230.55 cu. in.)



Compression ratio

10.4



Firing order

1-2-3-4-5-6



Valve timing
Intake

Opens (ATDC)

10°



Closes (ABDC)

62°



Exhaust

Opens (BBDC)

42°



Closes (ATDC)

6°



Cylinder head
Flatness of gasket surface

Less than 0.05 mm (0.0019 in.)

[Less than 0.02 mm (0.0008

in.) / 150x150]



Flatness of manifold
mounting

Intake

Less than 0.1 mm (0.0039 in.)

[Less than 0.03 mm (0.001

in.)/110x110]



Exhaust

Less than 0.1 mm (0.0039 in.)

[Less than 0.03 mm (0.001

in.)/110x110]



Camshaft
Cam height

LH Camshaft

Intake

46.8 mm (1.8425 in.)



Exhaust

45.8 mm (1.8031 in.)



RH Camshaft

Intake

46.8 mm (1.8425 in.)



Exhaust

45.8 mm (1.8031 in.)



Journal outer
diameter

LH, RH camshaft

Intake

No. 1: 27.964-27.980 mm

(1.1009-1.1016 in.)

No .2,3,4: 23.954-23.970 mm

(0.9430-0.9437 in.)



Exhaust

No. 1: 27.964-27.980 mm





2008 Kia Sedona

2008 ENGINE Mechanical - Sedona





2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:35 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Saturday, May 22, 2010 3:54:44 PM
