FUEL TANK AIR FILTER

REPLACE

1. Remove the rear left wheel house inner cover.

2. Disconnect the vacuum hose (A).

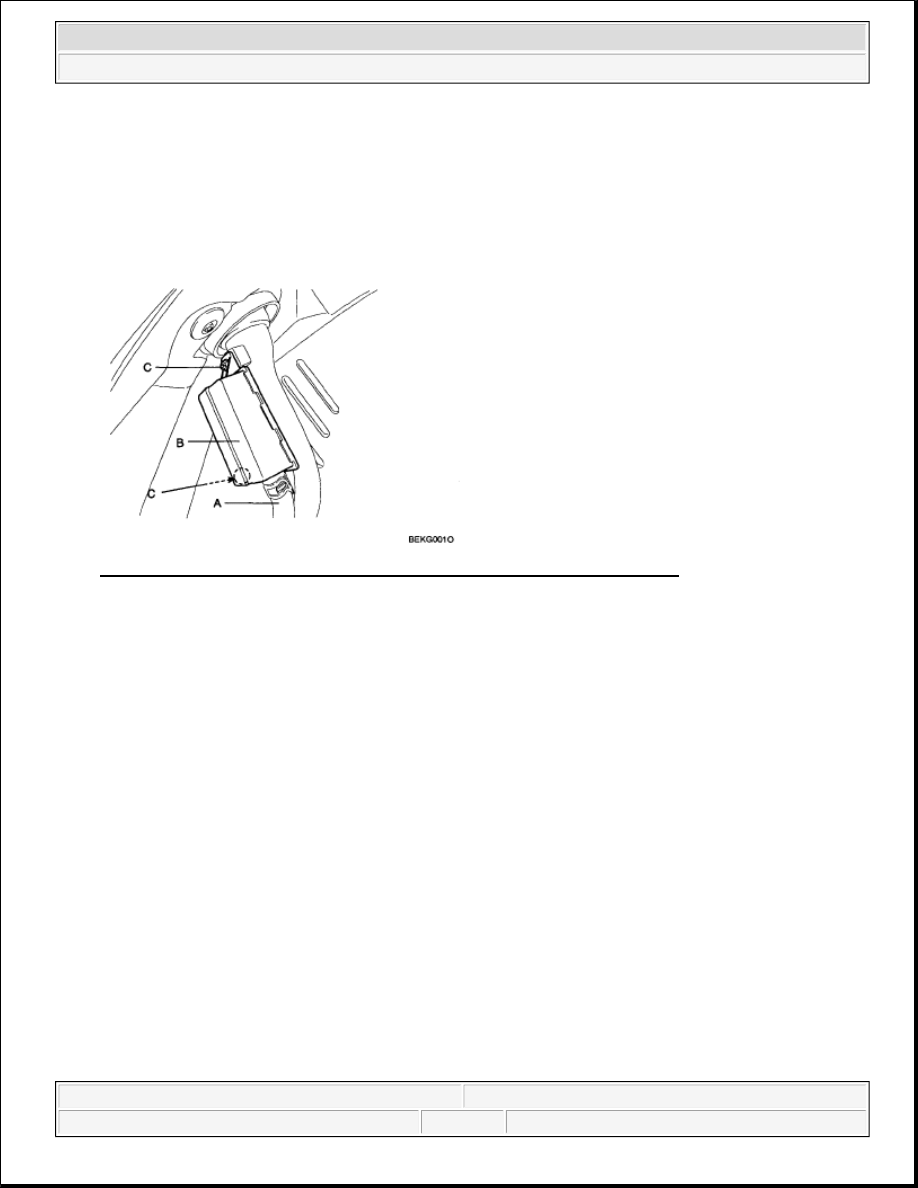

Fig. 9: Identifying Vacuum Hose, Fuel Tank Air Filter And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the fuel tank air filter (B) with unscrewing the mounting bolts (C).

4. Install a new fuel tank air filter and connect the canister close valve connector.

FUEL FILLER CAP

DESCRIPTION

A ratchet tightening device on the threaded fuel filler cap reduces the chances of incorrect installation, which
would seal the fuel filler. After the gasket on the fuel filler cap and the filler neck flange contact each other, the
ratchet produces a loud clicking noise indicating the seal has been set.



2008 Kia Sedona

2008 ENGINE PERFORMANCE Evaporative Emission Control System - Sedona



Microsoft



Saturday, May 22, 2010 4:04:31 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

Fig. 10: Identifying Fuel Filler Cap Operation
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 ENGINE PERFORMANCE Evaporative Emission Control System - Sedona



Microsoft



Saturday, May 22, 2010 4:04:31 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

2008 ENGINE PERFORMANCE

Evaporative & ORVR Emission Control System - Sedona

DESCRIPTION

On-Board Refueling Vapor Recovery (ORVR) system is designed to prevent fuel tank vapor (HC) emissions
during refueling at the gas station.

This system consists of a fill vent valve, fuel shut-off valve, fuel cut valve (for roll over), two way valve
(pressure/vacuum relief), fuel liquid/vapor separator which is installed beside the filler pipe, charcoal canister
which is mounted under the rear floor LH side member and protector, tubes and miscellaneous connections.

While refueling, ambient air is drawn into the filler pipe so as not to emit fuel vapors in the air. The fuel vapor
in the tank is then forced to flow into the canister via the fill vent valve. The fuel liquid/vapor separator isolates
liquid fuel and passes the pure vapor to the charcoal canister.

While the engine is operating, the trapped vapor in the canister is drawn into the intake manifold and then into
the engine combustion chamber. According to this purge process, the charcoal canister is purged and recovers
its absorbing capability.

COMPONENTS



2008 Kia Sedona

2008 ENGINE PERFORMANCE Evaporative & ORVR Emission Control System - Sedona





2008 Kia Sedona

2008 ENGINE PERFORMANCE Evaporative & ORVR Emission Control System - Sedona



Microsoft



Saturday, May 22, 2010 4:05:04 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Saturday, May 22, 2010 4:05:07 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Fig. 1: Evaporative & ORVR Emission Control System Components & Vacuum Diagram
Courtesy of KIA MOTORS AMERICA, INC.
