Fig. 67: M8 Identifying Screw
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 BRAKES Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:54:27 PM

Page 44

© 2006 Mitchell Repair Information Company, LLC.

2008 ACCESSORIES & BODY, CAB

Bumpers - Sedona

FRONT BUMPER

REPLACEMENT

FRONT BUMPER COVER REPLACEMENT

1. Disconnect the connector (C).

2. Remove the headlamp (B), under cover (A).

NOTE:



Put on gloves to protect your hands.



When prying with a flat-tipped screwdriver, wrap it with protective tape to
prevent damage.



Take care not bend or scratch the cover and other parts.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Bumpers - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Bumpers - Sedona



Microsoft



Monday, May 24, 2010 4:06:25 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:06:27 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

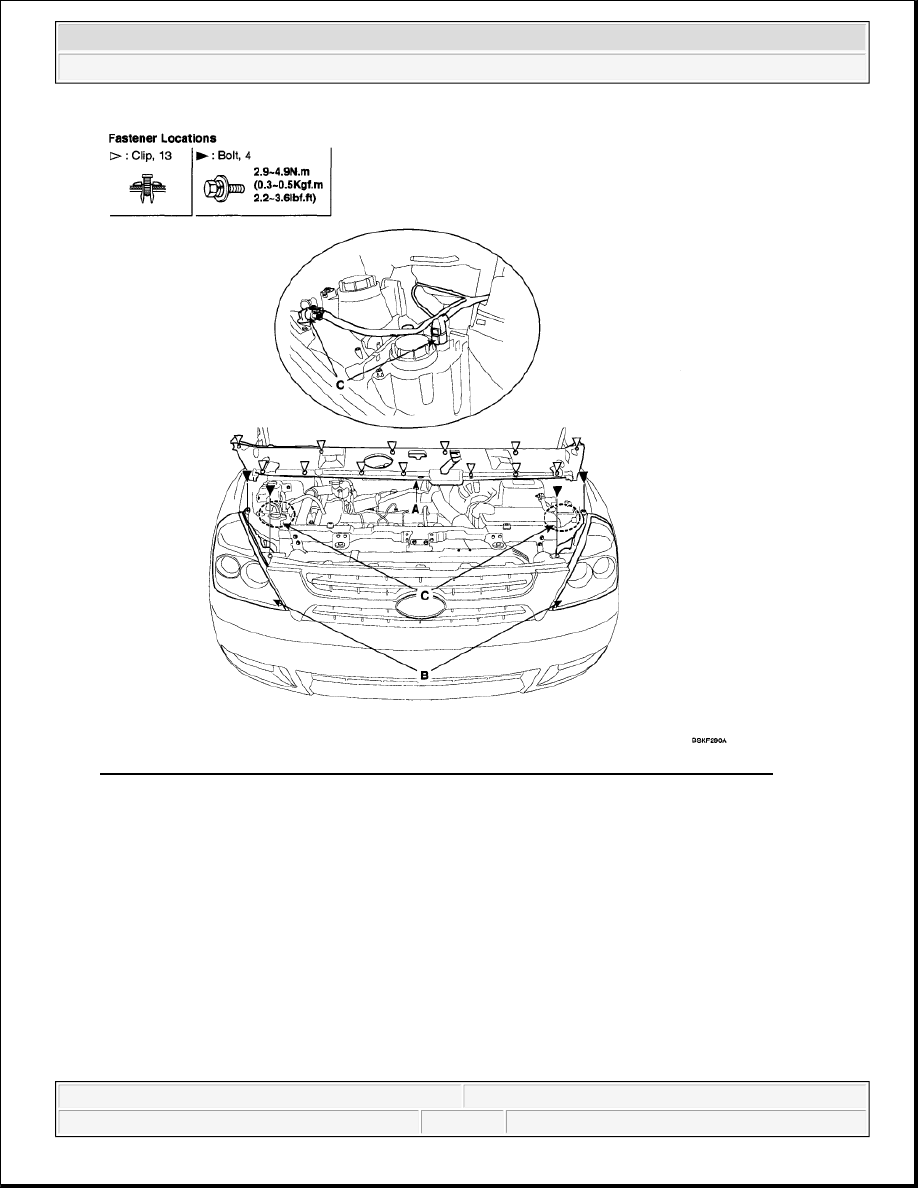

Fig. 1: Identifying Front Bumper Cover Fastener Locations With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

3. Loosen the front bumper mounting screws and clips.

4. Remove the front bumper.

5. Remove the connector (C).

6. Installation is the reverse of removal.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Bumpers - Sedona



Microsoft



Monday, May 24, 2010 4:06:25 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

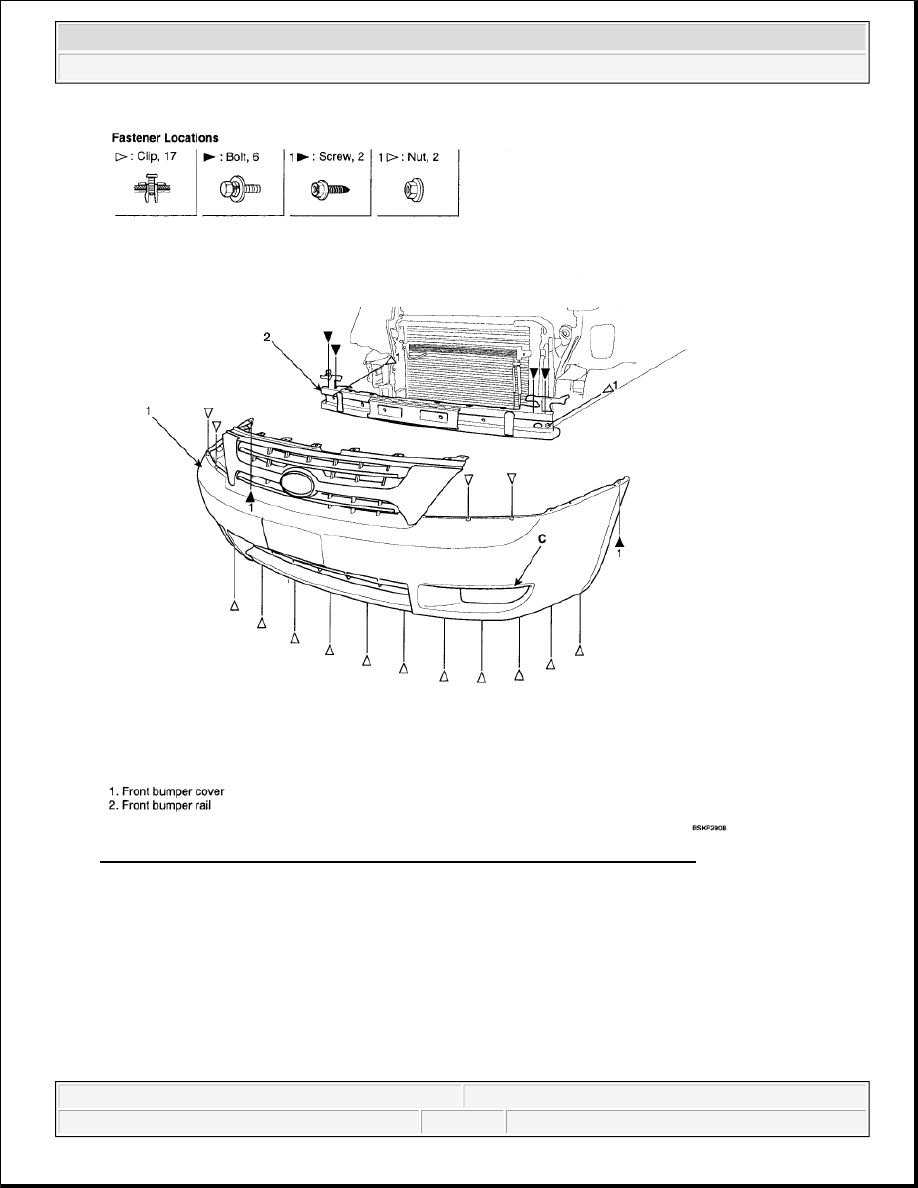

Fig. 2: Identifying Front Bumper And Front Bumper Rail Fastener Locations
Courtesy of KIA MOTORS AMERICA, INC.

REAR BUMPER

REPLACEMENT

REAR BUMPER COVER REPLACEMENT

NOTE:



When prying with a flat-tipped screwdriver, wrap it with protective tape,
and apply protective tape around the related parts your hands.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Bumpers - Sedona



Microsoft



Monday, May 24, 2010 4:06:25 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.
