DTC B2405 AIR MIX MOTOR (REAR)

COMPONENT LOCATION

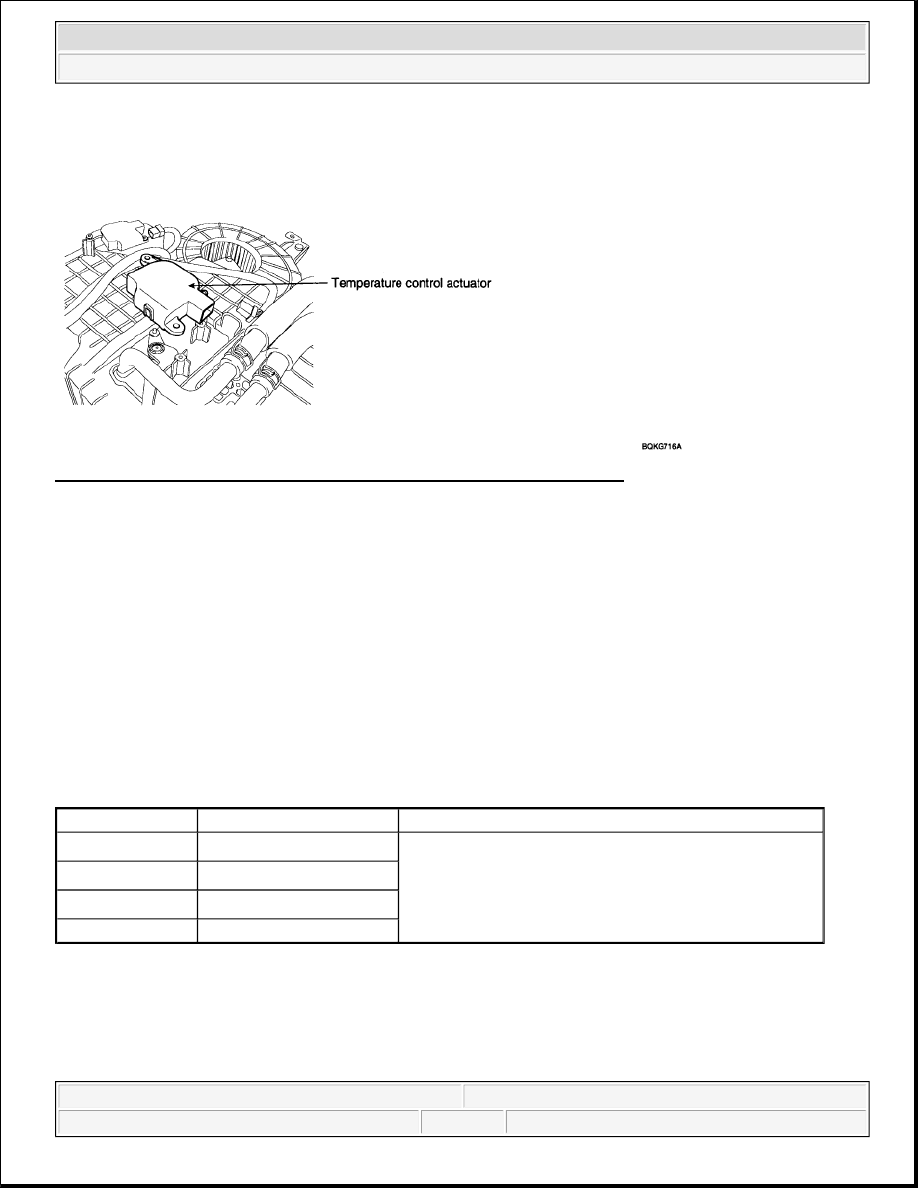

Fig. 140: Identifying Temperature Control Actuator Component Location
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

Temperature control actuator located at heater unit, regulates the temperature by the procedure as follows.
Signal from control unit adjusts position of temp, door by operating temp, motor and then temperature will be
regulated by the hot/cold air ratio decided by position of temp. door.

DTC DESCRIPTION

The A/C controller sets DTC B2405 if the air mix actuator doesn't move to intended position within 40sec (In
this case, A/C controller try to move temp, door for 2sec. 3 times, every 20 sec. before setting DTC).

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

SPECIFICATION

Item

Detecting Condition

Possible cause

DTC Strategy



Voltage check



Poor connection of connected part



Open circuit in harness Short circuit in harness



Faulty driver Air Mix potentiometer



Fault A/C Control Unit

Threshold value



< 0.1V

Detecting time



0.3 sec

FAIL SAFE

-



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:09 PM

Page 126

© 2006 Mitchell Repair Information Company, LLC.

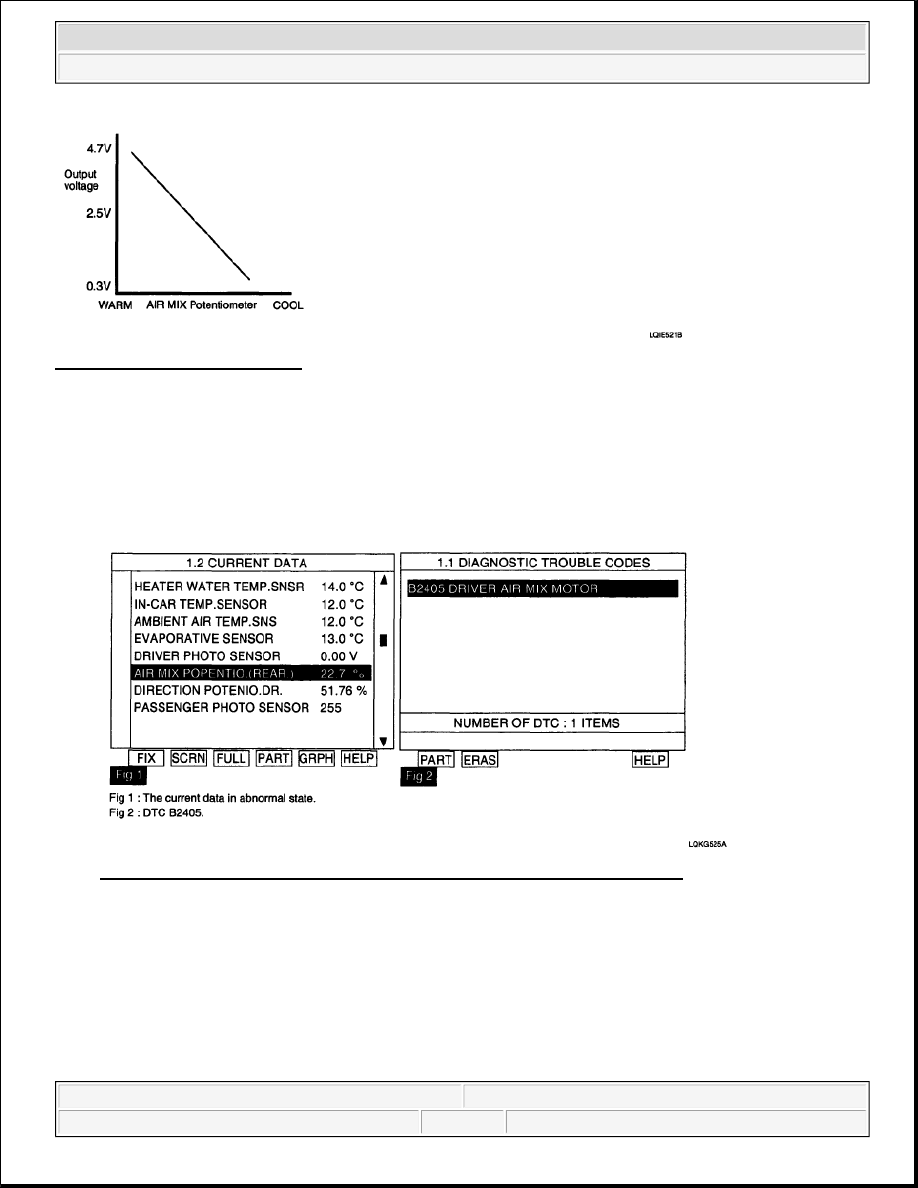

Fig. 141: Output Voltage Graph
Courtesy of KIA MOTORS AMERICA, INC.

MONITOR SCAN TOOL DATA

1. Connect scan tool to Data Link Connector (DLC).

2. Engine "ON"

3. Monitor the "Rear Air Mix Potentiometer" Parameter on the scan tool while operating temp, switch.

Fig. 142: Diagnosis Function Screen Display - Air Mix Potentiometer (Rear)
Courtesy of KIA MOTORS AMERICA, INC.

4. Are the DTC B2405 present and is parameter of "Rear AIR MIX Potentiometer" fixed?

There is any fault in Rear AIR MIX Motor. If the parameter of "Driver AIR MIX DOOR" is 30% or less
when the actuator operates to the hot position, or If the parameter is 60% and more when the actuator
operates to the cold position.

YES



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:09 PM

Page 127

© 2006 Mitchell Repair Information Company, LLC.

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or A/C controller's connector or was
repaired and A/C controller memory was not cleared. Thoroughly check connectors for looseness, poor
connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary
and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

1. Many malfunctions in the electrical system are caused by poor harness and terminals.

Faults can also be caused by interference from other electrical systems, and mechanical or chemical
damage.

2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination,

deterioration, or damage.

3. Has a problem been found?

YES

Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO

Go to "SIGNAL CIRCUIT INSPECTION" procedure.

SIGNAL CIRCUIT INSPECTION

1. Check for open in harness.

1. Ignition "OFF"

2. Disconnect Rear Air Mix potentiometer.

3. Measure resistance between terminal "3, 4" of Rear Air Mix Motor and terminal "4, 5" of A/C

control unit.

Specification: Approx. 0 ohms
