Fig. 288: Identifying Scan Tool Display - Diagnostic Trouble Codes (DTCs)
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the DTC B2585 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B2441.

POWER SUPPLY CIRCUIT INSPECTION

1. Check open in power circuit

1. Ignition "ON" & engine "OFF"

2. Measure the resistance between tail license side marker lamp power circuit connector terminal at

RAM side (BCM-RF2-37) and fog lamp (F18-3).

3. Measure the resistance between tail license side marker lamp power circuit connector terminal at

RAM side (BCM-RR2-16) and clearance lamp (R12-2).

Specification: 0 ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:22 PM

Page 333

© 2006 Mitchell Repair Information Company, LLC.

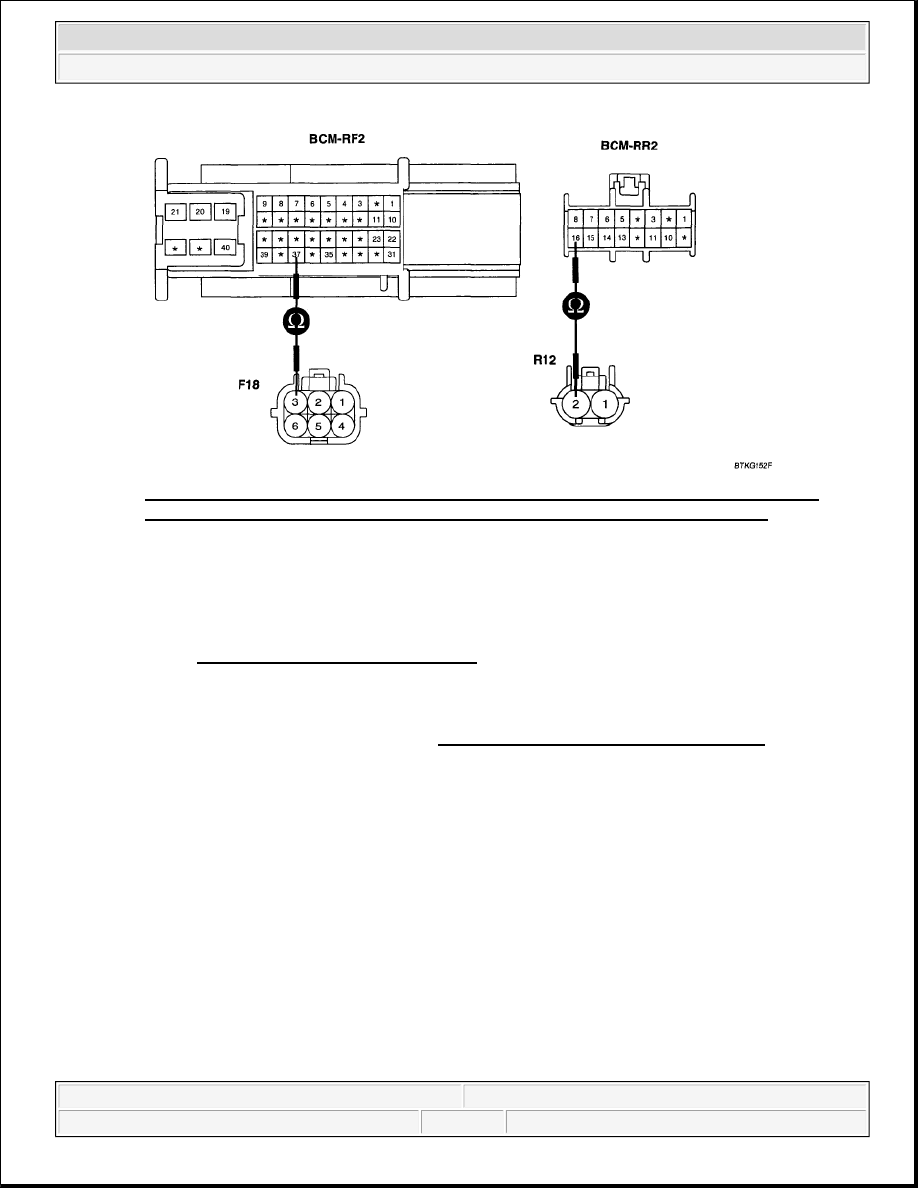

Fig. 289: Measuring Resistance Between Tail License Side Marker Lamp Power Circuit
Connector Terminal At RAM Side (BCM-RR2-16) And Clearance Lamp (R12-2)
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to "GROUND CIRCUIT INSPECTION".

NO

Repair open in power circuit and Go to "VERIFICATION OF VEHICLE REPAIR".

GROUND CIRCUIT INSPECTION

1. Check open in ground circuit

1. Ignition "ON" & engine "OFF"

2. Measure the resistance between clearance lamp ground circuit (F18-6) and chassis ground.

3. Measure the resistance between tail license side marker lamp ground circuit (R12-1) and chassis

ground.

Specification: 0 ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:22 PM

Page 334

© 2006 Mitchell Repair Information Company, LLC.

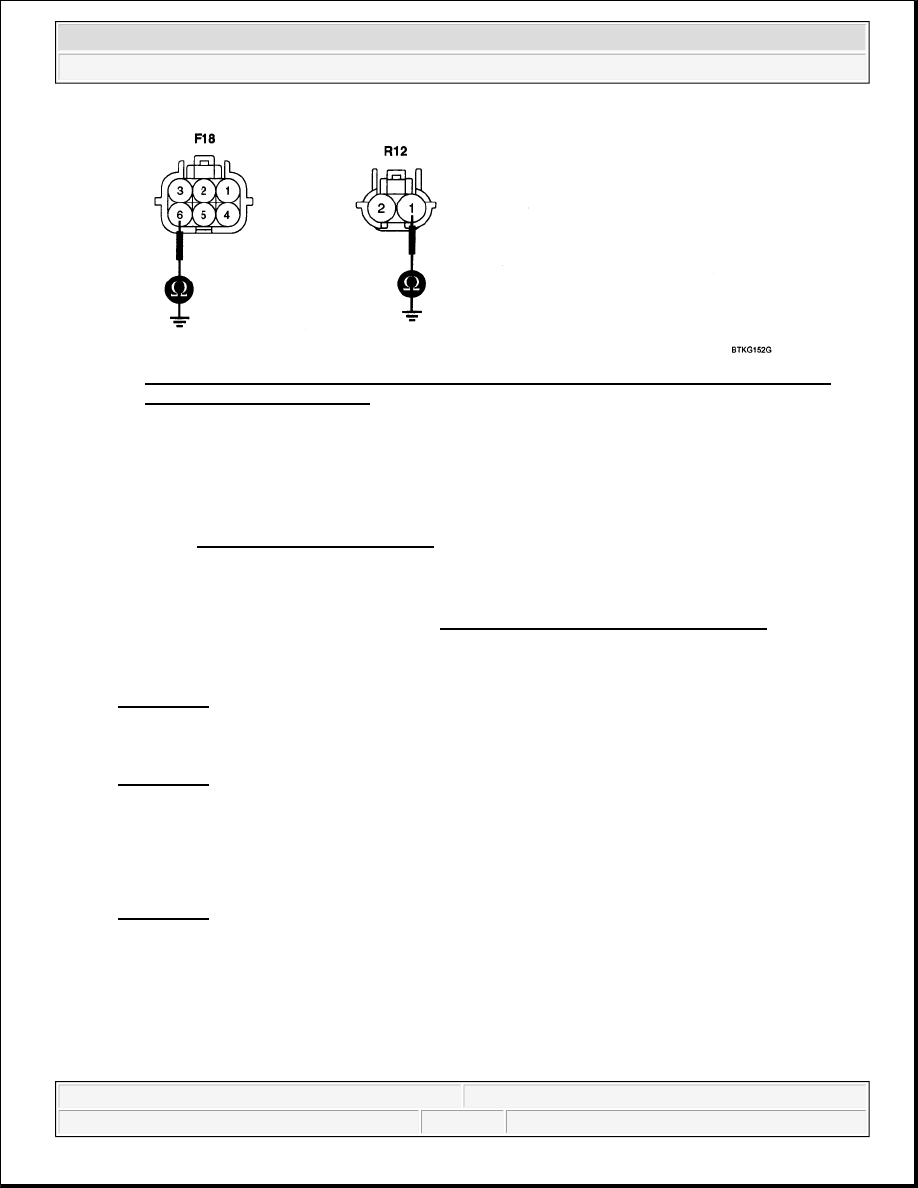

Fig. 290: Measuring Resistance Between Tail License Side Marker Lamp Ground Circuit
(R12-1) And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to "COMPONENT INSPECTION".

NO

Repair open in ground circuit and go to "VERIFICATION OF VEHICLE REPAIR".

COMPONENT INSPECTION

Refer to DTC B2579.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B2115.

DTC B2587 BACK UP LAMPS FOR BACK UP WARNING SYSTEM UNIT CIRCUIT SHORT TO GROUND
ERROR

COMPONENT LOCATION

Refer to DTC B2583.

GENERAL DESCRIPTION

RAM is a component of BCM that consists of DDM, ADM, IPM, FAM, IMS and cluster module. Each part of
BCM is connected to one another through CAN communication line for efficient communication. Those
modules control front/rear, driver/passenger seat, cluster with electrical signal and they share information with
other modules. RAM (Rear Area Module) set up at rear-left of passenger room controls various rear lamps (tail
lamp, rear turn signal lamp, backup lamp, stop lamp, cabin lamp), window (sliding door power window, quarter



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:22 PM

Page 335

© 2006 Mitchell Repair Information Company, LLC.

glass, rear defogger), rear wiper and oil cap door. Received inhibitor switch (A/T: Backup lamp) signal from
IPM through CAN line, RAM controls backup lamp. IPS is a semi-conductor element which performs roles of
fuse and relay. In addition to those roles, it performs sensing circuit error, circuit protection.

DTC DESCRIPTION

B2587 is set when short to ground in backup lamp circuit is detected.

DTC DETECTING CONDITION

Refer to DTC B2535.

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF" & RAM: "ON"

3. Select "Diagnostic Trouble Codes (DTCs)" mode and monitor "DTC Status" parameter

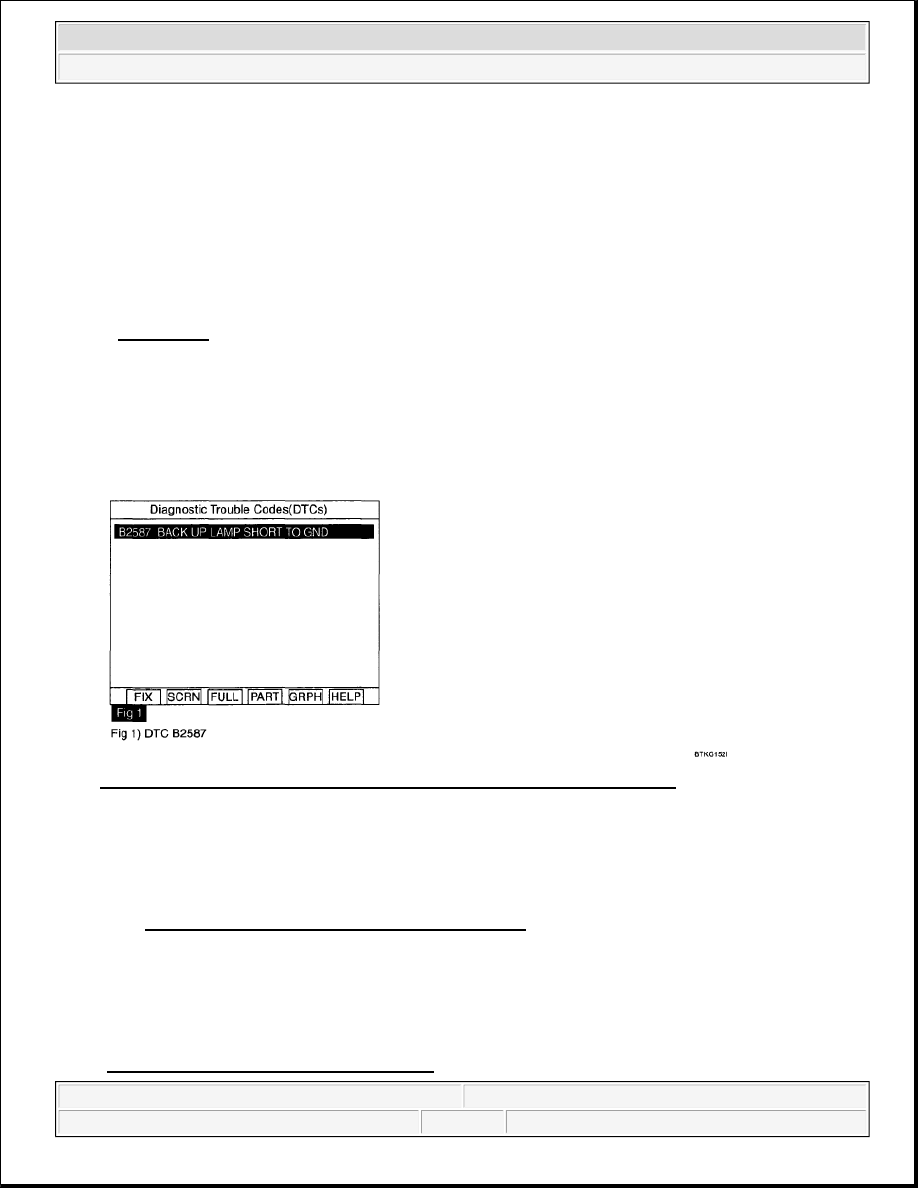

Fig. 291: Identifying Scan Tool Display - Diagnostic Trouble Codes (DTCs)
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the DTC B2587 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.
