1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Check if DTC is erased after replacing FAM with "FAM for test".

4. Is the DTC erased?

YES

Replace "FAM for test" with "new FAM" and go to "VERIFICATION OF VEHICLE
REPAIR".

NO

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage. Repair or replace if necessary and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B2119.

DTC B2553 RIGHT HEADLAMP LOW CIRCUIT OPEN ERROR

COMPONENT LOCATION

Refer to DTC B2535.

GENERAL DESCRIPTION

Refer to DTC B2535.

DTC DESCRIPTION

The ECM sets DTC B2553 if open in Right headlamp low circuit is detected.

DTC DETECTING CONDITION

Refer to DTC B2541.

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF" & FAM: "ON".

3. Select "Diagnostic Trouble Codes (DTCs)"mode and monitor "DTC Status" parameter.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:21 PM

Page 285

© 2006 Mitchell Repair Information Company, LLC.

Fig. 242: Identifying Scan Tool Display - Diagnostic Trouble Codes (DTCs)
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the DTC B2553 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B2119.

POWER SUPPLY CIRCUIT INSPECTION

1. Check open in power circuit

1. Ignition "ON" & engine "OFF".

2. Measure the resistance between headlamp low power circuit of FAM (BCM-FE-60) and headlamp

(E22-1).

Specification: infinity ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:21 PM

Page 286

© 2006 Mitchell Repair Information Company, LLC.

Fig. 243: Measuring Resistance Between Headlamp Low Power Circuit Of FAM (BCM-FE-
60) And Headlamp (E22-1)
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured resistance within the specification?

YES

Go to "GROUND CIRCUIT INSPECTION".

NO

Repair open in power circuit and go to "VERIFICATION OF VEHICLE REPAIR".

GROUND CIRCUIT INSPECTION

1. Check open in ground circuit

1. Ignition "ON" & engine "OFF".

2. Measure the resistance between Left turn signal lamp ground circuit (E24-3) and chassis ground.

Specification: 0 ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:21 PM

Page 287

© 2006 Mitchell Repair Information Company, LLC.

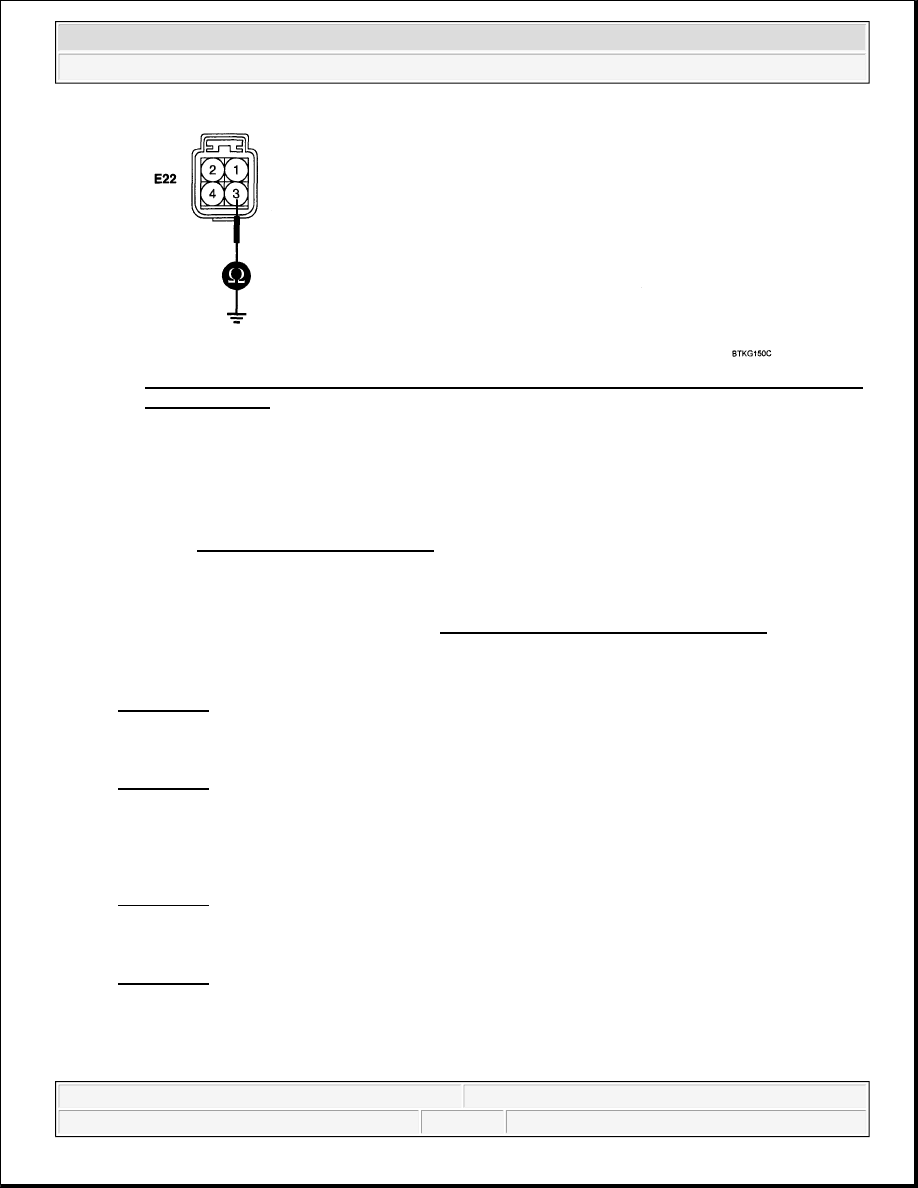

Fig. 244: Measuring Resistance Between Left Turn Signal Lamp Ground Circuit (E24-3) And
Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured resistance within the specification?

YES

Go to "COMPONENT INSPECTION".

NO

Repair open in ground circuit and go to "VERIFICATION OF VEHICLE REPAIR".

COMPONENT INSPECTION

Refer to DTC B2551.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B2119.

DTC B2555 LEFT HEADLAMP LOW CIRCUIT SHORT TO GROUND ERROR

COMPONENT LOCATION

Refer to DTC B2539.

GENERAL DESCRIPTION

Refer to DTC B2535.

DTC DESCRIPTION

The ECM sets DTC B2555 if short to ground in Left headlamp low circuit is detected.
