If the problem is corrected, replace left outside mirror and then go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. Check left outside mirror sensor

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Measure voltage value between terminal "12" of outside mirror and chassis ground. While

operating outside mirror switch.

Specification: left end --> approx. 1.04V, right end --> approx. 3.95V

Fig. 92: Measuring Voltage Value Between Terminal 12 Of Outside Mirror And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Go to step 3.

NO

Substitute with a known-good right outside mirror and check for proper operation. If the problem is
corrected, replace right outside mirror and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

3. Check DDM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Measure voltage value between terminal "9,11" of outside mirror and chassis ground. While

operating outside mirror switch.

Specification: 9-16V



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 121

© 2006 Mitchell Repair Information Company, LLC.

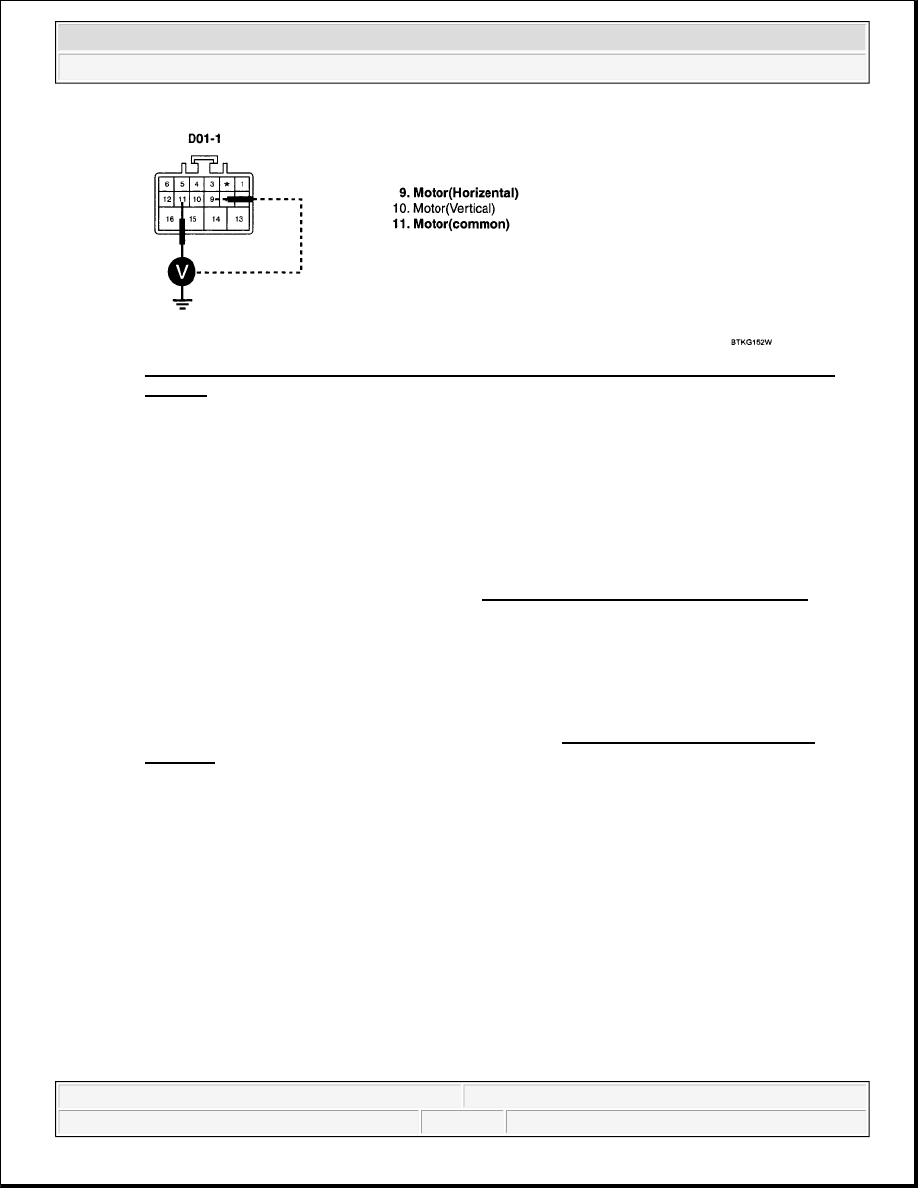

Fig. 93: Measuring Voltage Value Between Terminal 9,11 Of Outside Mirror And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage.

Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR"
procedure.

NO

Substitute with a known-good ADM and check for proper operation.

If the problem is corrected, replace ADM and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault has been corrected.

1. Connect scan tool and select "Diagnostic Trouble Codes (DTC s)" mode and then clear DTC.

2. Operate the vehicle and monitor the DTC on the scan tool.

3. Are any DTC s present?

YES

Go to the applicable troubleshooting procedure.

NO



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 122

© 2006 Mitchell Repair Information Company, LLC.

System is performing to specification at this time.

DTC B1911 LEFT OSM VERTICAL MOTOR OR SENSOR ERROR

COMPONENT LOCATION

Refer to DTC B1910.

GENERAL DESCRIPTION

DDM is a node of CAN communication system which consists of IPM. FAM, RAM, ADM, IMS. Main
function of DDM is lock/unlock of door and window, adjusting position and fold/unfold of outside mirror.
Outside mirror module consists of motor and position sensor. According to Outside mirror Switch signal,
Outside mirror motor adjusts position of mirror and position sensor delivers result to DDM by voltage value.

DTC DESCRIPTION

The ECM sets DTC B1911 if signal voltage of left outside mirror vertical sensor is out of range.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Select "Diagnostic Trouble Codes (DTC s)" mode and monitor "DTC Status" parameter.

4. Is the DTC B1911 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to

Item

Detecting Condition

Possible Cause

DTC Strategy



Check Voltage



short in signal harness



short in power harness



Faulty outside mirror motor



Faulty outside mirror sensor



Faulty DDM

Enable Conditions



IGN `ON' & Engine `OFF'

Threshold value



1.13V < Output voltage < 4.14V

Detecting time



50 ms

FAIL SAFE

-



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 123

© 2006 Mitchell Repair Information Company, LLC.

"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B2119.

SIGNAL CIRCUIT INSPECTION

1. Check for short in harness

1. Ignition "OFF".

2. Disconnect left outside mirror.

3. Measure resistance between terminal "13" of left outside mirror and chassis ground.

Specification :Approx. infinity ohms

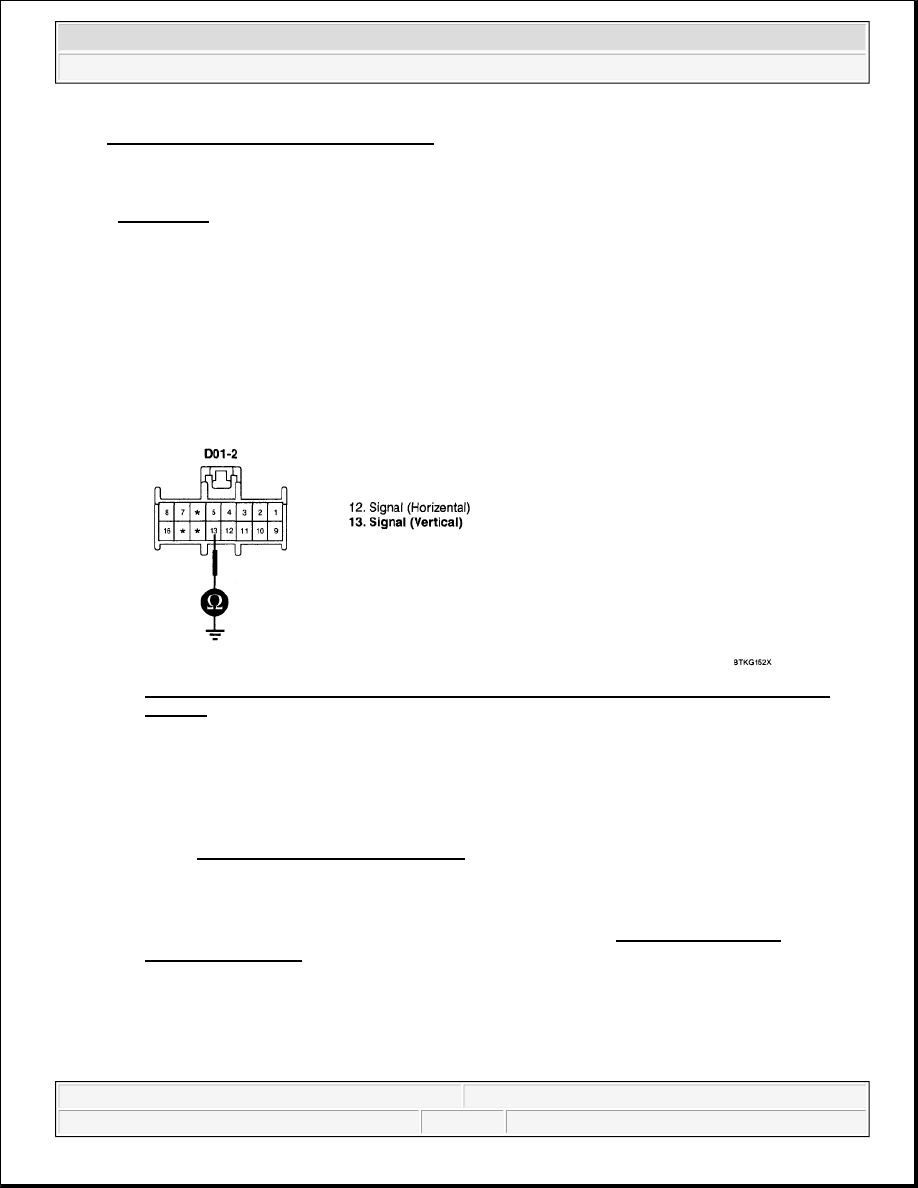

Fig. 94: Measuring Resistance Between Terminal 13 Of Left Outside Mirror And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to "POWER CIRCUIT INSPECTION" procedure.

NO

Check for short in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

POWER SUPPLY CIRCUIT INSPECTION

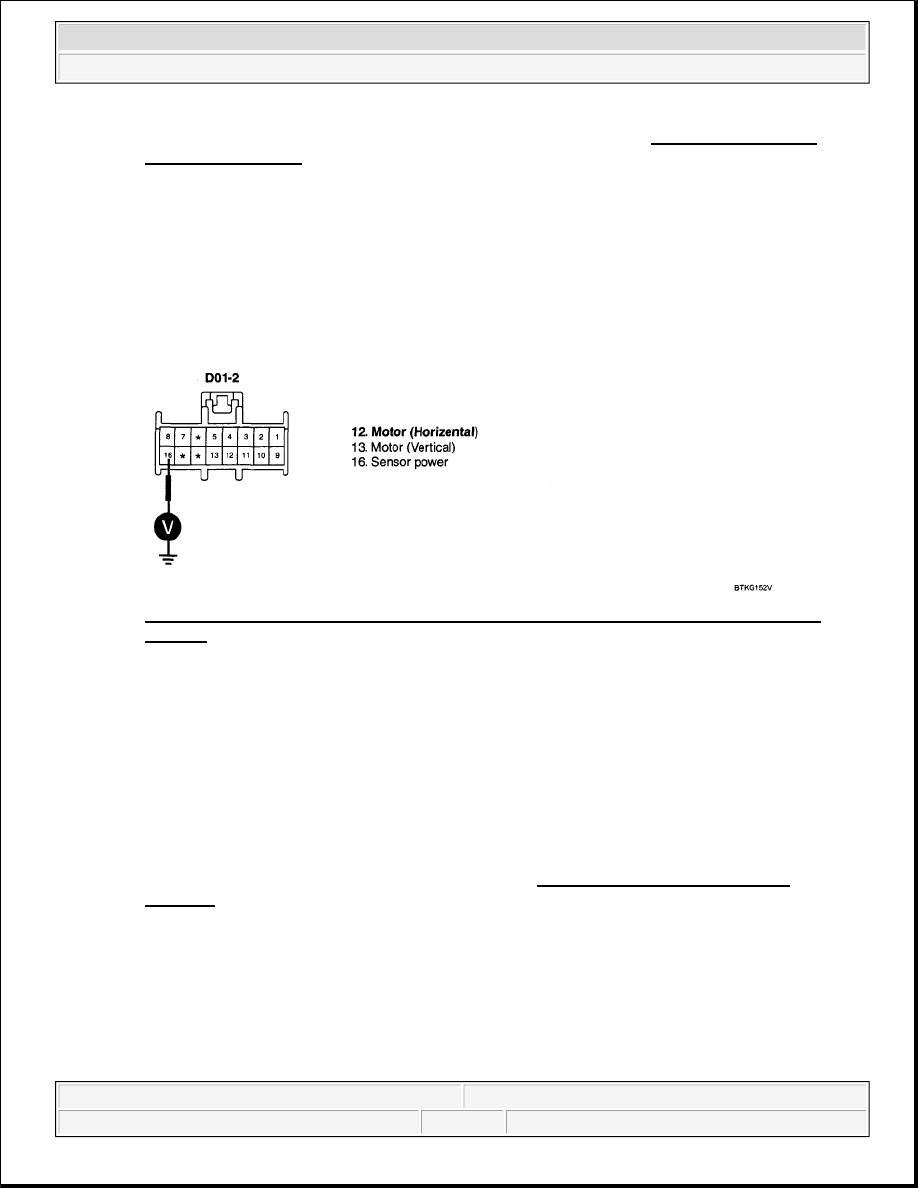

1. Motor Power circuit Inspection

1. Ignition "OFF"
