3. Select "Diagnostic Trouble Codes (DTC s)" mode and monitor "DTC Status" parameter.

4. Is the DTC B1605 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B1102.

SIGNAL CIRCUIT INSPECTION

1. Check CAN high communication circuit

1. Ignition "ON" and Engine "OFF".

2. Connect scan tool and select VEHICLE SCOPEMETER function.

3. Measure waveform between terminal "BCM-IF-30" of IPM and chassis ground.

Specification: CAN communication waveform is displayed

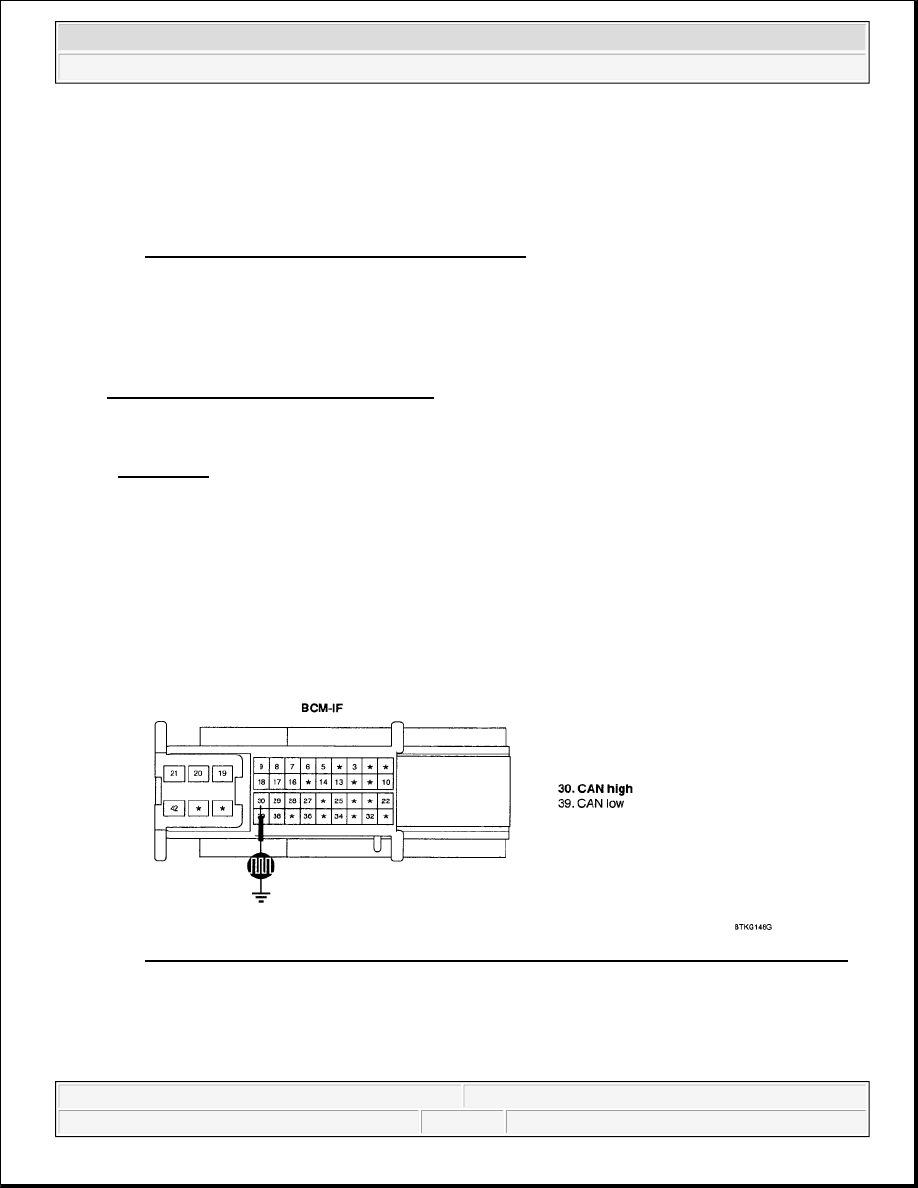

Fig. 73: Measuring Waveform Between Terminal BCM-IF-30 Of IPM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured waveform within specifications?

The existence of CAN communication waveform itself shows there's no trouble in CAN
communication circuit. If there's any short in harness, no signal is detected.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 89

© 2006 Mitchell Repair Information Company, LLC.

YES

Go to step 2.

NO

Check for short circuit in signal harness. Repair as necessary and go to "VERIFICATION
VEHICLE REPAIR" procedure.

2. Check CAN low communication circuit

1. Ignition "ON" and Engine "OFF".

2. Connect scan tool and select VEHICLE SCOPEMETER function.

3. Measure waveform between terminal "BCM-IF-39" of BCM ECU and chassis ground.

Specification: CAN communication waveform is displayed

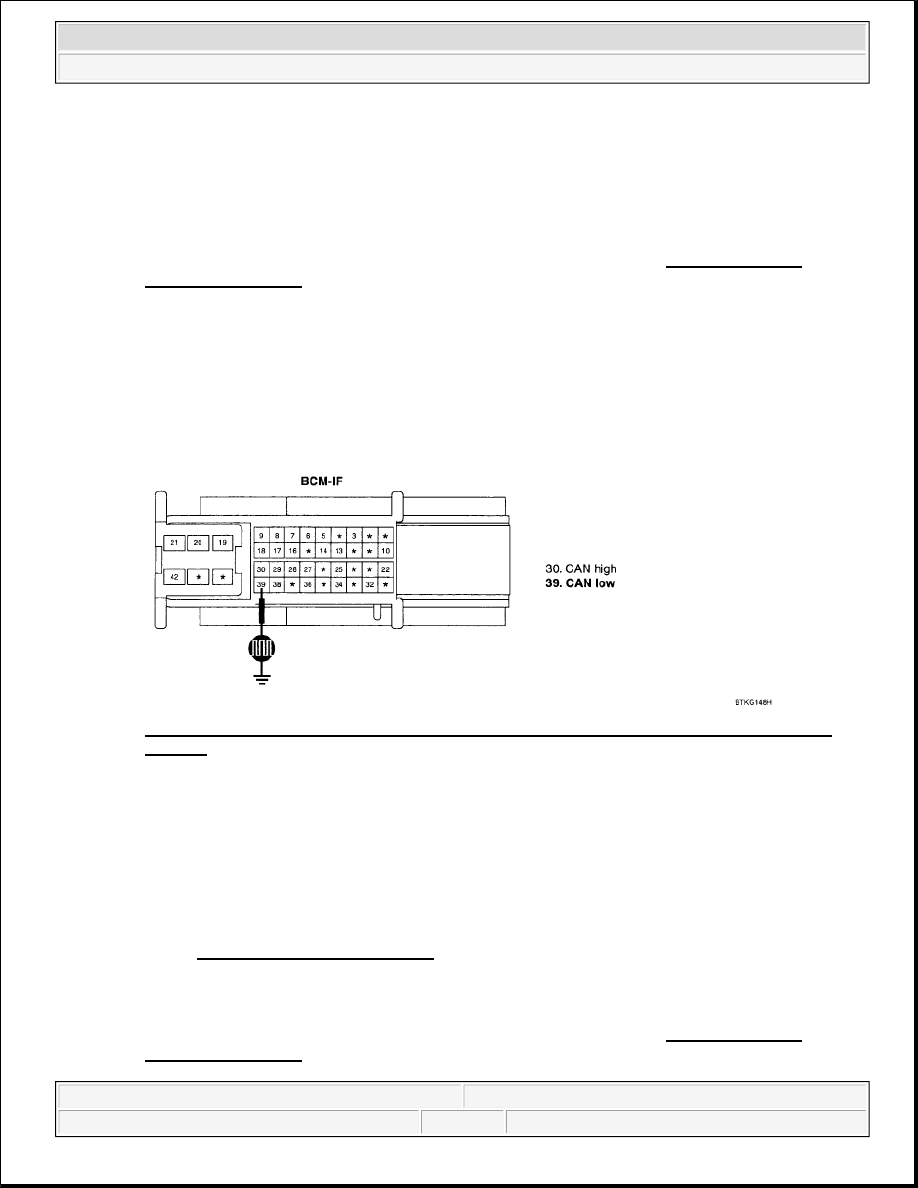

Fig. 74: Measuring Waveform Between Terminal BCM-IF-39 Of BCM ECU And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured waveform within specifications?

The existence of CAN communication waveform itself shows there's no trouble in CAN
communication circuit. If there's any short in harness, no signal is detected

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for short circuit in signal harness. Repair as necessary and go to "VERIFICATION
VEHICLE REPAIR" procedure.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 90

© 2006 Mitchell Repair Information Company, LLC.

POWER SUPPLY CIRCUIT INSPECTION

1. Check for open or short in power harness

1. Ignition "OFF".

2. Connect DDM

3. Measure voltage value between terminal "D01-1-13" of DDM and chassis ground.

Specification: 9-16V

Fig. 75: Measuring Voltage Value Between Terminal D01-1-13 Of DDM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for open or short in power harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. Check DDM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Substitute with a known-good DDM and Check if the DTC is erased.

4. Is the DTC erased?

YES



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:17 PM

Page 91

© 2006 Mitchell Repair Information Company, LLC.

Substitute with a known-good DDM and check for proper operation.

If the problem is corrected, replace DDM and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

NO

Go to step 2.

2. Check IPM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Substitute with a known-good IPM and Check if the DTC is erased.

4. Is the DTC erased?

YES

Substitute with a known-good IPM and check for proper operation.

If the problem is corrected, replace IPM and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

NO

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage.

Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR"
procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B1102.

DTC B1606 LOST COMMUNICATION WITH ADM, BUS FAILURE

COMPONENT LOCATION

Refer to DTC B1605.

GENERAL DESCRIPTION

Refer to DTC B1602.

DTC DESCRIPTION
