RAM ACTUATOR LIST

RAM ACTUATOR LIST

3

Right Headlamp High

ON/OFF

Continuously ON

4

Right Headlamp Low

ON/OFF

Continuously ON

5

Right Lamp Park

ON/OFF

Continuously ON

6

Right Fog Lamp

ON/OFF

Continuously ON

7

Right Turn Signal

ON/OFF

Continuously ON with

(80 +/- 5) cycles per

minute, Duty: 50%

8

Left Headlamp High

ON/OFF

Continuously ON

9

Left Headlamp Low

ON/OFF

Continuously ON

10

Left Lamp Park

ON/OFF

Continuously ON

11

Left Fog Lamp

ON/OFF

Continuously ON

12

Left Turn Signal

ON/OFF

Continuously ON with

(80 +/- 5) cycles per

minute, Duty: 50%

13

IGN2 Control

ON/OFF

Continuously ON

14

Windshield Defog Timer

ON/OFF

Continuously ON

15

Wiper On Off

ON/OFF

Continuously ON

16

Wiper Low speed

ON/OFF

3 wiping with LOW

speed

17

Wiper High speed

ON/OFF

3 wiping with HIGH

speed

18

Burglar Alarm horn

ON/OFF

Continuously ON with 60

cycles per minute, Duty:

50%

No.

Description

Value

Control

1

Room Lamp LS

ON/OFF

Continuously ON

2

Room Lamp LS Door

ON/OFF

Continuously ON

3

Luggage Lamp LS

ON/OFF

Continuously ON

4

LQG Motor Close

ON/OFF

3 sec ON then OFF

(once)

5

LQG Motor Open

ON/OFF

3 sec ON then OFF

(once)

6

RQG Motor Close

ON/OFF

3 sec ON then OFF

(once)

7

RQG Motor Open

ON/OFF

3 sec ON then OFF

(once)

8

RSD Power Window Up

ON/OFF

3 sec ON then OFF

(once)

9

RSD Power Window Down

ON/OFF

3 sec ON then OFF



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 57

© 2006 Mitchell Repair Information Company, LLC.

DDM ACTUATOR LIST

DDM ACTUATOR LIST

(once)

10

LSD Power Window Up

ON/OFF

3 sec ON then OFF

(once)

11

LSD Power Window Down

ON/OFF

3 sec ON then OFF

(once)

12

LH PSD Open Close Signal

ON/OFF

0.5 sec ON then OFF

(once)

13

RH PSD Open Close Signal

ON/OFF

0.5 sec ON then OFF

(once)

14

PTG Open Close Signal

ON/OFF

0.5 sec ON then OFF

(once)

15

PSD PTG On Off Signal

ON/OFF

Continuously ON

16

Park Signal

ON/OFF

Continuously ON

17

Start Signal

ON/OFF

Continuously ON

18

Rear Defog

ON/OFF

Continuously ON

19

Rear Fog Lamps

ON/OFF

Continuously ON

20

Right Turn Signal Lamp

ON/OFF

Continuously ON with

(80 +/- 5) cycles per

minute, Duty: 50%

21

Left Turn Signal Lamp

ON/OFF

Continuously ON with

(80 +/- 5) cycles per

minute, Duty: 50%

22

Back Up Lamp Back Up Warning
System Unit

ON/OFF

Continuously ON

23

Left/Right Tail Licence Side Marker

ON/OFF

Continuously ON

24

Door Lock

ON/OFF

0.5 sec ON then OFF

(once)

25

Door Unlock

ON/OFF

0.5 sec ON then OFF

(once)

26

Rear Wiper Motor

ON/OFF

5 sec ON then OFF

(once)

27

Rear Blower Switch & Rear Monitor
illumination

ON/OFF

Continuously ON

28

Fuel Filler Door Solenoid

ON/OFF

0.5 sec ON then OFF

(once)

29

Map Lamp LS

ON/OFF

Continuously ON

No.

Description

Value

Control

1

Door Courtesy Lamp

ON/OFF

Continuously ON

2

Door Lock Out

ON/OFF

0.5 sec ON then OFF



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 58

© 2006 Mitchell Repair Information Company, LLC.

ADM ACTUATOR LIST

ADM ACTUATOR LIST

(once)

3

Door Unlock Out

ON/OFF

0.5 sec ON then OFF

(once)

4

OSRVM Up

ON/OFF

3 sec ON then OFF

(once)

5

OSRVM Down

ON/OFF

3 sec ON then OFF

(once)

6

OSRVM Left

ON/OFF

3 sec ON then OFF

(once)

7

OSRVM Right

ON/OFF

3 sec ON then OFF

(once)

8

OSRVM Defog

ON/OFF

Continuously ON

9

Folding Motor Power Feed

ON/OFF

Continuously ON

10

Safety Power Window Auto Up Out

ON/OFF

0.2 sec ON then OFF

(once)

11

Safety Power Window Up Out

ON/OFF

3 sec ON then OFF

(once)

12

Safety Power Window Auto Down Out

ON/OFF

0.2 sec ON then OFF

(once)

13

Safety Power Window Down Out

ON/OFF

3 sec ON then OFF

(once)

14

Power Window up Out

ON/OFF

3 sec ON then OFF

(once)

15

Power Window Down Out

ON/OFF

3 sec ON then OFF

(once)

16

Illumination Out

ON/OFF

Continuously ON

No.

Description

Value

Control

1

Door Courtesy Lamp

ON/OFF

Continuously ON

2

Door Lock Out

ON/OFF

0.5 sec ON then OFF

(once)

3

Door Unlock Out

ON/OFF

0.5 sec ON then OFF

(once)

4

OSRVM Up

ON/OFF

3 sec ON then OFF

(once)

5

OSRVM Down

ON/OFF

3 sec ON then OFF

(once)

6

OSRVM Left

ON/OFF

3 sec ON then OFF

(once)

7

OSRVM Right

ON/OFF

3 sec ON then OFF

(once)



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:16 PM

Page 59

© 2006 Mitchell Repair Information Company, LLC.

IMS ACTUATOR LIST

IMS ACTUATOR LIST

REPLACEMENT

IPM (IN-PANEL MODULE)

1. Disconnect the negative (-) battery terminal.

2. Remove the crash pad lower panel (A). Refer to CRASH PAD .

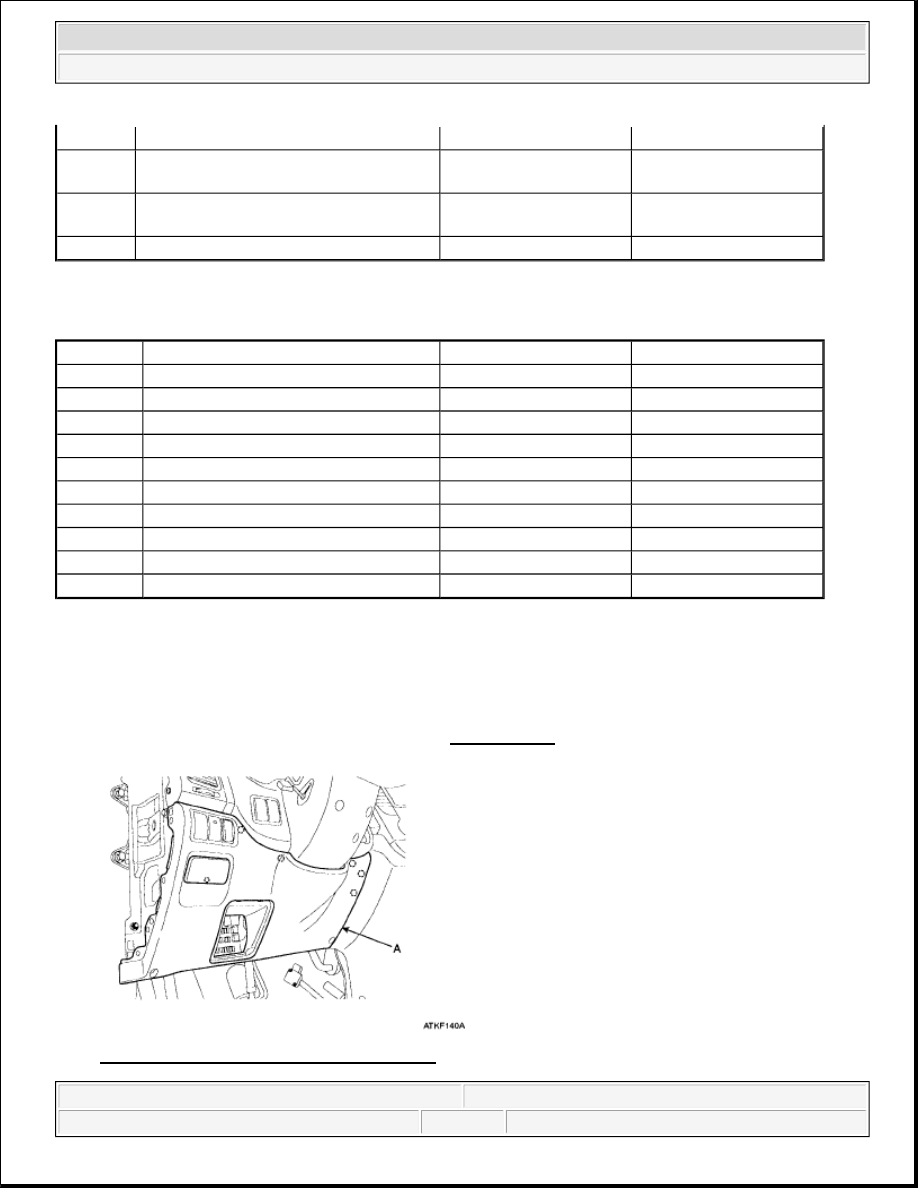

Fig. 51: Identifying Crash Pad Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.

8

OSRVM Defog

ON/OFF

Continuously ON

9

Power Window up Out

ON/OFF

3 sec ON then OFF

(once)

10

Power Window Down Out

ON/OFF

3 sec ON then OFF

(once)

11

Illumination Out

ON/OFF

Continuously ON

No.

Description

Value

Control

1

Power Seat Slide Forward Motor

ON/OFF

Continuously ON

2

Power Seat Slide Backward Motor

ON/OFF

Continuously ON

3

Power Seat FR Height Up Motor

ON/OFF

Continuously ON

4

Power Seat FR Height Down Motor

ON/OFF

Continuously ON

5

Power Seat RR Height Up Motor

ON/OFF

Continuously ON

6

Power Seat RR Height Down Motor

ON/OFF

Continuously ON

7

Power Seat Recline Forward Motor

ON/OFF

Continuously ON

8

Power Seat Recline Backward Motor

ON/OFF

Continuously ON

9

Pedal Forward Motor

ON/OFF

Continuously ON

10

Pedal Backward Motor

ON/OFF

Continuously ON
