SIGNAL WAVEFORM

Fig. 45: Signal Waveform Graph
Courtesy of KIA MOTORS AMERICA, INC.

MONITOR SCAN TOOL DATA

1. Connect scan tool to data link connector (DLC).

2. Engine "ON".

3. Monitor the "ENGINE SPEED, INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, GEAR

POSITION" parameter on the scan tool.

4. Perform the "STALL TEST" with gear position "1"

Specification: 2200-2900 engine RPM

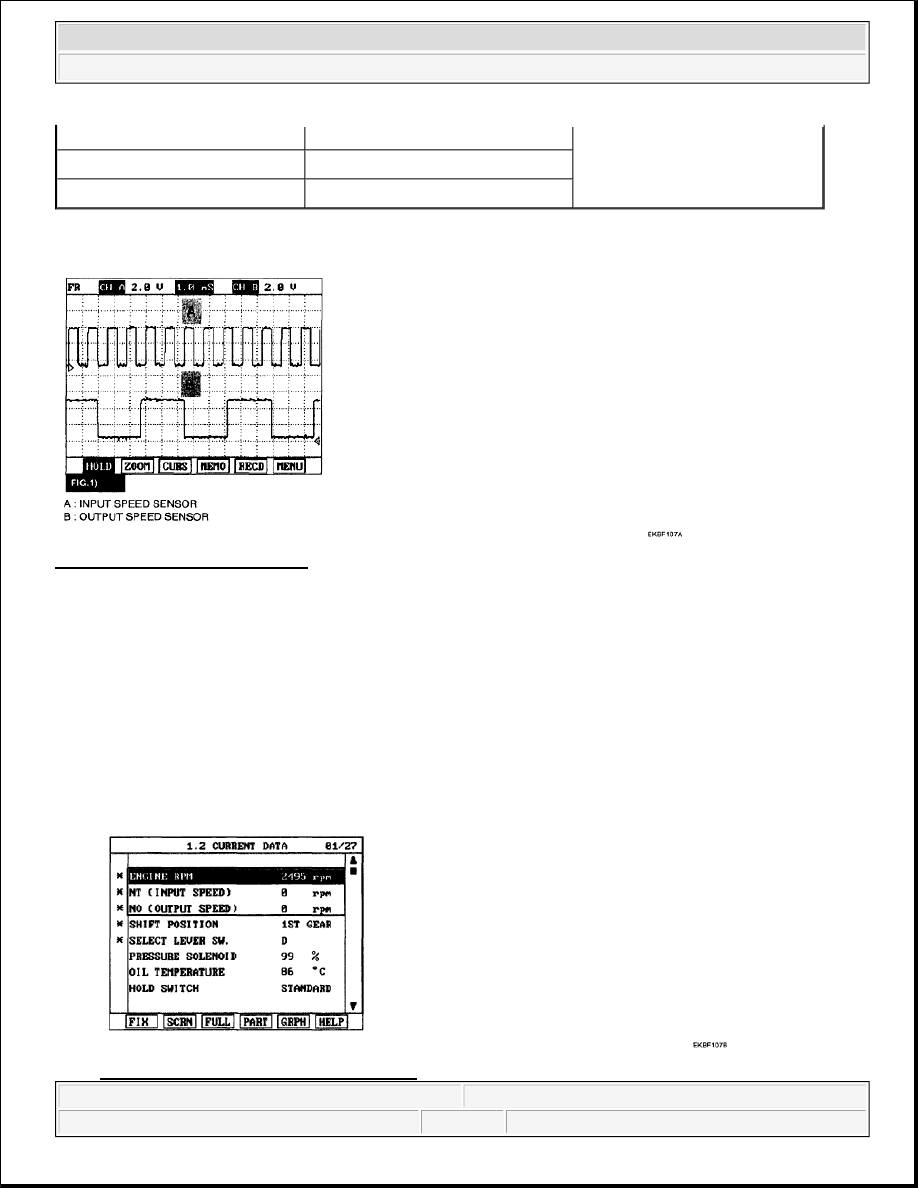

Fig. 46: Scan Tool Display - Engine RPM

1st gear ratio | > or = 200rpm

Diagnostic Time



more than 4sec

Fail Safe



Locked into 3rd gear



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 55

© 2006 Mitchell Repair Information Company, LLC.

Courtesy of KIA MOTORS AMERICA, INC.

OPERATING ELEMENT OF EACH SHIFTING RANGE

OPERATING ELEMENT OF EACH SHIFTING RANGE

Low & Reverse Brake is released When the vehicle speed over the 5 MPH (7 km/h).

Stall test procedure in D1 and reason

Procedure

1. Warm up the engine.

2. After positioning the select lever in "D", depress the foot brake pedal fully after that, depress the

accelerator pedal to the maximum.

* The slippage of 1st gear operating parts can be detected by stall test in D

Reason for stall test

1. If there is no mechanical defaults in A/T, all slippages occur in torque converter.

2. Therefore, engine revolution is output, but input and output speed revolution must be "zero" due to

wheel's lock.

3. If 1st gear operating part has faults, input speed revolution will be out of specification.

4. If output speed revolution is output. It means that the foot brake force is not applied fully.

Remeasuring is required.

5. Is "STALL TEST" within specification?

YES



Go to "SIGNAL CIRCUIT INSPECTION" procedure.

NO

GEAR

POSITION

ELEMENT

L/R

BRAKE

2ND

BRAKE

U/D

CLUTCH

O/D

CLUTCH

RED

BRAKE

DIR

CLUTCH

REV

CLUTCH 0WC1 0WC2

1st

o



o



o





•

•

2nd



o

o



o







•

3rd





o

o

o







•

4th



o



o

o







•

5th



o



o



o







REV

o







o



o





N, P

o







o











2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 56

© 2006 Mitchell Repair Information Company, LLC.



Go to "COMPONENT INSPECTION" procedure.

SIGNAL CIRCUIT INSPECTION

1. Connect Scan tool.

2. Engine "ON".

3. Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scan tool.

4. Accelerate the Engine speed until about 2000 RPM in the 1st gear.

Specification: INPUT SPEED - (OUTPUT SPEED x GEAR RATIO) < or = 200 RPM

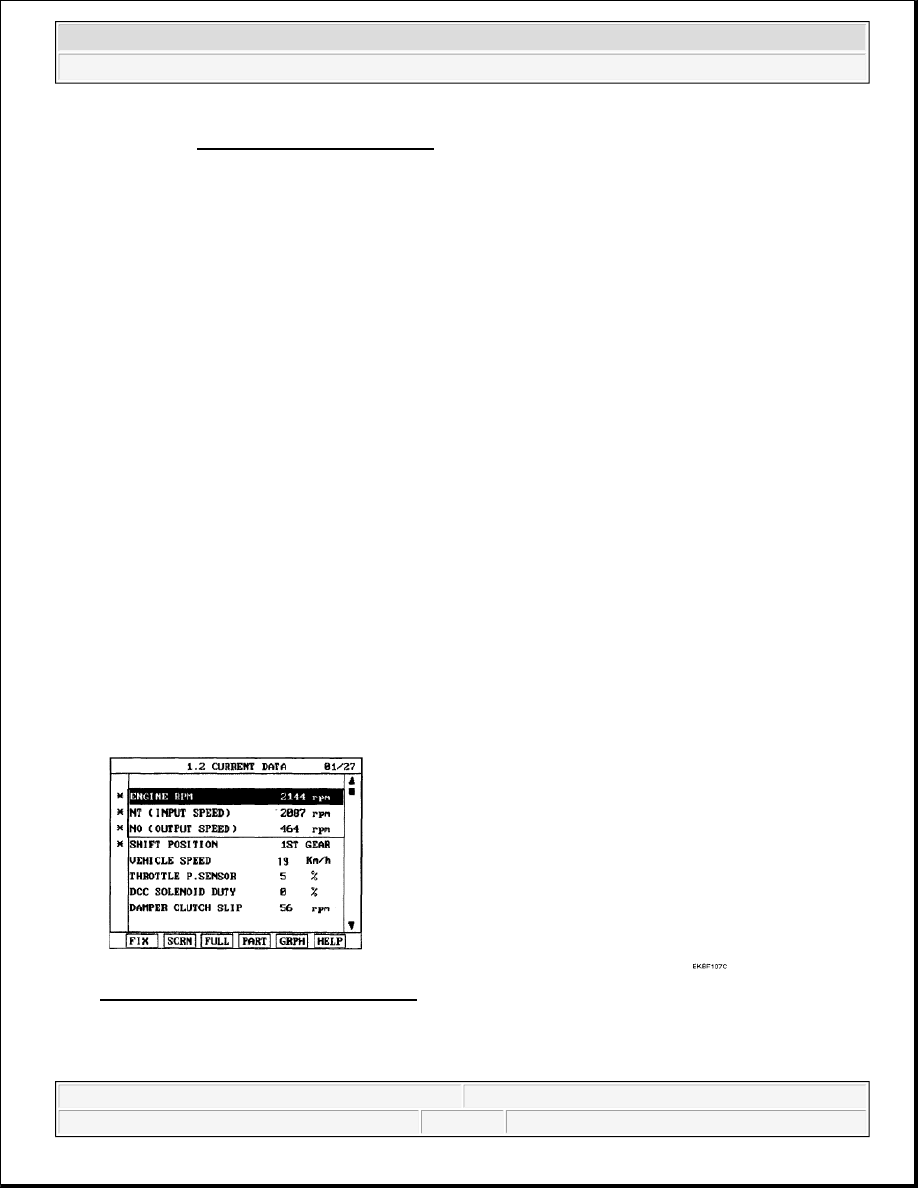

Fig. 47: Scan Tool Display - Engine RPM
Courtesy of KIA MOTORS AMERICA, INC.

5. Does "INPUT & OUTPUT SPEED SENSOR" within specifications?

CAUTION:

1. Do not let anybody stand in front of or behind the vehicle while

this test is being carried out.

2. Check the A/T fluid level and temperature and the engine

coolant temperature.



Fluid level: At the hot mark on the oil level gauge.



Fluid temperature: 176-212°F (80-100°C).



Engine coolant temperature: 176-212°F (80-100°C).

3. Chock both rear wheel (left and right).

4. Pull the parking brake lever on with the brake pedal fully

depressed.

5. The throttle should not be left fully open for more than eight

second.

6. If stall test is being performed more than once, move the

selector lever to `V' and run the engine at 1000 RPM to allow the
transaxle fluid to cool prior to subsequent tests.
