Kia Sedona (2008 year). Manual - part 94



System performing to specification at this time.

DTC P0713 FLUID (OIL) TEMPERATURE SENSOR CIRCUIT - HIGH

COMPONENT LOCATION

Refer to DTC P0712.

GENERAL DESCRIPTION

Refer to DTC P0712.

DTC DESCRIPTION

This DTC code is set when the ATF temperature output voltage is higher than a value generated by thermistor
resistance, in a normal operating range, for an extended period of time. The TCM regards the ATF temperature
as fixed at a value of 80°C (176°F).

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

SPECIFICATION

Refer to DTC P0712.

SCHEMATIC DIAGRAM

Refer to DTC P0712.

MONITOR SCAN TOOL DATA

Item

Detecting Condition

Possible cause

DTC Strategy



Check for Voltage range



Sensor signal circuit is short
to ground



Faulty sensor



Faulty PCM

Enable Conditions



Intake air temperature > or =
-23.5°C



Engine state = RUN



Warm up driving time >
287.5 sec

Threshold value



voltage > or = 4.9V

Diagnostic Time



more than 1sec

Fail Safe



Learning control and
Intelligent shift are inhibited



Fluid temperature is regarded
as 80°C (176°F)



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 35

© 2006 Mitchell Repair Information Company, LLC.

Refer to DTC P0712.

TERMINAL & CONNECTOR INSPECTION

Refer to DTC P0712.

SIGNAL CIRCUIT INSPECTION

Refer to DTC P0712.

GROUND CIRCUIT INSPECTION

1. Ignition "OFF".

2. Disconnect the "TRANSAXLE FLUID TEMPERATURE SENSOR" connector.

3. Measure the resistance between terminal "2" of the "TRANSAXLE FLUID TEMPERATURE SENSOR"

harness connector and chassis ground.

Fig. 26: Measuring Resistance Between Terminal Harness Connector And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is resistance within specifications?

YES



Go to "COMPONENT INSPECTION" procedure.

NO



Check for open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

COMPONENT INSPECTION

Refer to DTC P0712.

VERIFICATION OF VEHICLE REPAIR



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 36

© 2006 Mitchell Repair Information Company, LLC.

Refer to DTC P0712.

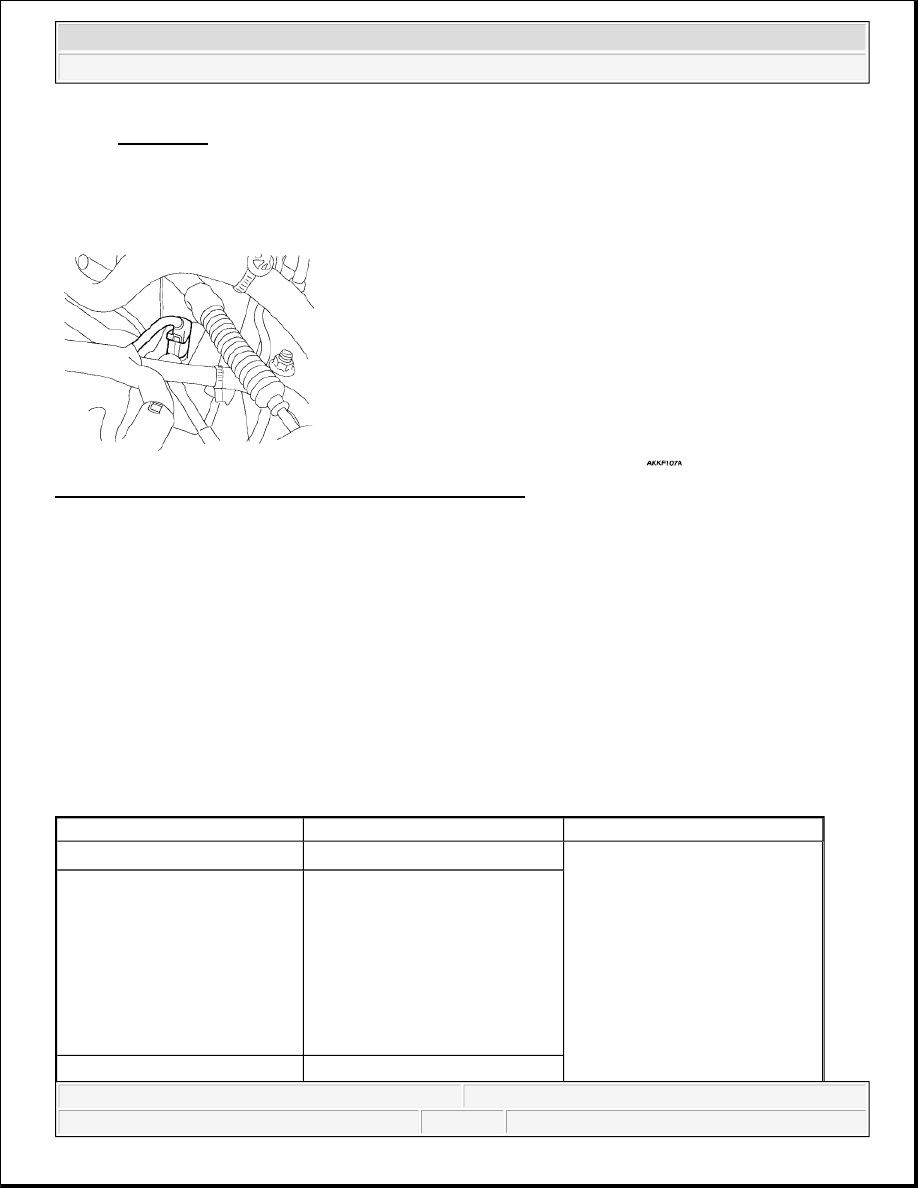

DTC P0717 INPUT SPEED SENSOR CIRCUIT - NO SIGNAL

COMPONENT LOCATION

Fig. 27: Identifying Input Speed Sensor Component Location
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

The input (turbine) speed sensor outputs pulse-signals according to the revolutions of the input shaft of the
transmission. The TCM determines the input shaft speed by counting the frequency of the pulses. This value is
mainly used to control the optimum fluid pressure during shifting.

DTC DESCRIPTION

The TCM sets this code if an output pulse-signal is not detected, from the input speed sensor, when the vehicle
is running faster than 30 km/h. The Fail-Safe function will be set by the TCM if this code is detected.

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

Item

Detecting Condition

Possible cause

DTC Strategy



Speed rationality check



Signal circuit is open or
short.



Sensor power circuit is open



Sensor ground circuit is
open



Faulty INPUT SPEED
SENSOR



Faulty PCM/TCM

Enable Conditions



Vehicle speed is over 19
MPH (30 Km/h)



Ne > 1000 RPM (only at 1st
or 2nd gear)



11V < or = Battery Voltage
< or = 16V



TM oil temperature > or = -
23°C

Threshold value



No signal



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 37

© 2006 Mitchell Repair Information Company, LLC.

SPECIFICATION

Input shaft & Output shaft speed sensor



Type: Hall sensor



Current consumption: 22mA (MAX)



Sensor body and sensor connector have been unified as one.

SCHEMATIC DIAGRAM

Diagnostic Time



More than 1sec

Fail Safe



Locked into 3rd or 2nd gear



Manual shifting is possible
(2nd --> 3rd, 3rd --> 2nd)



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 38

© 2006 Mitchell Repair Information Company, LLC.
