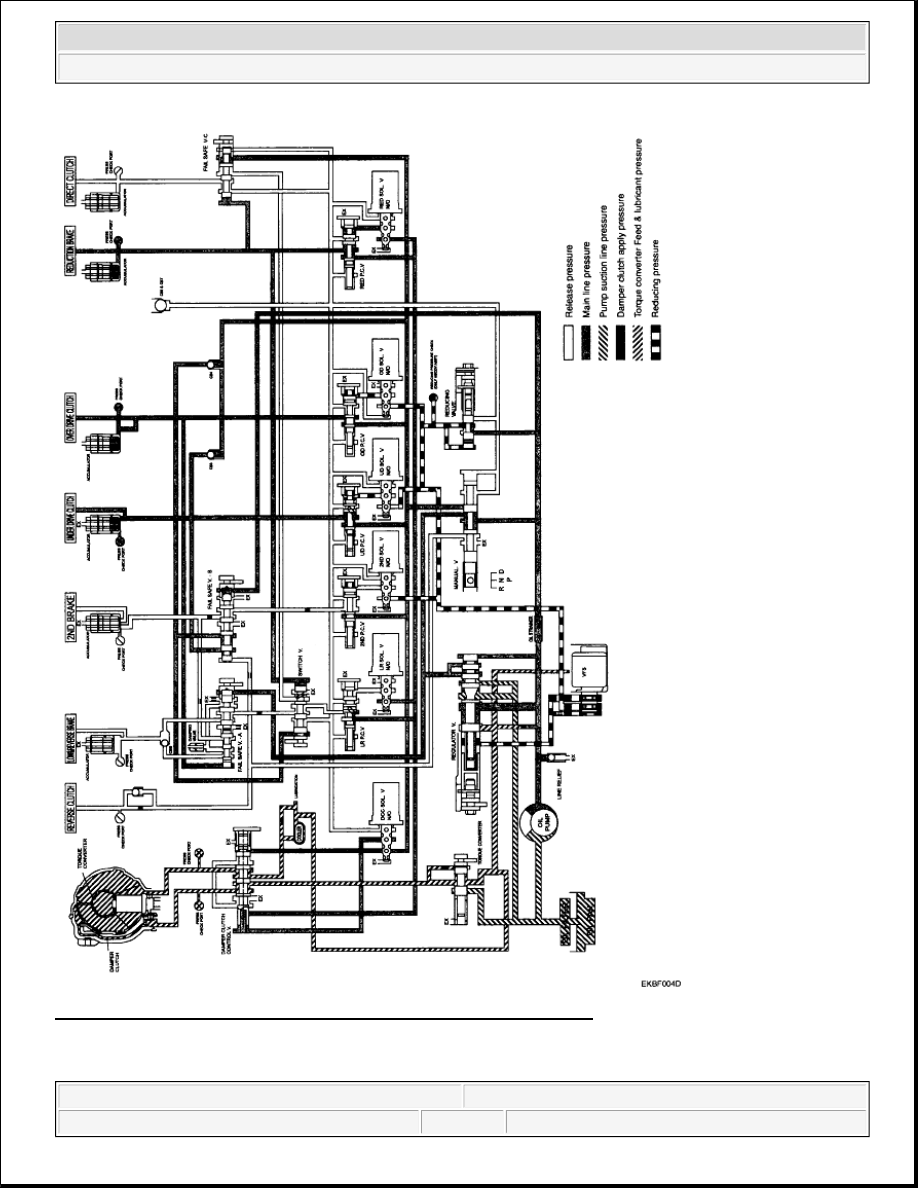

Fig. 5: Automatic Transaxle Hydraulic Circuit Diagram - D (2 Range)
Courtesy of KIA MOTORS AMERICA, INC.

D (3 RANGE)



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

Fig. 6: Automatic Transaxle Hydraulic Circuit Diagram - D (3 Range)
Courtesy of KIA MOTORS AMERICA, INC.

D (4 RANGE)



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

Fig. 7: Automatic Transaxle Hydraulic Circuit Diagram - D (4 Range)
Courtesy of KIA MOTORS AMERICA, INC.

D (5 RANGE)



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

Fig. 8: Automatic Transaxle Hydraulic Circuit Diagram - D (5 Range)
Courtesy of KIA MOTORS AMERICA, INC.

R RANGE



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.
