Fig. 32: Identifying Horn Pad
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the audio remote control switch (A) after removing the steering wheel remote control switch

connector and 2 screws.

Fig. 33: Identifying Steering Wheel Remote Control Switch Connectors And Screws
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

INSPECTION

1. Check for resistance between No. 2 and No. 3 terminals in each switch position.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Audio System - Sedona



Microsoft



Monday, May 24, 2010 4:15:06 PM

Page 20

© 2006 Mitchell Repair Information Company, LLC.

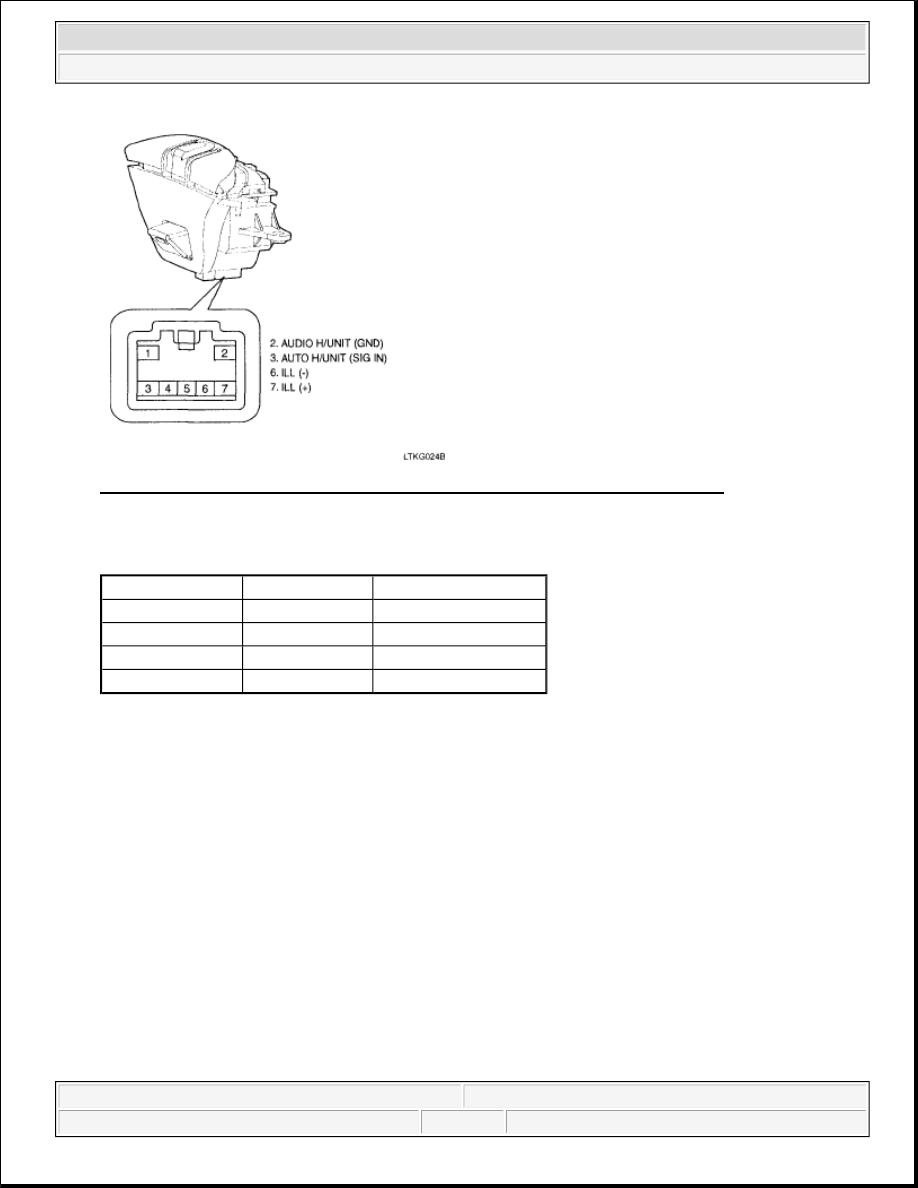

Fig. 34: Identifying Steering Wheel Remote Control Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

STEERING WHEEL REMOTE CONTROL SWITCH CONNECTOR TERMINALS
SPECIFICATION

CIRCUIT DIAGRAM

FUNCTION

OHM

OUTPUT VOLTAGE

MODE

2.11 kohms ±5%

1.5V ± 0.22V

MUTE

3.11 kohms ± 5%

2.0V ± 0.22V

VOLUME UP

4.61 kohms ± 5%

2.5V ± 0.22V

VOLUME DOWN 5.81 kohms ± 5%

3.0V ± 0.22V



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Audio System - Sedona



Microsoft



Monday, May 24, 2010 4:15:06 PM

Page 21

© 2006 Mitchell Repair Information Company, LLC.

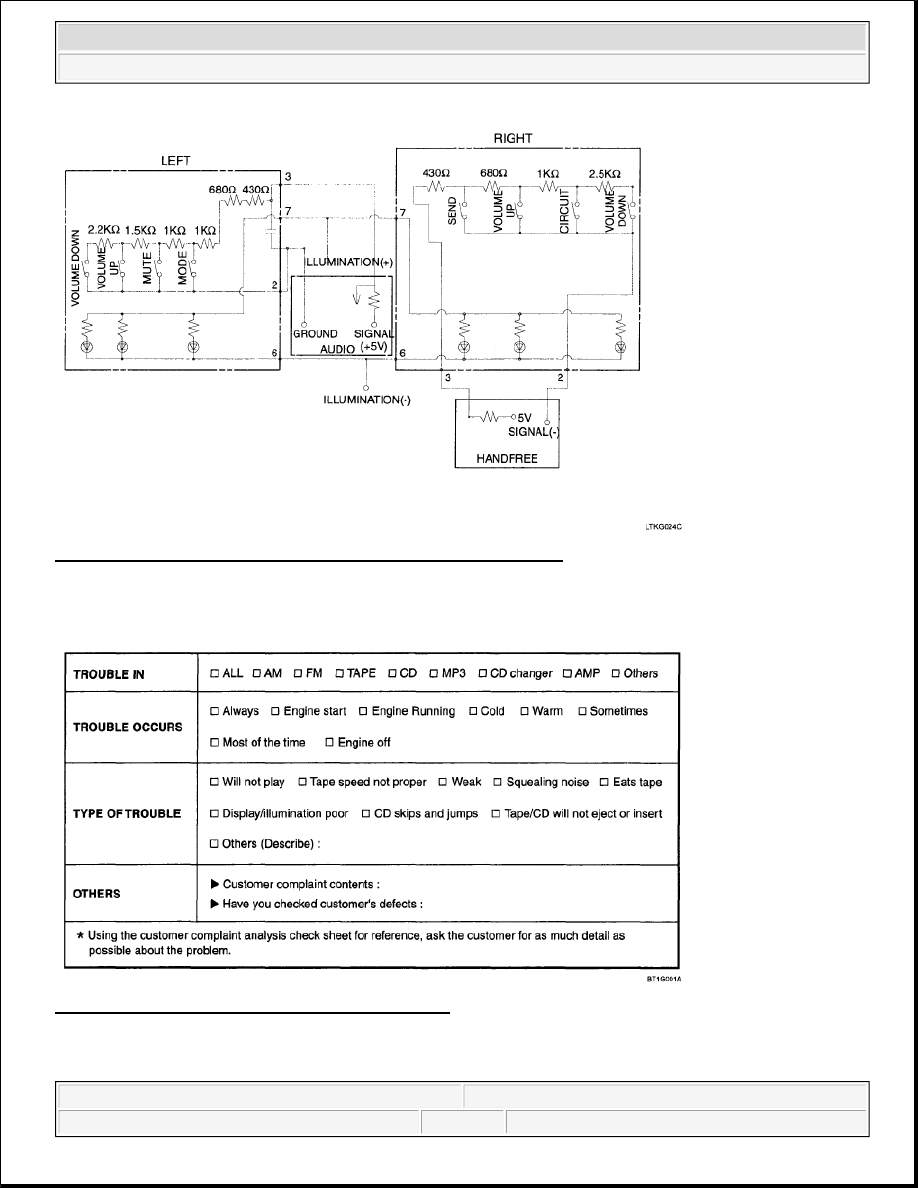

Fig. 35: Steering Wheel Remote Control Switch - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

CUSTOMER COMPLAINT ANALYSIS CHECK SHEET

Fig. 36: Customer Complaint Analysis Check Sheet
Courtesy of KIA MOTORS AMERICA, INC.

TROUBLESHOOTING



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Audio System - Sedona



Microsoft



Monday, May 24, 2010 4:15:06 PM

Page 22

© 2006 Mitchell Repair Information Company, LLC.

There are 6 areas where a problem can occur: wiring harness, the radio, the cassette tape deck, the CD player,
and speaker. Troubleshooting enables you to confine the problem to a particular area.

Fig. 37: Troubleshooting Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.

CHART 1
