TERMINAL & CONNECTOR INSPECTION

Refer to TERMINAL & CONNECTOR INSPECTION.

INSPECTION PROCEDURE

1. PREPARATION

Refer to PREPARATION OF INSPECTION.

2. CHECK CAB RESISTANCE

1. Connect the Dummy and the Dummy Adapter on CAB harness connector.

2. Measure resistance between the terminal 10 (11) and 9 (12) of SRSCM harness connector (B).

Specification (resistance): 1.6-4.7 ohms

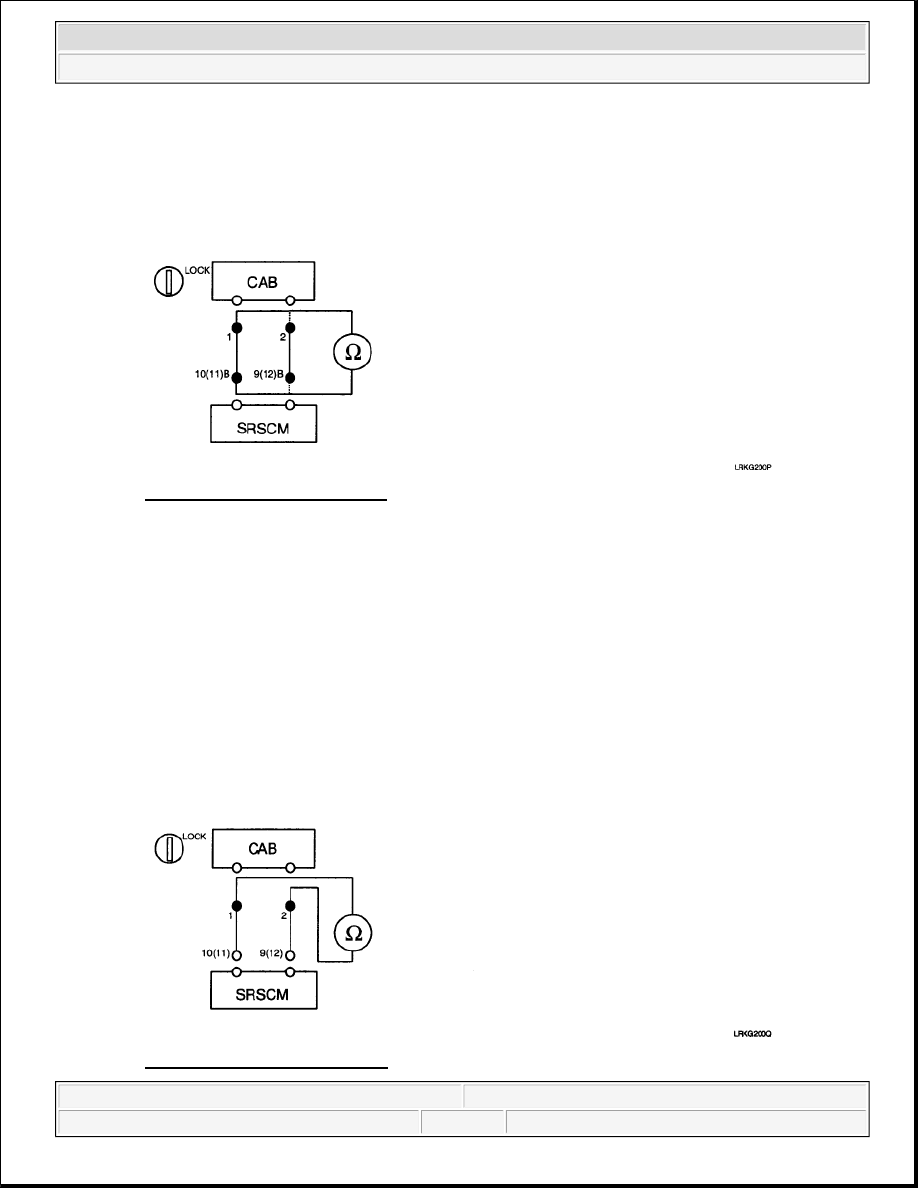

Fig. 59: Checking CAB Resistance

3. Is the measured resistance within specification?

YES



Replace the Curtain Airbag (CAB) module.

NO



Check open circuit.

3. CHECK OPEN CIRCUIT

1. Measure resistance between the terminal 1 of CAB harness connector and the terminal 10 (11) of

CAUTION: Never attempt to measure the circuit resistance of the airbag module

(squib) even if you are using the specified tester.



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 67

© 2006 Mitchell Repair Information Company, LLC.

SRSCM harness connector (B).

2. Measure resistance between the terminal 2 of CAB harness connector and the terminal 9 (12) of

SRSCM harness connector (B).

Specification (resistance): below 1 ohms.

Fig. 60: Checking Open Circuit

3. Is the measured resistance within specification?

YES



Check short circuit.

NO



Repair or replace the wiring harness between the CAB and the SRSCM.

4. CHECK SHORT CIRCUIT

1. Measure resistance between the terminal 1 and 2 of CAB harness connector.

Specification (resistance): infinite

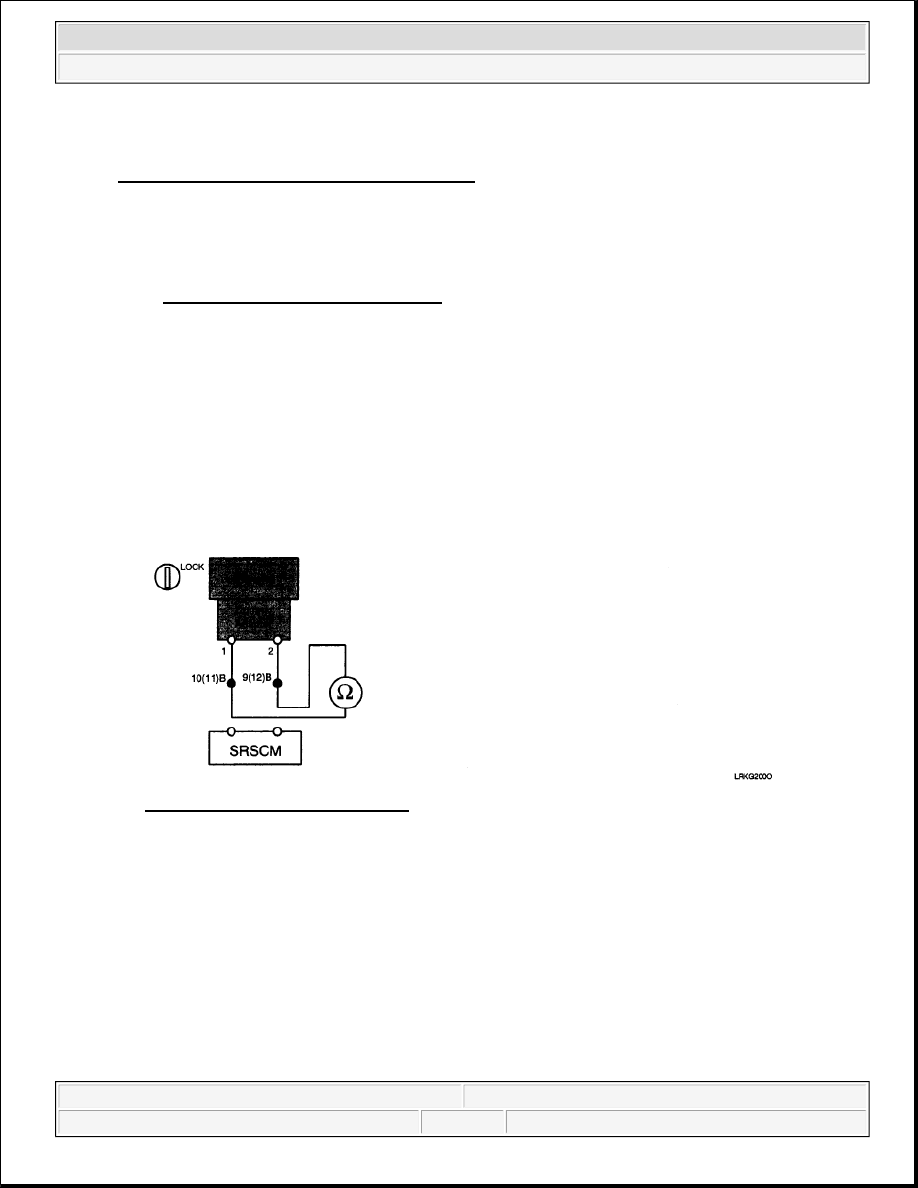

Fig. 61: Checking Short Circuit



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:02 PM

Page 68

© 2006 Mitchell Repair Information Company, LLC.

2. Is the measured resistance within specification?

YES



Go to next step.

NO



Repair or replace the wiring harness between the CAB and the SRSCM.

5. CLEAR THE DTC AND CHECK THE VEHICLE AGAIN

Refer to CLEAR THE DTC AND CHECK THE VEHICLE AGAIN.

DTC B1475 CURTAIN AIRBAG [FRONT-DRIVER] CIRCUIT SHORT TO GROUND; DTC B1479
CURTAIN AIRBAG [FRONT-PASSENGER] CIRCUIT SHORT TO GROUND

DTC DESCRIPTION

The CAB squib circuit consists of the SRSCM and CAB. The above DTC is recorded when short to ground is
detected in the CAB squib circuit.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

SCHEMATIC DIAGRAM

DTC

Condition

Probable cause

B1475
B1479



Short to ground between CAB and SRSCM



Curtain Airbag (CAB) Malfunction



SRSCM Malfunction



Short to ground circuit on wiring harness



Curtain Airbag (CAB) squib



SRSCM



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:02 PM

Page 69

© 2006 Mitchell Repair Information Company, LLC.

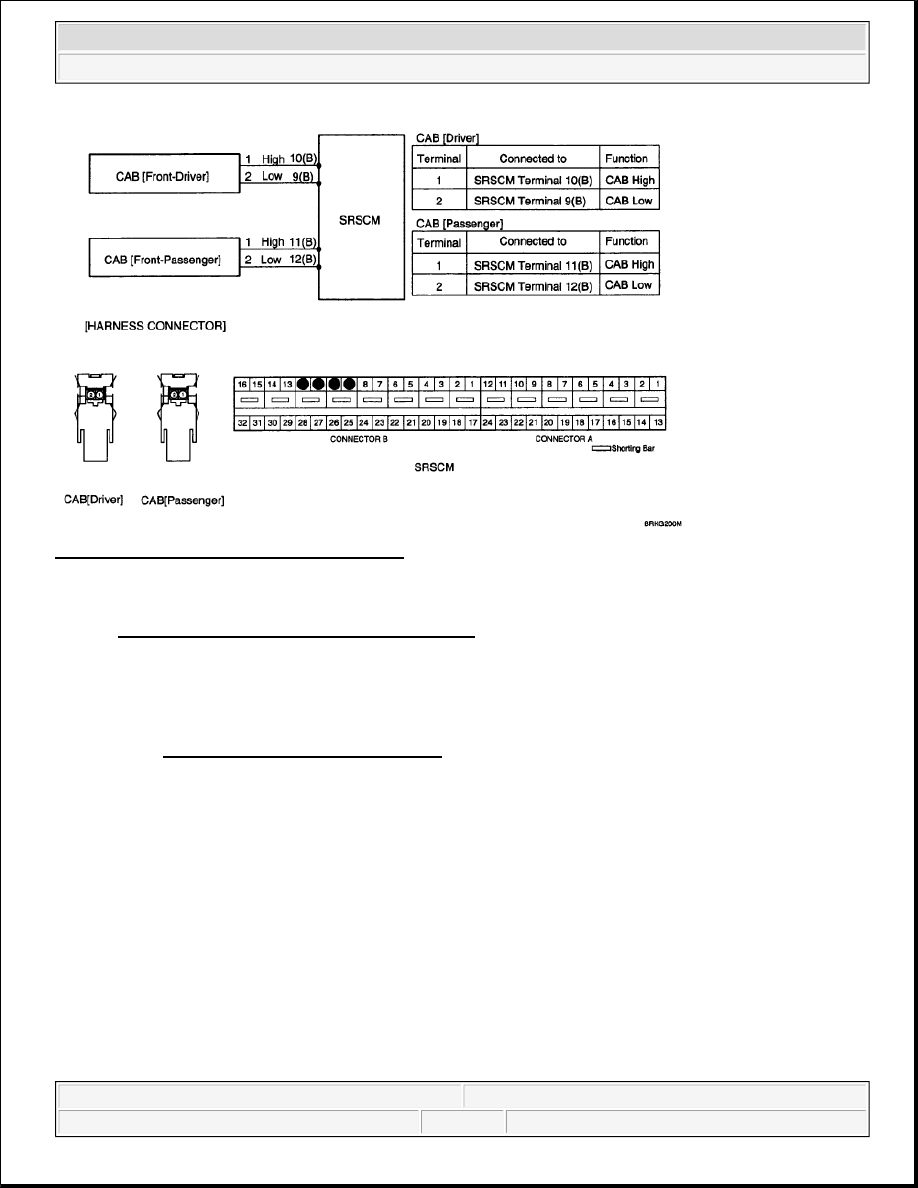

Fig. 62: Curtain Airbag - Schematic Diagram

TERMINAL & CONNECTOR INSPECTION

Refer to TERMINAL & CONNECTOR INSPECTION.

INSPECTION PROCEDURE

1. PREPARATION

Refer to PREPARATION OF INSPECTION.

2. CHECK SHORT TO GROUND

1. Measure resistance between the terminal 1 of CAB harness connector and chassis ground.

Specification (resistance): infinite



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:02 PM

Page 70
