Fig. 41: Checking SAB Resistance

3. Is the measured resistance within specification?

YES



Replace the Side Airbag (SAB) module. Refer to AIR BAG MODULE (SIDE AIR BAG) .

NO



Check open circuit.

3. CHECK OPEN CIRCUIT

1. Measure resistance between the terminal 1 of SAB harness connector and the terminal 15 (14) of

SRSCM harness connector (B).

2. Measure resistance between the terminal 2 of SAB harness connector and the terminal 16 (13) of

SRSCM harness connector (B).

Specification (resistance): below 1 ohms

Fig. 42: Checking Open Circuit

3. Is the measured resistance within specification?

YES



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 47

© 2006 Mitchell Repair Information Company, LLC.



Check short circuit.

NO



Repair or replace the wiring harness between the SAB and the SRSCM.

4. CHECK SHORT CIRCUIT

1. Measure resistance between the terminal 1 and 2 of SAB harness connector.

Specification (resistance): infinite

Fig. 43: Checking Short Circuit

2. Is the measured resistance within specification?

YES



Go to next step.

NO



Repair or replace the wiring harness between the SAB and the SRSCM.

5. CLEAR THE DTC AND CHECK THE VEHICLE AGAIN

Refer to CLEAR THE DTC AND CHECK THE VEHICLE AGAIN.

DTC B1380 SIDE AIRBAG [FRONT-DRIVER] CIRCUIT SHORT TO GROUND; DTC B1384 SIDE
AIRBAG [FRONT-PASSENGER] CIRCUIT SHORT TO GROUND

DTC DESCRIPTION

The Side Airbag circuit consists of the SRSCM and two Side Airbags (SAB). The SRSCM sets above DTC (s)
if it detects short to ground on the SAB circuit.

DTC DETECTING CONDITION

DTC DETECTING CONDITION



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 48

© 2006 Mitchell Repair Information Company, LLC.

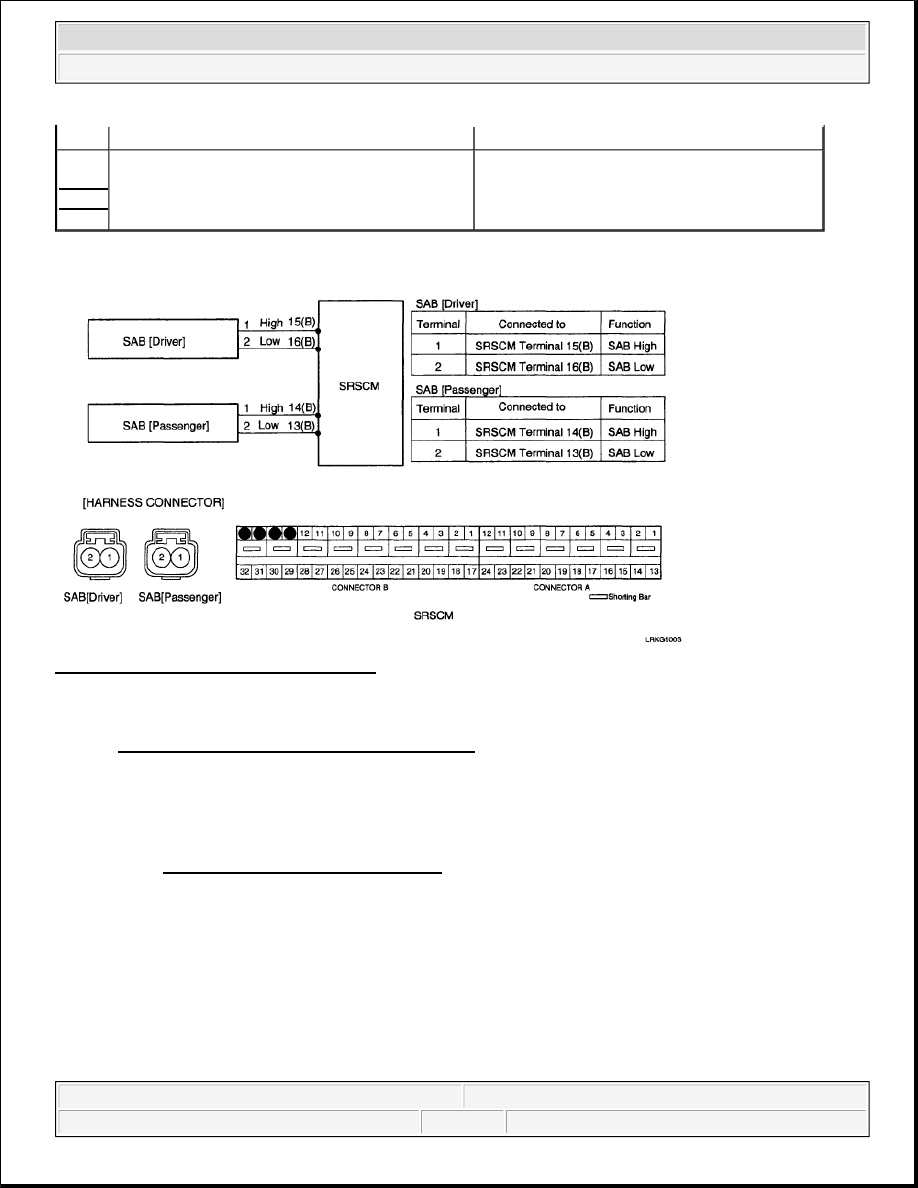

SCHEMATIC DIAGRAM

Fig. 44: Side Airbag - Schematic Diagram

TERMINAL & CONNECTOR INSPECTION

Refer to TERMINAL & CONNECTOR INSPECTION.

INSPECTION PROCEDURE

1. PREPARATION

Refer to PREPARATION OF INSPECTION.

2. CHECK SHORT TO GROUND

1. Measure resistance between the terminal 1 of SAB harness connector and chassis ground.

Specification (resistance): infinite

DTC

Condition

Probable cause

B1380
B1384



Short to ground between SAB and SRSCM



Side Airbag (SAB) Malfunction



SRSCM Malfunction



Short to ground circuit on wiring harness



Side Airbag (SAB) squib



SRSCM>



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 49

© 2006 Mitchell Repair Information Company, LLC.

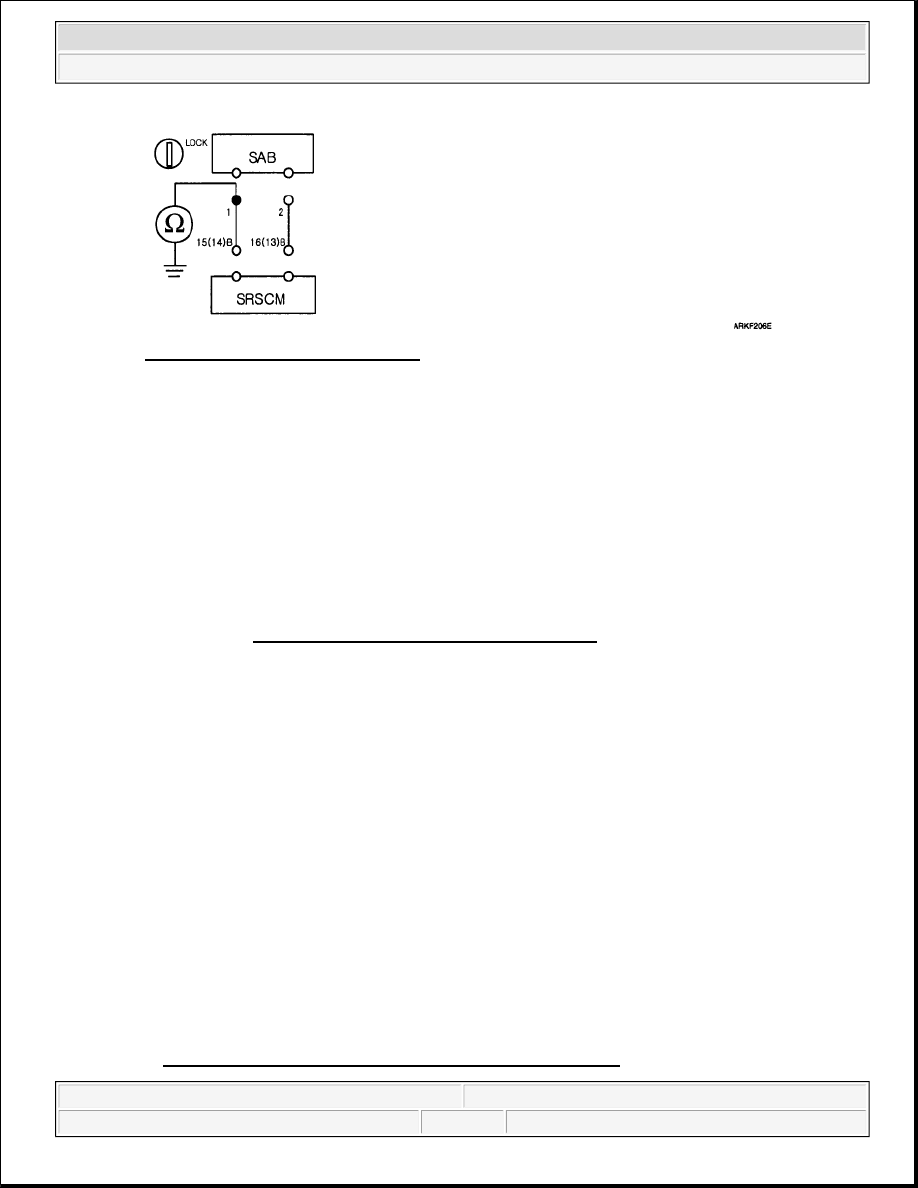

Fig. 45: Checking Short To Ground

2. Is the measured resistance within specification?

YES



Check the SAB Module.

NO



Repair or replace the wiring harness between the SAB and the SRSCM.

3. CHECK THE SAB MODULE

1. Replace the Side Airbag (SAB) with a new one.



Refer to AIR BAG MODULE (CURTAIN AIR BAG) .

2. Install the DAB module and connect the DAB connector.

3. Connect the connectors of the PAB, SAB, CAB, BPT, FIS and SIS.

4. Connect the SRSCM connector.

5. Connect the battery negative cable to the battery.

6. Connect a Hi-Scan (Pro) to the data link connector.

7. Turn the ignition switch to ON and check the vehicle again.

Does Hi-Scan (Pro) indicate any DTC related to Side Airbag (SAB)?

YES



Go to next step.

NO



Replace SAB module.

4. CLEAR THE DTC AND CHECK THE VEHICLE AGAIN

Refer to CLEAR THE DTC AND CHECK THE VEHICLE AGAIN.
