3. If the low-pressure does not reach more than 93.3 kPa (700 mmHg, 27.6 in.Hg) in 10 minutes, there is

probably a leak in the system. Partially charge the system, and check for leaks. See REFRIGERANT
LEAK TEST.

4. Remove the low pressure valve from the low-pressure service port.

SYSTEM CHARGING

Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove
HFC-134a (R-134a) from the air conditioning system.

If accidental system discharge occurs, ventilate work area before resuming service.

Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.

1. Connect an R-134a refrigerant Recovery/Recycling/Charging System (A) to the high-pressure service

port (B) as shown in Fig. 8, following the equipment manufacturer's instructions.

Fig. 8: Connecting Refrigerant Recovery To High-Pressure Service Port And Low-Pressure Service
Port
Courtesy of KIA MOTORS AMERICA, INC.

2. Add the same amount of new refrigerant oil to system that was removed during recovery. Use only

specified refrigerant oil. Charge the system with 18.0 ± 0.88 oz. (510 ± 25g) of R-134a refrigerant. Do not
overcharge the system the compressor will be damaged.

REFRIGERANT LEAK TEST

CAUTION:



Air conditioning refrigerant or lubricant vapor can irritate your eyes,
nose, or throat.



Be careful when connecting service equipment.



Do not breathe refrigerant or vapor.



2008 Kia Sedona EX

2008 HVAC Air Conditioning System (General Servicing) - Sedona



Microsoft



Monday, May 24, 2010 4:02:02 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

Always conduct a leak test with an electronic leak detector whenever leakage or refrigerant is suspected and
when conducting service operations which are accompanied by disassembly or loosening or connection fittings.

If a gas leak is detected, proceed as follows:

1. Check the torque on the connection fittings and, if too loose, tighten to the proper torque. Check for gas

leakage with a leak detector (A).

2. If leakage continues even after the fitting has been tightened, discharge the refrigerant from the system,

disconnect the fittings, and check their seating faces for damage. Always replace, even if the damage is
slight.

3. Check the compressor oil and add oil if required.

4. Charge the system and recheck for gas leaks. If no leaks are found, evacuate and charge the system again.

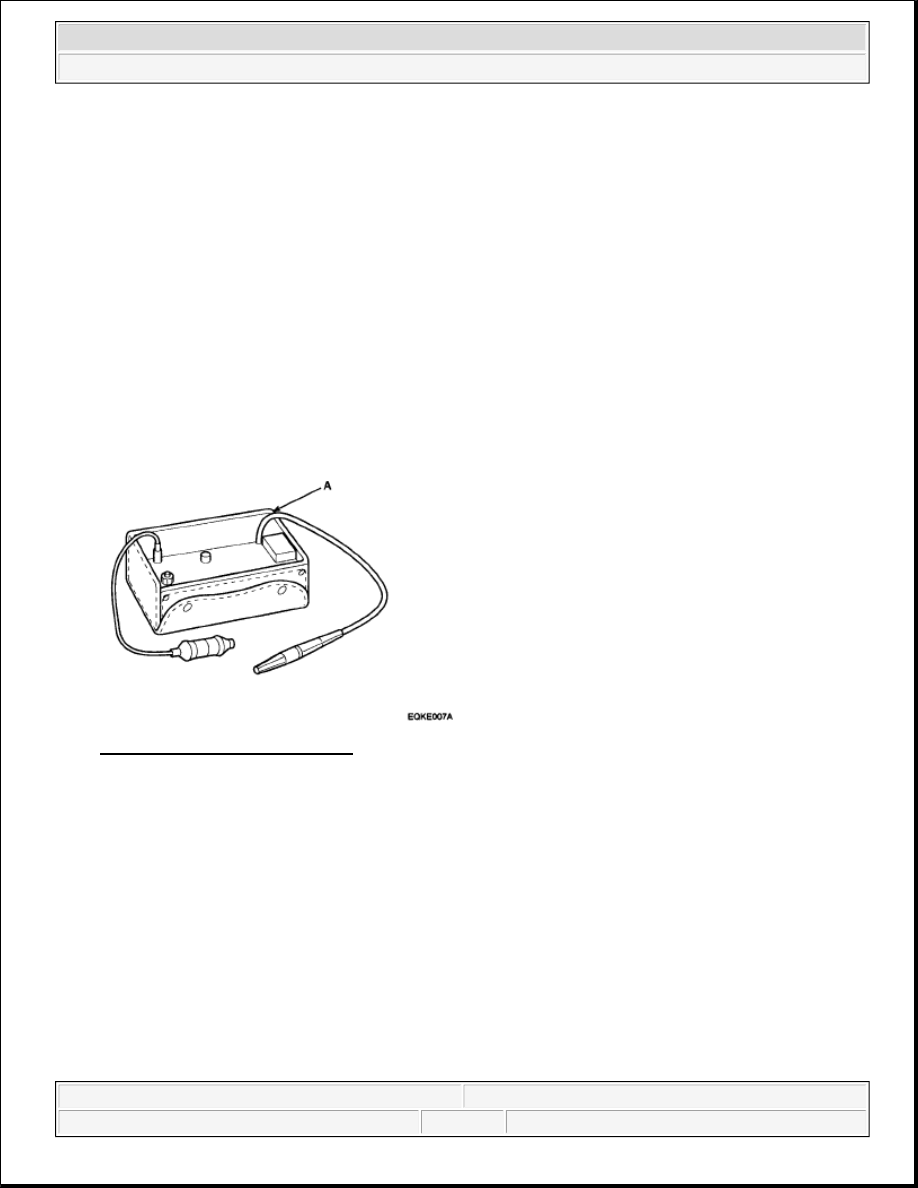

Fig. 9: Identifying Leak Detector
Courtesy of KIA MOTORS AMERICA, INC.

COMPONENT LOCATION INDEX

ENGINE ROOM

NOTE:

In order to use the leak detector properly, read the manual supplied by the
manufacturer.



2008 Kia Sedona EX

2008 HVAC Air Conditioning System (General Servicing) - Sedona



Microsoft



Monday, May 24, 2010 4:02:02 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

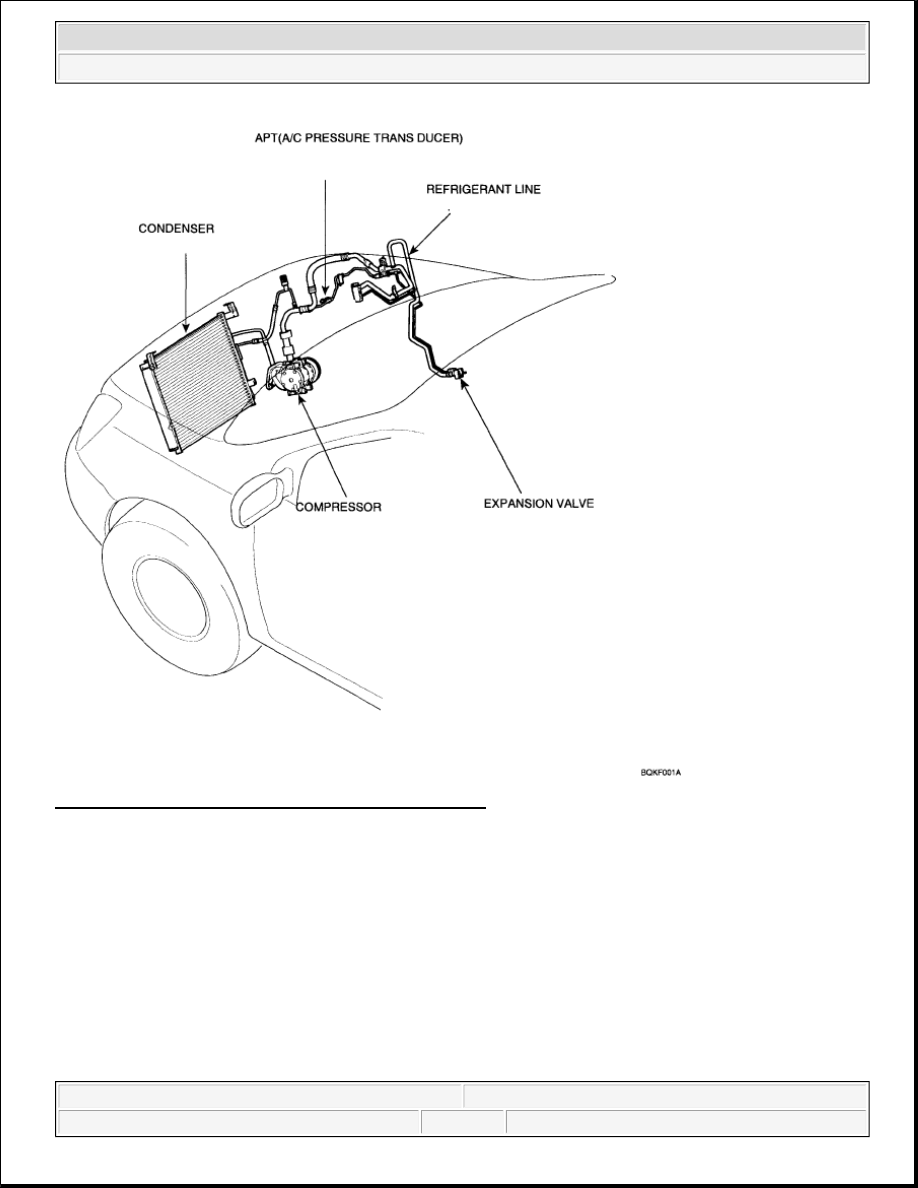

Fig. 10: Identifying Engine Room Component Locations
Courtesy of KIA MOTORS AMERICA, INC.

INTERIOR



2008 Kia Sedona EX

2008 HVAC Air Conditioning System (General Servicing) - Sedona



Microsoft



Monday, May 24, 2010 4:02:02 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

Fig. 11: Identifying Interior Component Locations
Courtesy of KIA MOTORS AMERICA, INC.

COMPRESSOR OIL

INSPECTION

OIL SPECIFICATION

1. The HFC-134a system requires synthetic (PAG) compressor oil whereas the R-12 system requires

mineral compressor oil. The two oils must never be mixed.
