2. Measure voltage between terminal "31" of the HECU harness connector and chassis ground.

Specification: Approx B+

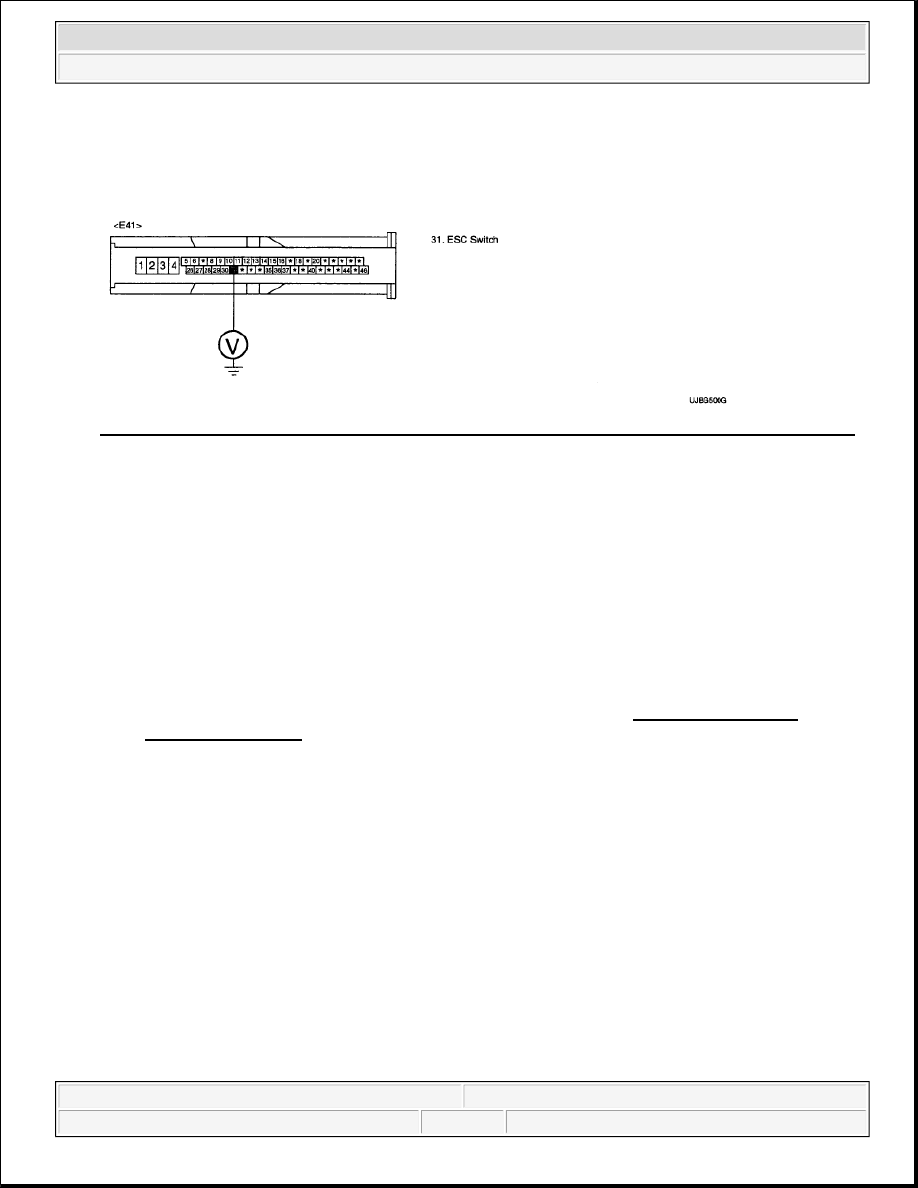

Fig. 54: Measuring Voltage Between Terminal Of HECU Harness Connector And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured voltage within specifications?

YES



Fault is intermittent caused by open or short in ESC switch line, inoperative ESC switch or was
repaired and HECU memory was not cleared. Go to the applicable troubleshooting procedure.

NO



Check for damaged harness and poor connection in the power harness between the battery terminal
(+) and the terminal "31" of the HECU harness connector. Check for open or blown 10 A fuse
referring to "Circuit Diagram". Repair as necessary and then go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. Ignition "ON".

2. Disconnect ESC switch connector.

3. Press the ESC switch.

4. Measure resistance between terminal "1" of the ESC switch harness connector and terminal "4" of the

ESC switch harness connector.

Specification: Approx. below 1 ohms



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:42 PM

Page 85

© 2006 Mitchell Repair Information Company, LLC.

Fig. 55: Measuring Resistance Between Terminal ESC Switch Harness Connector And Terminal
Courtesy of KIA MOTORS AMERICA, INC.

5. Is the measured resistance within specifications?

YES



Fault is intermittent caused by inoperative ESC switch or was repaired and HECU memory was not
cleared. Go to the applicable troubleshooting procedure.

NO



Substitute with a known-good ESC switch and check for proper operation. If problem is corrected,
replace ESC switch and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC C1101.

DTC C1513 BRAKE SWITCH ERROR

COMPONENT LOCATION

Fig. 56: Locating Brake Switch
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:42 PM

Page 86

© 2006 Mitchell Repair Information Company, LLC.

GENERAL DESCRIPTION

The brake light switch is a normally closed switch. This switch is mounted on the pedal assembly and is used to
indicate brake pedal status to the HECU.

DTC DESCRIPTION

The brake light signal is a reference to judge driver's intention for braking and The HECU checks open or short
circuit of brake light switch for normal ABS/ESC control. If an error exists, warning lamp will be turned ON.

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

Item

Detecting Condition

Possible cause

DTC strategy



Voltage monitoring



Open circuit in
brake switch line



Inoperative brake
light switch



Inoperative HECU

Case 1

Monitoring Period



Continuous (only no
under voltage is not
detected)

Enable Conditions



If the BLS-signals is
high for 60 s, while the
gas pedal is stepped,
with vehicle speed >
10.8 km/h, offset
compensated pressure <
5 bar and no control is
active, a fault is set.

Case 2

Monitoring Period



Continuous (only
normal voltage)

Enable Conditions



For redundancy reasons
an additional
BLSpVor-signal is
created by the pressure
sensor signal. If the
pressure sensor is
compensated, the
threshold for generating
the BLSpVor signal is
10 bar. If the pressure
sensor is not
compensated, the
threshold is increased
by 15 bar. If this signal
is set without any
hardware-BLS-signals
being set for at least 1



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:42 PM

Page 87

© 2006 Mitchell Repair Information Company, LLC.

MONITOR SCAN TOOL DATA

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & Engine "ON"

3. Press the brake pedal.

4. Monitor the "STOP LAMP SWITCH" parameter on the scan tool.

Specification: Lateral G sensor: ± 0 G, YAW rate Sensor: ± 0 deg/s

Fig. 57: Scan Tool Display - EBD Warning Lamp
Courtesy of KIA MOTORS AMERICA, INC.

5. Whenever brake pedal is pushed down, is the brake switch's scan tool data changed ON/OFF?

YES



Fault is intermittent caused by poor connection in Yaw Rate & Lateral G sensor harness and/or

s.



If the pressure signal is
higher than 80bar and
not both of the
hardware-BLS are set,
a fault is stored after 1
s.

Fail Safe



Inhibit the ESC control
and ABS/EBD control
is available.



The ABS/ESC warning
lamps are activated.
