Kia Sedona (2008 year). Manual - part 8

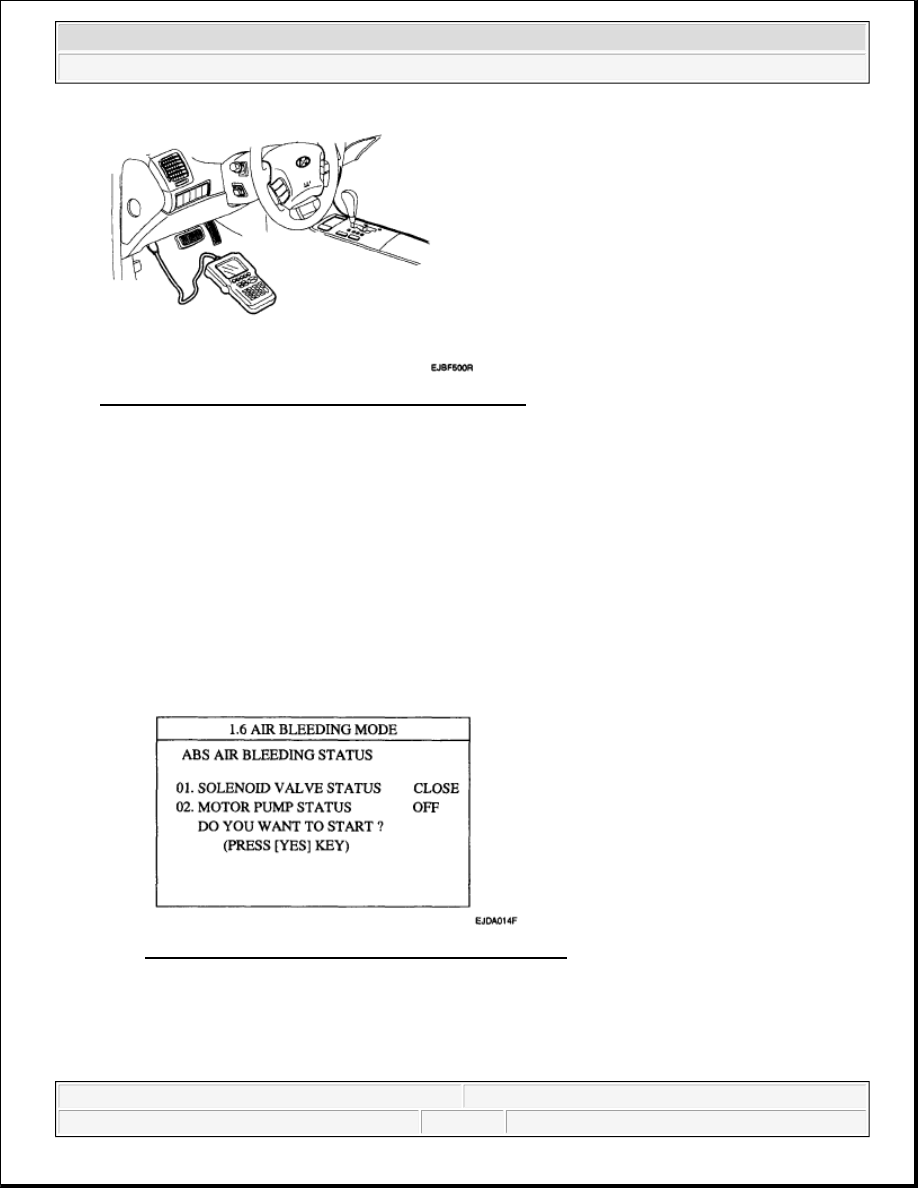

Fig. 22: Connecting Scan Tool To Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Select and operate according to the instructions on the scan tool screen.

1. Select Kia vehicle diagnosis.

2. Select vehicle name.

3. Select Anti-Lock Brake system.

4. Select air bleeding mode.

5. Press "YES" to operate motor pump and solenoid valve.

Fig. 23: Scan Tool Display - Air Bleeding Mode (Close)
Courtesy of KIA MOTORS AMERICA, INC.

6. Wait 60 sec. before operating the air bleeding again. (If not, you may damage the motor.)

CAUTION: You must obey the maximum operating time of the ABS motor with

the scan tool to prevent the motor pump from burning.



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:41 PM

Page 29

© 2006 Mitchell Repair Information Company, LLC.

Fig. 24: Scan Tool Display - Air Bleeding Mode (Open)
Courtesy of KIA MOTORS AMERICA, INC.

5. Pump the brake pedal several times, and then loosen the bleeder screw until fluid starts to run out without

bubbles. Then close the bleeder screw.

6. Repeat step 5 until there are no more bubbles in the fluid for each wheel.

Fig. 25: Identifying Bleeder Screws & Bleeding Sequence
Courtesy of KIA MOTORS AMERICA, INC.

7. Tighten the bleeder screw.

Bleed screw tightening torque:

7-1 3 Nm (0.7 -1.3 kgf.m, 5.06 - 9.4 lb-ft)

DIAGNOSTIC TROUBLE CODE CHART (DTC)

DIAGNOSTIC TROUBLE CODE CHART

DTC

DESCRIPTION

WARNING LAMP

REMARK

ABS

EBD

ESC

C1101

BATTERY VOLTAGE HIGH

o

o

o





2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:41 PM

Page 30

© 2006 Mitchell Repair Information Company, LLC.

C1102

BATTERY VOLTAGE LOW

o

o

o



C1200

FL WHEEL SPEED SENSOR-
OPEN/SHORT

o



o



C1201

FL WHEEL SENSOR- RANGE/
PERFORMANCE

o



o



C1202

FL WHEEL SPEED SENSOR-
NO SIGNAL

o



o



C1203

FR WHEEL SPEED SENSOR-
OPEN/SHORT

o



o



C1204

FR WHEEL SENSOR-
RANGE/PERFORMANCE

o



o



C1205

FR WHEEL SPEED SENSOR-
NO SIGNAL

o



o



C1206

RL WHEEL SPEED SENSOR-
OPEN/SHORT

o



o



C1207

RL WHEEL SENSOR- RANGE/
PERFORMANCE

o



o



C1208

RL WHEEL SPEED SENSOR-
NO SIGNAL

o



o



C1209

RR WHEEL SPEED SENSOR-
OPEN/SHORT

o



o



C1210

RR WHEEL SENSOR-
RANGE/PERFORMANCE

o



o



C1211

RR WHEEL SPEED SENSOR-
NO SIGNAL

o



o



C1213

WHEEL SPEED FREQUENCY
ERROR

o



o



C1235

PRESSURE SENSOR-
ELECTRICAL

o



o

ESC

C1237

PRESSURE SENSOR-SIGNAL
FAULT

o



o

ESC

C1260

STEERING ANGLE SENSOR-
SIGNAL





o

ESC

C1261

STEERING ANGLE SENSOR
NOT CALIBRATED





o

ESC

C1282

YAW RATE & LATERAL G
SENSOR-ELECTRICAL





o

ESC

C1283

YAW RATE & LATERAL G
SENSOR-SIGNAL





o

ESC

C1503

ESC SWITCH ERROR







ESC

C1513

BRAKE LIGHT SWITCH
MALFUNCTION

o



o

ESC

C1604

ECU HARDWARE ERROR

o

o

o



C1605

CAN CONTROL HARDWARE





o

ESC



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:41 PM

Page 31

© 2006 Mitchell Repair Information Company, LLC.

DTC C1101 BATTERY VOLTAGE HIGH

COMPONENT LOCATION

ERROR

C1611

CAN TIME OUT-PCM (ECM)





o

ESC

C1612

CAN TIME OUT-PCM (TCM)





o

ESC

C1616

CAN BUS OFF





o

ESC

C1623

CAN TIMEOUT STEERING
ANGLE SENSOR





o

ESC

C1625

CAN TIME OUT-ESC





o

ESC

C1626

IMPLAUSIBLE CONTROL

o



o

ESC

C1702

VARIANT CODING

o

o

o

ESC

C2112

VALVE RELAY
MALFUNCTION

o

o

o



C2308

FL INLET VALVE
MALFUNCTION

o

o

o



C2312

FL OUTLET VALVE
MALFUNCTION

o

o

o



C2316

FR INLET VALVE
MALFUNCTION

o

o

o



C2320

FR OUTLET VALVE
MALFUNCTION

o

o

o



C2324

RL INLET VALVE
MALFUNCTION

o

o

o



C2328

RL OUTLET VALVE
MALFUNCTION

o

o

o



C2332

RR INLET VALVE
MALFUNCTION

o

o

o



C2336

RR OUTLET VALVE
MALFUNCTION

o

o

o



C2366

TC VALVE PRIMARY(USV1)
ERROR

o

o

o

ESC

C2370

TC VALVE SECONDARY
(USV2) ERROR

o

o

o

ESC

C2372

ESC VALVE 1(HSV1) ERROR

o

o

o

ESC

C2374

ESC VALVE 2 (HSV2) ERROR

o

o

o

ESC

C2402

MOTOR-ELECTRICAL

o

o

o
