Kia Sedona (2008 year). Manual - part 2

Fig. 3: ABS Control Circuit Diagram - Normal Braking Without ABS
Courtesy of KIA MOTORS AMERICA, INC.

2. DECREASE MODE

OPERATION CHART



Inlet valve (EV)

Outlet valve (AV)

Pump motor

Operation

Close

Open

ON (Motor speed control)



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:41 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

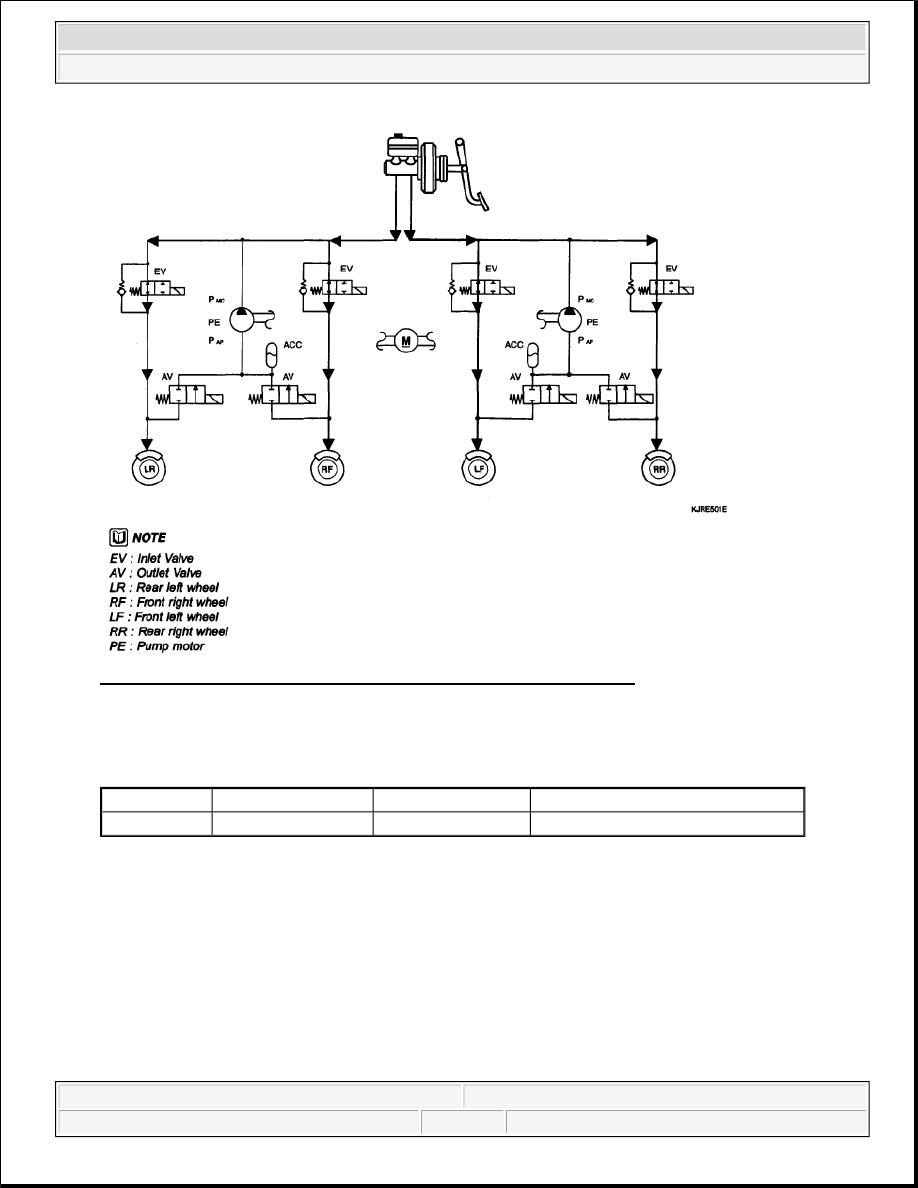

Fig. 4: ABS Control Circuit Diagram - Decrease Mode
Courtesy of KIA MOTORS AMERICA, INC.

3. HOLD MODE

OPERATION CHART



Inlet valve
(EV)

Outlet valve
(AV)

Pump motor

Operation

Close

Close

OFF



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:41 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

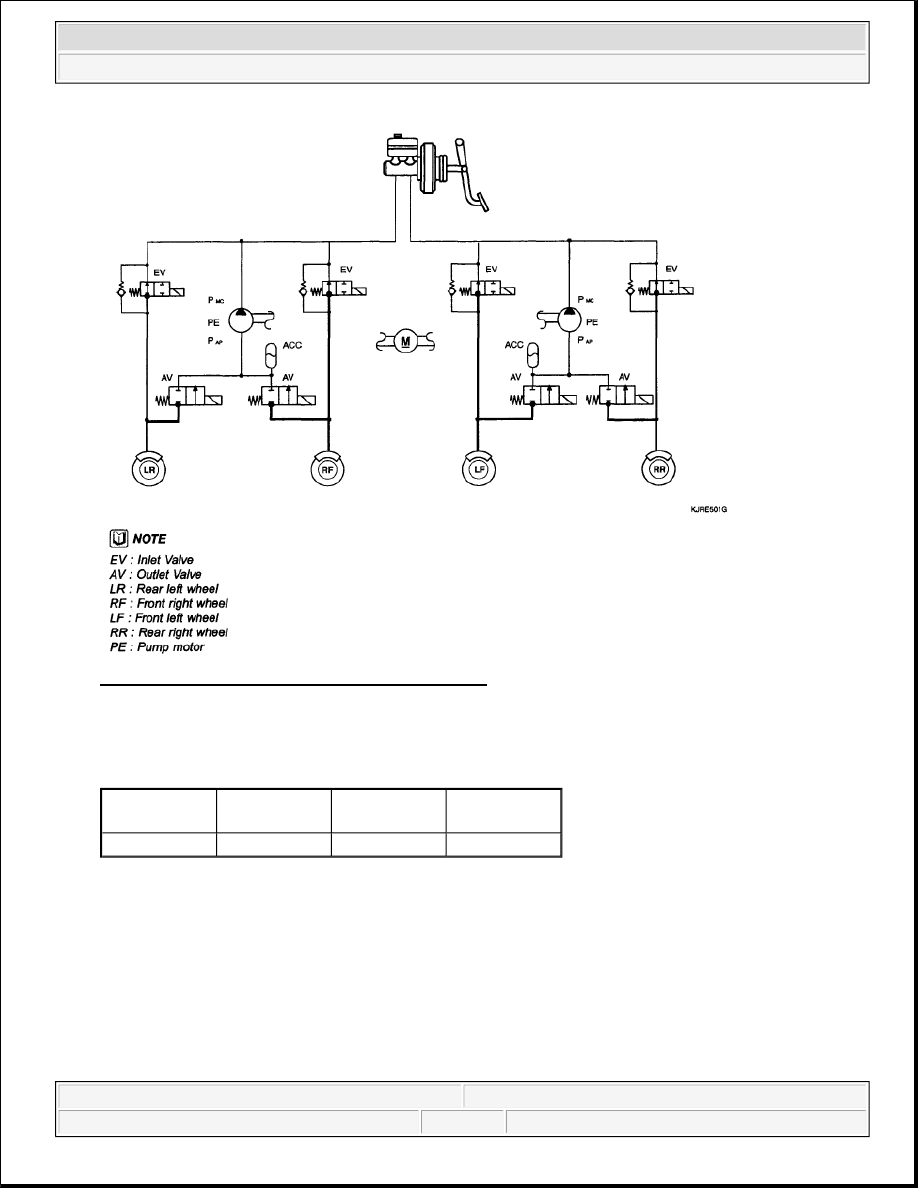

Fig. 5: ABS Control Circuit Diagram - Hold Mode
Courtesy of KIA MOTORS AMERICA, INC.

4. INCREASE MODE

OPERATION CHART



Inlet valve
(EV)

Outlet valve
(AV)

Pump motor

Operation

Open

Close

OFF



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:41 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

Fig. 6: ABS Control Circuit Diagram - Increase Mode
Courtesy of KIA MOTORS AMERICA, INC.

ABS CIRCUIT DIAGRAM



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:41 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.
