Installation

Power window regulator

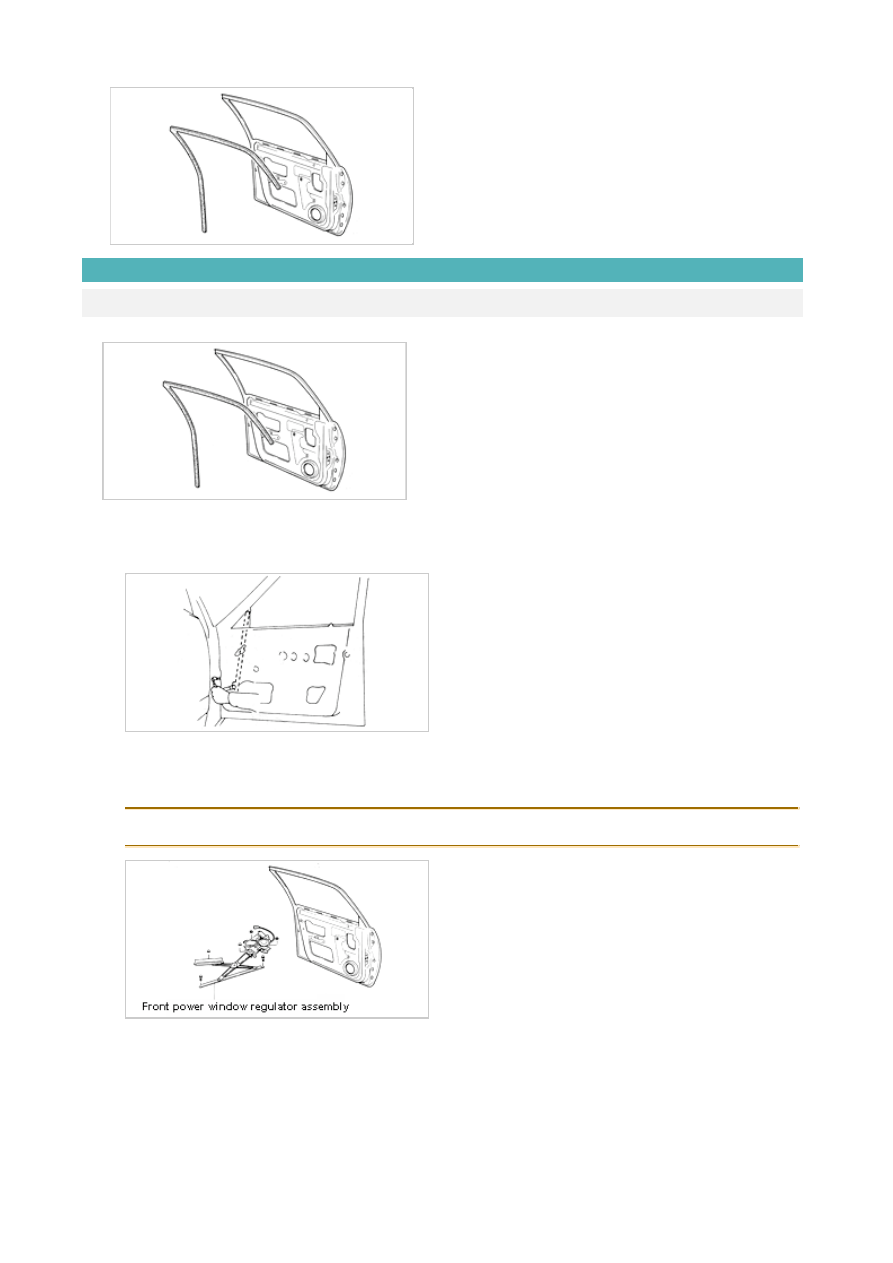

1. Install run channel.

2. Install glass guide.

A. Position glass guide as originally installed through access hole.
B. Install one bolt and one nut loosely.

3. Install power window regulator assembly.

A. Position power window regulator assembly as originally installed through access hole.
B. Install six mounting nuts.

Tightening torque : 61~86 lb-in (7~10 N-m, 70~100 kg-cm)

C. Connect electrical connector for power window motor.

4. Install window glass

A. Position glass carefully. Hold glass from both its inner and outer surfaces, and while tilting it towards

hinge side of door, place it on small bracket on window regulator assembly.

B. Install two glass mounting bolts on power window regulator assembly loosely.

C. Reconnect window operating switch.
D. Connect negative battery cable.

E. Turn on ignition and move glass up and down to ensure proper function.

F. Make adjustments as necessary.

G. Turn off ignition.

H. Disconnect negative battery cable.

I. Tighten two glass mounting bolts on power window regulator assembly.

J. Tighten one bolt on glass guide.

Tightening torque : 60~86 lb-in (7~10 N-m, 70~100 kg-cm)

5. Install plastic door screen.

A. Fasten plastic door screen as originally installed.
B. Pull out electrical harness connector from plastic door screen.

C. Pull out two control rods for inside door handle from plastic door screen.

6. Install speaker with three mounting screws.

7. Install pull handle bracket with two mounting screws.

8. Install door trim. Refer to "Trim" in this section.

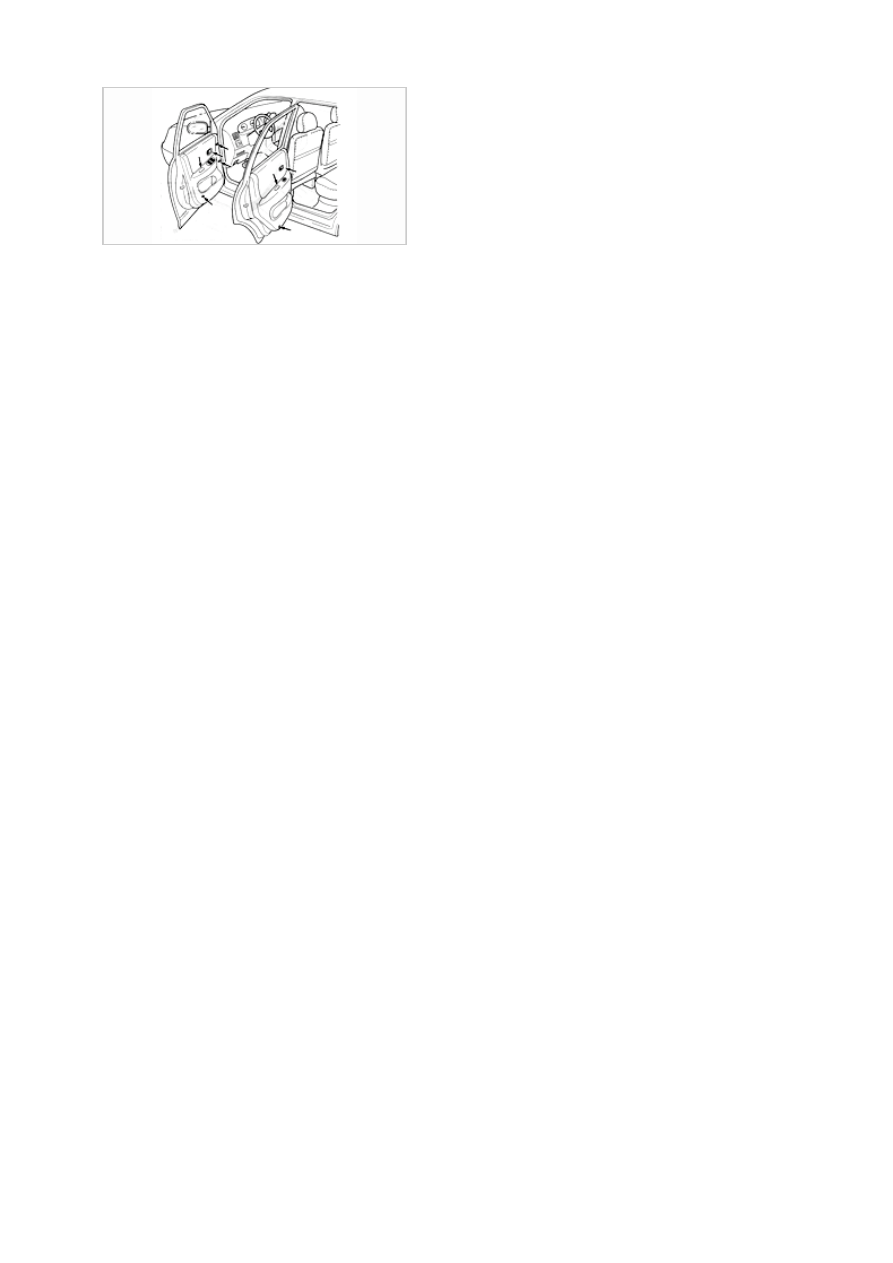

Body Electrical System
