Engine coolant temperature sensor

1. Check if the resistance of engine coolant temperature sensor is within the below specification in certain

temperature.

Coolant temperature (°C)

50

125

Resistance (Ω)

180.5~198.5

14.4~15.9

2. If beyond the specifications, replace the engine coolant temperature sensor.

  2001 > 1.8L DOHC >



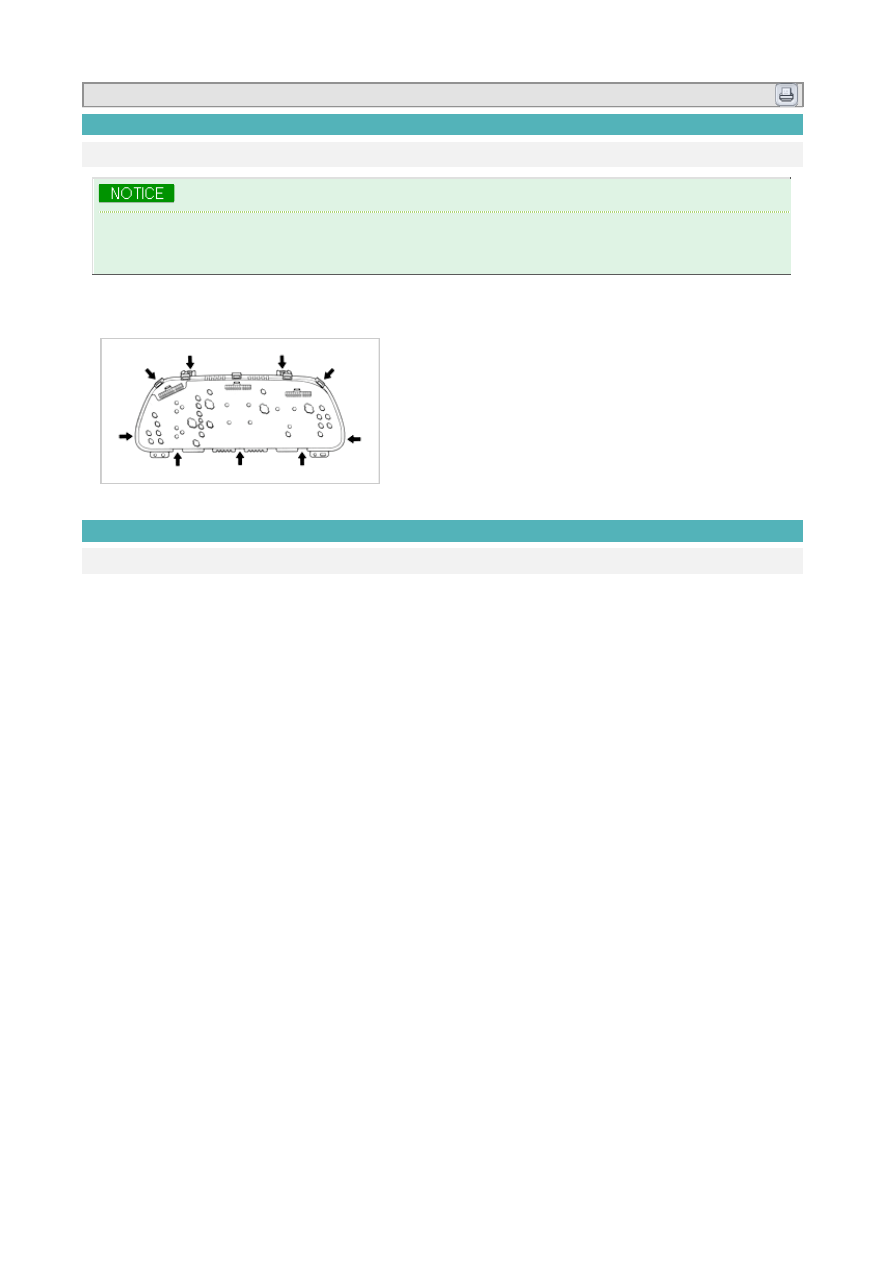

Removal

Bezel/Lens

1) Do not touch face of a gauge or back of lens with fingers. It will leave a permanent fingerprint.
2) Use care in removing instruments from instrument cluster case. Make sure instruments are face-up when

separating bezel/lens from cluster case.

1. With instrument cluster bezel/lens downward on a soft, clean shop cloth, press on each of bezel tabs going out around

unit while using pressure between bezel/lens and cluster.
Do not remove bezel/lens. Make sure each tab is not in a locked position in its mating slot.

2. Place instrument cluster case on its back, bezel/ lens facing up, and carefully pull bezel/lens away from cluster case.

REMOVAL

INSTRUMENT CLUSTER

1. Remove one mounting screw.

2. Remove instrument cluster hood.

3. Remove four mounting screws.

4. Pull cluster from instrument panel.

5. Disconnect three connectors.

6. Remove instrument cluster.

Installation

Bezel/Lens

1. Install in reverse order of removal.

INSTALLATION

INSTRUMENT CLUSTER

1. Place cluster in instrument panel.

2. Connect three connectors.

3. Push cluster into instrument panel.

4. Install four cluster mounting screws.

5. Install instrument cluster hood.

6. Install one cluster mounting screw.

Inspection

Bezel/Lens

1. Inspect bezel/lens for sign of any damage. Repair or replace bezel or lens as necessary.

Instrument cluster

Inspect cluster for sins of any damage and replace damaged part as necessary.
