Kia Carens. Manual - part 259

Routing diagram

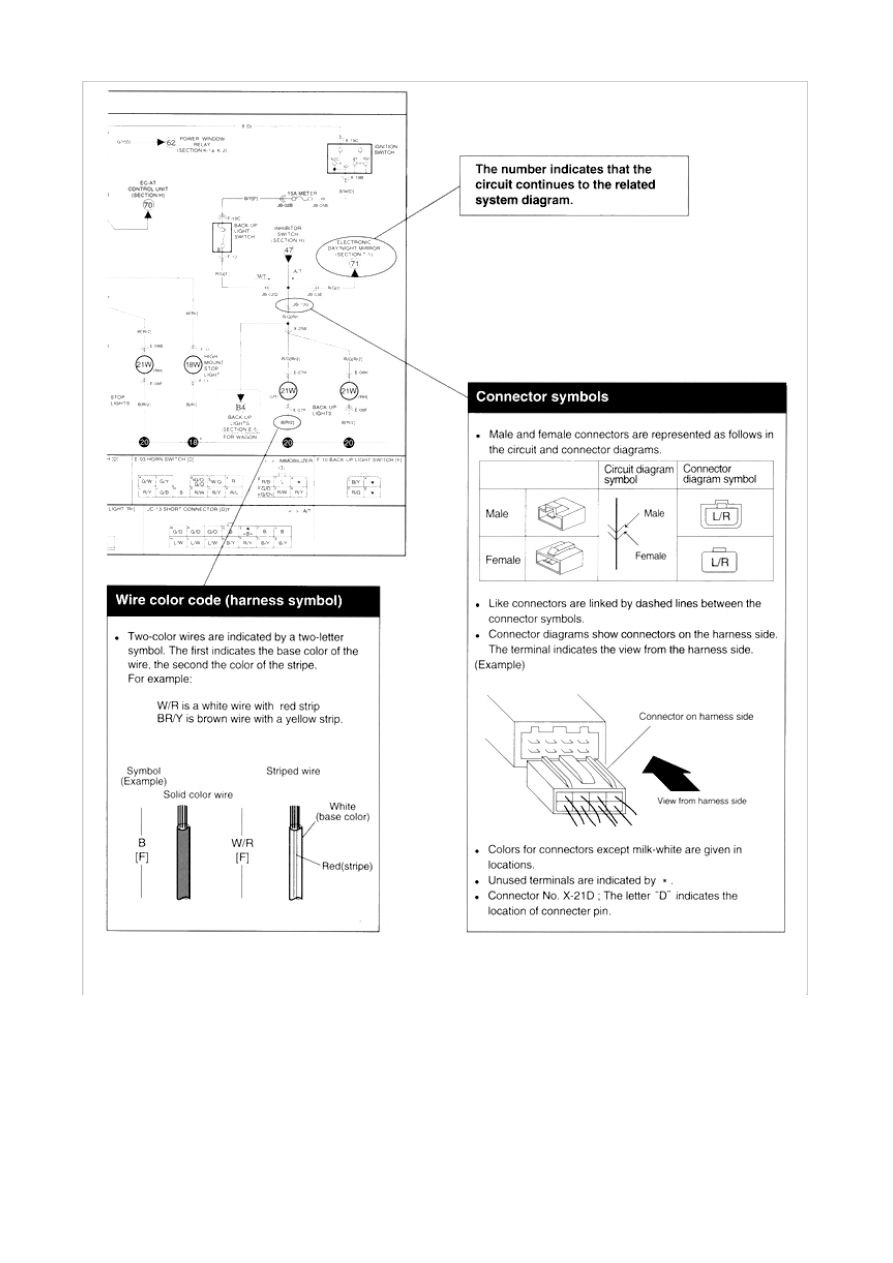

● The routing diagram shows where electrical components are on the system circuit diagrma by call outline and
connector symbols.

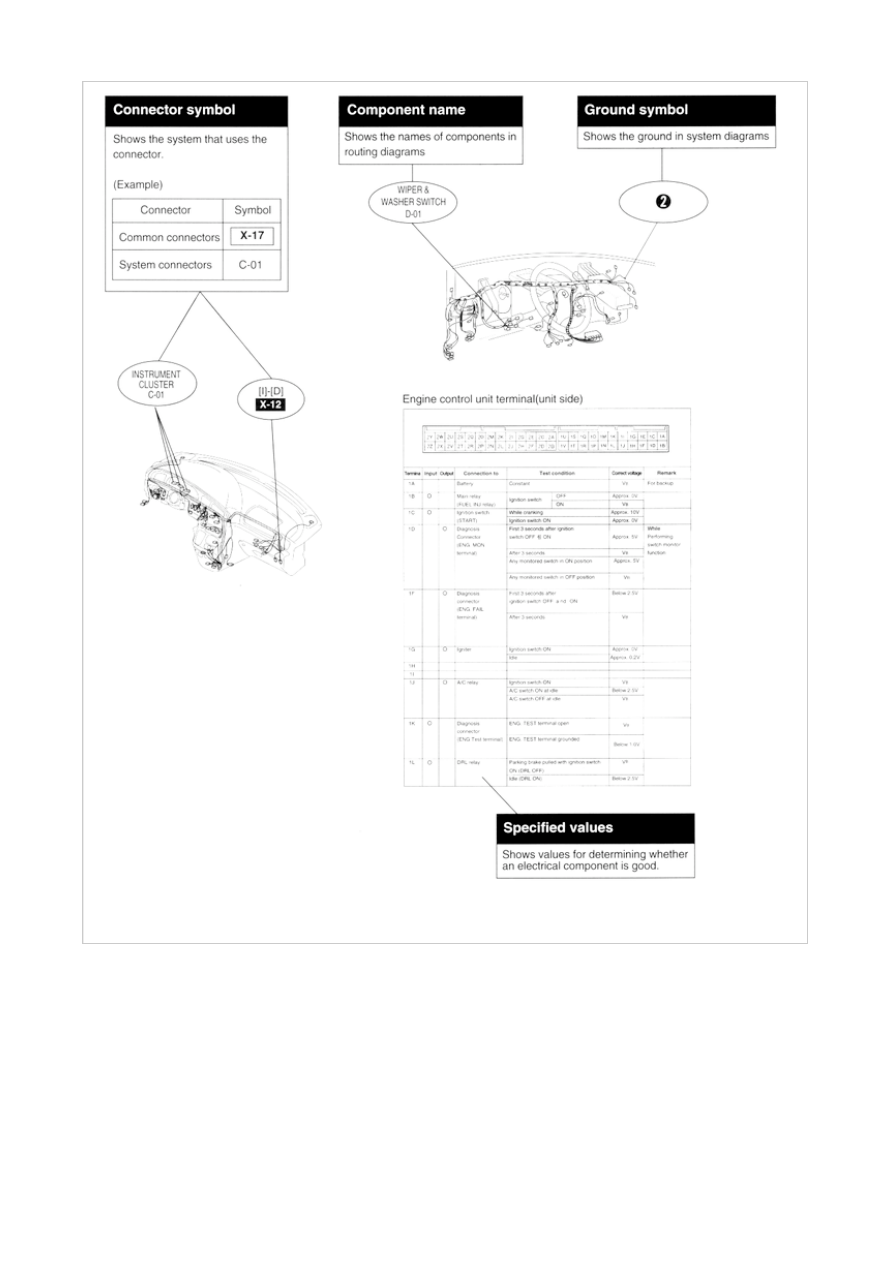

● Specified values are listed beside the routing diagram or on he following page.

Symbols

Logic symbols
