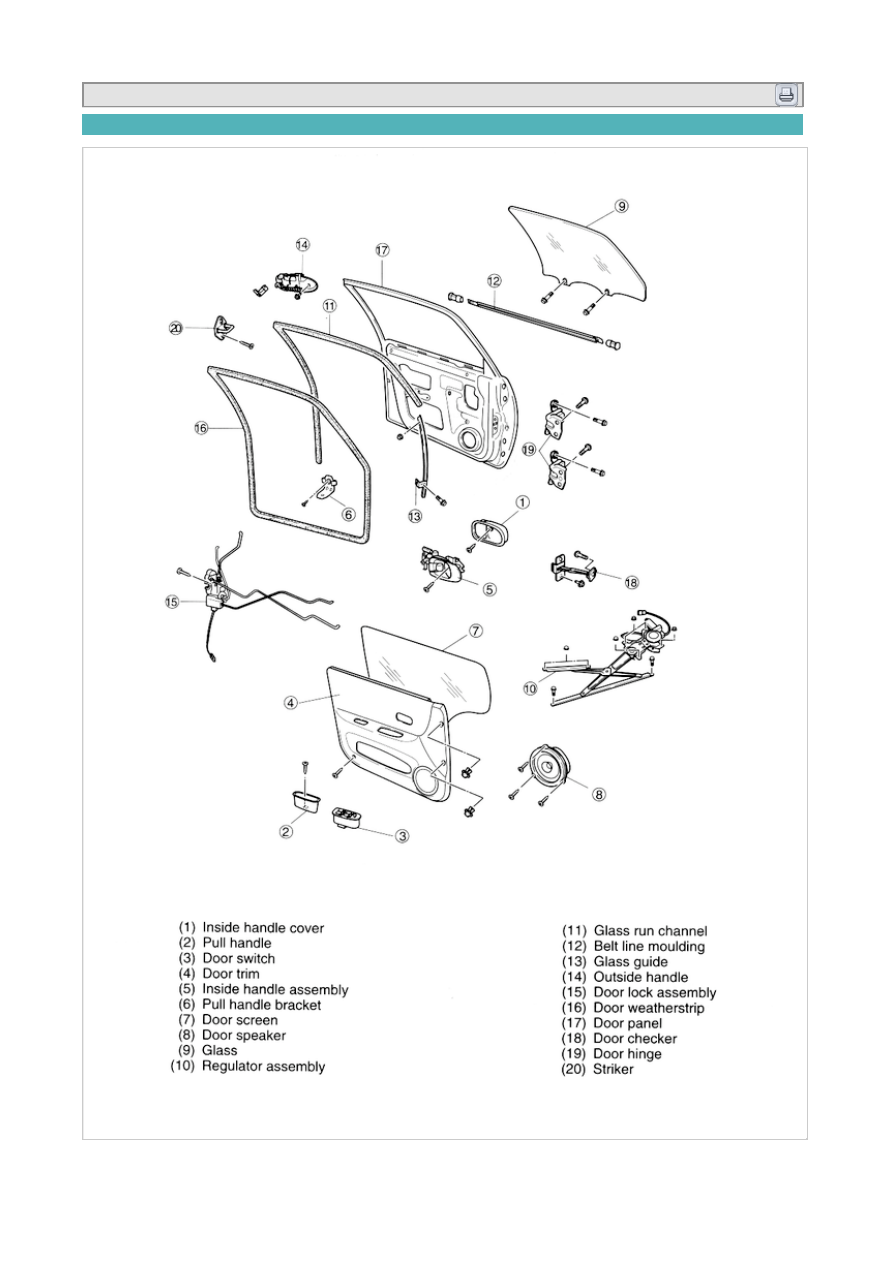

Component

  2001 > 1.8L DOHC >



Removal

Front door

1. Disconnect negative battery cable.

2. Remove door trim. Refer to "Trim" in this section.

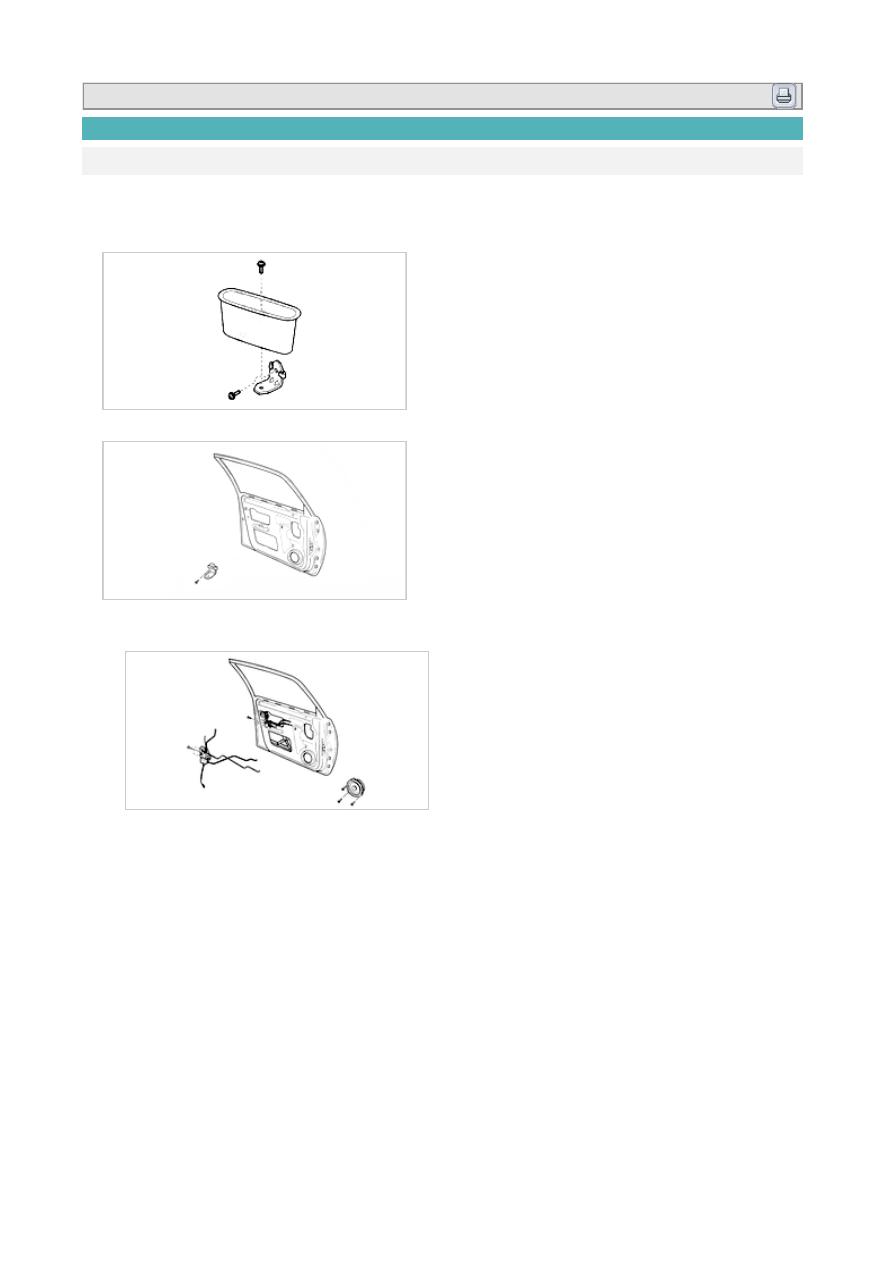

3. Remove one screw on pull handle bracket.

4. Remove pull handle bracket.

5. Remove door speaker.

A. Remove three screws on door speaker.

B. Unfasten harness connector from door frame.

C. Pull out speaker and disconnect connectors.

6. Remove inside door handle.

A. Remove one screw from inside door handle.
B. Disconnect one control rod.

C. Remove inside door handle.

7. Peel off plastic door screen carefully by pulling it away gradually from door frame.

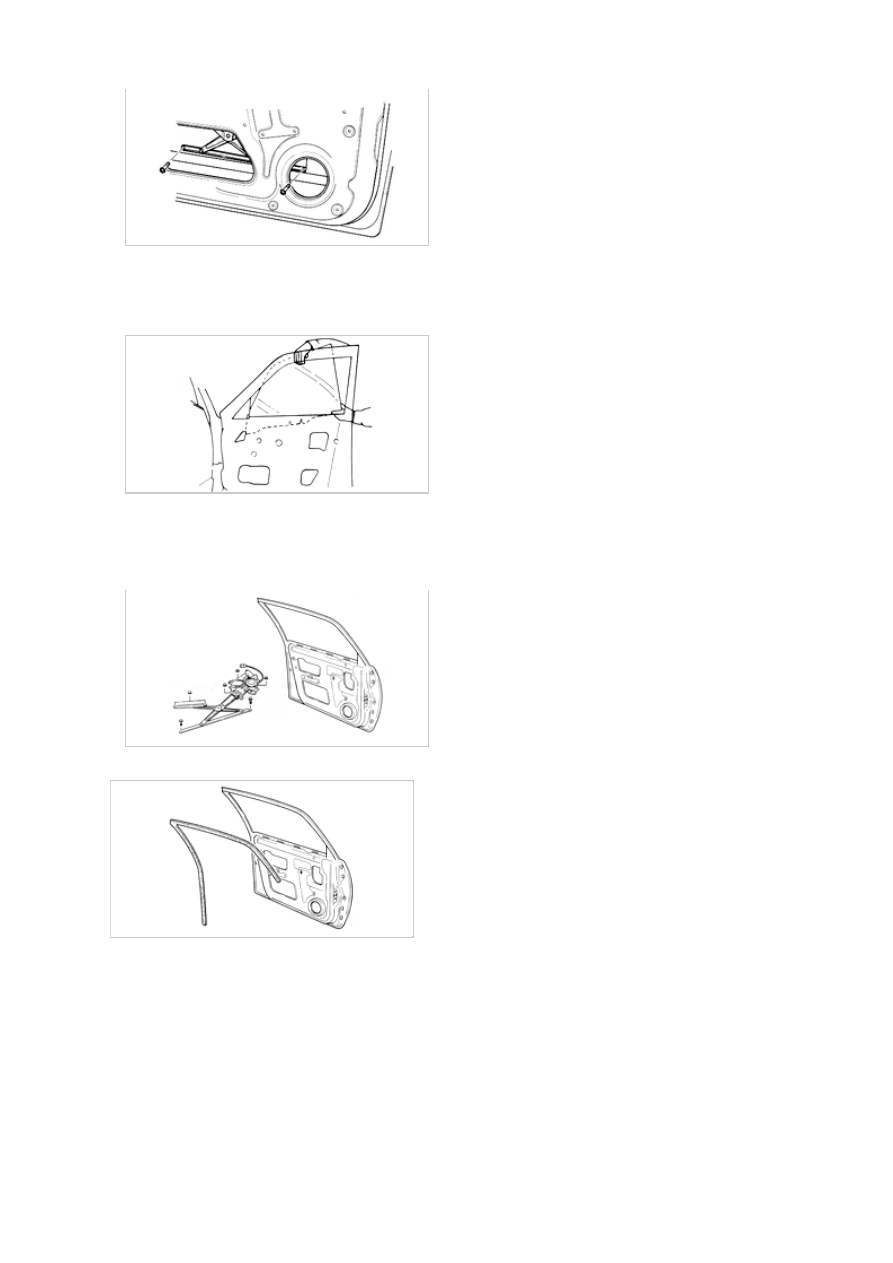

8. Remove window glass.

A. Reconnect window operating switch.
B. Turn ignition "ON" and position window glass on speaker access hole.

C. Turn ignition "OFF".
D. Remove two glass mounting bolts from power window regulator.

E. Remove glass carefully; hold glass from both its inner and outer surfaces. While tilting it toward hinge

side of door, pull it out from outisde door frame.

9. Remove regulator assembly.

A. Disconnect electric connector for regulator assembly motor.
B. Remove six nuts on door frame.

C. Remove regulator assembly from out of access hole.

10. Remove run channel.

11. Remove glass guide.

A. Remove one bolt and one nut on glass guide.
B. Remove glass guide from access hole.
