1. Check for following and repair or replace as necessary.

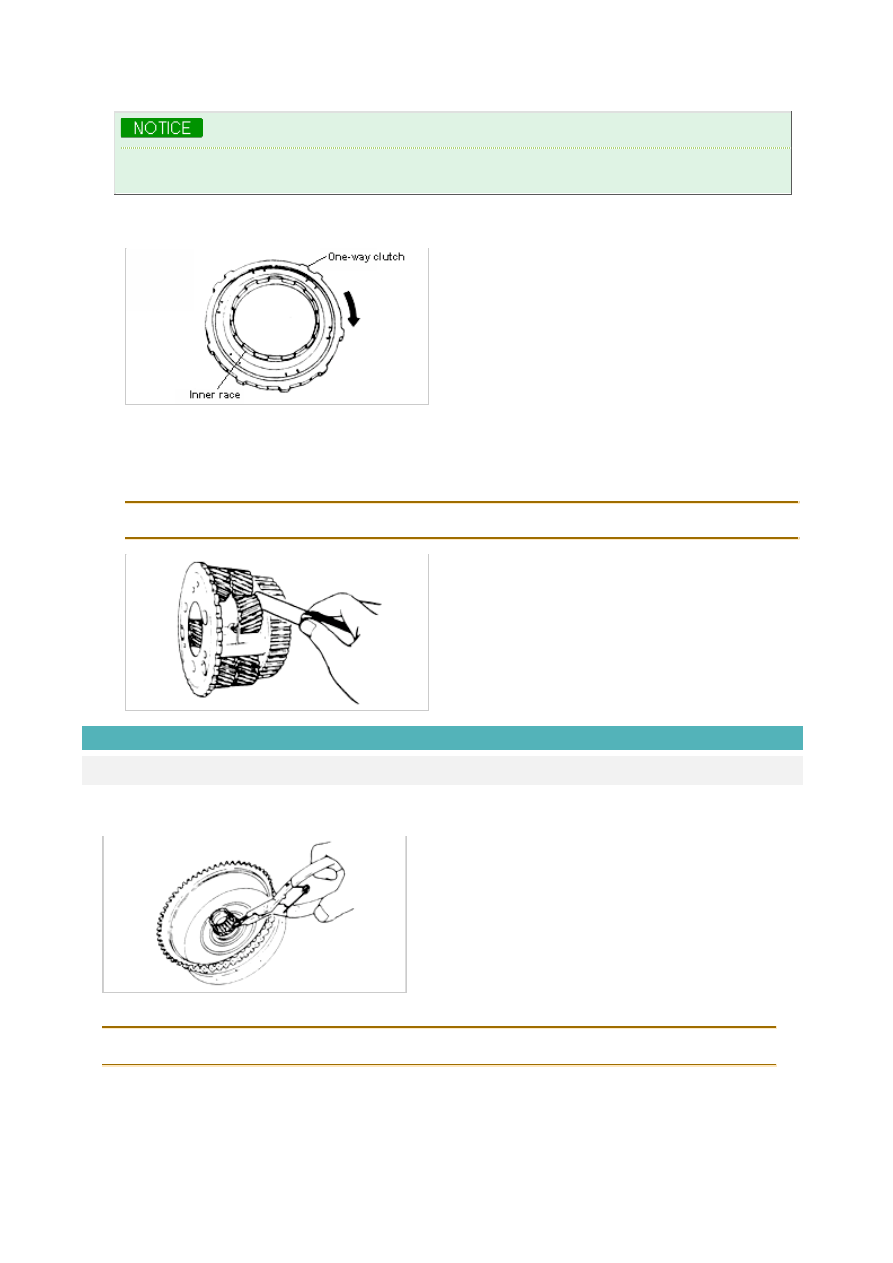

Assembly one-way clutch and inner race, then verify that one-way clutch rotates only clockwise and
smoothly.

A. Damaged or worn one-way clutch and operation.
B. Detached roller.

Planetary carrier

1. Check for following and repair or replace as necessary.

A. Damage or worn gear and operation.
B. Clearance between pinion washers and planetary carrier.

Clearance : 0.008~0.028 in (0.2~0.7 mm)

Reassembly

One-way clutch No. 1

1. Install small sun gear into sun gear drum.

2. Install new snap ring.

3. Apply petroleum jelly to thrust bearing, and secure it to one-way clutch inner race.

Thrust bearing outer diameter : 3.39 in (86.0 mm)

Install one-way clutch into outer race with spring cage facing as shown.

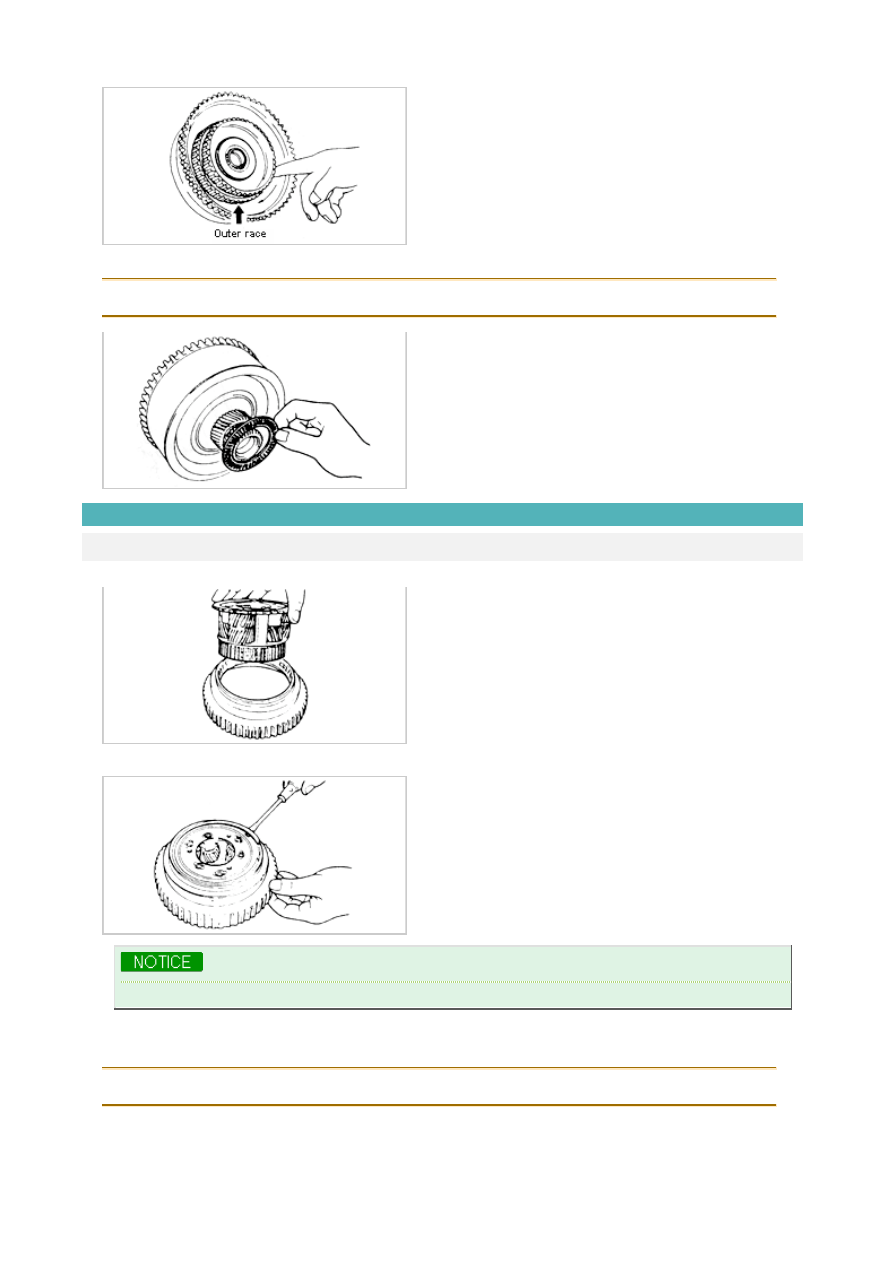

4. Install one-way clutch No. 1 into one-way clutch outer race.

Align splines of one-way clutch inner race and small sun gear clutch hub.

5. Install one-way clutch inner race into one-way clutch outer race by tuming inner race counterclockwise.

6. Hold one-way clutch outer race. Verify that the inner race turns only counterclockwise.

7. Install new snap ring.

8. Verity that when small sun gear is held, one-way clutch outer race turns smoothly and only clockwise.

9. Apply petroleum jelly to thrust bearing, and secure it to sun gear drum.

Thrust bearing outer diameter : 3.39 in (86.0 mm)

Reassembly

One-way clutch No.2 and planetary carrier assembly

1. Assembly planetary carrier to inner race.

2. Install snap ring.

Install tangs of bearing race into alignment holes.

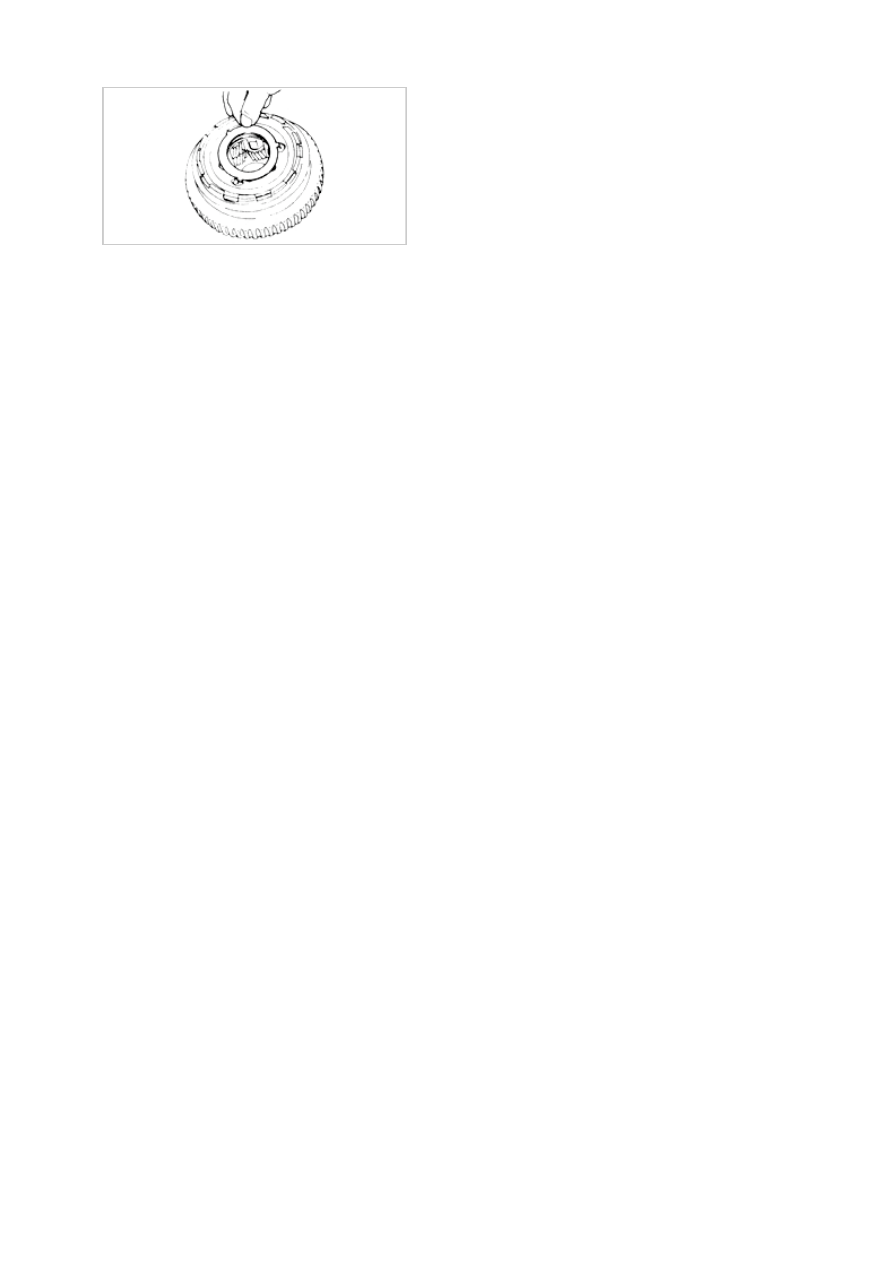

3. Apply petroleum jelly to bearing race and secure them to each side of one-way clutch No. 2 and planetary

carrier assembly.

Bearing race outer diameter - Sun gear drum side : 3.307 in (84.0 mm)
