N-D accumulator

1.176 (29.87)

0.862 (21.91)

N-R accumulator

1.176 (29.87)

-

2. Install acuumulator pistons and springs.

3. Install stopper and snap ring.

  2001 > 1.8L DOHC >



Symptom related diagnostic procedure

Quick diagnosis chart

The Quick Diagnosis Chart shows various problems and relationship of various components that may be cause.

1. Components indicated in "Self-diagnosis" row are diagnosed by transaxle control module self-diagnosis function.

The Data Link connector can be used for retrieving diagnostic trouble codes with a scan tool (0K2A1 089 AA0).

2. Components indicated in "Adjustment" row indicate that there is a possibility that the problem may be result of an

incorrect adjustment. Check adjustment of each component, and readjust if necessary.

3. Input and output signals of transaxle control module for components indicated in "transaxle control module" row can

be checked by using a voltmeter in back of transaxle control module.

4. Components indicated in "Stall Test" row can be checked for malfunction by results of stall test.

5. Components indicated in "Time Lag Test" rew can be checked for malfunction by results of time lag test.

6. Components indicated in "Oil Pressure Test" row can be checked for malfunction by results of oil pressure test.

7. Components indicated in "Road Test" row can be checked for malfunction by results of road test.

8. The checking adjusting, repair or replacement procedures for each component is described in page noted in

"Reference Page" column.

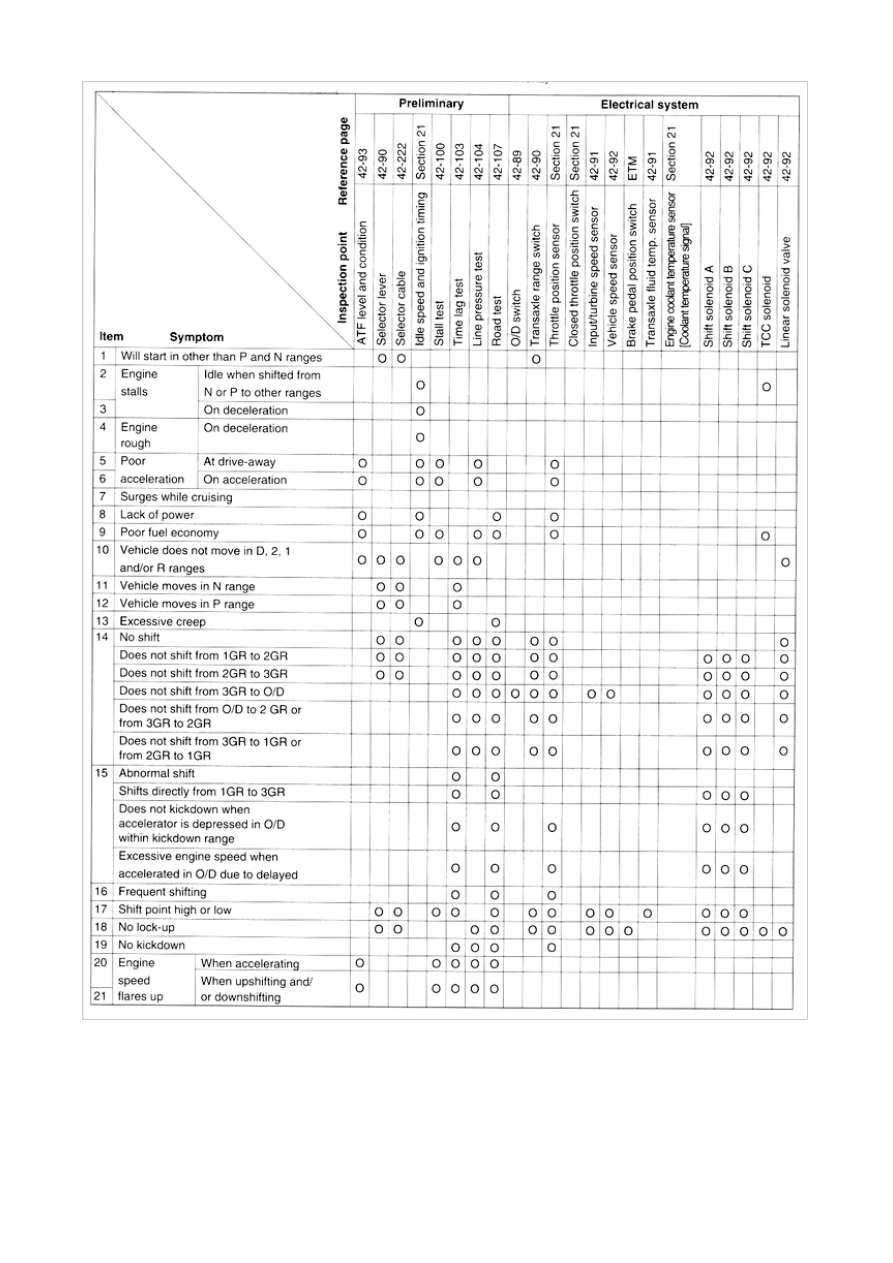

Quick Diagnosis Chart (I)

* ETM (ELECTRICAL TROUBLESHOOTING MANUAL)

Quick Diagnosis Chart (II)

QuickDiagnosis Chart (II)

Quick Diagnosis Chart (II-2)
