6. Install detent lever and return spring.

7. Install parking assist lever.

8. Install lever holder and bolt.

Tightening torque : 69.6~94.8 lb-in (7.9~10.7 N·m, 80~110 kg-cm)

9. Install manual shaft and manual plate.

A. Install manual plate, washer, and nut.
B. Tighten nut to specified torque.

Tightening torque : 31~40 lb-ft (42~54 N·m, 4.2~5.6 kg-m)

10. Install differential assembly into converter housing.

Install SST (0K201 270 014) or equivalent.

11. Install a new oil control ring onto output gear assembly.

12. Install output shell to output gear and install bearing race onto output shell.

Thrust bearing outer diameter : 2.84 in (72.1 mm)

13. Apply a thin coat of silicone sealant (TB-1217B) to contact surfaces of converter housing and transaxle case.

14. Install new O-rings onto converter housing.

Insure that sealer will not be forced into oil passages when transaxle case is installed.

15. Mount transaxle case to converter housing.

Tightening torque : 28~38 lb-ft (38~51 N·m, 3.8~5.3 kg-m)

16. Install SST (0K201 190 019) to hold turbine shaft.

17. Install turbine shaft and 3-4 clutch assembly.

A. Assemble turbine shaft and 3-4 clutch assembly.

B. Verify that thrust bearing is properly installed.

C. Install turbine shaft and 3-4 clutch assembly into transaxle case as an assembly.

18. Install internal gear.

A. Install internal gear to output shell.
B. Install snap ring.

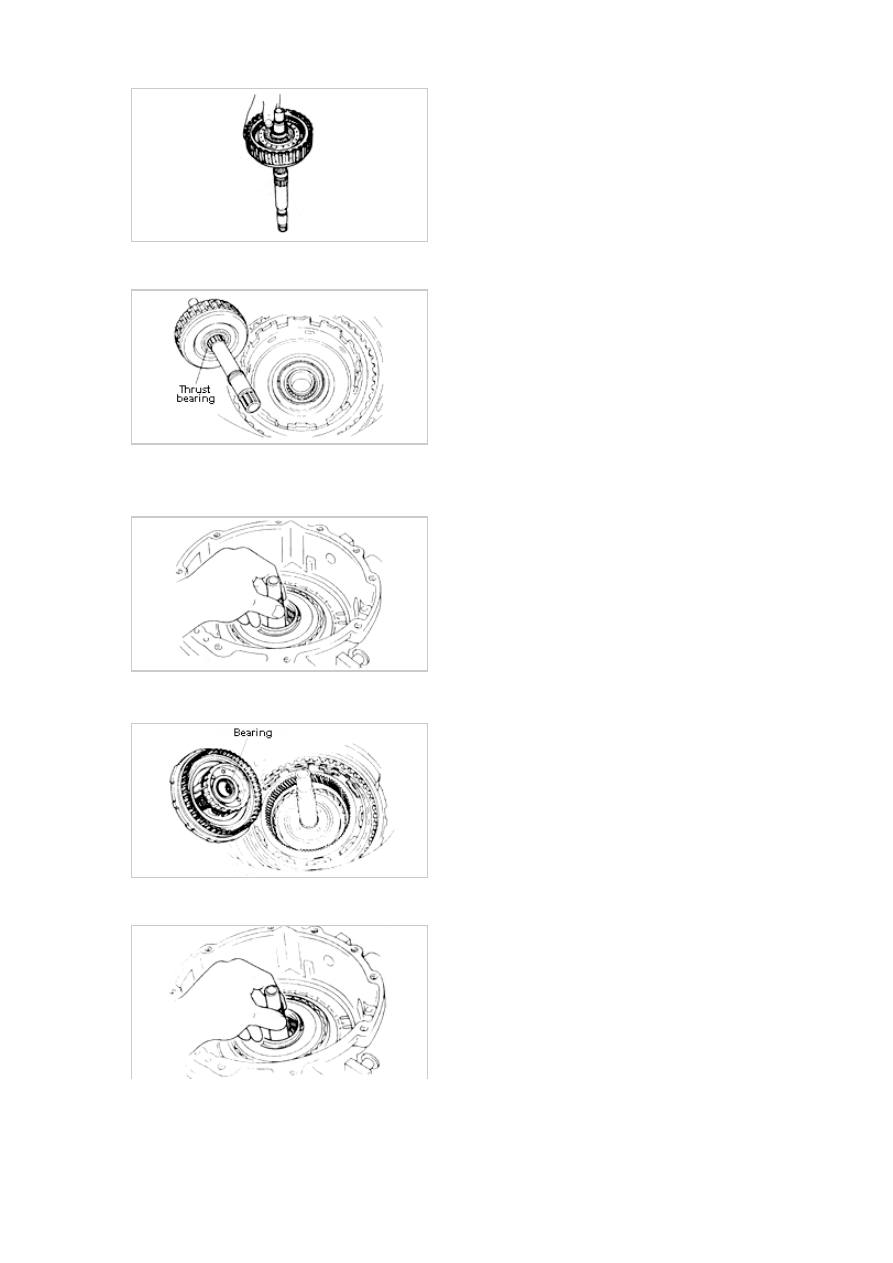

19. Install planetary carrier assembly.

A. Verify that thrust bearing and bearing race are properly installed.

B. Hold turbine shaft with one hand to prevent it from rotating.

C. Install planetary carrier assembly into 3-4 clutch drum by rotating it.

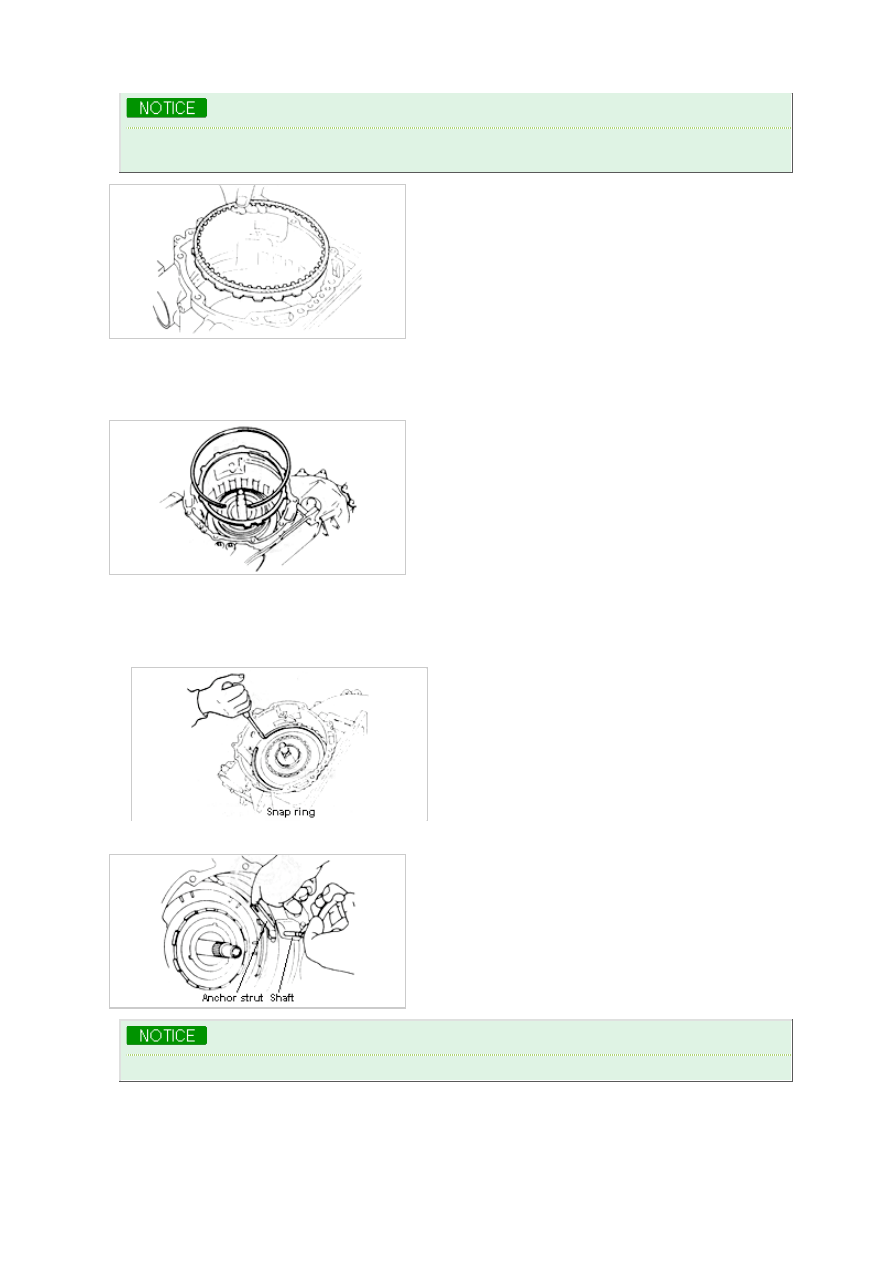

20. Install low and reverse brake drive and driven plates (four each).

Installation order :
Driven-Drive-Driven-Drive-Driven-Drive-Driven-Drive

21. Install retaining plate.

22. Install snap ring.

23. Install friction plate.

24. Install one-way clutch No. 2.

A. Hold one-way clutch No. 2 horizontally.
B. Install it by turning planetary carrier counterclockwise.

C. Install snap ring.

25. Install anchor strut and shaft.

Interlock 2-4 brake band and anchor strut as shown.

26. Install 2-4 brake band in transaxle case so that it is fully expanded.
