Bearing

1. Inspect for wear and rough rotation. If bearing is removed then replace it and bearing race together, and

adjust bearing preload.

Assembly note

Bearing (ring gear side)

1. Install new bearing by using SST(0K011 270 A02).

Bearing (ring gear opposite side)

1. Install speedometer drive gear.

2. Install new bearing by using SST(0K011 270 A02).

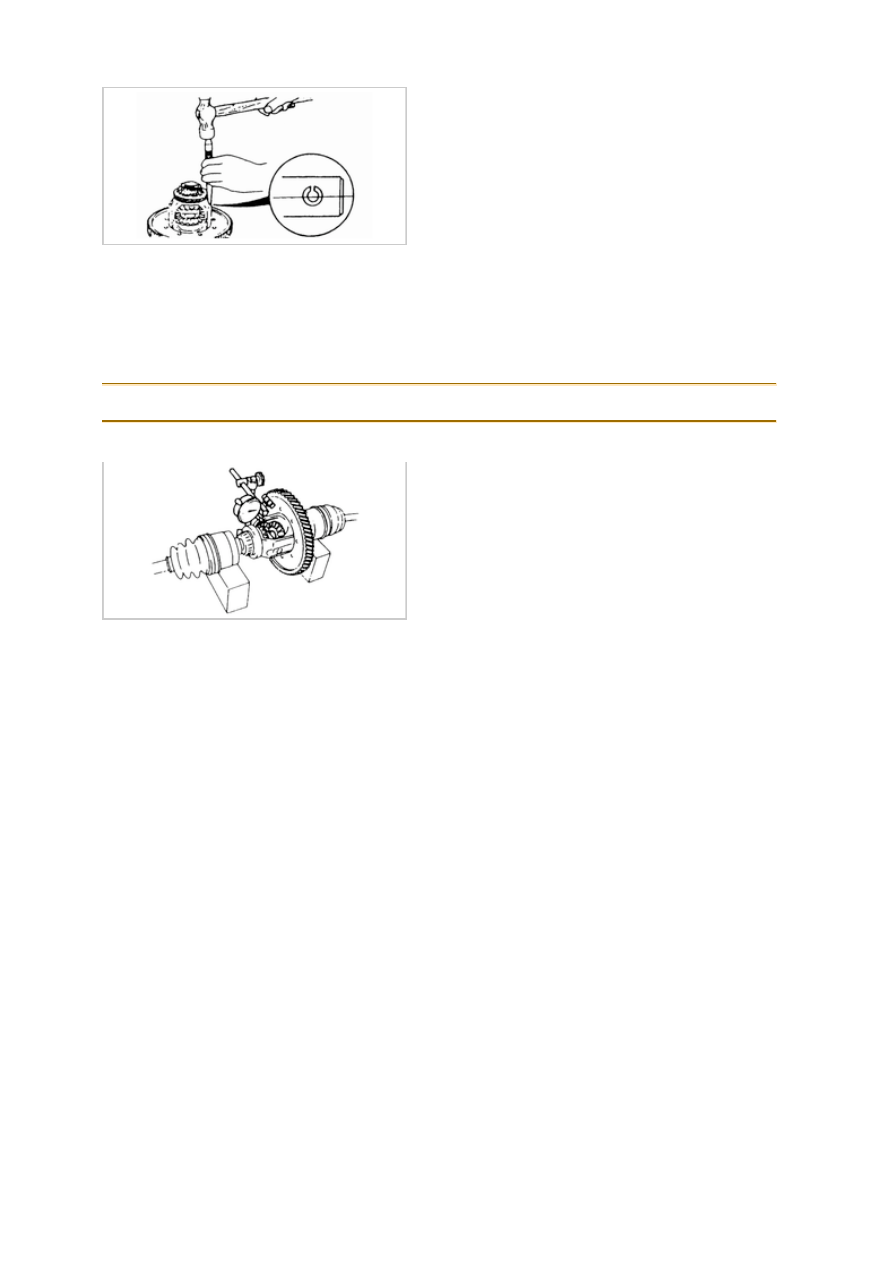

Roll pin

1. Install new roll pin as shown in figure to hold pinion shaft.

Backlash of side gear and pinion gear

Measure backlash by following procedure :

1. Install left driveshaft and right joint shaft in differntial assembly.

2. Support shafts on V-blocks as shonw in figure.

3. Measure backlash of both pinion gears.

Backlash : 0.002 ~ 0.006 in (0.05~0.15 mm)

4. If not as specified, replace worn and damaged parts.

Manual Transaxle System

Manual Transaxle Shift Control

Manual Transaxle System

  2001 > 1.8L DOHC >



Component
