Tightening torque : 28~38 lb-ft (38~51 N·m, 3.8~5.3kg-m)

10. Install SST(0K130 171 A05) to secondary shaft gear assembly.

11. Connect torque wrench to SST(0K130 171 A5) and measure preload.

Preload : 1.8~3.4 lb-in (0.2~0.4 N·m, 2.0~4.0 kg-cm)

Manual Transaxle System

Manual Transaxle Case

Manual Transaxle System

  2001 > 1.8L DOHC >



Component

  2001 > 1.8L DOHC >



Disassembly

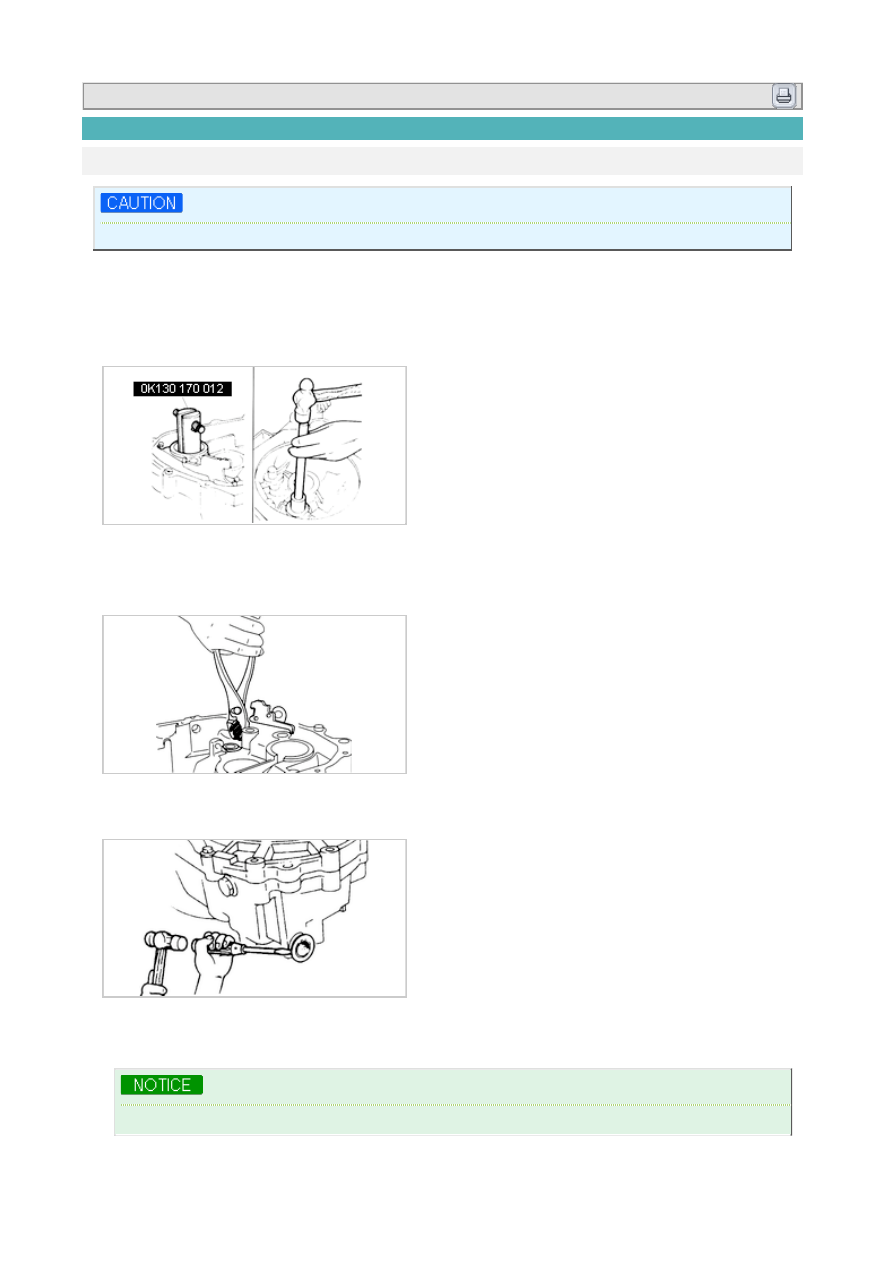

CLUTCH housing and transaxle case

Do not remove an oil seal if not necessary.

1. Disassemble in order on figure, refer to Disassembly note.

2. Assembly will be in reverse order of disassembly.

Bearing outer race(primary shaft side)

1. Remove bearing outer race by using SST(0K130 170 012).

Reverse lever shaft

1. Remove roll pin using pliers.

2. Protect reverse lever shaft with rag and remove shaft with pliers.

Oil seal (Change rod)

1. Remove oil seal with screwdriver.

Funnel and bearing outer race(Secondary shaft)

1. Remove bearing outer race by lifting out funnel and race together.

Remove bearing outer race with screwdriver if necessary.
