7. Reconnect connector correctly to fuel delivery module.

8. Position wire and secure to floor with cushion tape.

9. Install rear seat cushion.

10. Reconnect negative battery cable.

Fuel System

Fuel Delivery System - Fuel Line

Fuel System

  2001 > 1.8L DOHC >



Removal

FUEL IS EXPLOSIVE.WHEN WORKING ON FUEL SYSTEM MAKE SURE TO SUPPLY ADEQUATE
VENTILATION TO THE WORK AREA. DO NOT SMOKE, AND KEEP SPARKS AND OPEN FLAMES
AWAY.

It may be necessary to remove other chassis brackets in order to gain access to fuel lines. If this is necessary,
Refer to the appropriate sections for removal procedures.

1. Disconnect negative terminal from battery cable.

2. Loosen six retaining racket screws and remove two fuel lines from each bracket, one at a time, until two fuel

line are free from brackets.

3. Loosen fittings at ends of fuel lines and carefully slide lines through undercarriage of vehicle chassis until

they can be fully taken away from fixtures by taking off fastening clips.

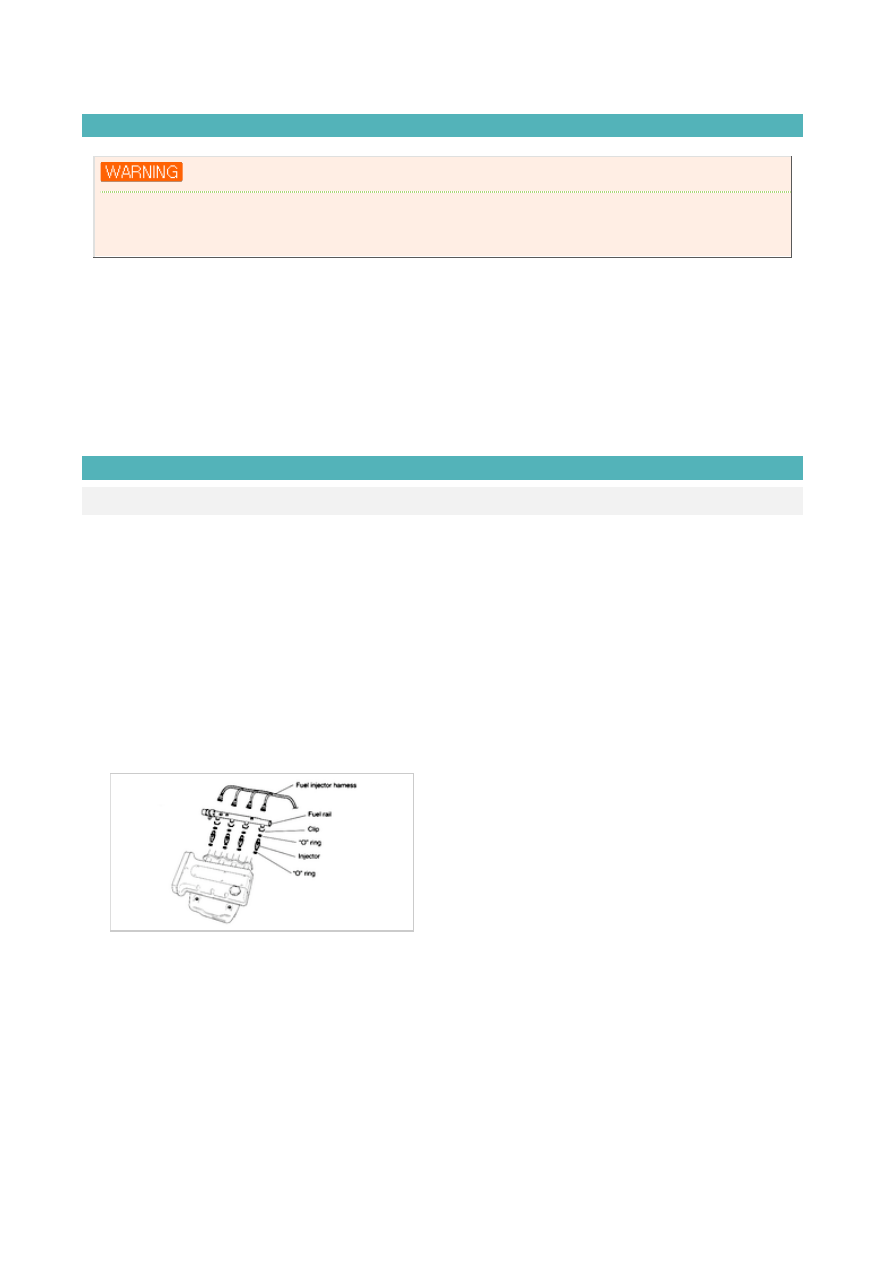

Removal

Fuel rail

FUEL IS EXPLOSIVE. WHEN WORKING ON FUEL SYSTEM PARTS, MAKE WURE TO FUPPLY
ADEQUATE VENTILATION TO THE WORK ATEA. DO NOT SMOKE, AND KEEP SPARKS AND OPEN
FLAMES AWAY.

Make sure that fuel injectors are firmly seated into fuel rail to prevent movement and possible damage.

1. Depressurize fuel system. Refer to"Releasing fuel system pressure".

2. Disconnect negative battery cable.

3. Disconnect four injector connectors.

4. Disconnect fuel line quick connector from fuel rail.

5. Remove accelerator cable bracket two bolts and one nut

6. Disconnect accelerator cable.

7. Remove two bolts attaching fuel tail to intake manifold.

8. Remove two fuel rail assembly.

9. Remove four retaining clips attaching fuel injectors to fuel rail.

10. Remove two fuel injector insulators.

11. Remove fuel pulsation damper.

12. Clean mating surfaces.

Installation

FUEL IS EXPLOSIVE. WHEN WORKING ON FUEL SYSTEM, MAKE SURE TO SUPPLY ADEQUATE
VENTILATION TO THE WORK AREA. DO NOT SMOKE, AND KEEP SPARKS AND OPEN FLAMES
AWAY.

It may be necessary for transaxle assembly and other chassis brackets to be removed in order to reinstall fuel
lines. Ifthis is true, refer to appropriate sections for removal and reinstallation procedures.

1. Reinsert fuel lines carefully into each of six retaining brackets along undercarriage of vehicle chassis until all

fuel lines have been properly positioned into place.

2. Tighten six bracket retaining screws.

3. Reconnect fuel lines/hoses.

4. Install clips to fasten fuel lines/hoses to fittings.

5. Connect negative terminal to battery cable.

Installation

Fuel rail

1. Install and tighten pulsation damper.

2. Install two injector insulators.

3. Install injector into fuel rail and reinstall four retaining clips.

4. Install fuel tail and tighten two bolts.

5. Reconnect accelerator cable.

6. Install and tighten accelerator cable brakcket two bolts and one nut do dynamic chamber.

7. Reconnect fuel line quick connector.

8. Reconnect four injector connectors.

9. Reconnect negative battery cable.

10. Start vehicle and check for leaks.
